Detachable Panel for Easy Use

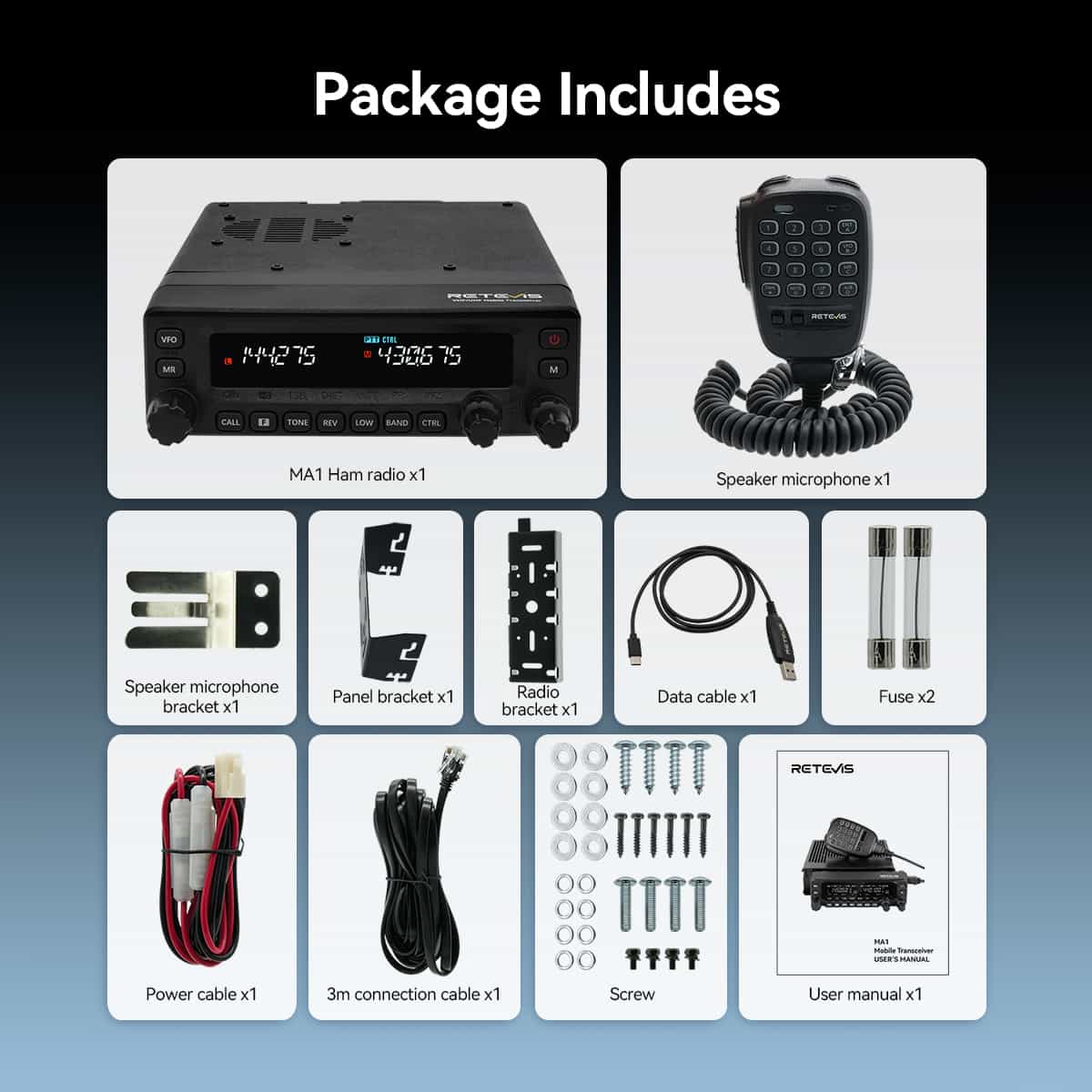

Note: The standard package includes a programming cable.

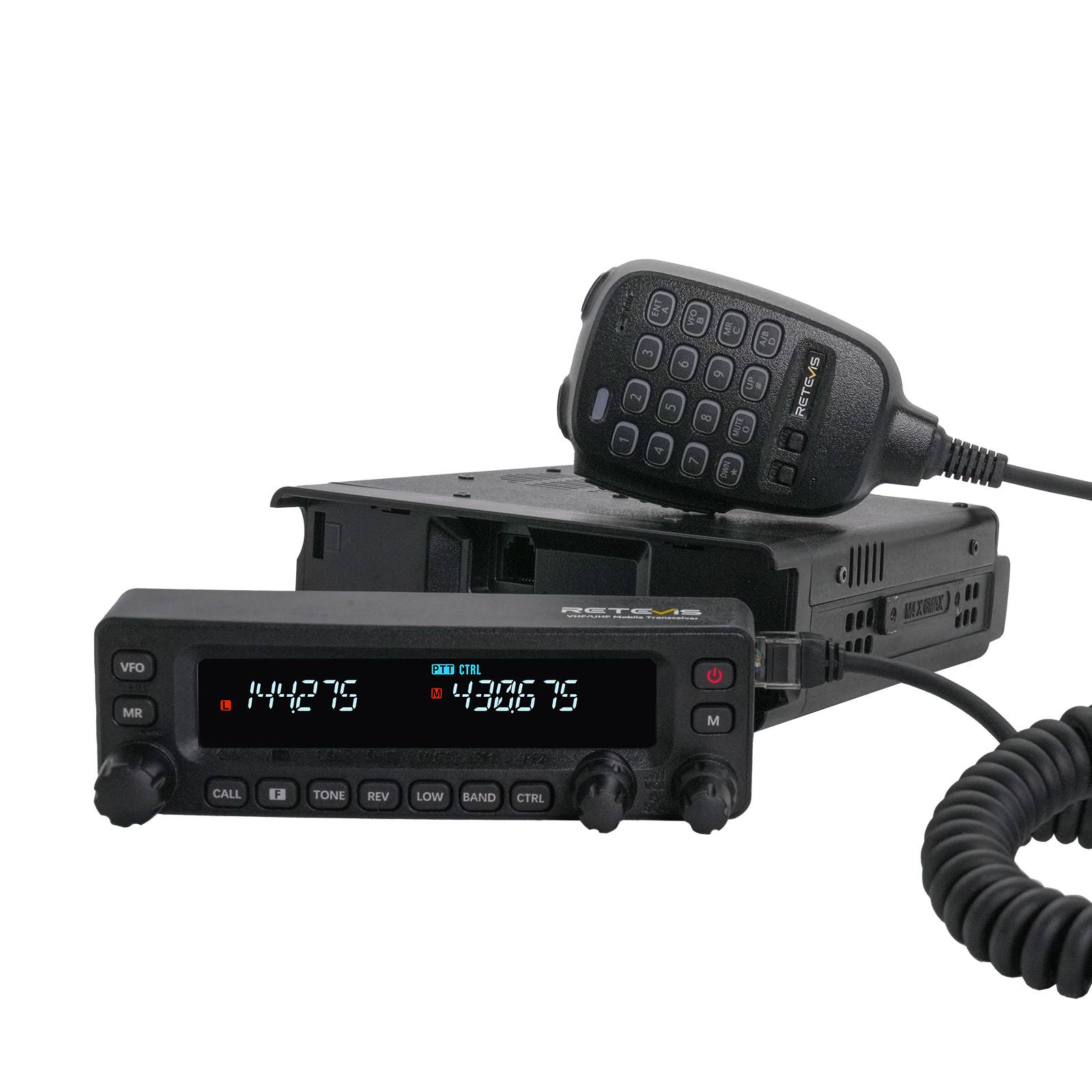

Retevis MA1 50W high power ham mobile radio supports control panel detachment, which is easy to use; 50W high power and TX noise reduction make long-distance communication smooth and clear. Multi-band reception provides you with a variety of listening experiences. The superheterodyne receiver has good sensitivity, frequency stability and selectivity. Whether it is camping, traveling or competing, MA1 will be your better partner. In addition, Retevis MA1 can be used as a cross-band base station to extend the communication range.
The Retevis MA1 mobile radio has a detachable front panel which supports 180° flipping, making it easy to check and adjust the ham car radio at any time, effectively preventing speaker damage, and making the sound clearer when driving; the ham mobile radio transceiver supports random single operation, equipped with a separate 3m connection cable, and the large car radio speaker can be placed under the seat, on the pillar behind the seat, etc., which increases the ease and convenience of daily use.
The Retevis MA1 is a long-range ham radio with a powerful 50W(UHF) /40W(VHF) TX power that can provide a stable signal; when traveling or in emergency rescue, MA1 can achieve smooth long-distance communication no matter how far away the members are.
The Retevis MA1 amateur radio transceiver supports multi-band reception, provides extended receiver coverage beyond the Amateur bands, so you can keep informed of communication activities in the public safety, commercial, aircraft, and government communications ranges. including 2m, 70cm, FM, AM and air band frequencies. Retevis MA1 will provide you with a wider range of communications information when your phone loses signal.
For emergency work or to extend the range of a handheld, the Retevis MA1 adds cross-band relay, allowing transmissions at long range to ensure consistent communications. When used with a handheld, it helps you extend your range and communicate smoothly with workers at long distances.
Retevis MA1 mobile two way radio uses a superheterodyne receiver, which has strong anti-interference ability, high receiving sensitivity, and stable transmission signal; the MA1 mobile radio achieves stable communication without worries, and always maintains smooth and clear communication with members on the road.
Retevis MA1 HAM radio supports TX noise cancellation, which can effectively reduce background noise and ensure transmission clarity, even in noisy emergency situations, it can also carry out clear and bright communication without affecting timely rescue missions.
The Retevis MA1 dual band ham radio can display and view both 2m and 70cm frequencies simultaneously, increasing communication flexibility and efficiency
The LCD screen displays frequency information intuitively, and function setting changes are simple and clear; in addition, the included 8-level adjustable brightness provides clear reading during the day and at night
The MA1 radio has a multi-function speaker microphone. The microphone is equipped with a full keyboard and function keys. Users can set functions and change frequencies directly on the microphone without having to pay much attention to the MA1 radio, reducing the risk when driving on the road
Retevis MA1 ham radio base station includes 2 independent adjustment knobs; separately control the dual band frequencies,without affecting each other;operation is more convenient.
FM radio allows you to receive news and listen to music at your leisure, making for a relaxing and enjoyable highway drive.
One-touch mute helps you quickly turn off the volume of the amateur radio; when you need to talk to others, you can long press the mute button to mute (long press the mute button again to cancel the mute)
MA1 mobile radio supports high, medium, and low power adjustment. Shortly press the Low key to choose the needed power flexibly.
800 channels: Retevis MA1 mobile radio base station provides you with more channel choices, flexible and convenient communication with more people
Key lock function: The key lock function keeps the amateur radio settings unchanged to avoid misoperation
3-level auto backlight:mobile transceiver will automatically adjust the screen brightness based on the use environment; meeting different use
Model | MA1 |
General |
Channel capacity: 999
|
Channel spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50/100KHz
|
|
Modulation type: F3E
|
|
Antenna impedance: 50Ω
|
|
Frequency stability: ±5ppm @(-10℃-+60℃)
|
|
Working voltage: DC: 13.8V (±15%)
|
|
Receiving current: <0.5A;
|
|
Transmission current: < 9A (power=50W/40W)
|
|
Working temperature: -20℃~+60℃
|
|
Dimension: 140×43×215mm
|
|
Weight: 1100g
|
|
PCB type: Double conversion Super-heterodyne
|
|
Medium Frequency: 38.85MHZ/450KHz (Left band)
|
|
Receiver
|
Receive Frequency Range: VHF:108-174Mhz, UHF: 400-480Mhz;
Receive & Transmit :144-148MHz, 420-450 MHz
Aviation frequency: AM 108-136Mhz;
FM Radio: 64-108Mhz
|
49.95MHZ/450KHz (Right band)
|
|
Sensitivity: 0.8uV for 12dB SN ( 108MHz ~ 134MHz, AM )(Left band)
|
|
0.2uV for 12dB SN ( 136MHz ~ 174MHz, FM )
|
|
0.25uV for 12dB SN ( 168MHz ~ 180MHz, FM )
|
|
0.2uV for 12dB SN ( 400MHz ~ 480MHz, FM )
|
|
0.25uV for 12dB SN ( 480MHz ~ 520MHz, FM )
|
|
Squelch sensitivity: 0.16uV
|
|
Selectivity: 2KHz/30KHz (-6dB/-60dB )
|
|
Audio output: 8Ω, 2W
|
|
Audio distortion: <5%
|
|
AF output impedance: 4~16Ω
|
|
RF Power Amplifier: RF Power Mosfet
|
|
Output power: VHF:50W/20W/5W; UHF:40W/20W/5W
|
|
Transmitter
|
Transmit Frequency: VHF: 144-148Mhz;UHF: 420-450Mhz;
|
Modulation type: Variable Reactance | |
Modulation type: Variable Reactance
|
|
Max. modulation deviation: ≤5KHz/2.5KHz
|
|
Spurious emission: ≧ -60dB (144MHz/440MHz)
|
|
Microphone impedance: 2KΩ
|
FUNCTIONS & FEATURES
Excellent reports on transmissions (via repeater or simplex.)
Signal reports from other stations have been excellent citing full quieting signals and very good audio (see below.) This has been true whether contact was made via a repeater or simplex.
Overall, I really like the Retevis MA1. I've owned numerous dual band transceivers from Anytone, Radioddity, Kenwood, Yaesu and others over the years. The Retevis MA1 is, by far, the best one that I've owned.
I've been running the MA1 for a couple weeks and have been very happy with its performance. I expanded the frequency range on it and it now receives and transmits on FRS/GMRS/MURS as well! The Air Band is pretty great as well. I have a couple hundred 2m/70cm repeaters programmed. Many of them are instantaneous connections as the transmit is so powerful. All my radio checks return saying i'm super crisp and loud...astonishing as im transmitting w/ an indoor antenna from a middle floor in a concrete loft building with literally hi rises all around my location...hitting repeaters 30 miles away. The overall quality is excellent. Best display i've seen, and great programming software. The removable front face is also great as I transition from home to vehicle. Things I wish there was an improvement on: - The RJ11 phone-type jacks that connect the removable front face as well as the microphone should be replaced with something more robust. - The integrated speaker could be better. - The rubber protective face that covers the speaker ports and USB-C interface should be able to be completely removed, or a snap-off solution. - Drag and drop channel functionality on software would be beneficial. - A more comprehensive manual explaining the more advanced features would be nice. Other than that, its a super nice mobile radio that im very happy I own!
This radio is a work of art. The screen alone is so sharp and crisp. The radio is not overly complex but still has great options. UHF power for me came in at 42.3 UHF / 49.70 VHF, extremely powerful and has allowed me connections to repeaters others wouldn't. My only main complaint is waiting for CHIRP programming support. I have already reached out, and they informed me it's on the way and in the works. Their included software is not bad either. This brand has really taken off and now has products with very clean transmit, which is not guaranteed with some manufacturers. I am an Icom/Yaesu guy, but this radio meets all my needs and then some. I highly recommend this product, and I normally don't write reviews. I do, however, want to see more accessories around the product, such as faceplate bracket, etc… It is new, so I am sure they are working on some. Covers many bands related to UHF/VHF. FIVE HUGE STARS
After owning radios from all the big brands, I can confidently say the MA1 is hands down the best dual bander I've ever used. Retevis really nailed it!
I ordered this radio when it is released, maybe I am the first person to order it. The Retevis MA1 is performing very well but I've only had it for a few hours. It's not a cheap looking build and feels solid. Really high power 50Watts.
i am using this Retevis MA1 as a base station. I have a few HT but this is my first base/mobile unit. It can pick up weaker signals and reach more repeaters then the handhelds I have. I picked this transceiver because I wanted the remote head to let me mount the radio body by the antenna and have the controls on my desk. This radio does more then I need it to do for a really good price.
I'm using this Radio as a Base Station and I'm able to reach Repeaters as far as 40 miles away consistently. The scan feature allows me to hear conversations on 12 repeaters. Programming manually isn't and issue. After using this radio as a base for several months, I'm looking for a Quad Band that includes the 220 mhz. instead of 6 meters that has no repeaters in my area.
I purchased this to be used as a cross band repeater. Simple set up. Works great.
I am not sure what or why some of the feature ratings really apply. How do you judge sheerness or thickness? Well, the radio is not all that thick, maybe less than 2 inches. Size wise it is good for a mobile radio as it has the detachable front. But I am using it as a base station with a TekPower 23 amp power supply and it seems to be doing great. However, this one seems to be doing really well as I mentioned. I would recommend it as there are not that many Quad band radios available for this price range. You could get one of the Quad Band radios which are 25 watts for about half the price, but then you may only get about 20 - 25 miles range.
I love it! Nice radio for the money. I noticed there are some issues from other people's reviews online. We will see... Good power output and very nice features. It is a good looking and good sounding radio..
Detachable faceplate and crossband repeater function is awesome.
Great Radio, easy to install, love having this within reach in the car.
I'm blown away by the signal reports I'm getting. Other operators consistently praise how clean and strong my transmissions sound!
Whether I'm on simplex or hitting repeaters, the audio is crystal clear with full quieting. It's like the person is right next to me!
Unbeatable price for the quality. Feels like a premium product at a budget cost.
Delivery was lightning-fast! Ordered in the morning, arrived the next day.
This is exactly what I needed. Fits my use case perfectly.
