Description

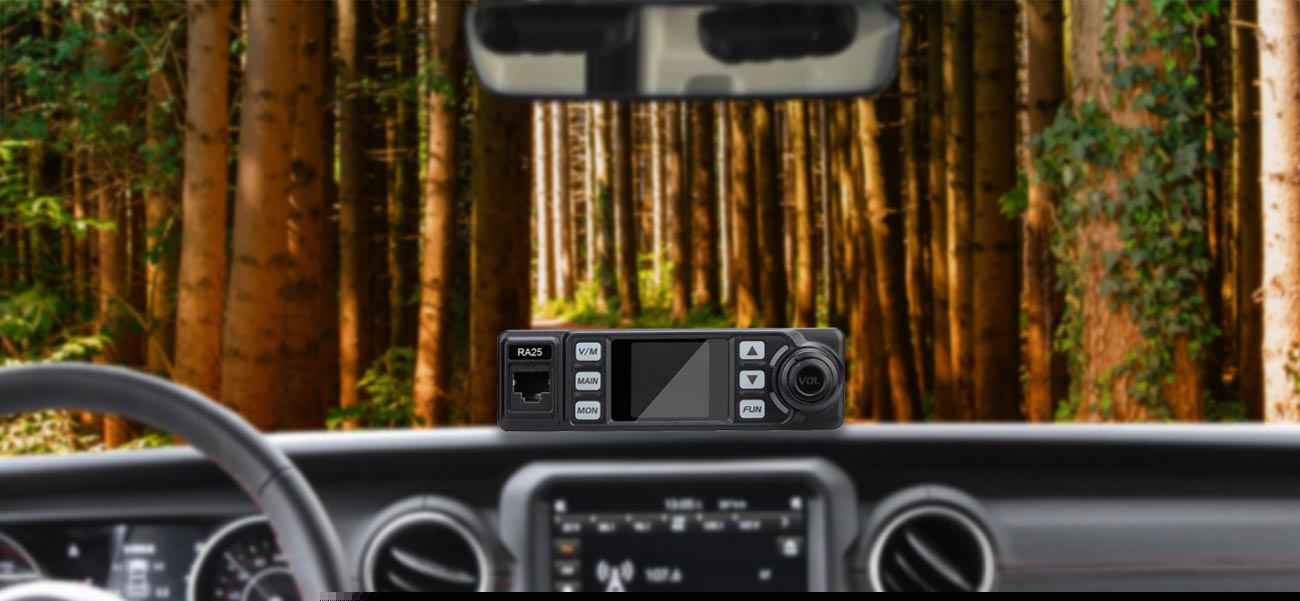

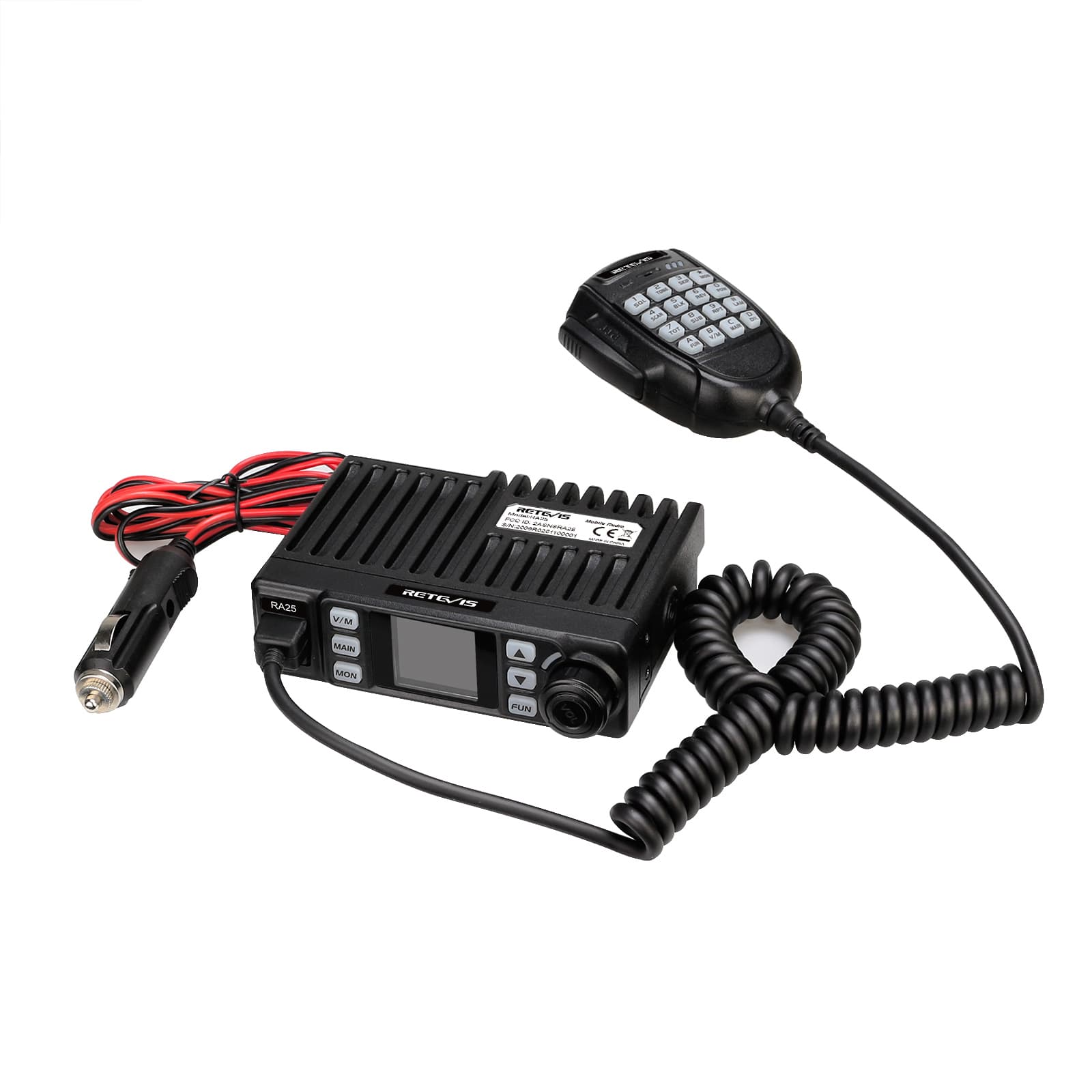

RA25 UHF&VHF Dual Band 20w Mobile walkie talkie
The easiest high-power car to obtain authorization
You may apply for a GMRS license if you are 18 years or older and not a representative of a foreign government. If you receive a license, any family member, regardless of age, can operate GMRS stations and units within the licensed system.
RA25 and repeater stations consistent
A GMRS licensee may use a combination of portable, mobile, fixed and repeater stations consistent with the operational and technical rules in Subpart E of FCC Part 95.
Other functions
- Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
- 1.44 Inch TFT display;
- 30 programmable memory channels, identified by editing name;
- CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel,
- 11 groups fixed code plus self define code;
- LCD brightness control;

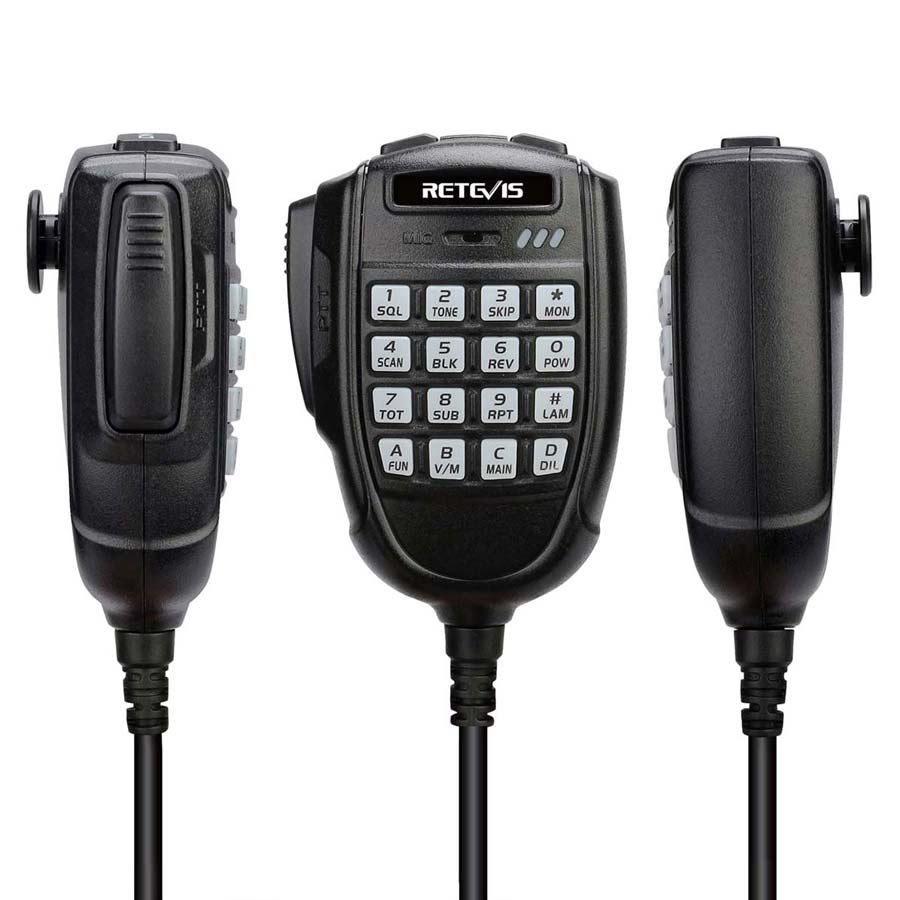

- Main unit and microphone key lock function;
- Compander function;
- Tone Pulse frequency;
Spec
| VHF:144-146MHz UHF:430-440MHz FM: 86.7-108MHz | |||
| Number of Channels | 500 channels | ||
| Channel Spacing | 25K (Wide Band) 12.5K (Narrow band) | ||
| Phase-locked Step | 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz | ||
| Operating Voltage | DC 13.8V±15% (Standard version)DC 12V (Optional version) | ||
| Squelch | Carrier/CTCSS/DCS/5Tone/2Tone/DTMF | ||
| Frequency Stability | ±2.5ppm | ||
| Operating Temperature | -20℃~+60℃ | ||
| Dimensions(mm) | 124x101x36mm | ||
| Weight | 0.45kg (mian unit) | ||
| RECEIVER | |||
| Wide band | Narrow band≤0.25μV | ||
| Sensitivity (12dB Sinad) | ≤0.25µV | ≤0.35μV | |
| Adjacent Channel Selectivity | ≥70dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Hum & Noise | ≥45dB | ≥40dB | |
| Audio distortion | <3% | ||
| Audio power output | > 2W@10% | ||
| TRANSMITTER | |||
| Wide band | Narrow band | ||
| Power Output | ≤20W | ||
| Modulation | 16KΦF3E | 11KΦF3E | |
| Adjacent Channel Power | ≥70dB | ≥60dB | |
| Hum & Noise | ≥40dB | ≥36dB | |
| Spurious Emission | ≥60dB | ≥60dB | |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~2.55KHz) | |
| Audio Distortion | ≤5% | ||
