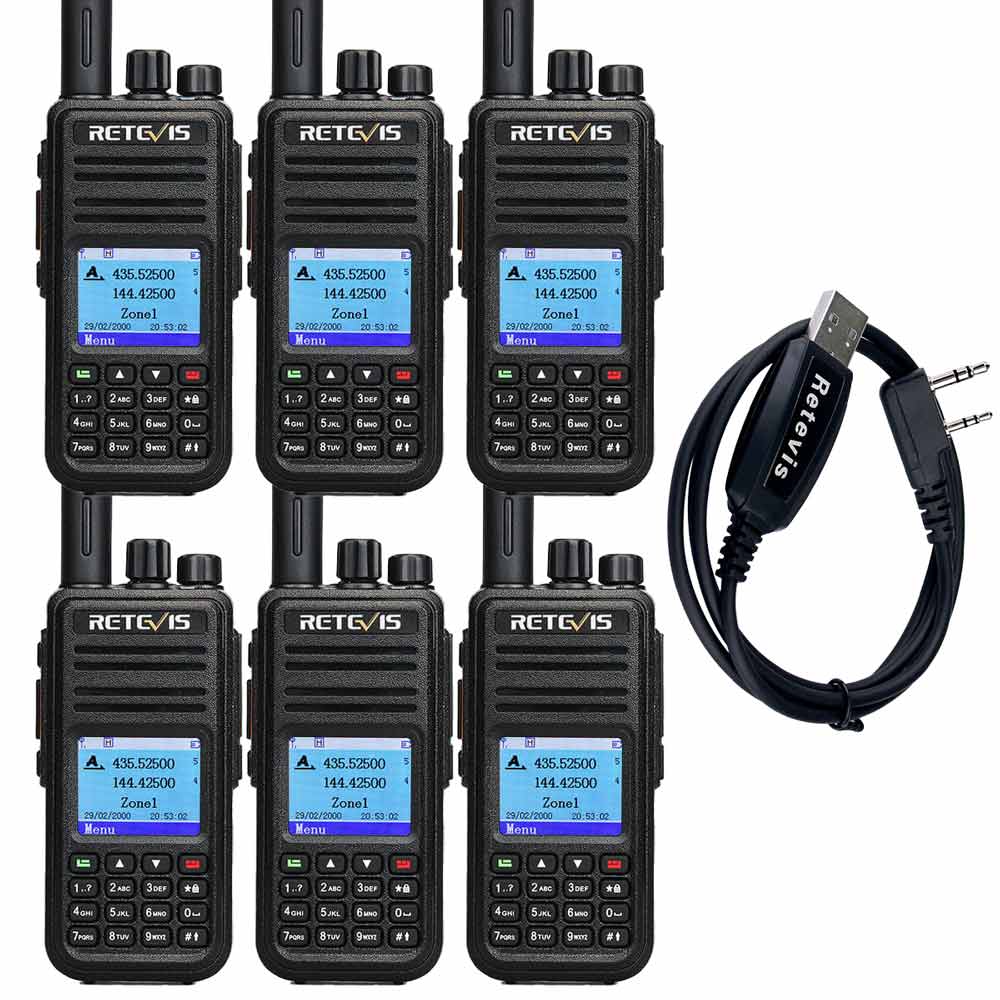

This bundle comes with the Retevis RT3S dual-band DMR radio and its programming cable, making it easy to customize the radio settings to your needs.
RT3S can complete 90% of the operations and replacements using the keyboard, and all settings can be completed using the program cable. Whether outdoors or in the company, RT3S can be set up according to the situation.
This two-way radio features UHF and VHF frequency and basic coverage of the frequency range of the 2m and 7cm bands; You need not to buy and carry both two VHF or UHF radios when you are travel. And it also help you connect more repeaters at the same time and monitor two channels at the same time.
Use time division to cut 1 channel into 2 Independent channels; You can get more channels and can have two calls in one channel
Choose Private/Group call match, then you can talk directly with the people in another group without the group restrictions;
Recording function support you to record enough important call content and listen to each call content repeatedly; DTMF keypad helps you quickly operate multiple repeaters and rely on this radio as your everyday carry.
This ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series radios using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF frequencies for easy migration to digital technology.
Note:RT3S can switch to VFO mode by long pressing the back button in MR mode.
General specifications | |
Frequency | 150-160 & 450-460MHz |
Channels | 3000 |
Frequency Stability | ±1ppm |
Operating Temperature | -30℃~+60℃ |
Operating Voltage | 7.4V DC |
Dimension | 131 x 61 x 36mm |
Weight | 258g (with battery) |
Battery Type | Li-ion |
Battery Capacity | 2000mAh |
Antenna Impedance | 50Ω |
Audio Impedance | 1W@16Ω |
Channel Spacing | 12.5KHz |
Vocoder | AMBE+2™ |
Transmitter | |
Power | High≤5W, Low≤1W |
Frequency Stability | ±1.0ppm |
Adjacent Channel Power | ≤-60dB |
Free Time Slot Power | TDMA:≤57dBm |
Hum and noise | -40dB@12.5KHz |
Spurious radiation | Antenna:9KHz-1GHz ≤-36dBm 1GHz-12.75GHz ≤-30dBm |
FM modulation mode | 11K0F3E@12.5KHz |
4FSK digital mode | 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW |
Modulation maximum deviation | 2.5KHz@12.5KHz |
Nonactive slot power | -57dBm |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Audio Response | +1~-3dB |
Modulation BER(bit error rate) | ≤5% |
Receiver | |
Analog Sensibility | 0.2µV@12dB SINAD |
Digital Sensibility | 0.25µV(BER:5%) |
Adjacent Channel Selectivity | ≤-60dB@12.5KHz |
Intermodulation | ≤60dB |
Spurious Response | ≥70dB |
Audio Response | +1~-3dB |
Rated Audio Distortion | <5% |
Rated Audio Power | 1W |
Modulation | ≥45dB@25KHz≥40dB@12.5KHz |
I've been hearing about DMR locally. Watched some You Tube videos and got interested in the mode late last year. The last radio club meeting had a local DMR repeater system guru give a presentation and that got me even more interested. I was ready to pull the trigger but put it off a little. Then an even better deal came along and I snatched this guy up.
I'm new to ham radio; just got my ticket 30 June of this year. All the talk on the local VHF/UHF (2 meter/70 centimeter)repeaters is DMR, so I decided to jump in head first with this radio as it was the most common one used and had all the rave reviews.
Purchased when on sale. There is a new model with GPS reportedly on the way.
Programming took some research initially, but now I find the RT3S very straightforward to use.
As my first DMR radio, the RT3S was perfect for learning digital modes. Great value for beginners.
This radio is built like a tank! The rugged construction can definitely handle daily use and accidental drops.
So much fun to use! Super intuitive—didn’t even need the manual.
Exactly as described. No surprises, just does what it’s supposed to.
Been using it for weeks now, zero problems. Works like a charm!
