Get it free:
- 1 x Six-Way Charger
- 1 x FTDI Programming Cable
Payment Methods
Delivery Method
Double-Certified for Global Reliability

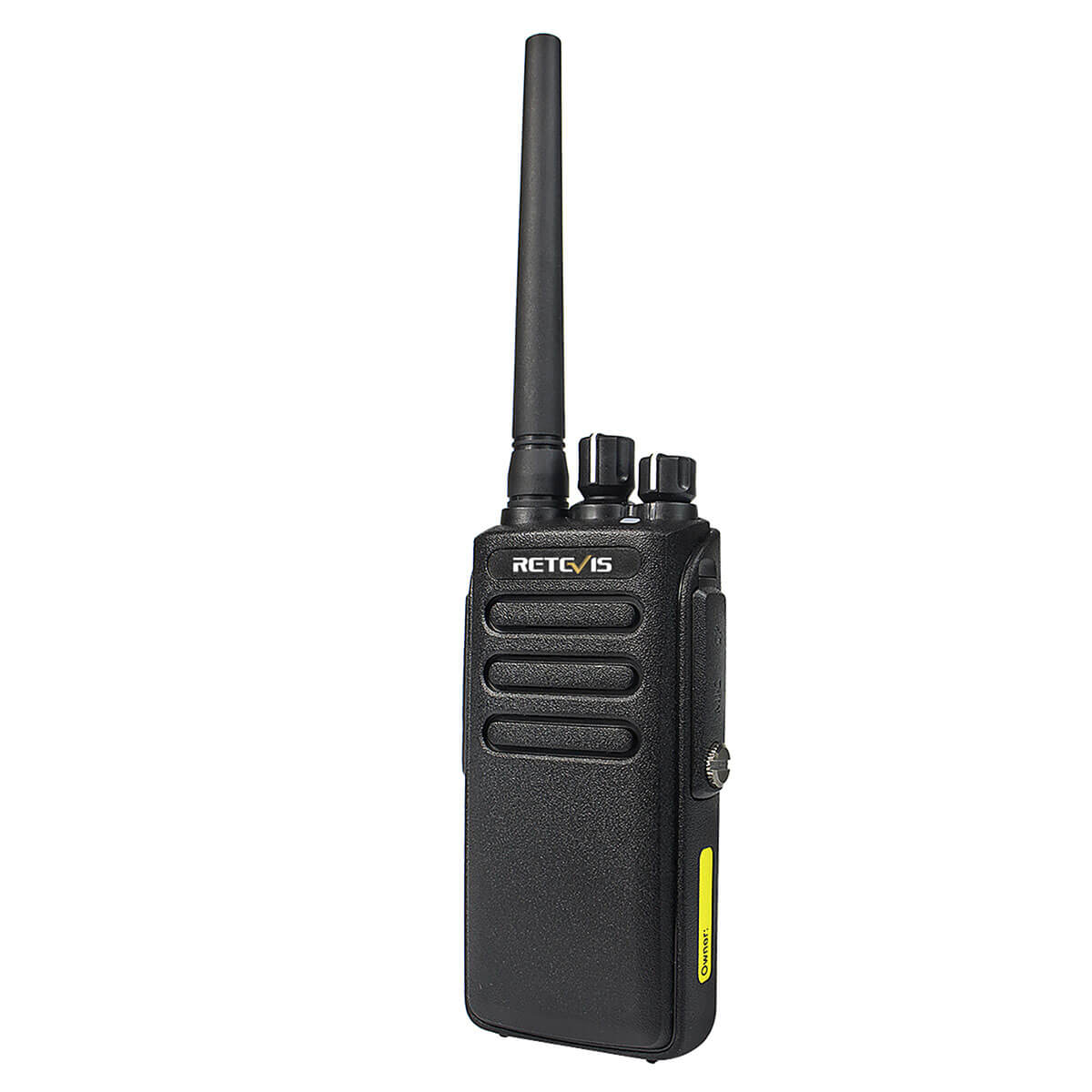

| Model | Retevis RT81 |
| Frequency | UHF 400-470MHz |
| Mode | Digital/Analog |
| Power | 10W |
| Channel capacity | 32(2 Zone, 16 channel per zone) |
| Zone | 2 |
| Working voltage | 7.4V |
| Working temperature | -30℃～+60℃ |
| Storage temperature | -40℃～+60℃ |
| Continuous working time | Analog：15 hours,Digital:25 hours |
| Battery capacity | 2200mAh |
| Weight(include battery) | 9.32oz/264g |
| Radio size(include battery) | 5.48x2.51x1.45in(139x64x37mm) |
| Receiver | |
| Channel spacing | 12.5/25KHz(Digital mode 12.5KHz) |
| Frequency stability | ±1.0ppm |
| Analog sensibility | 0.35µV/-116dBm(20dB SINAD) |
| 0.2µV/-120dBm(Typical) | |
| Digital sensibility | 0.3µV/-117.4dBm(BER5%) |
| 0.7µV/-110dBm(BER1% | |
| Spurious response | TIA03C:65dB |
| ETSI:65dB | |
| Adjacent channel selectivity | TIA603C:60dB@12.5KHz |
| ETSI:60dB@12.5KHz | |
| Spurious response suppression | TIA603C:70dB ETSI:70dB |
| Receiving spurious emissions | <-57dBm@1GHZ,>-47dBm |
| Blocking | 84dB |
| Rated audio power | 1W |
| Audio response | +1dB—-3dB |
| Rated audio distortion | ≤3% |
| Transmitter | |
| Channel spacing | 12.5/25KHz(Digital mode 12.5KHz) |
| Frequency stability | ±1.5ppm |
| TX power | Low:1W High:10W |
| FM noise | -40dB@12.5kHz |
| Spurious emission | <-36dBm@1GHz,>-30dBm |
| Adjacent channel selectivity | -60dB@12.5KHz |
| FM modulation mode | 12.5KHz:11FOF3E |
| 4FSK digital modulation mode | 12.5KHz(data only)7K60FX |
| 12.5KHz(data+voice)7K60FX | |
| Modulation limit | 2.5KHz@12.5KHz |
| Audio response | +1dB—-3dB |
| Rated audio distortion | ≤3% |
| Digital protocol | ETSITSI02361,-1,-3 |
| Vocoder type | AMBE+2TM |

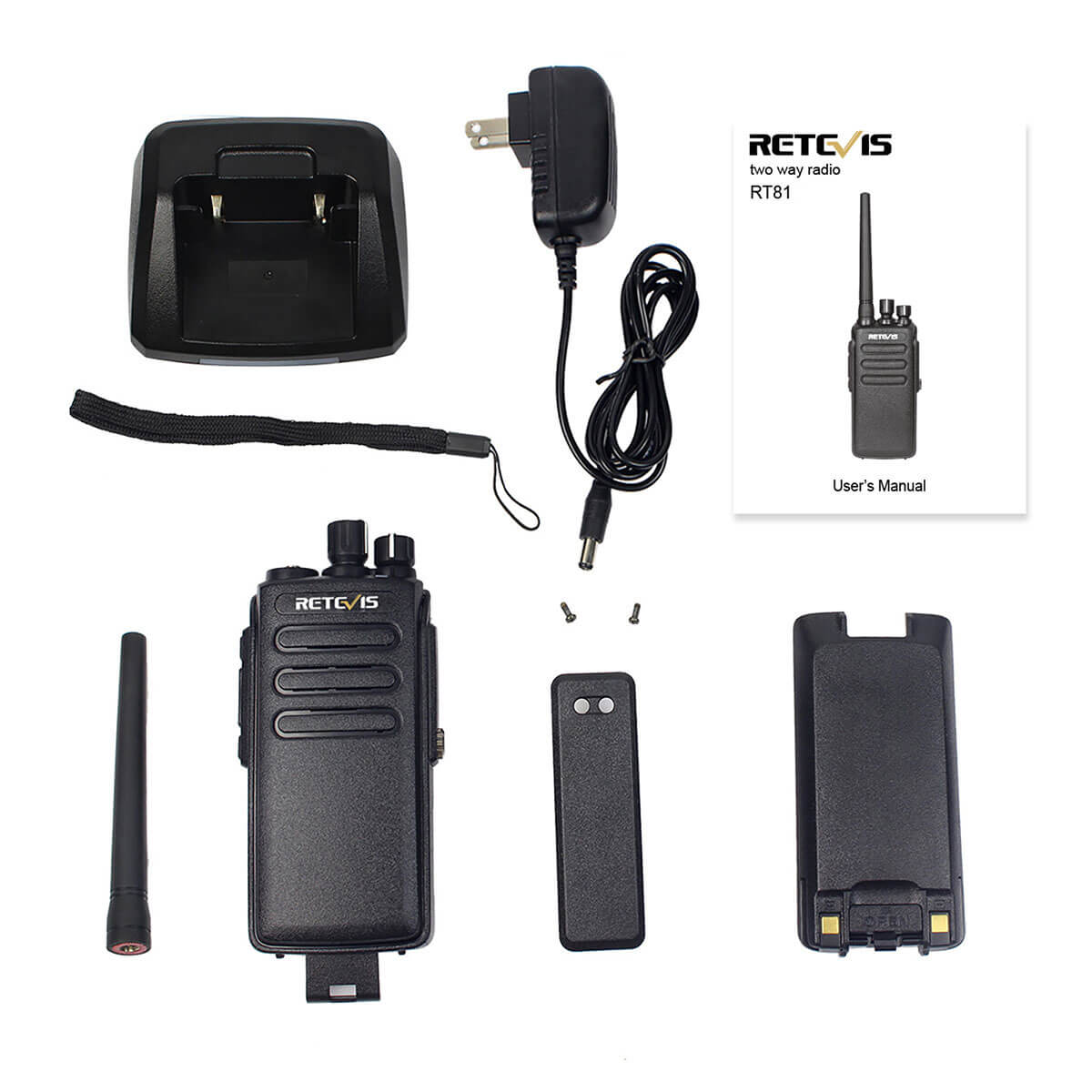

Package includes:

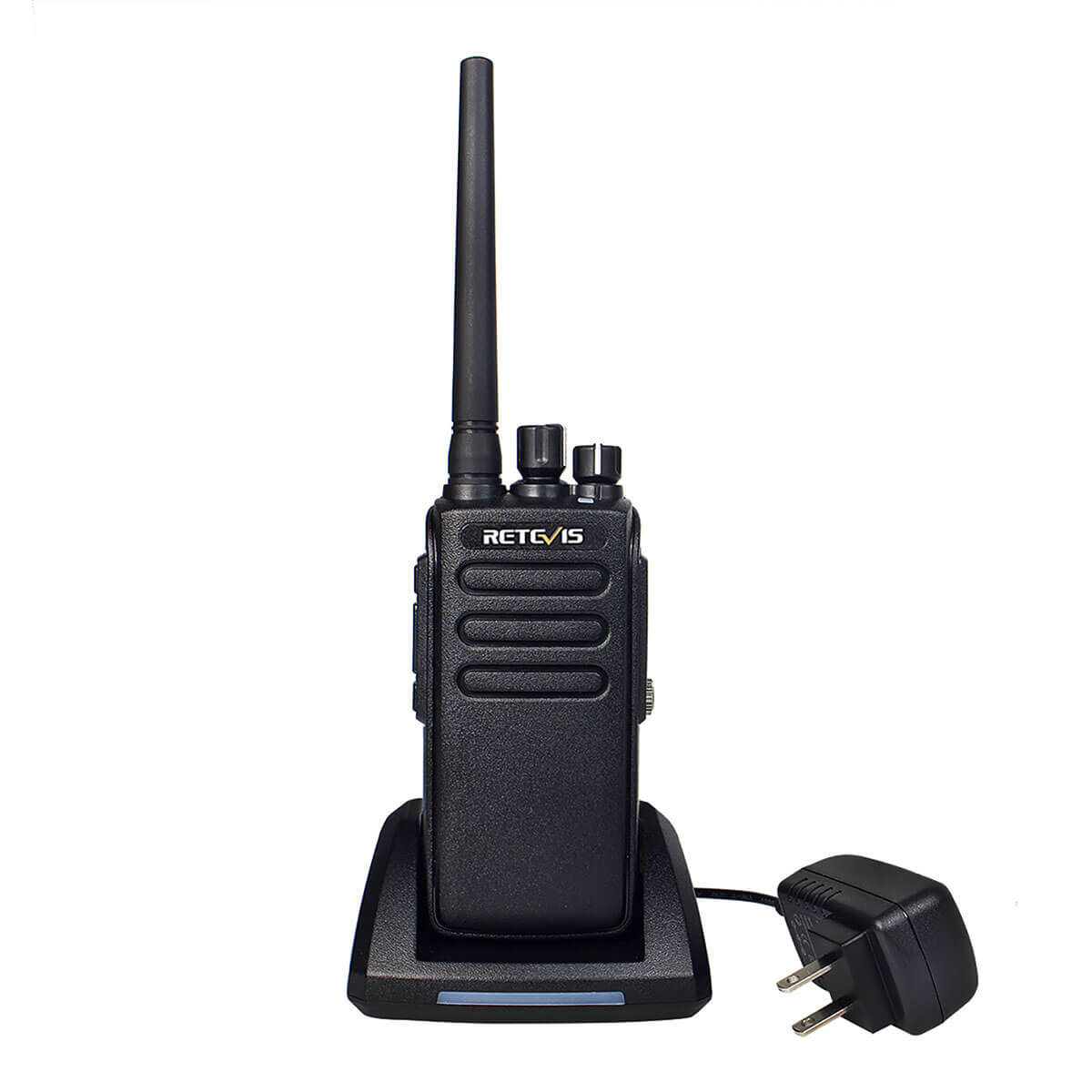

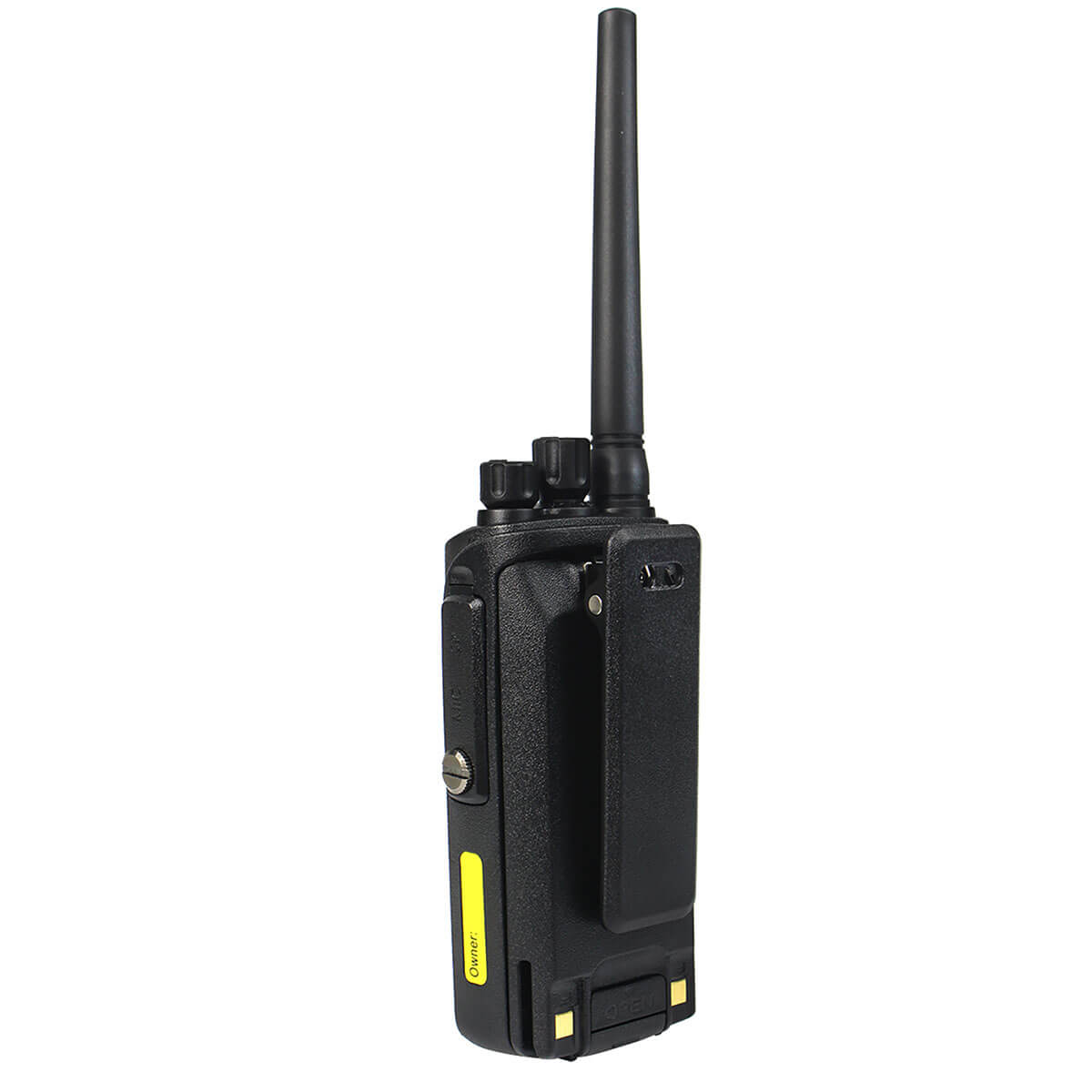

- 6 x RT81 Two Way Radio

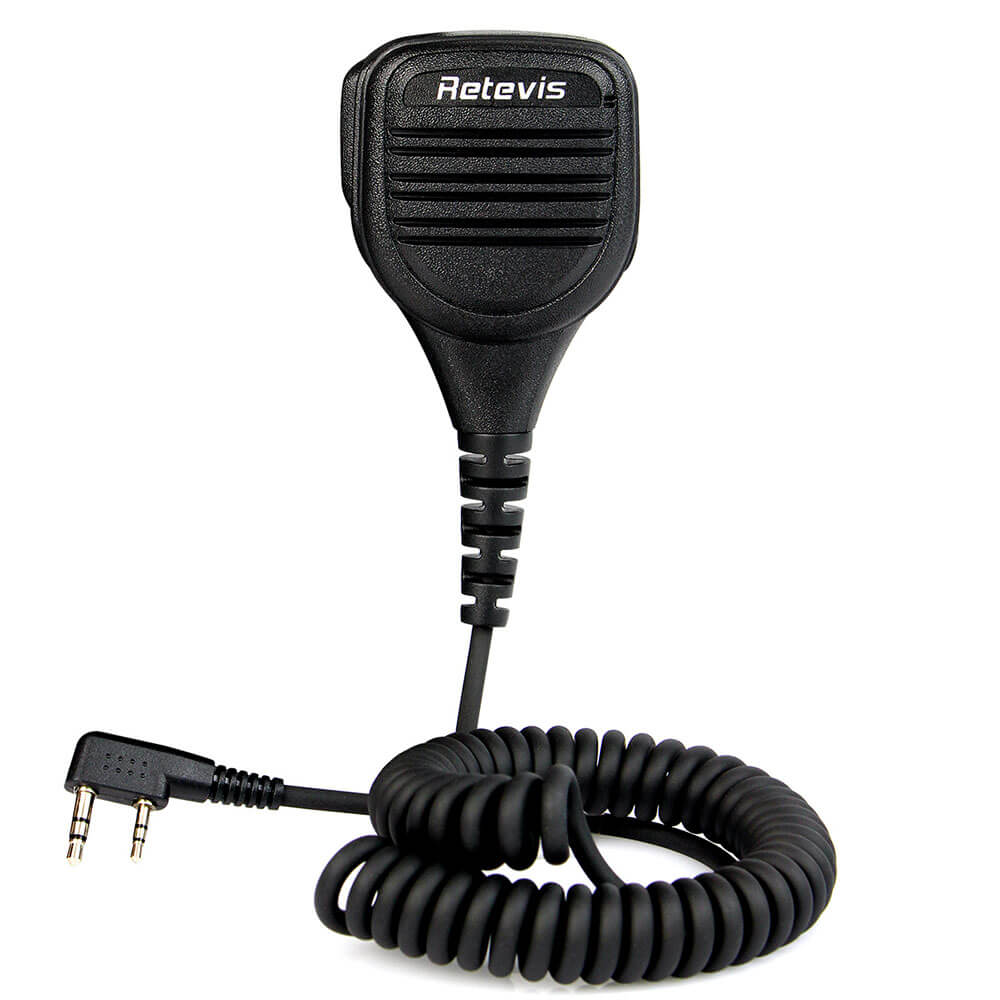

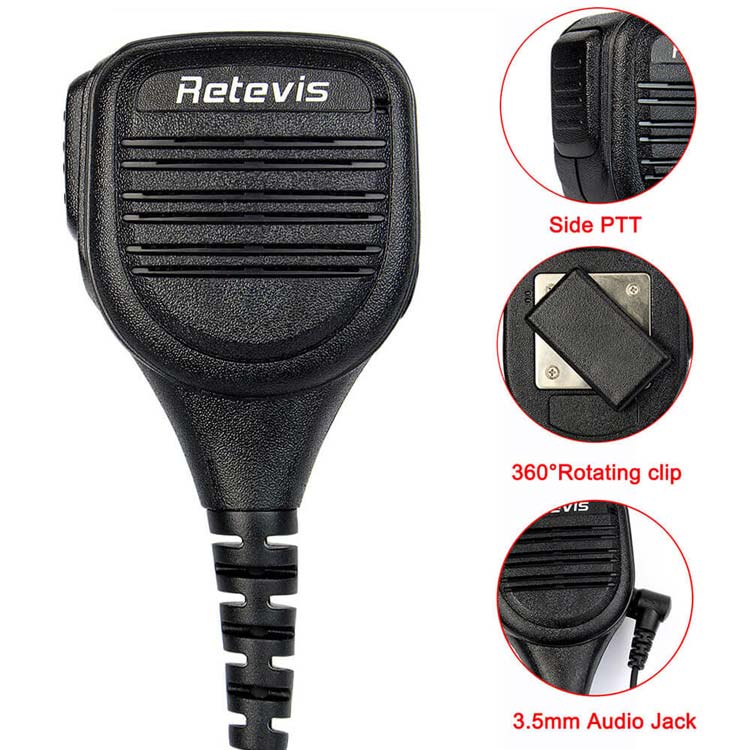

- 6 x Speaker Mic

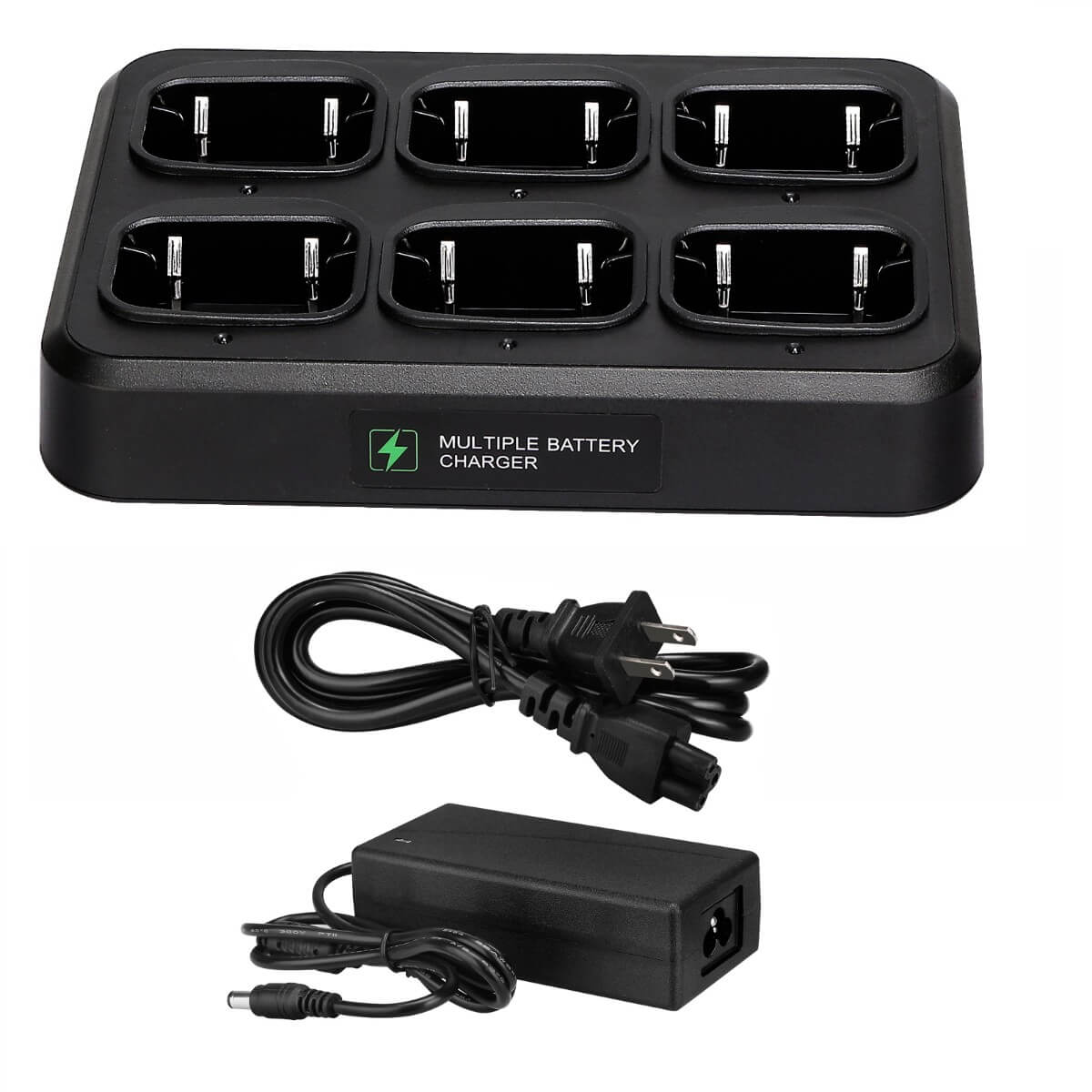

- 1 x Six-Way Charger

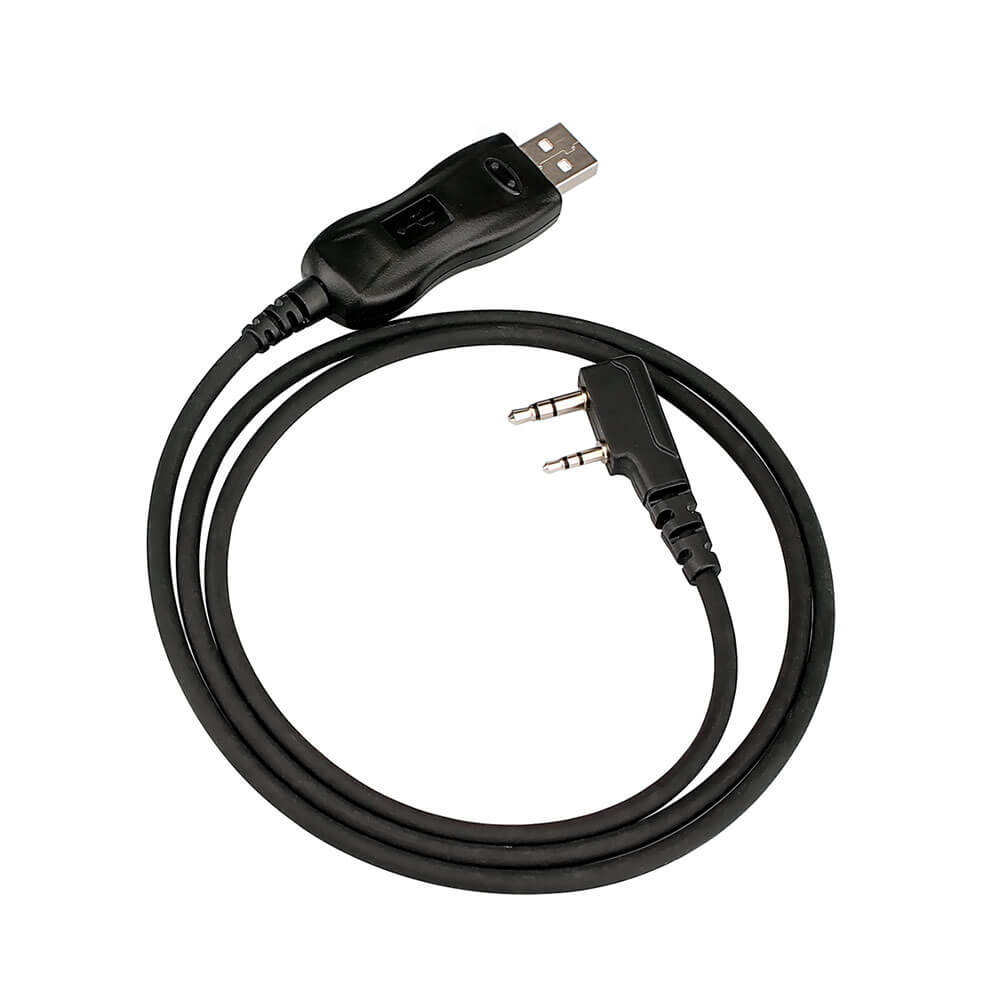

- 1 x FTDI Programming Cable

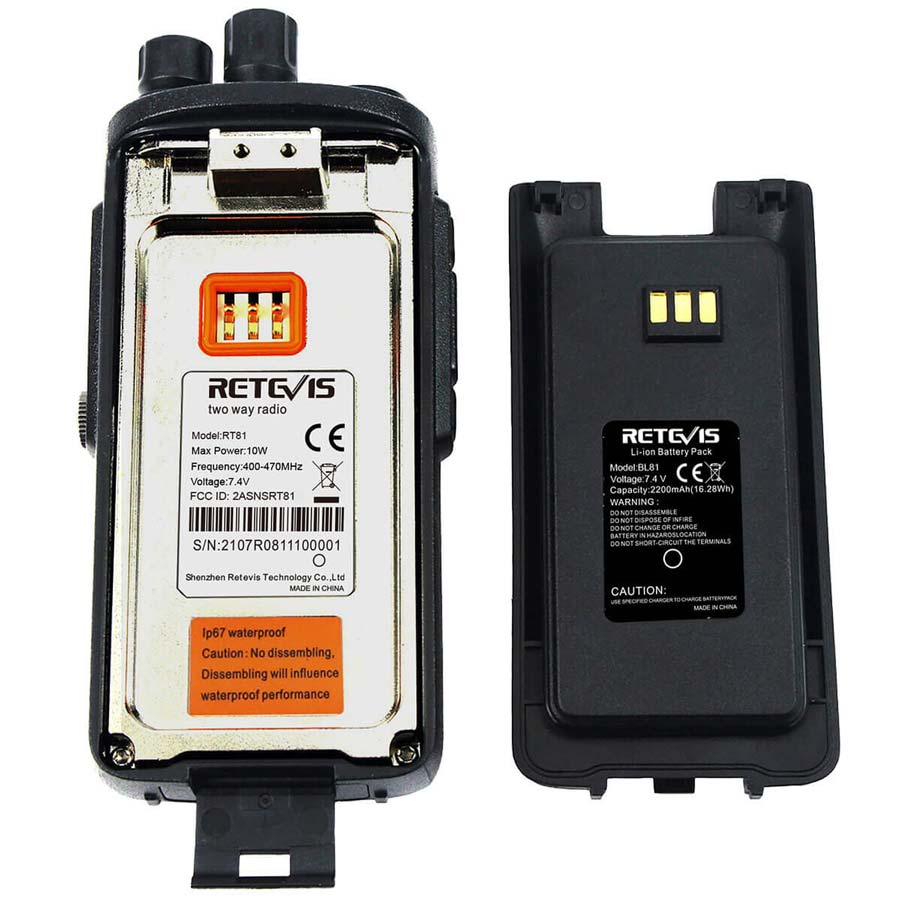

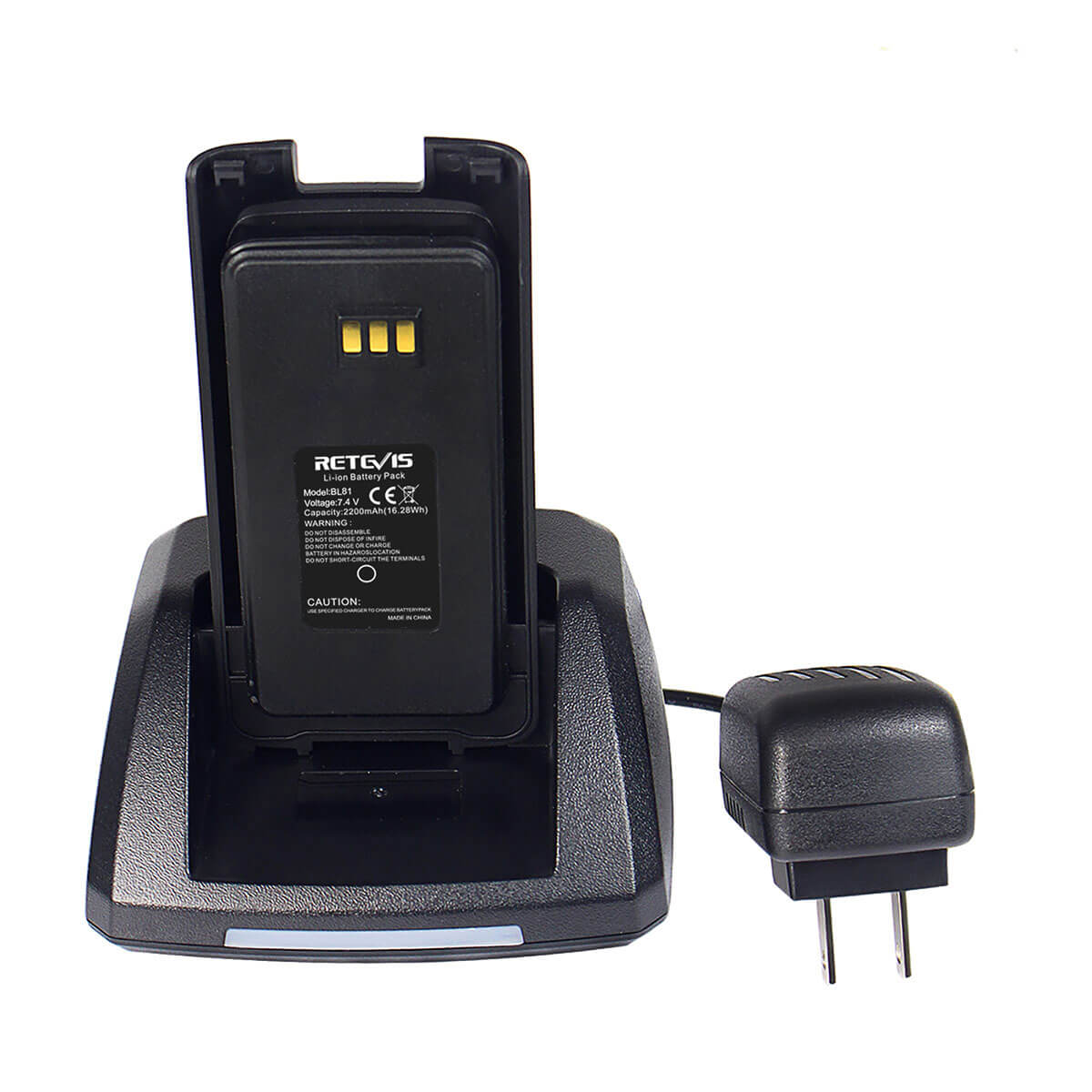

- 6 x Li-ion battery

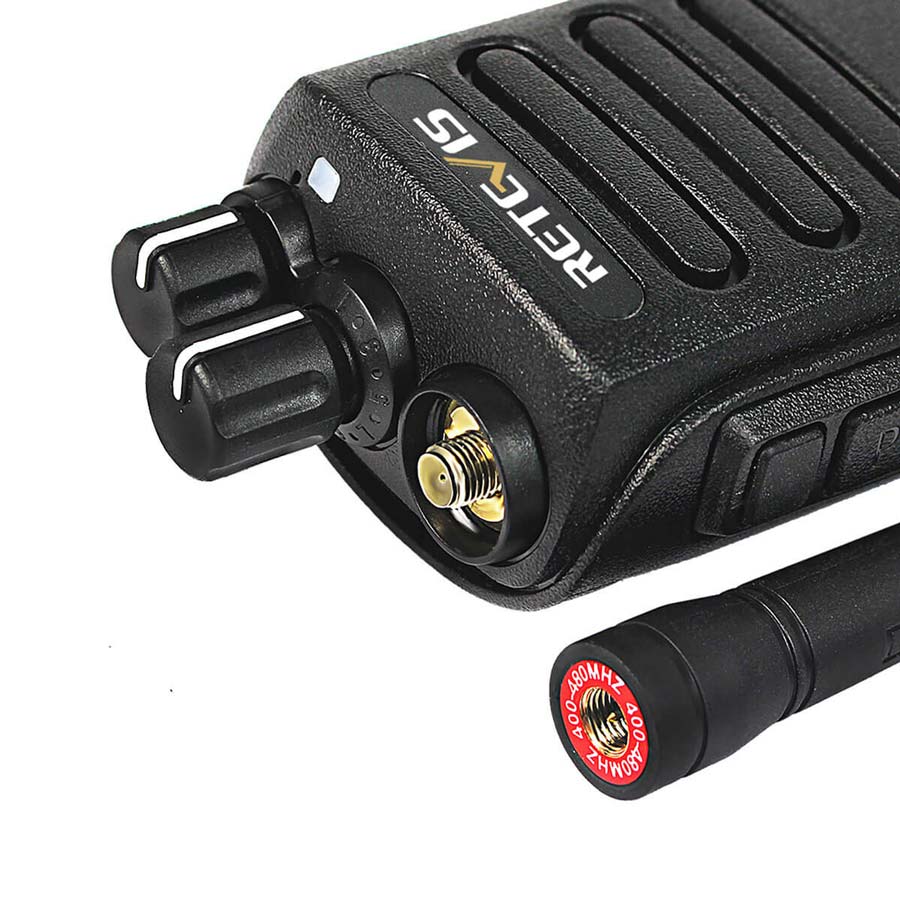

- 6 x Antenna
- 6 x Adapter
- 6 x Charger
- 6 x Belt clip
- 6 x Sling
- 6 x Instructions
