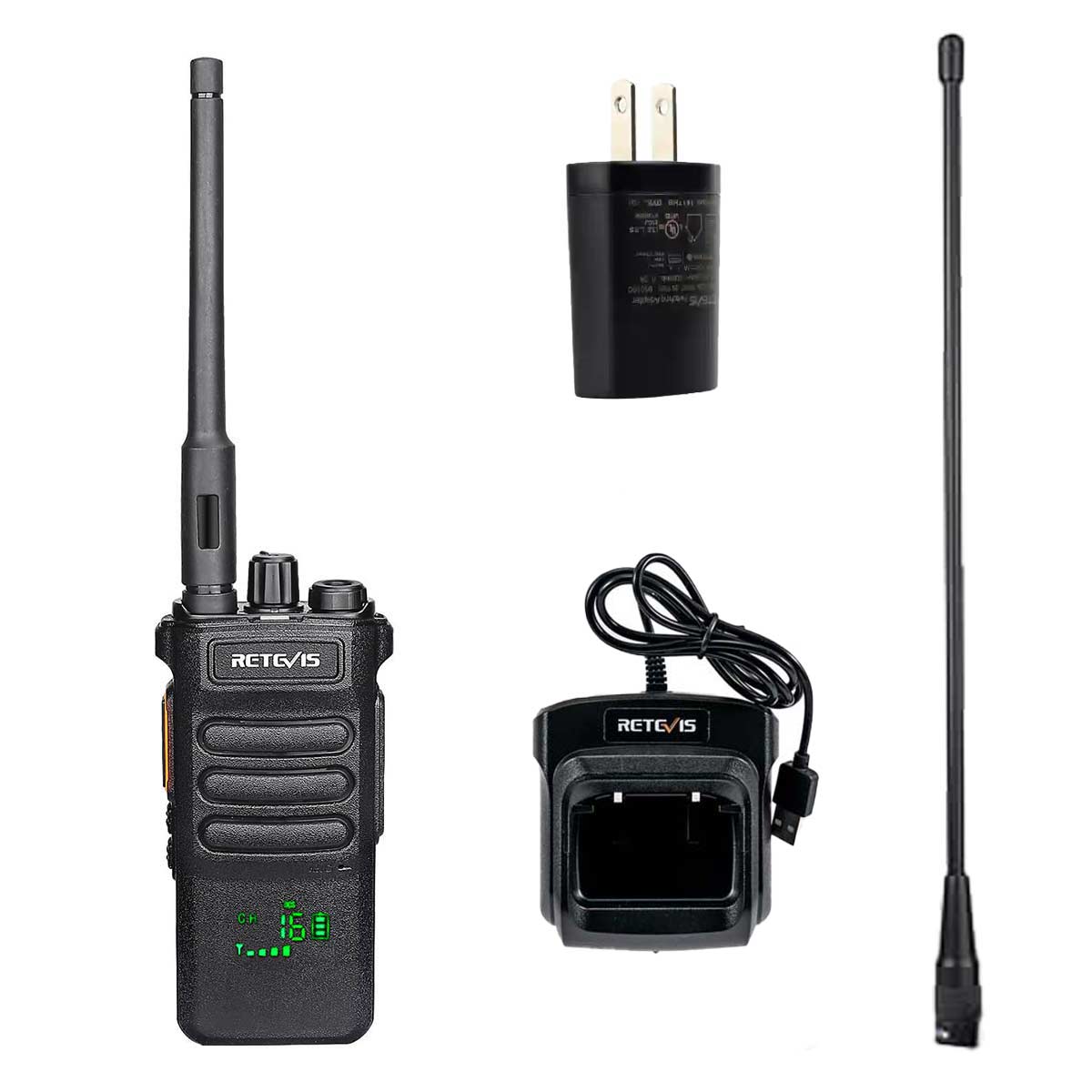

Retevis RT86 High power UHF handheld two-way radio, has become the communication device of choice in the fields of warehouses, transportation, logistics, and security due to its excellent performance and practicality. With the RHD-771 antenna, you can get a longer communication distance on top of the RT86's original base, which is suitable for various scenarios that require long-distance communication.
Retevis RT86 long range walkie talkie is designed with high power, which makes the call distance longer and penetration stronger. With the RHD-771 antenna to get a longer communication distance, making it possible to ensure clear and stable communication, whether in open warehouses, busy traffic intersections, complex logistics centers, or even security monitoring areas.
Retevis RT86 long standby radio has higher power and longer communication distance, which means it needs larger battery capacity to ensure long time operation. RT86 is equipped with a 2600mAh high-capacity battery, which can maintain stable performance even under continuous call or high load operation, avoiding the communication effect being affected by insufficient power.
RT86 High Power Walkie Talkie adopts a 1.4-inch hidden display, which allows users to easily view channel details when needed. It ensures the portability of the device and provides enough space for information display. Being able to quickly access the information you need through the display improves communication efficiency.
Retevis RT86 outdoor radio integrates a powerful flashlight function inside the body of the device, which increases the practicality of the device and improves the safety of users at night or in low-light environments, making it easy for users to use the device in emergencies.
Retevis RT86 encrypted walkie-talkie also offers encrypted calls to ensure the security and privacy of communication content. This feature is especially important in business communication, sensitive information transfer and other scenarios.
The RT86 commercial two way radio is equipped with a high-power speaker that maintains clear sound quality even in noisy environments. This allows users to hear the call clearly in various scenarios, and prevents the communication effect from being affected by ambient noise.
The Retevis RT86 busienss walkie talkie has an easy pairing feature that allows two RT86s to quickly establish a connection and communicate with each other. This design greatly simplifies the operation process and improves communication efficiency.
The RT86 security two way radio is equipped with a remote alarm function, which can be triggered when the device encounters an abnormal situation, making work safer. Through the remote alarm function, users can find and deal with potential safety hazards in time to ensure the stability and safety of the working environment.
The RT86 high power long range two-way radio with long antenna is suitable for scenarios that require longer distance communication. With its many practical features such as high-power communication, high-capacity battery, easy pairing, hidden display, built-in flashlight, remote alarm, encrypted calls, and high-power speaker, it has become an ideal choice for docks, warehouses, transportation, logistics, security, and other fields.
QA1: What are the low power, medium power and high power of RT86?
The low power of RT86 is 1W, the medium power is 5w, and the high power is 10W.
QA2: Can the antenna of RT86 be detached?
Yes, it comes with a high-gain antenna, which is also removable.
QA3: What functions can be defined by the side buttons of RT86?
The functions that can be selected by the side keys of RT86 include None; Monitor; Lamp; Warn; VOX; Key Lock; TX Power; Scan, etc.
QA4: Can RT86 be cloned wirelessly?
Yes, RT86 can easily and quickly copy content from one radio to another within the same model, saving time on programming.
Specifications of RT86 |
|
Frequency Range |
400-480MHZ |
Channel Capacity |
16 |
Display Screen |
1.4 Digital tube screen |
Battery Capacity |
2600mAH |
Net Weight (with antenna and battery): |
295g |
Power |
High:10W; Middle:5W; Low:1W |
Wide/Narrow Band |
12.5 kHz/25 kHz |
Audio Distortion |
<5% |
Frequency Stability |
±2.5ppm |
Max Frequency Shift |
≤5KHz/≤2.5KHz |
Receive Sensitivity |
≤0.25uV/≤0.3uV |
Squelch Sensitivity |
≤0.2uV/≤0.25uV |
Adjacent Channel Selectivity |
≥65dB |
Spurious Response Suppress |
≥55dB |
Intermodulation |
≥60dB |
Work Voltage |
7.4VDC |
Operating Temperature |
-15℃~+55℃ |
Specifications of RHD-771 Antenna | |
Model | RHD-771 |
Band | Dual-band VHF/UHF |
Antenna type | SMA-F Soft Antenna |
Frequency | 144/430Mhz(136-174+400-470)MHz |
Gain | 2.15dB |
Max power | 20 Watts |
VSWR | Less than 1.5 Downwards |
Impedance | 50ohm |
Connector Type | SMA-F (Female) |
Omni Polarization | Vertical |
Radiation | Omni |
Material | ABS and Heat shrinkable sleeve |
Length | 39cm/15.4 In (approx) |
Weight | 34g/1.19oz |
Color | Black |
Widely used on handheld Radios with SMA male interface |
● Easy Pairing Functions
● 1.4 inch Hidden Display
● Easy Pairing Function
● Powerful Flashlight
● VOX Hands-Free
● 1-9 Squelch Level
● Scan/Monitor Function
● Frequency hopping
● Battery Saving
● Time Out Timer (TOT)
● Beep Tone
● Key Lock
● Busy Channel Lock
● QT/DQT Tail Mode
● Scrambler
● Mic Gain
I have this Rt-86 and the radio dominates on UHF , it's rugged and the battery life is exceptional. A dmr radio would be Awesome but funds are very limited. Much Respect to you're development team.
I have a Retevis 771 antenna for each of my RT86 handhelds and I can confirm that this combination works very well. Doing this upgrade more than tripled my range. I've only tested at just over 3 miles, but these tests were in worst case conditions (in town). The town I live in is only about 3 miles at the longest point to point. So I had no need to go farther. But I am confident that this combination will go much much farther in an open area. I would definitely recommend these antennas for anyone looking to get more fars from their handheld radio.
