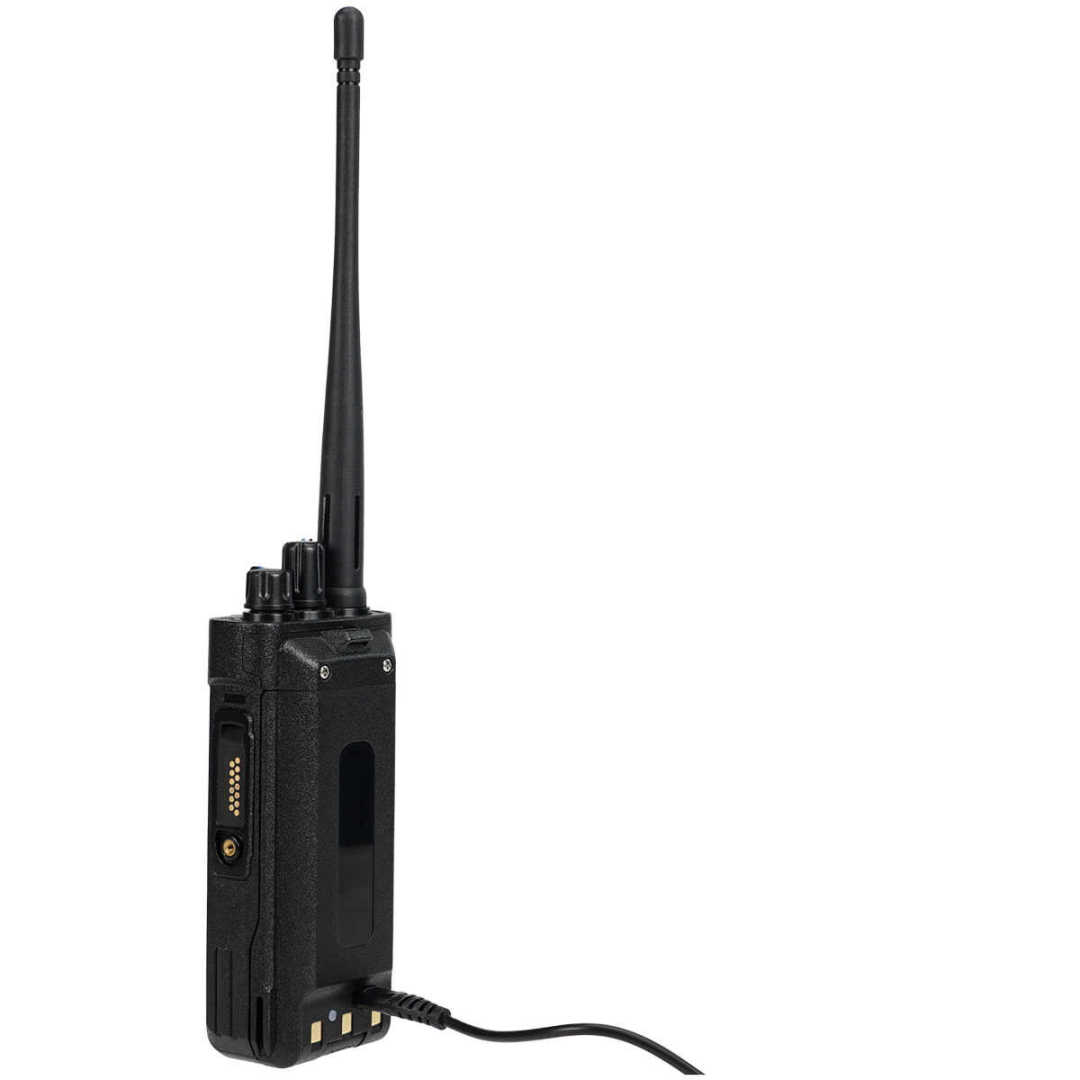

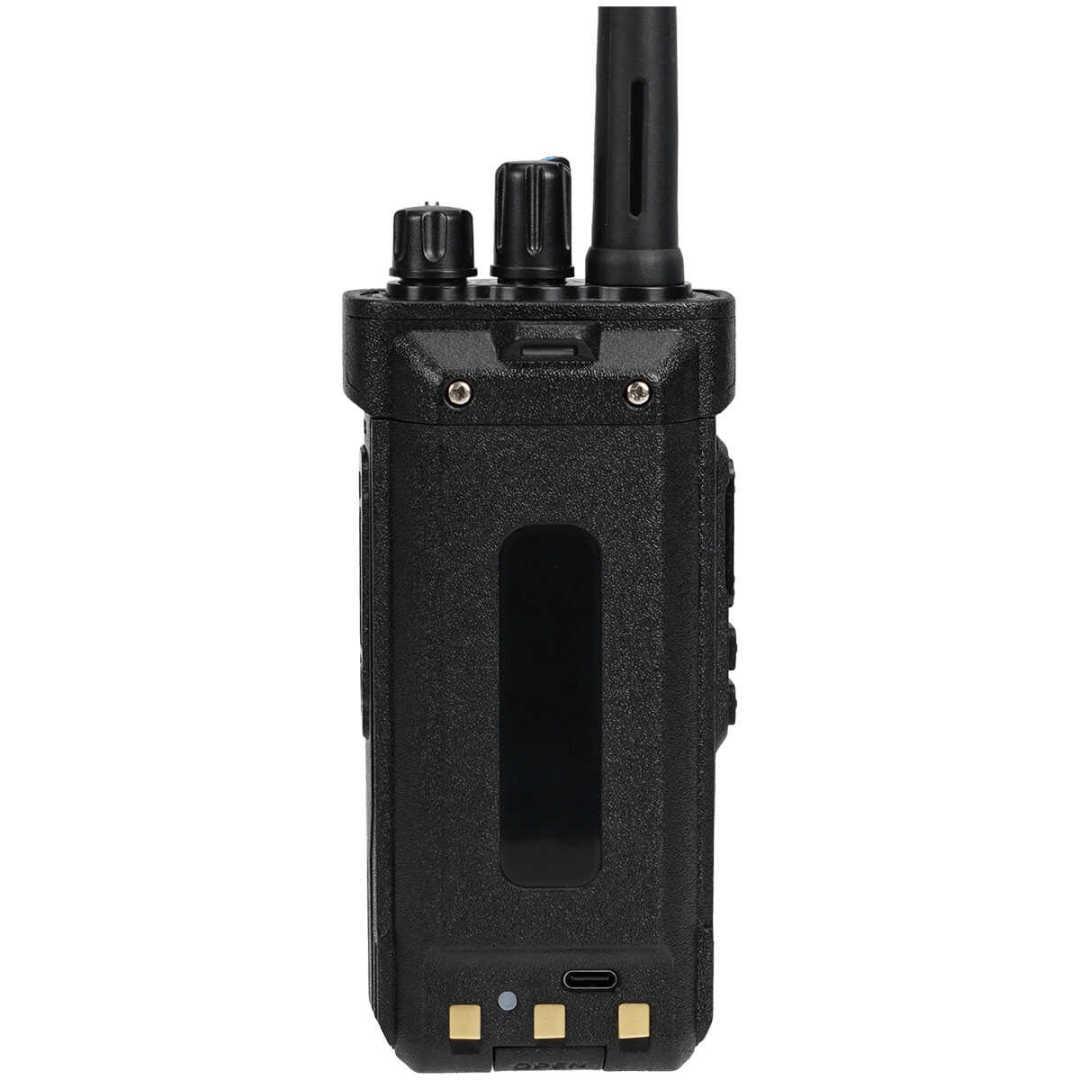

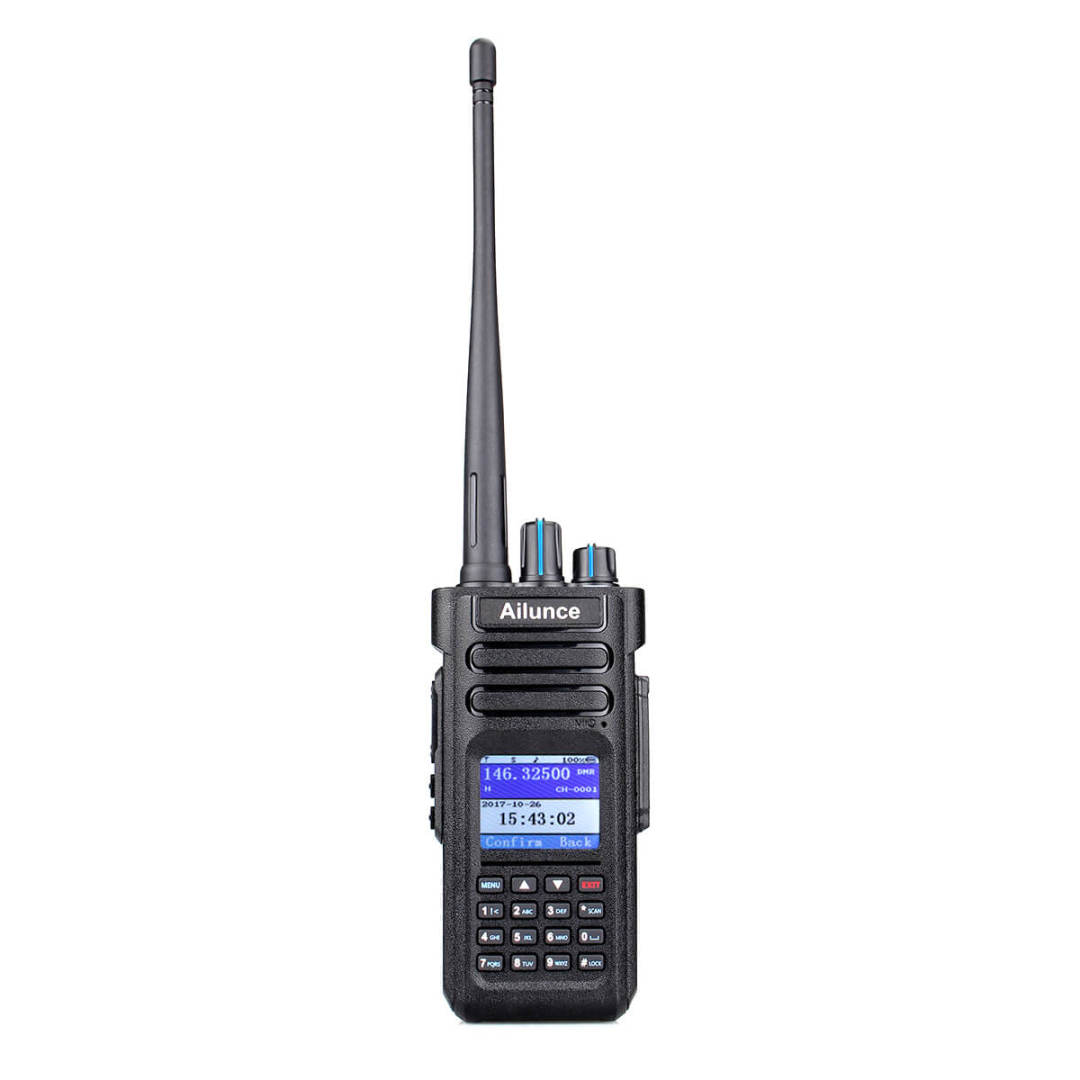

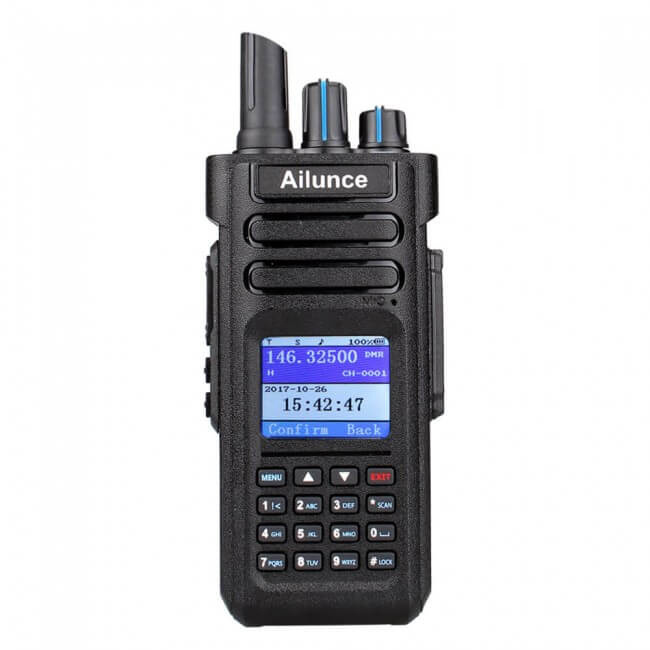

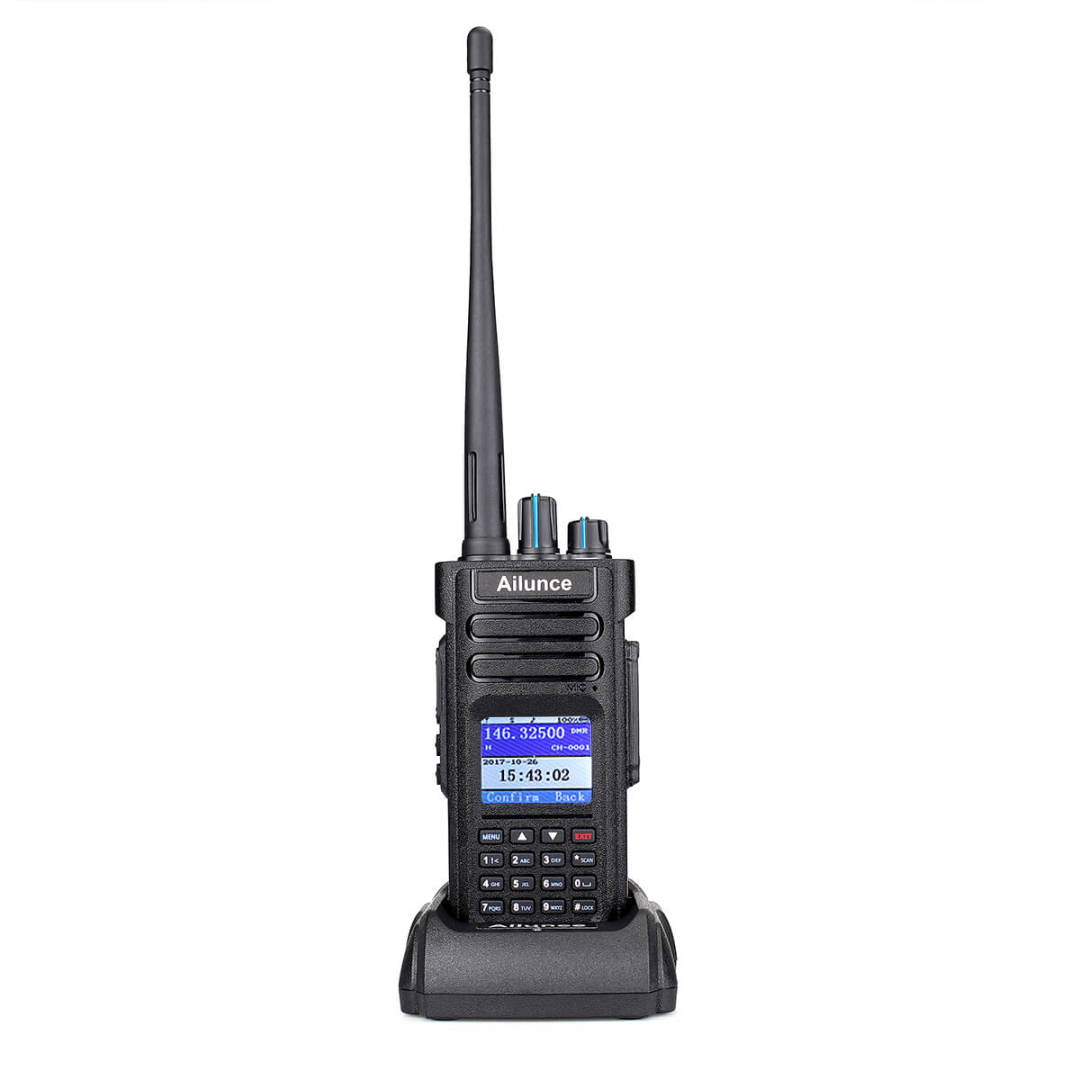

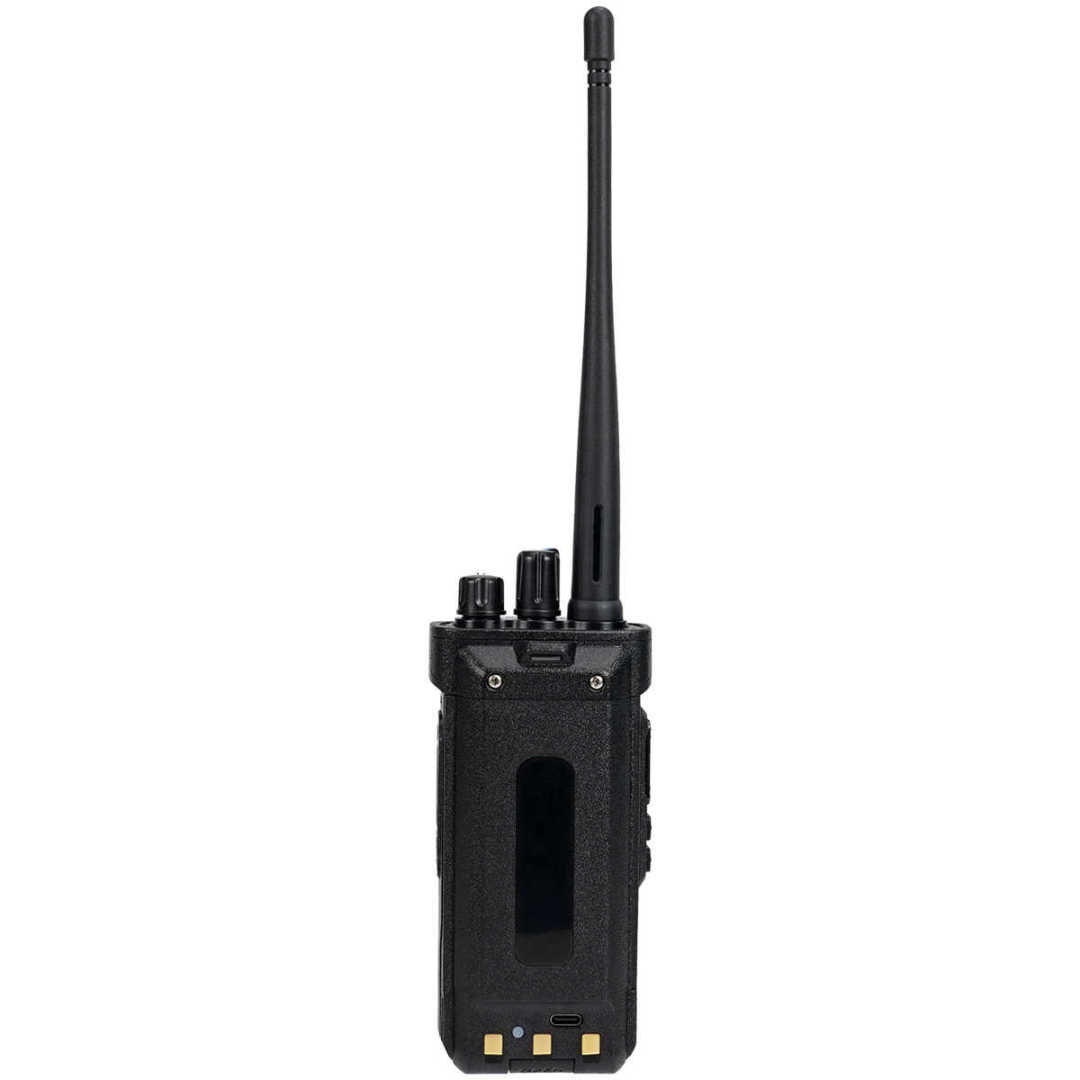

Ailunce HD1 is the DMR mode two-way radio. With digital mode and analog mode, UHF and VHF band waterproof handheld amateur radio. Type-C charger Supported
Retevis HD1 IP67 Dual Band DMR Ham Radio is an ideal choice for amateur radio enthusiasts who are looking for a reliable and rugged piece of equipment. It offers dual-band operation, with an IP67 rating for dust and water protection. The radio offers a loud and clear sound, as well as a wide range of features for a variety of ham radio activities. Get the most out of your DMR experience with this Retevis HD1 Ham Radio.
Supports both digital and analog modes, compatible with existing analog systems, users can gradually switch analog terminal settings according to budget and actual communication needs
Dual time slot for point-to-point supports two group calls in one channel under a direct model; Up 3000 Channels and 200,000 Contacts.
Come with a 3200mAh large battery, enabling normal use 7-day Standby Time / Working time up12-16 hours.
HD1 (GPS Version) has a GPS positioning function, The GPS function gives you length; altitude; bearing; and speed information SMS function supports texting the information to another radio with the same DNA protocol. In the event of an emergency, GPS can be used to locate the team's location for emergency rescue and prepping.

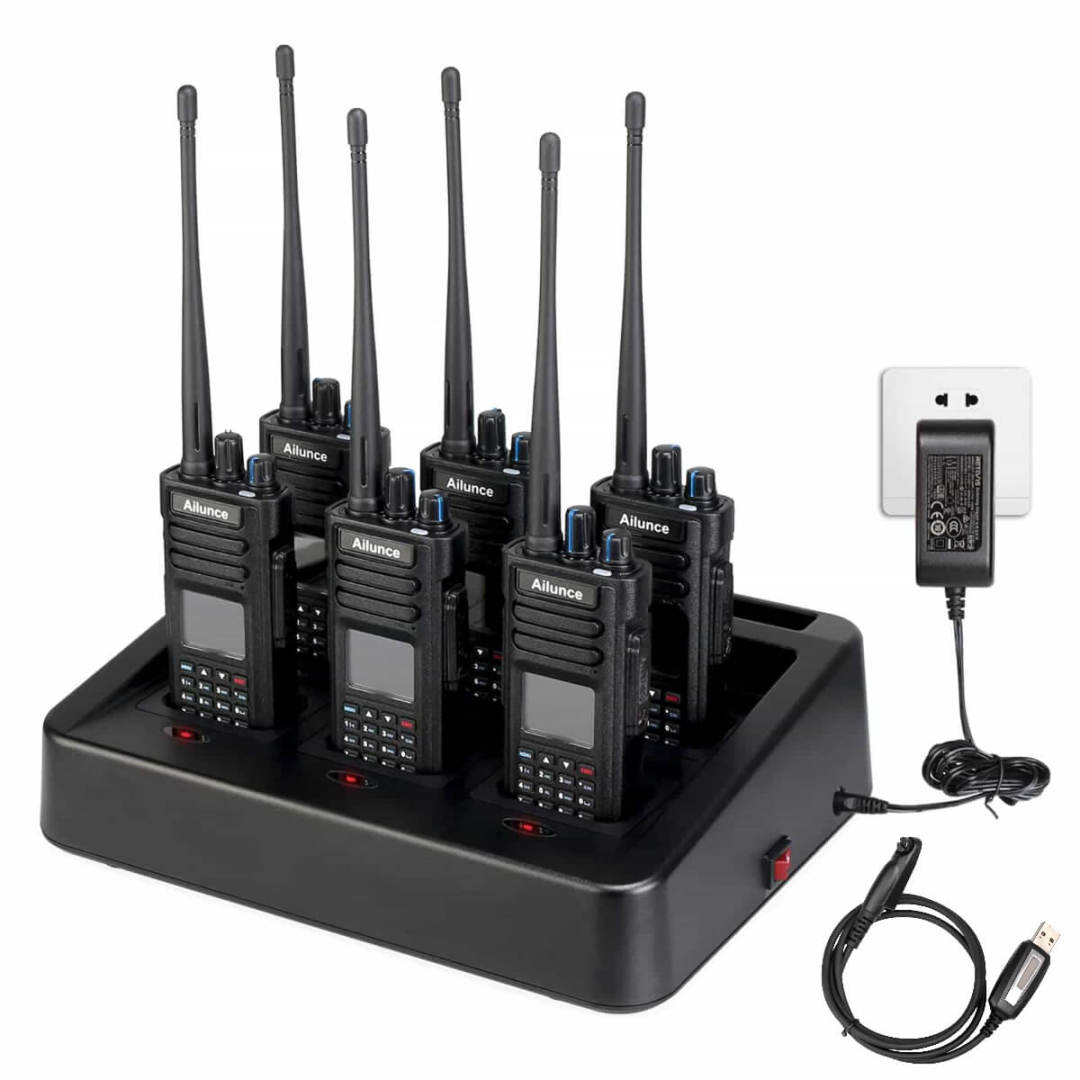

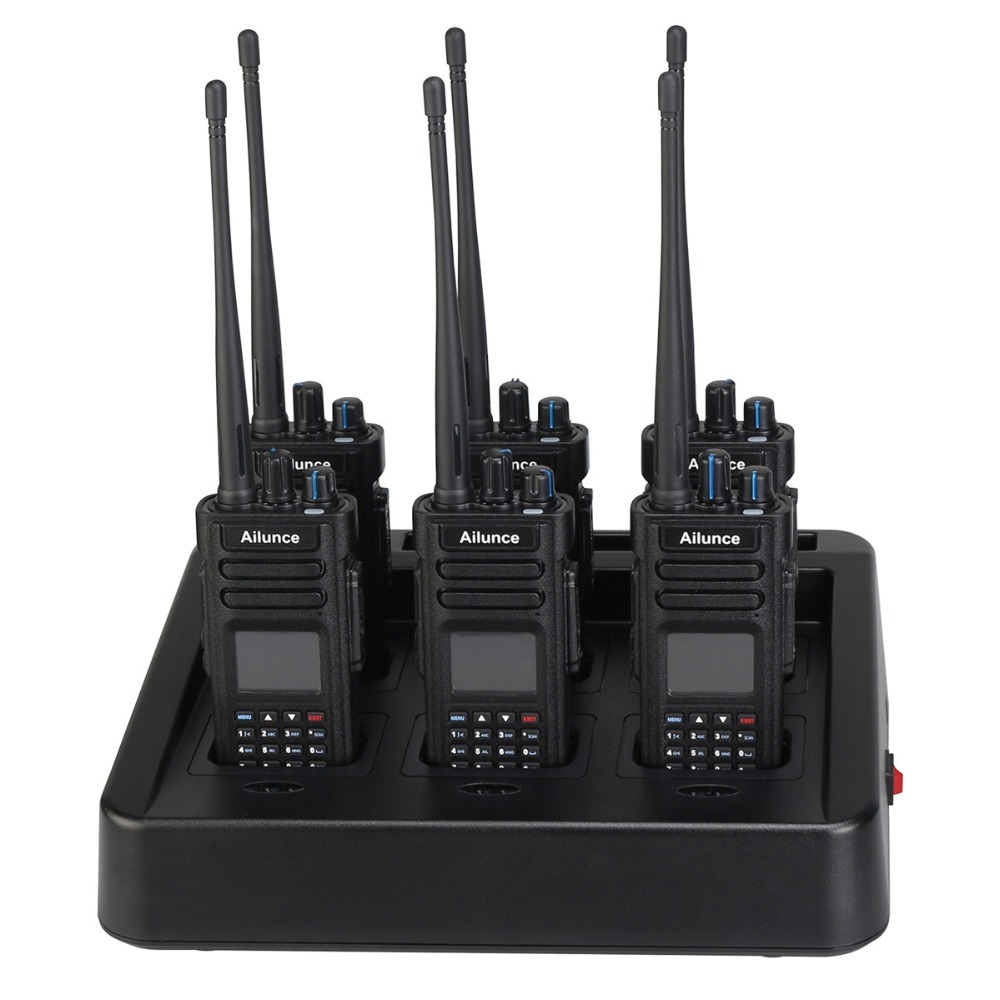

This HD1 with 6-way charger bundle sale ham radio kit is the essential kit for preppers and emergency radios.
Because Ailunce HD1 is the great ham radio in 2023. The great package for any radio amateurs and others who want to be ready.
HD1 Package
6 x AILUNCE HD1 GPS DMR Radio
6 x 3200mAh Rechargeable Type-C port Battery

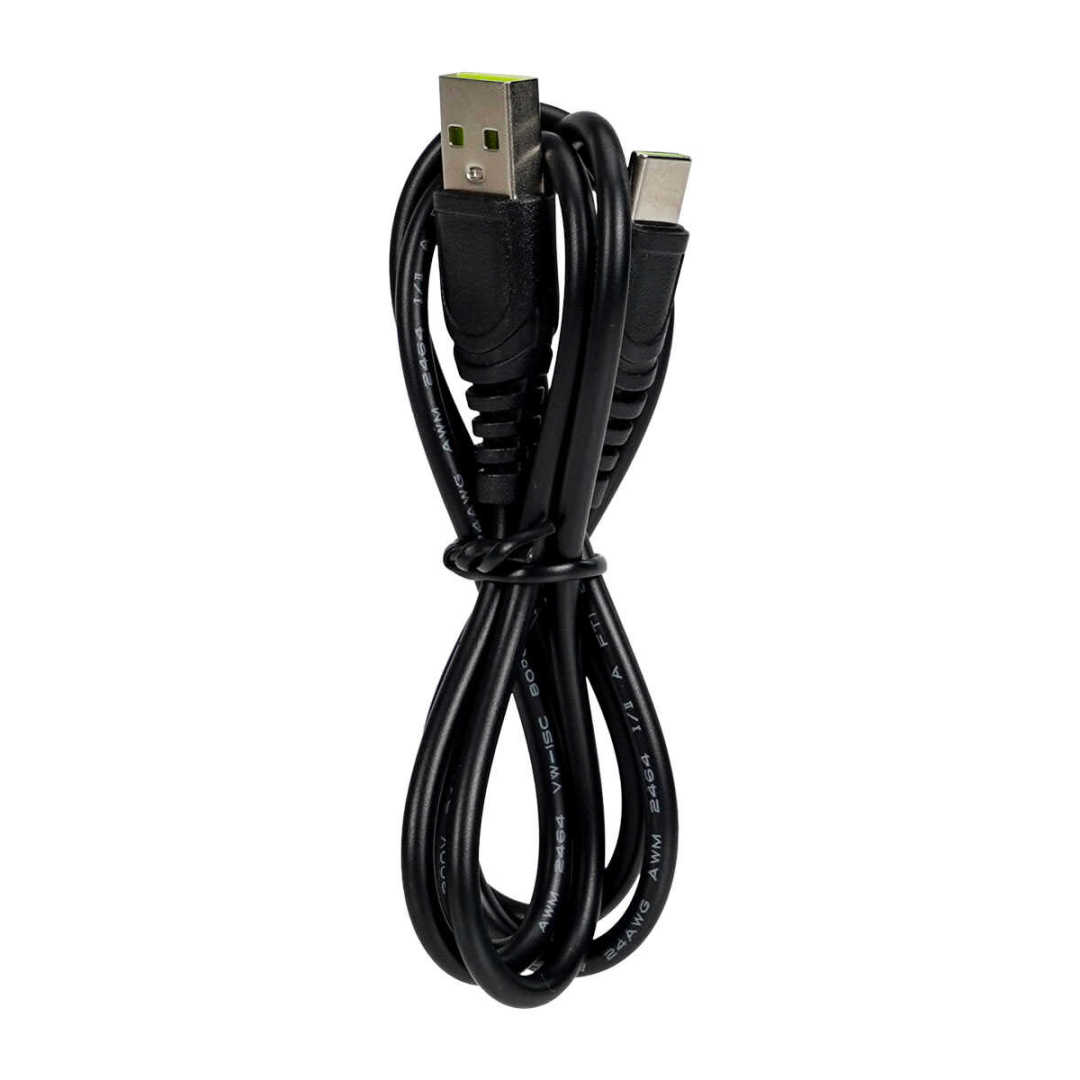

6 x USB Type-C Charging Cable

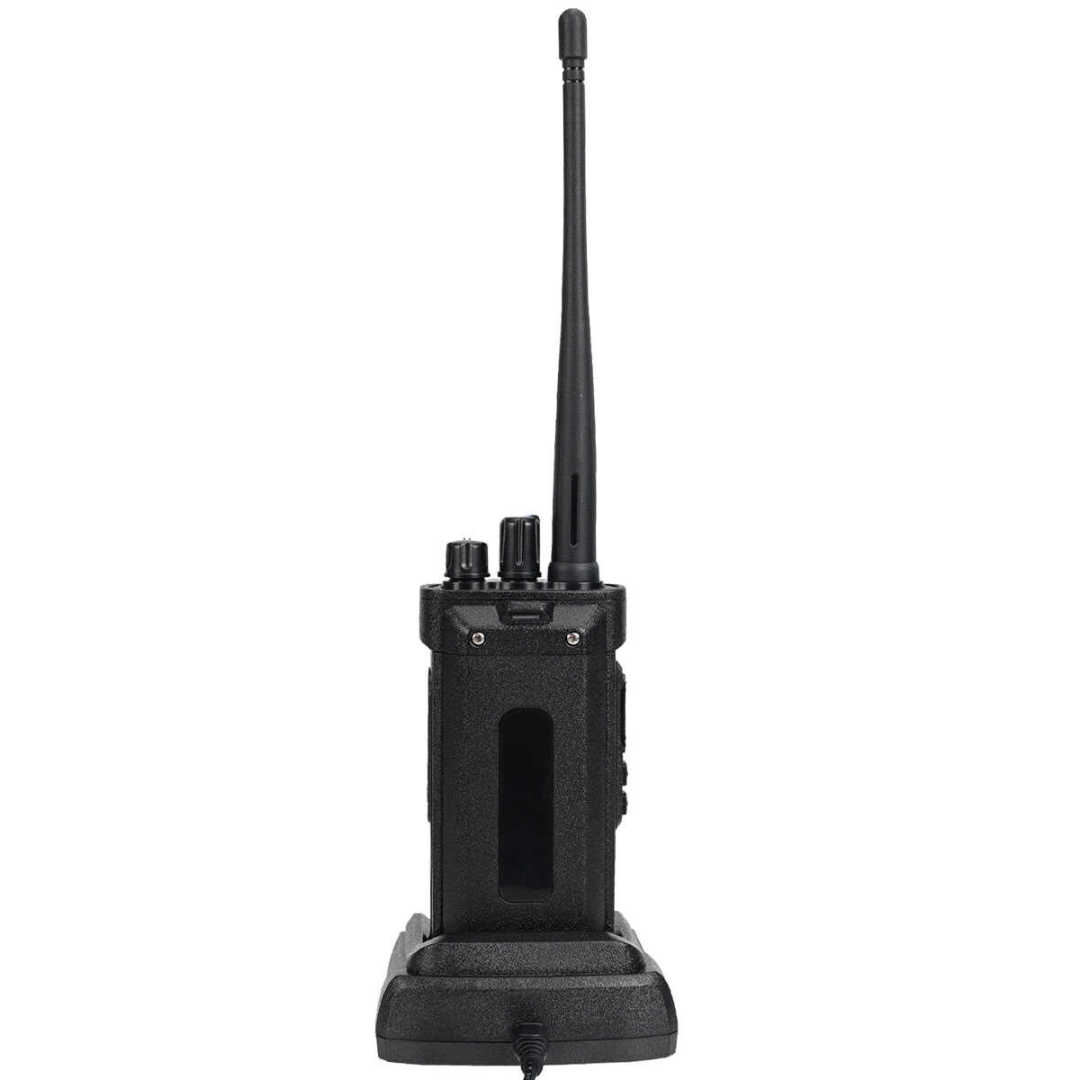

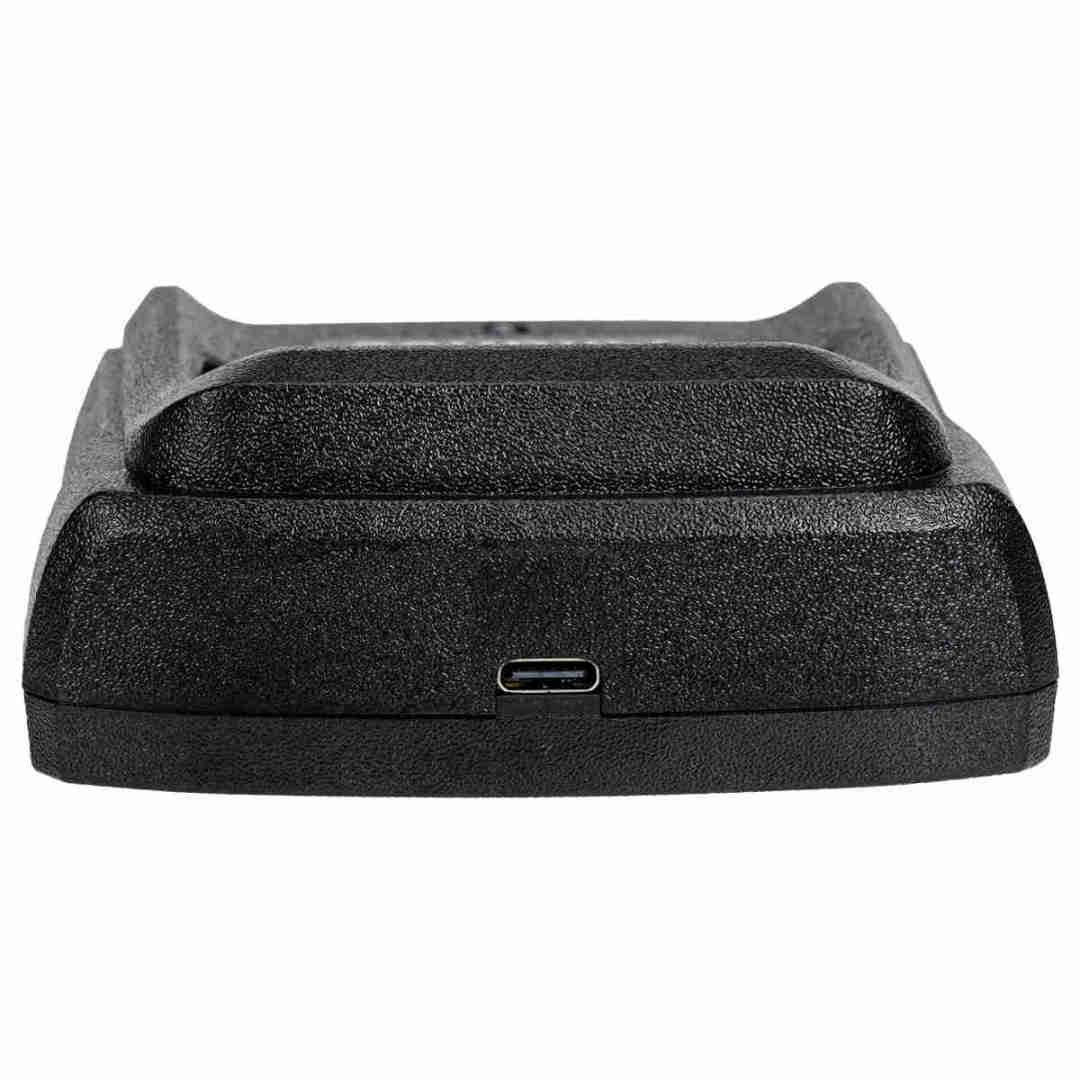

6 x Desk Charger with Type-C Port

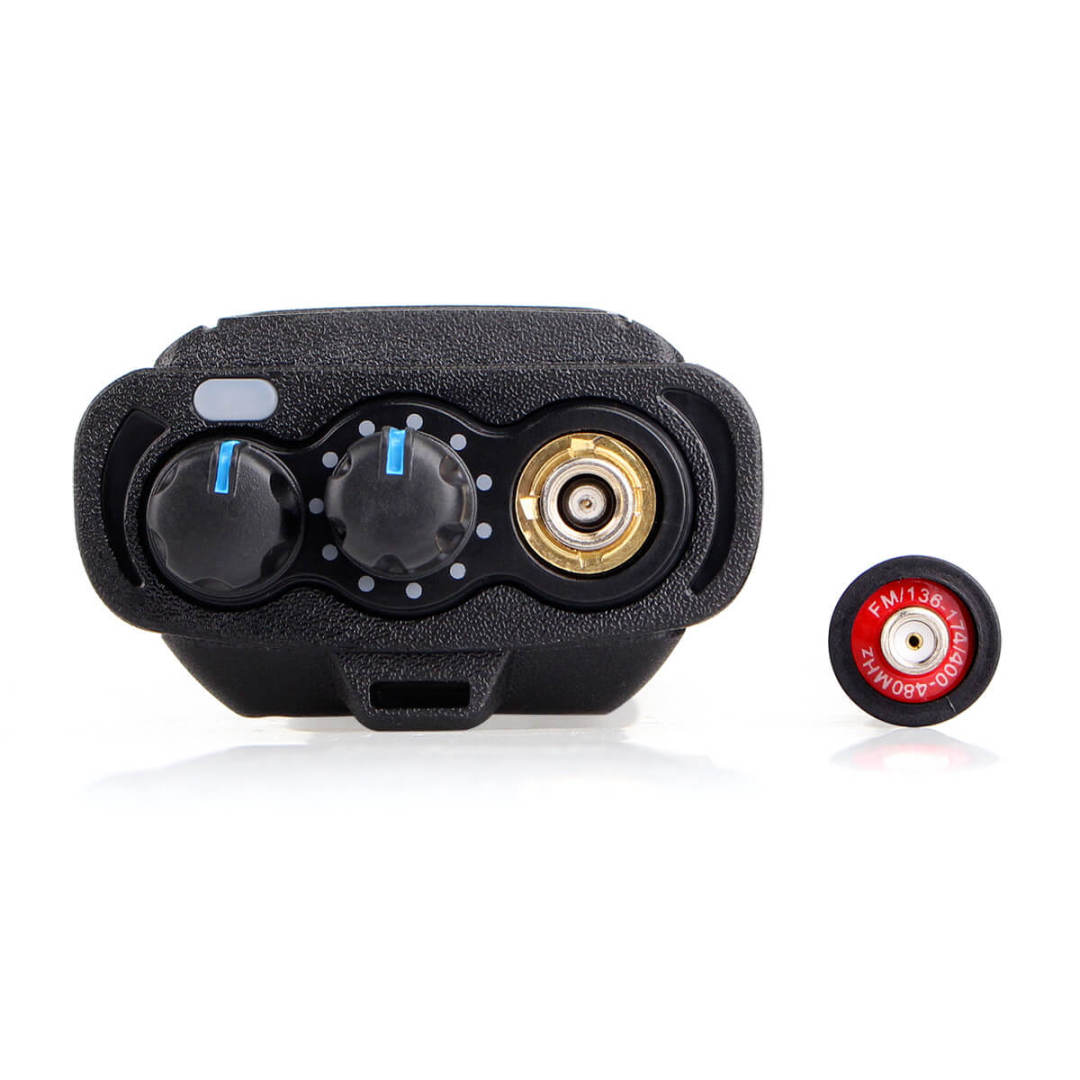

6 x Antenna
6 x Belt Clip
6 x Sling
6 x Adapter
6 x English Manual

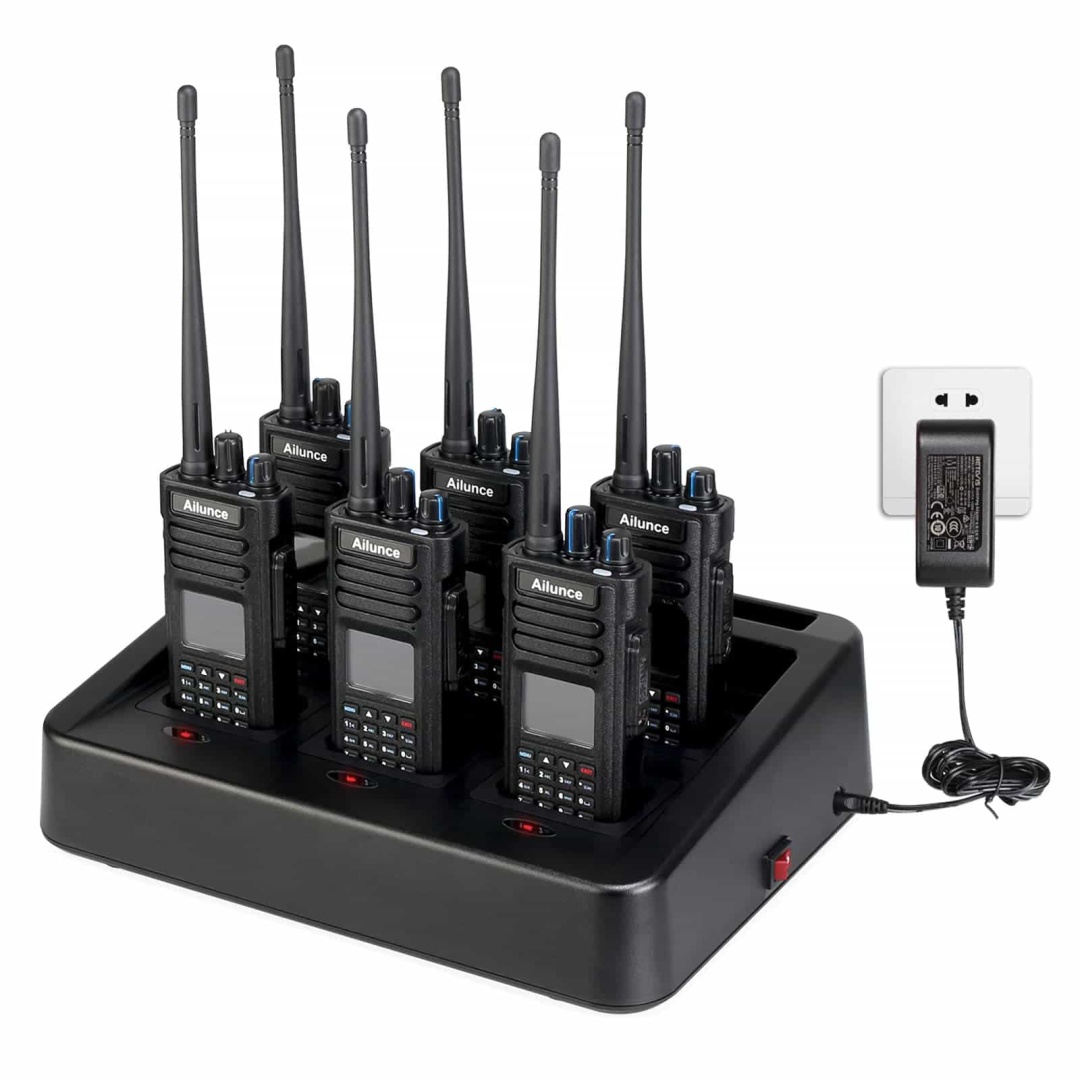

1 x 6-way Charger
Frequency | 136-174 /400-480MHz /76-107.95MHz (Receive only ) |
Channels | 3000 |
Operating Temperature | -30℃~+60℃ |
Operating Voltage / Power supplied voltage | 7.4V DC / 12V DC |

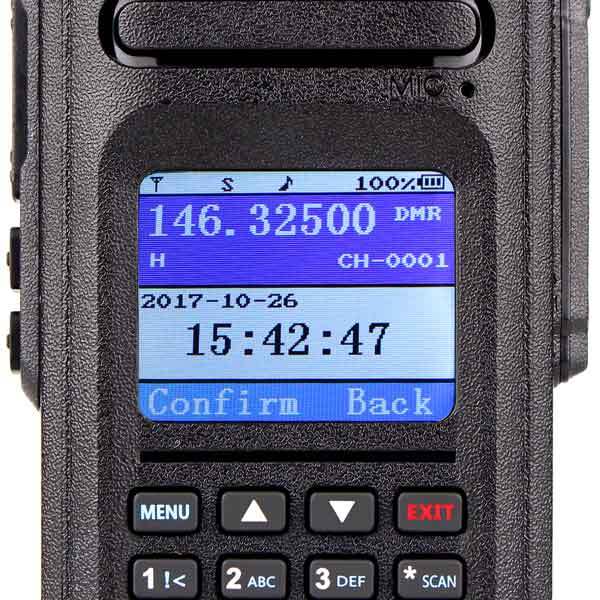

Dimension / Weight / Display | 150 x 64x 40mm / 360g (with battery ) / LCD Colour |
Channel Spacing | Analog 25/20/12.5KHz / Digital 12.5KHz |
Battery Type / Battery Capacity | Li-ion / 3200mAh |
Global Position System (GPS) | TTFF – 49sec Cold start / 8sec Warm start / Horizontal accuracy ≤2.98meter |
Antenna Impedance | 50 Ω |
Transmitter | |
Transmit Power/ Current | VHF 10W/5W/1W / UHF 8W/4W/1W - Selectable |
Frequency Stability | + - 1.0 ppm |
FM modulation mode | 12.5KHz@11K0F3E 25KHz@16K0F3E |
4FSK Digital Mode | 12.5KHz(data only):7K60 FXD / 12.5KHz (data and voice):7K60FXW |
Modulation distortion | <5% |
Vocoder | AMBE+2TM |
Adjacent channel power | 60dBm@12.5KHz / 70dBm@25KHz |
Audio Response | +1~ -3dB |
Digital Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver | |
Analogue Sensitivity | 0.16 uV (12dB SINAD) |
Digital Sensitivity | 0.14 uV (5% BER) |
Inter modulation | 70dB |
Spurious Response | TIA603C:75dB ETSI:70dB |
Audio Response | +1~-3dB |
Rated Audio Distortion | ≤3% (Type) |
Audio Power | ≥500mW |

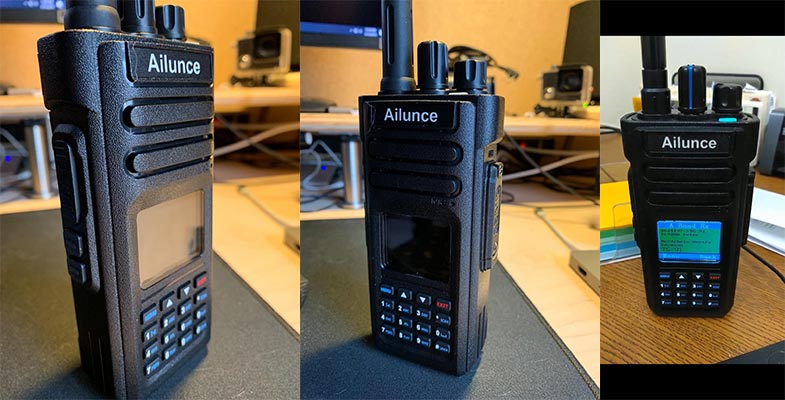

I've washed my Ailunce HD1 a couple of times in shallow water, it still works fine. It's been the only IP67 water resistant DMR radio out there on the market for years!
yes, HD1 is good for preppers. DMR (with possible encryption) gives you very good privacy on the air within a group, which would be the purpose of this handheld. …
