- 25W Long Range Radio Repeater
- Support VHF or UHF Customized Frequency Points
- Standard 3U Design Fits in the Standard Rack
NOTE:
- Support Frequency Customization: VHF (Offset: ≥5.7MHz) or UHF (Offset: ≥10MHz); you can contact us via email. [Doesn't support GMRS frequency customization]
- Please note the customized information when placing an order.
- After confirming your custom frequency, it will take 1 month to customize.
- After customization, the frequency is fixed and cannot be returned.
Description

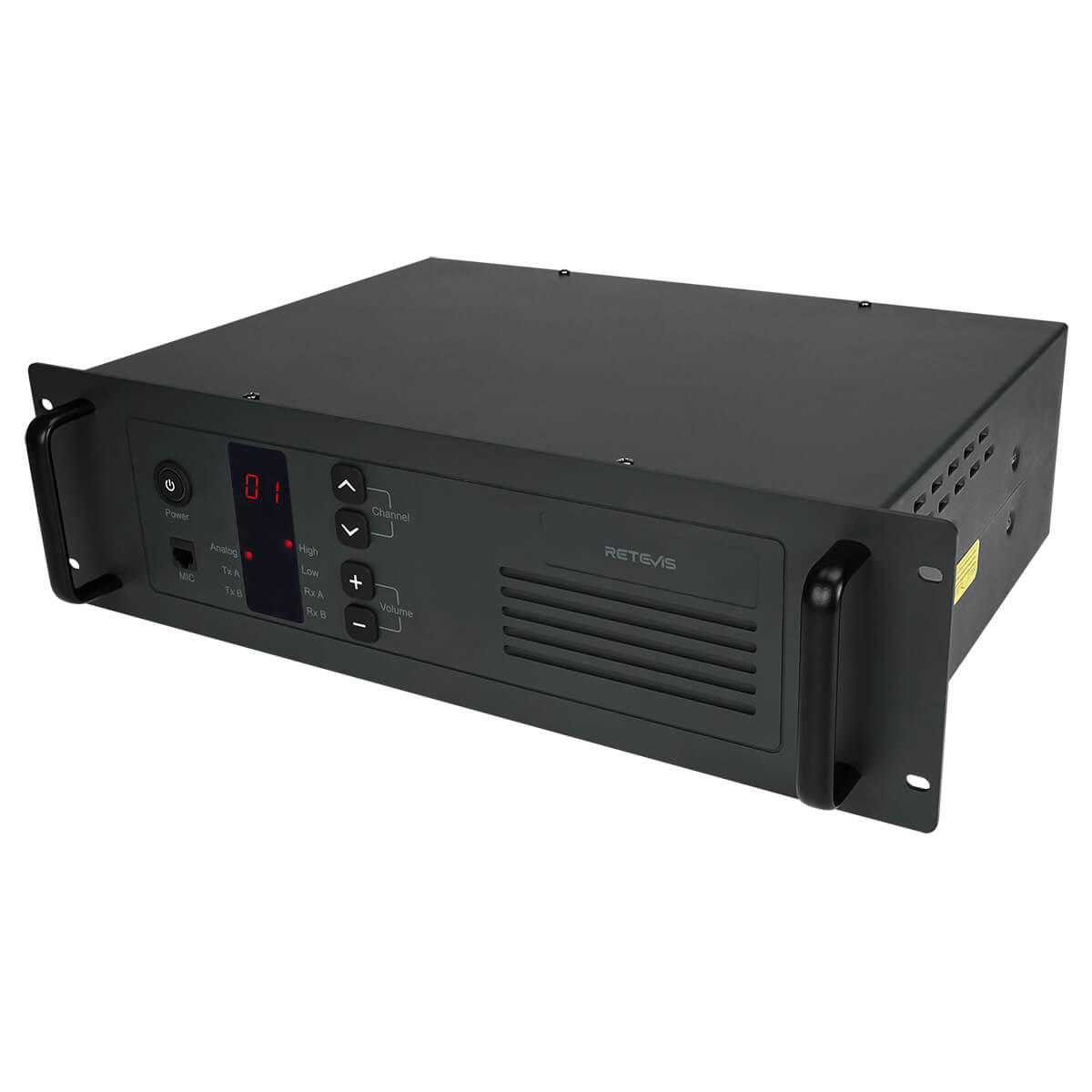

Retevis R1 Long Range 25W Repeater Full Duplex Base Station with Screen
Long Range Walkie Talkie Repeater
The long range base station provides stronger penetration and a wider range. It enhances the ability to transmit and receive signals to maintain instant and constant communication, regardless of your location in a factory or industrial park.

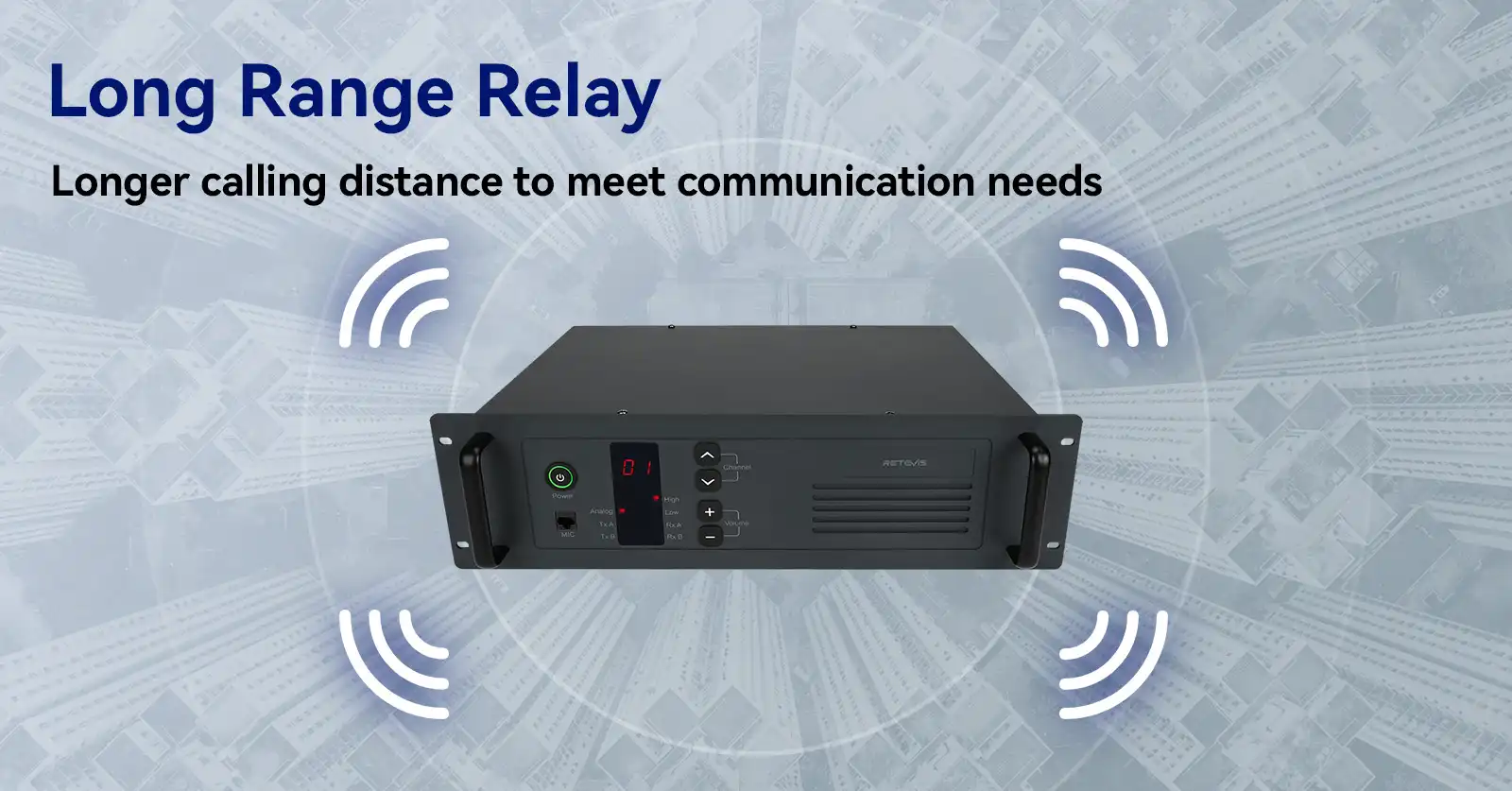

Extend Communication Distance

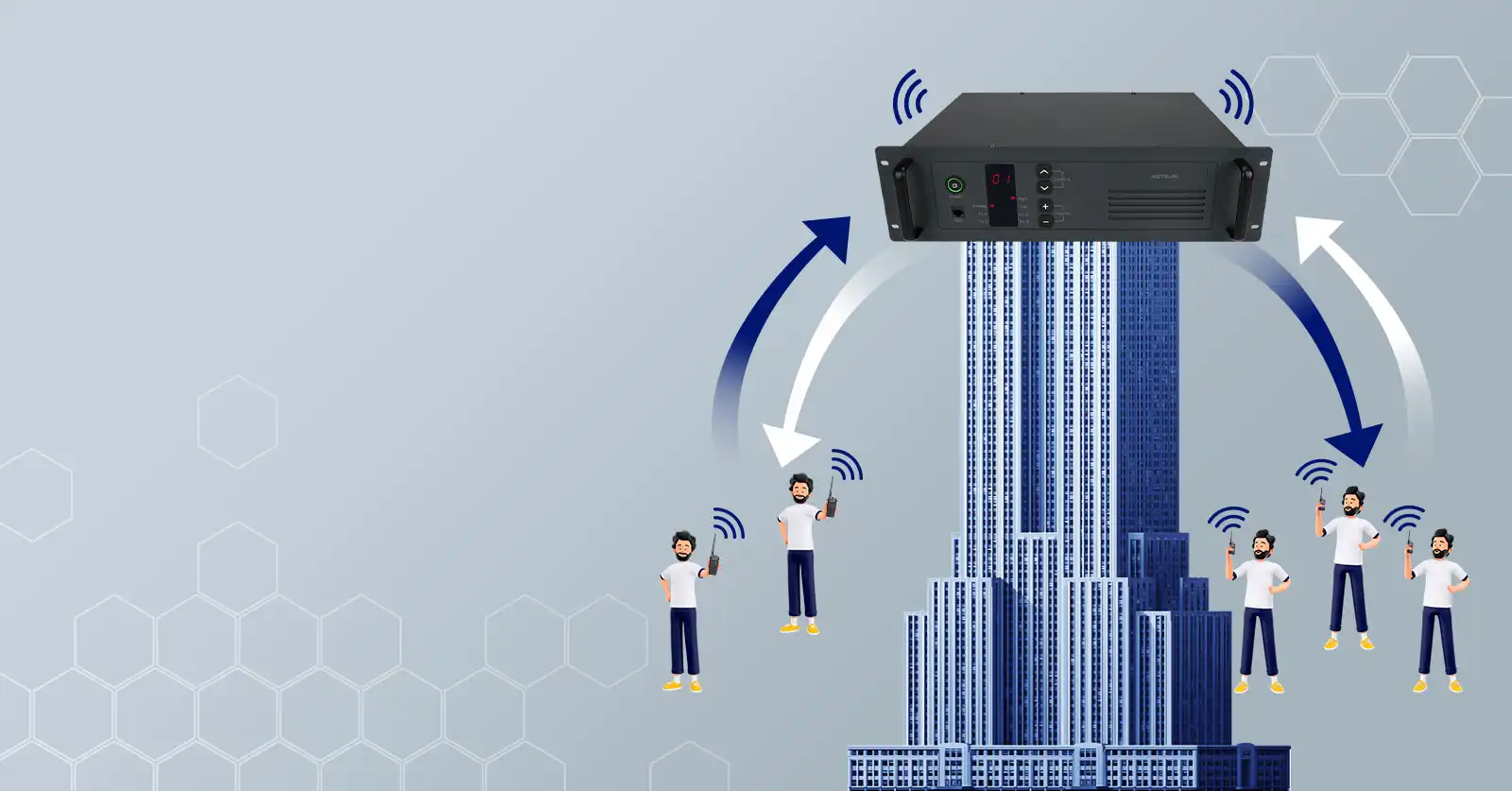

Retevis R1 repeater can be used to work with handheld radios and and external antenna to greatly extend the communication distance.

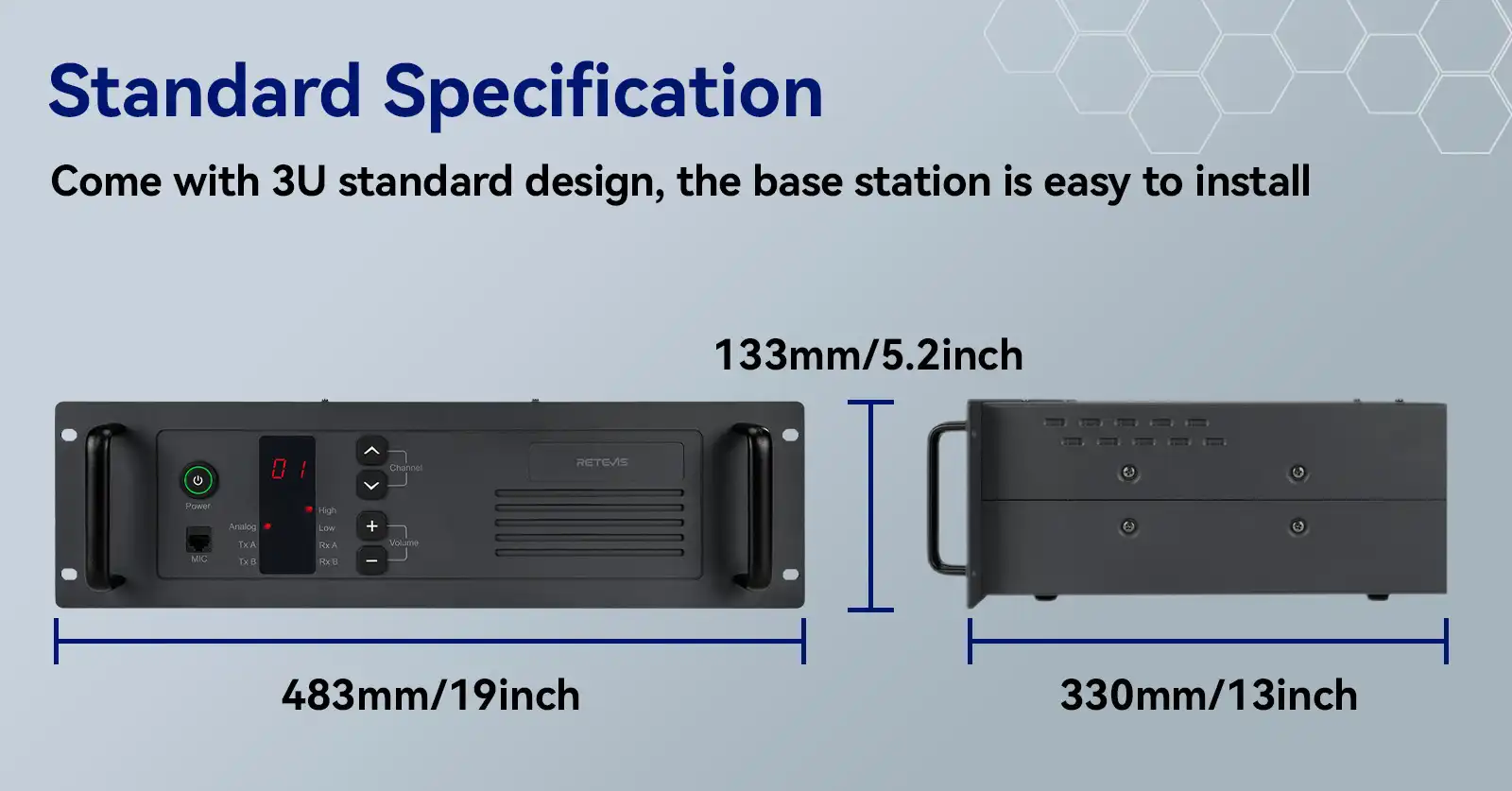

Standard 3U Design
The standard 3U design fits in the standard rack for easy installation. It's convenient to operate the radio repeater in various working environments, such as factories, schools and industrial parks.
Built-in Duplex
Built-in duplex allows users to transmit and receive signals at the same time, adding flexibility and convenience to help work run smoothly.

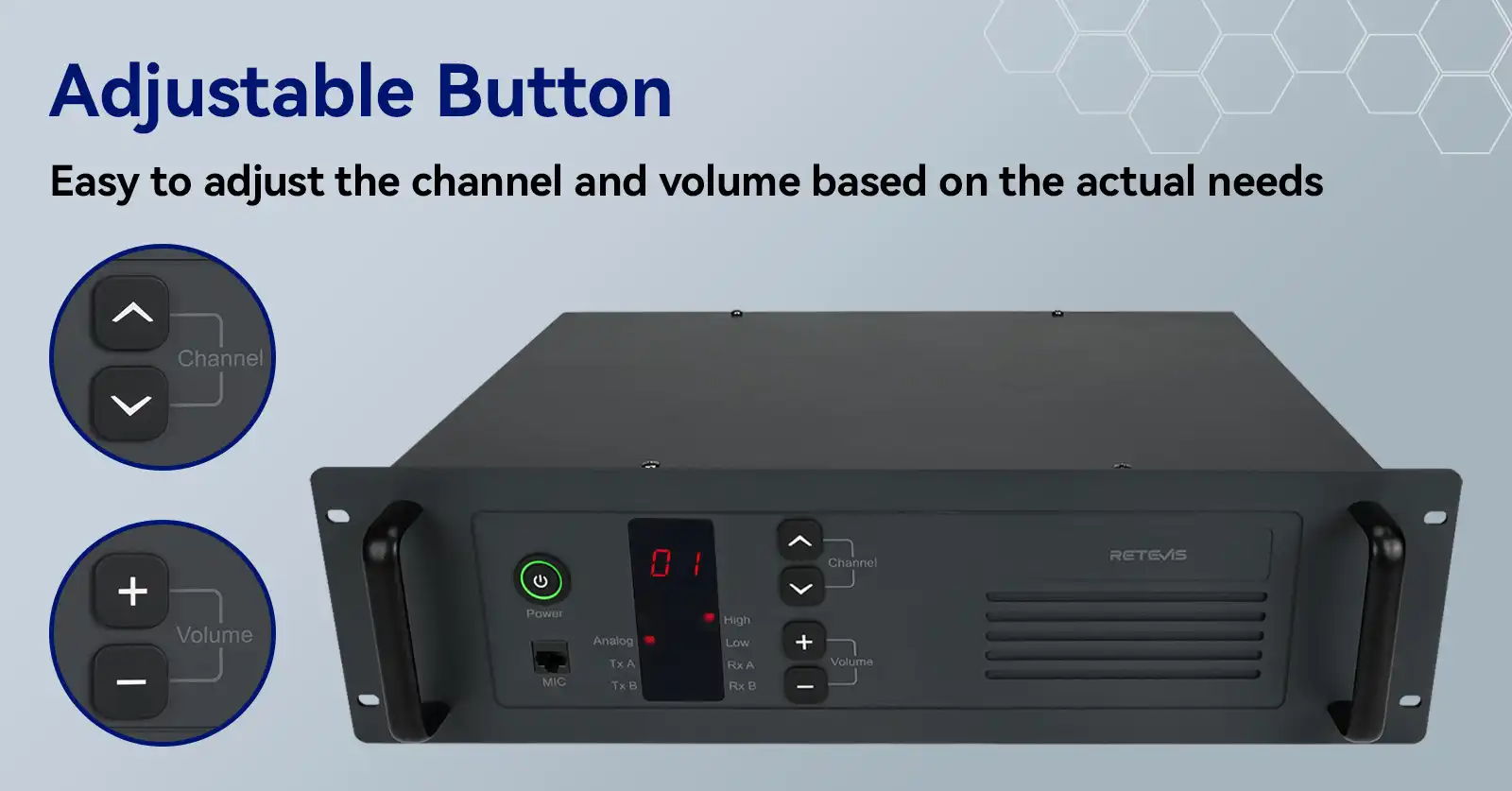

Adjustable Buttons
The 2 way radio repeater features adjustable buttons for ease of use. Users can easily adjust the channel or volume based on their specific usage requirements.

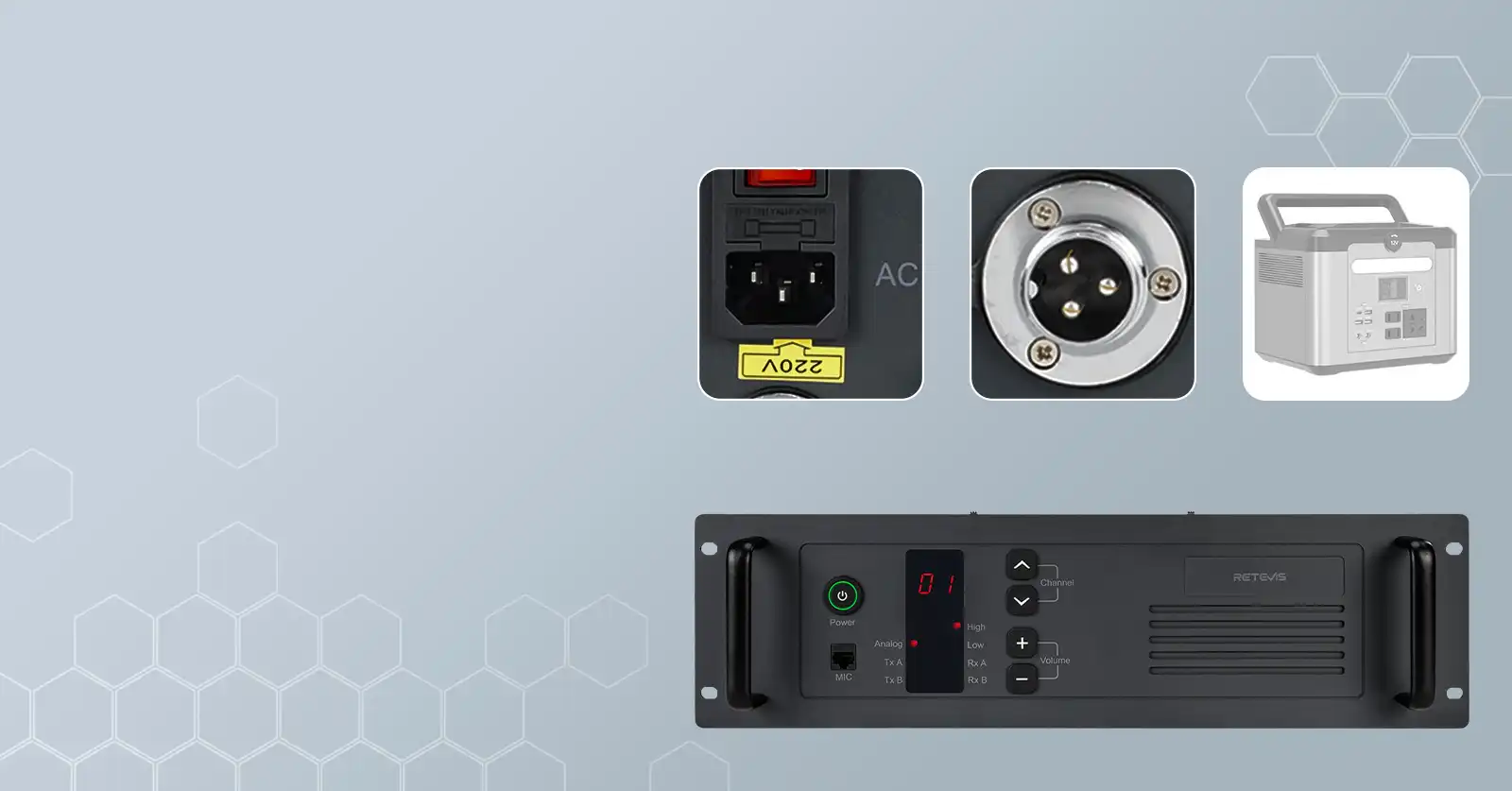

AC & DC Power Supplies
Support AC110-220V and DC13.8V. It is convenient to use repeaters indoors and outdoors; in addition, DC and mobile power supplies are good helpers in dealing with emergency and outdoor power problems.
Durable to Use
The R1 analog repeater is made of durable metal materials, making it a reliable tool for prolonged use in the workplace.

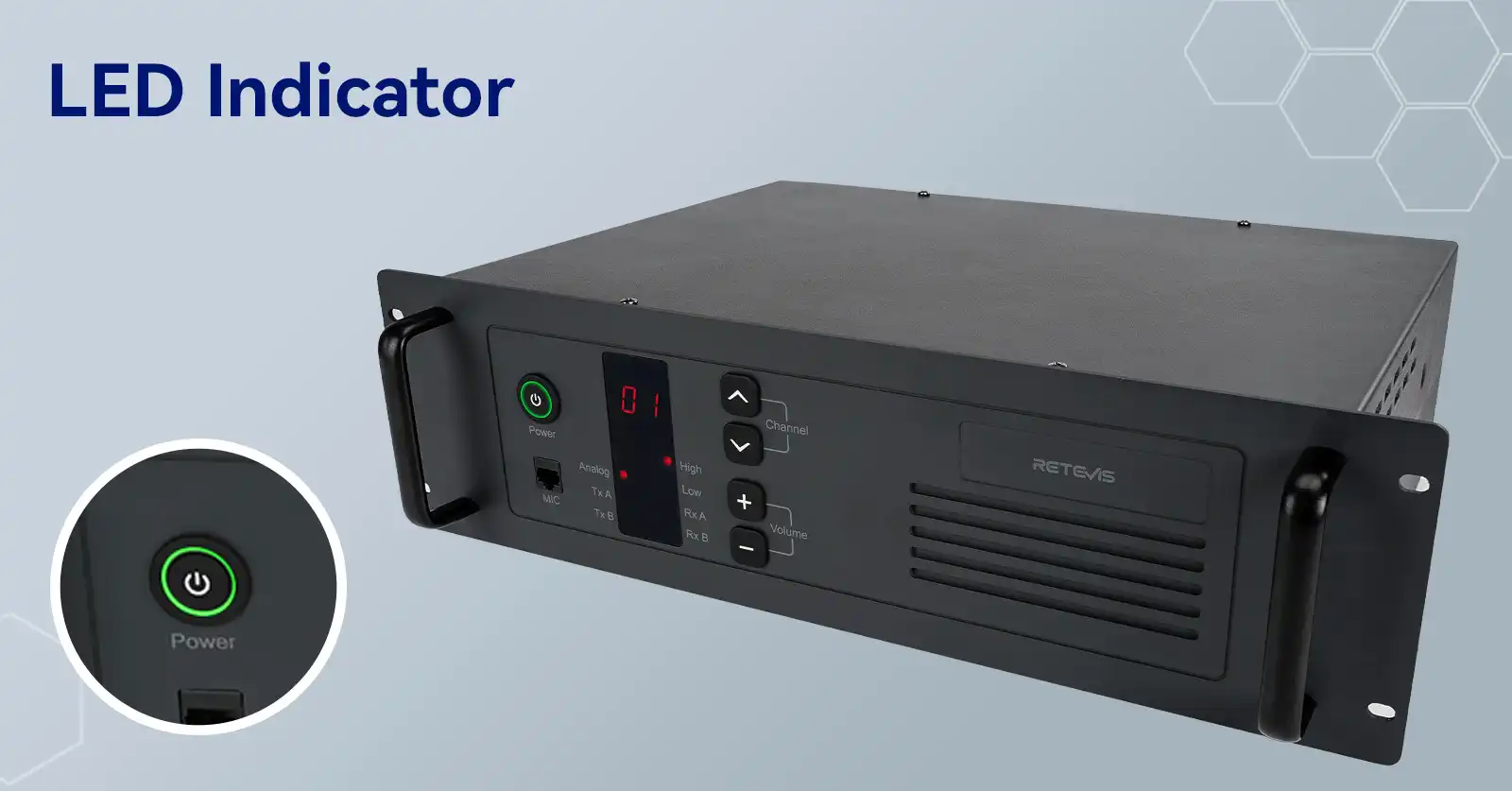

LED Indicator
The LED indicator helps users clearly understand the working status of the base station, including transmission, reception, and operation.
Clear Sound Quality
The R1 two way radio repeater offers stable and clear sound transmission, making communication more smooth and reliable and increasing communication efficiency.
Various Applications
The R1 repeater can enhance transmitting and receiving signals, and improve work efficiency. Thus, it's a reliable long-distance communication solution for factories, schools and industrial parks.

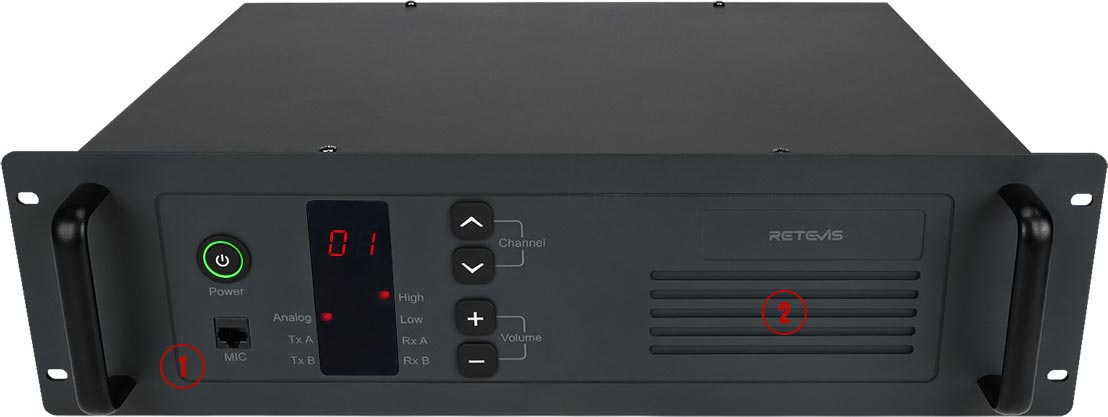

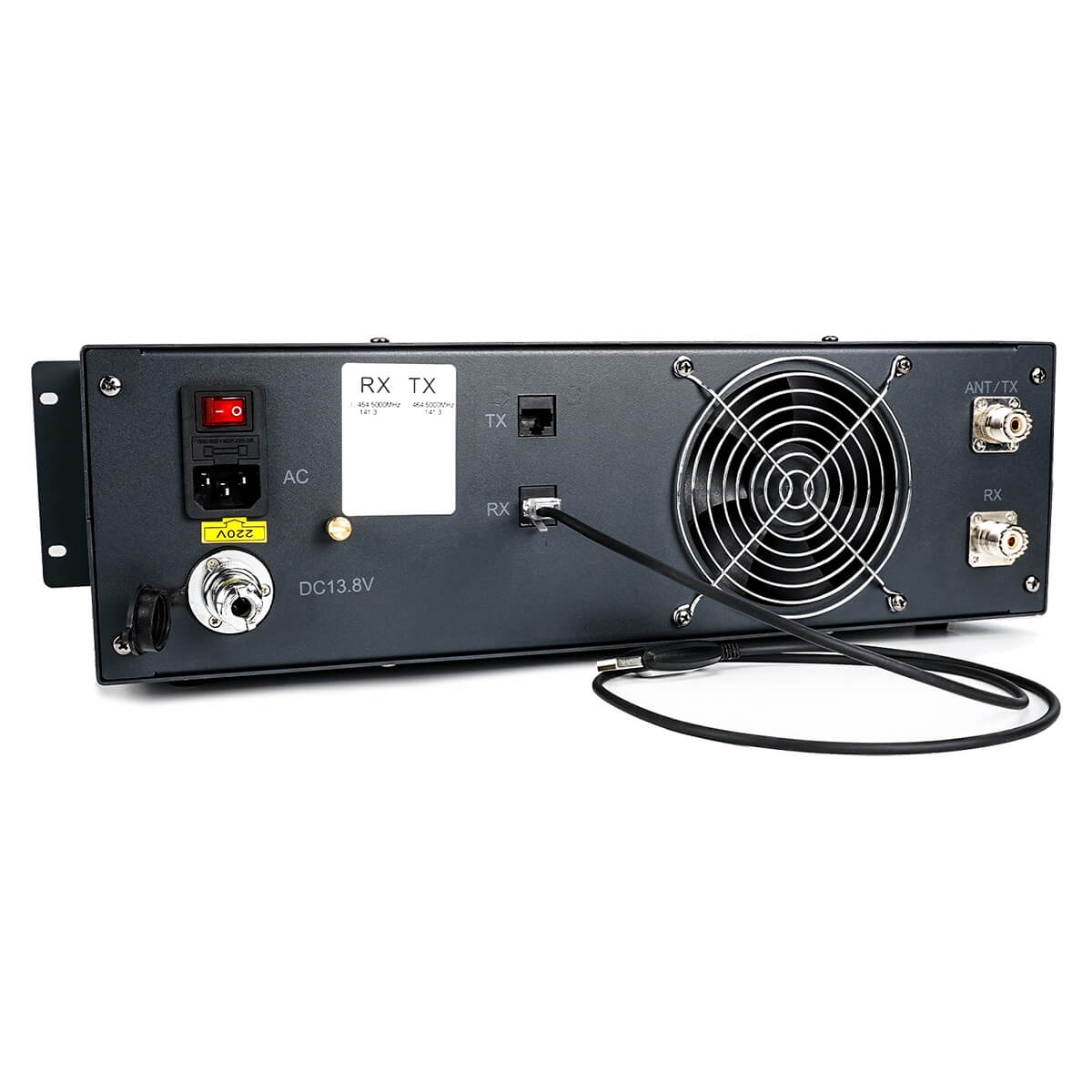

Design Details of the Repeater:
① Speaker Microphone Connector
② External Sound Speaker
③ AC Power Connector

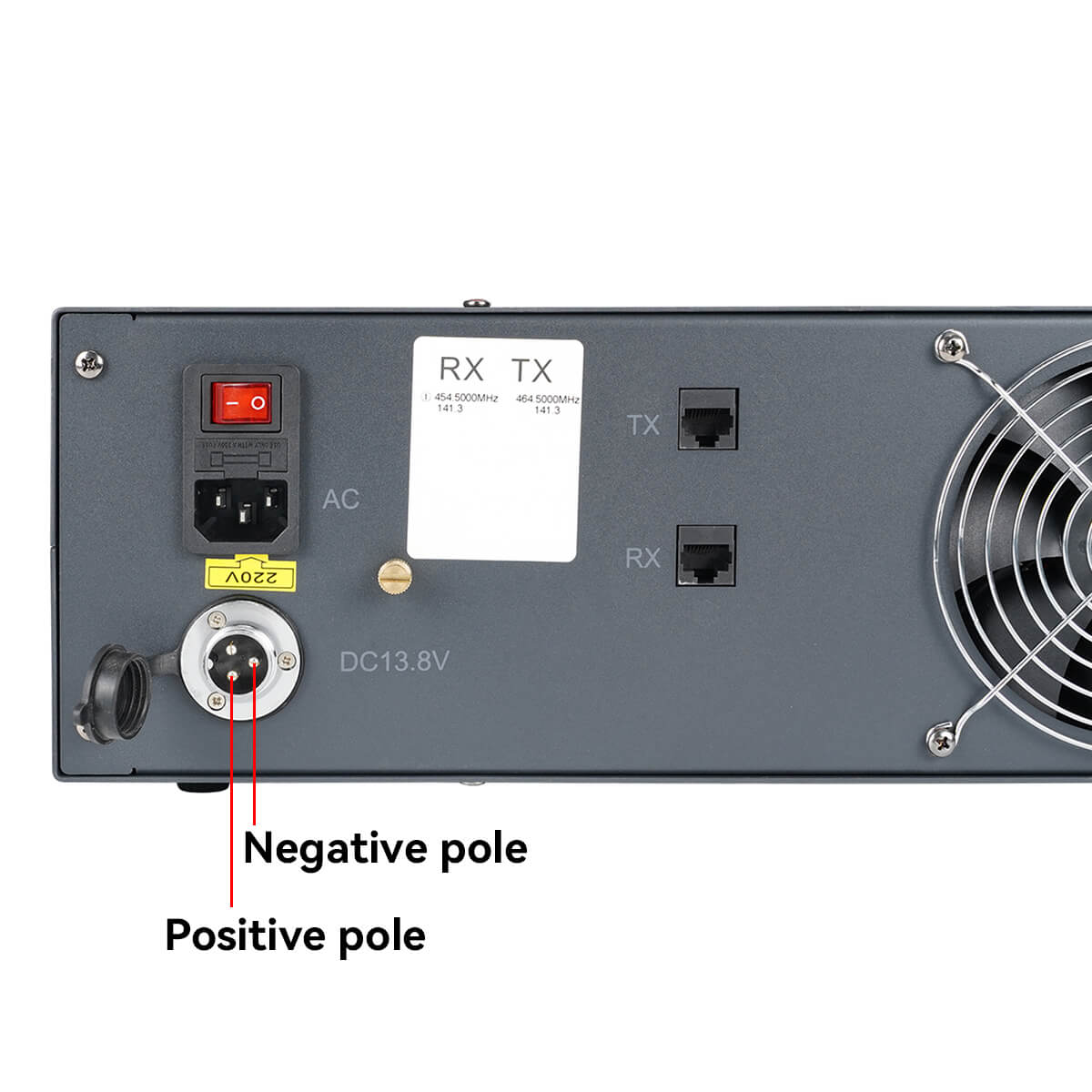

④ DC Power Connector, Rated input voltage 13.8V

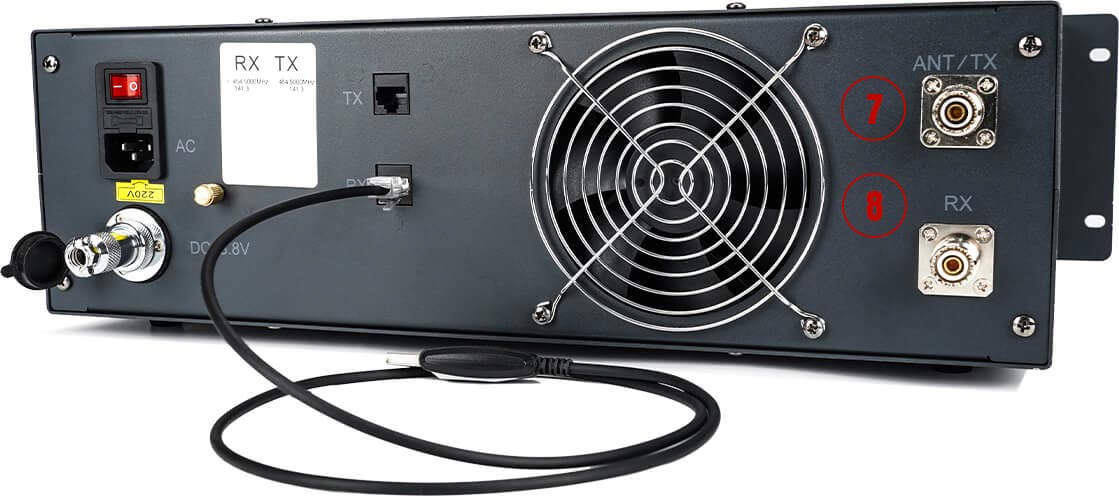

When there is only one antenna, connect the antenna to the ANT connector
If using 2 antennas, ⑦ link the TX antenna, ⑧ link the RX antenna
⑤ TX Programming Connector
⑥ RX Programming Connector
FAQs
However, if you customize the GMRS version, it does not include a duplexer.
If you are using the VHF or UHF version (which has a duplexer), you only need one antenna for both transmission (TX) and reception (RX).
Using Two Antennas:
If you are using the GMRS version (which does not have a duplexer), you need two antennas—one for transmitting and one for receiving.
Antenna: For signal transmission and reception.
Coaxial Cable: To connect the antenna to the repeater for signal transmission.
Spec
|
Customizable Frequency |
Support Frequency Customization: VHF (Offset: ≥5.7MHz) or UHF (Offset: ≥10MHz); [Doesn't support GMRS frequency customization] |
|
Memory Channels |
100 |
|
Power |
25W |
|
Voltage input |
AC 110-220V；DC 13.8V |
|
Dimension |
483*330*133mm |
Features
Functions:
● Support VHF/UHF Customized Frequency Points
● 50 CTCSS and 1024 DCS Codes
● DTMF/2Tone/5Tone Coder
● 25k(Wide Band)/20k(Middle band)/12.5k(Narrow Band)
● Channel Step 2.5/5/6.25/10/12.5/20/25/30/50kHz
Features:
1. Indoor and outdoor use
2. Ease of installation
3. Integrated heat sink and backplane fan
4. Bright and clear LED indicator lights
5. Automatic voltage and temperature protection
6. Improved audio quality
7. Built in support for third-party duplexers
Applicable Occasion:
Applicable to: Large hotels, office buildings, high-end residential buildings, sports venues, large conference centers, large hospitals, industrial parks, etc
