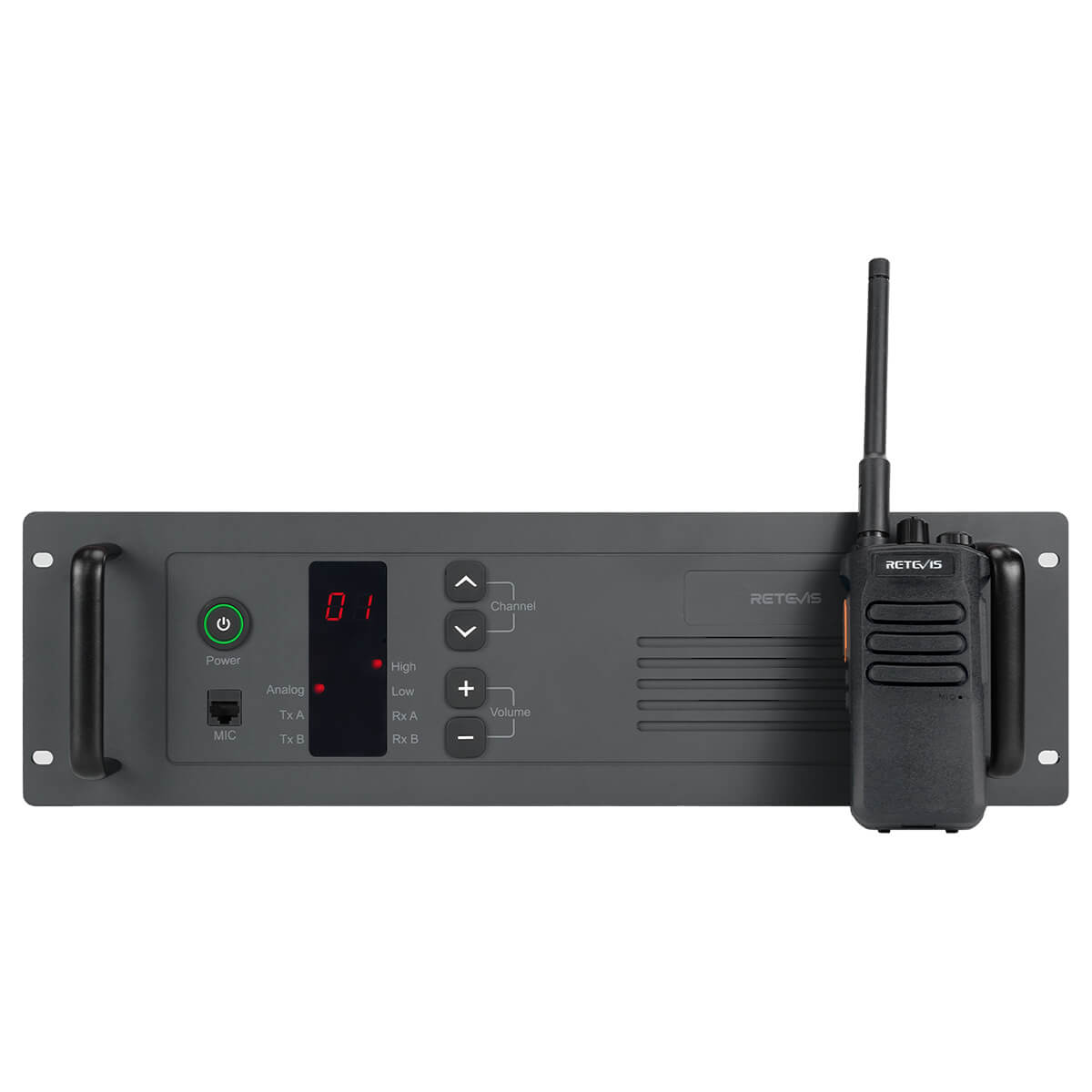

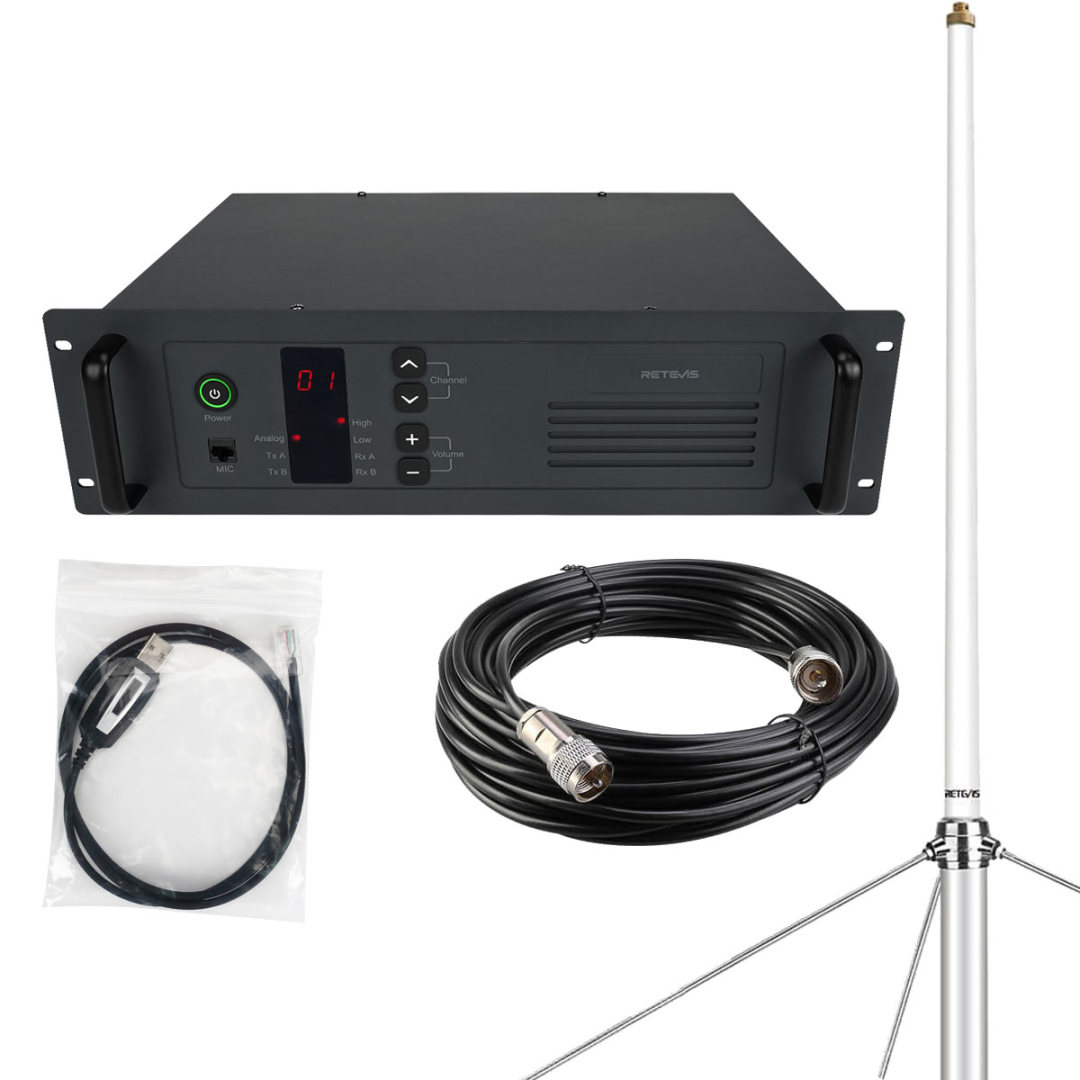

R1 Customizable Frequency Repeater with Fiberglass Antenna and Coaxial Cable

Order Status: In Stock


Regular price

Sale
$80

Spend $1000, get $80 off

Ends in
  1. Support VHF or UHF Customized Frequency Points
  2. Comes with Fiberglass Antenna and Coaxial cable
  3. 25W Long Range Radio Repeater

NOTE:

  1. Support Frequency Customization: VHF (Offset: ≥5.7MHz) or UHF (Offset: ≥10MHz); you can contact us via email. [Doesn't support GMRS frequency customization]
  2. Please note the customized information when placing an order.
  3. After confirming your custom frequency, it will take 1 month to customize.
  4. After customization, the frequency is fixed and cannot be returned.

Save $70.00 Orders Over $800
Free shipping
Limited time deal


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

  1. Support VHF Customized Frequency Points
  2. 100 Memory Channels
  3. 50 CTCSS 1024 DCS codes
  4. DTMF/2Tone/5Tone Coder
  5. 25k(Wide Band)/20k(Middle Band) 12.5k(Narrow Band)
  6. Channel step 2.5/5/6.25/10/12.5/15/20/25/30/50kHz

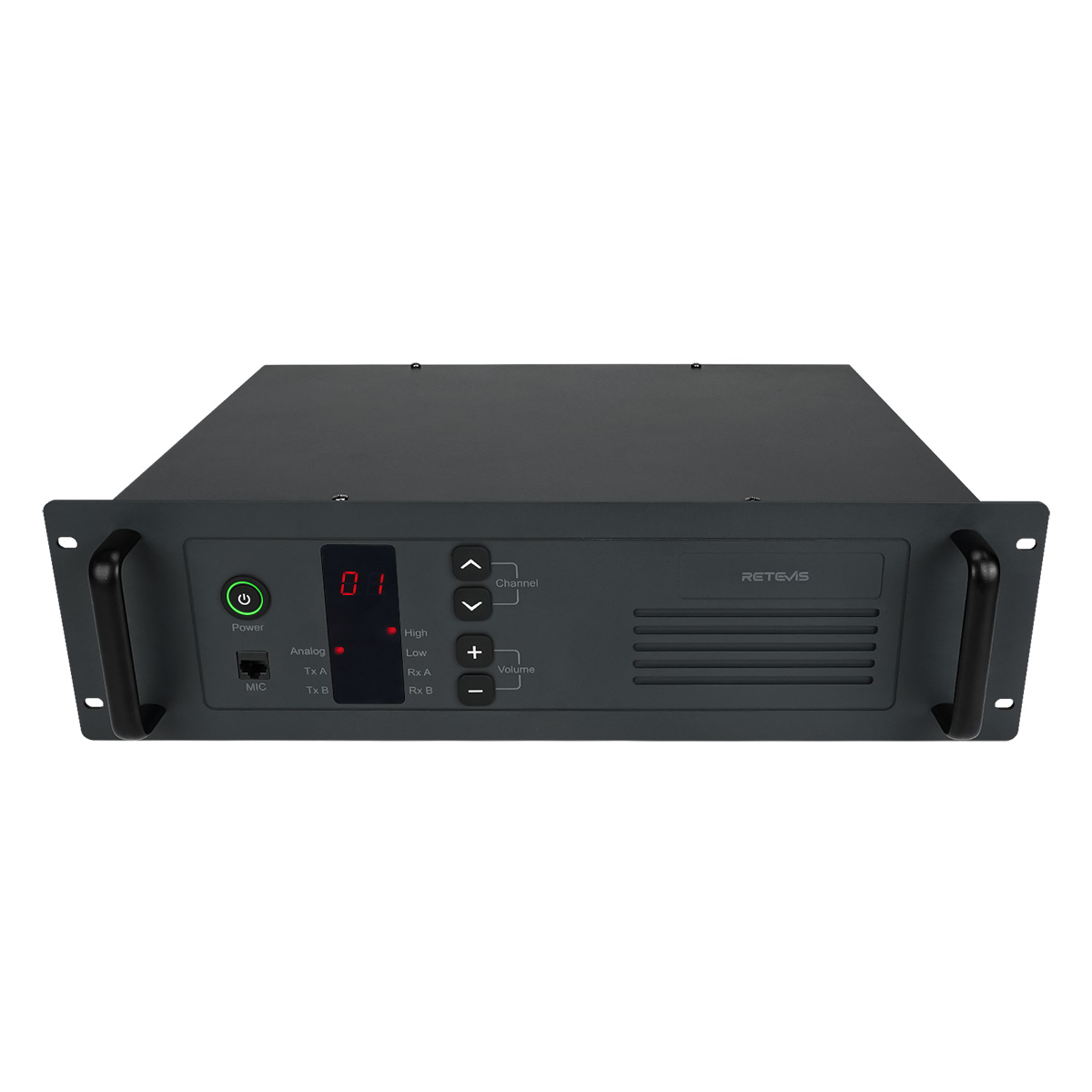

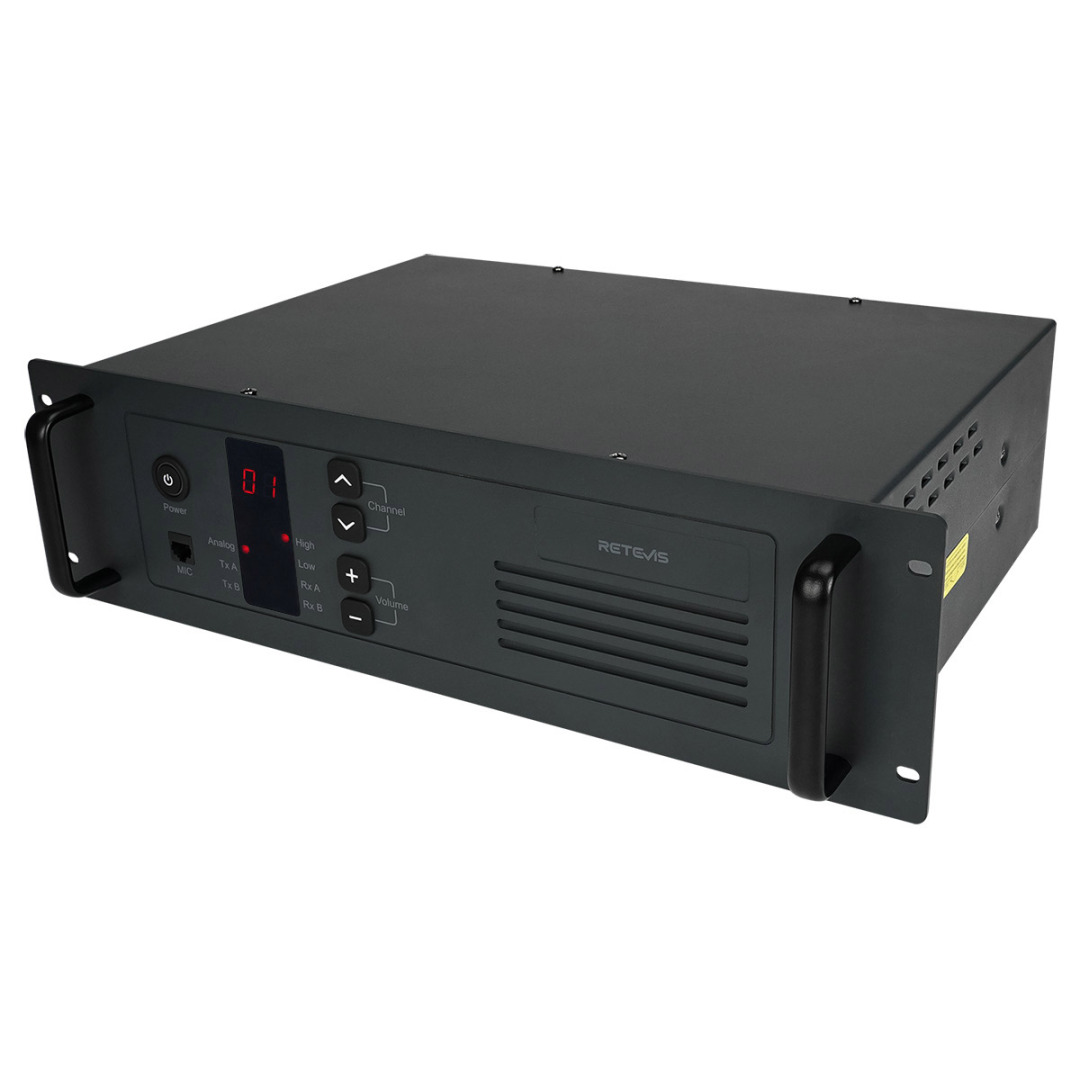

R1 25 Watt UHF Analog Repeater

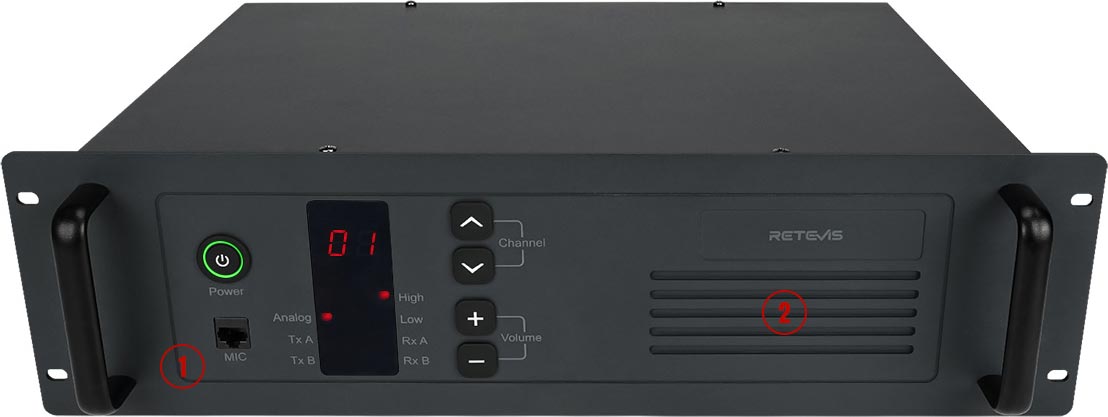

① Speaker Microphone Connector

② External Sound Speaker

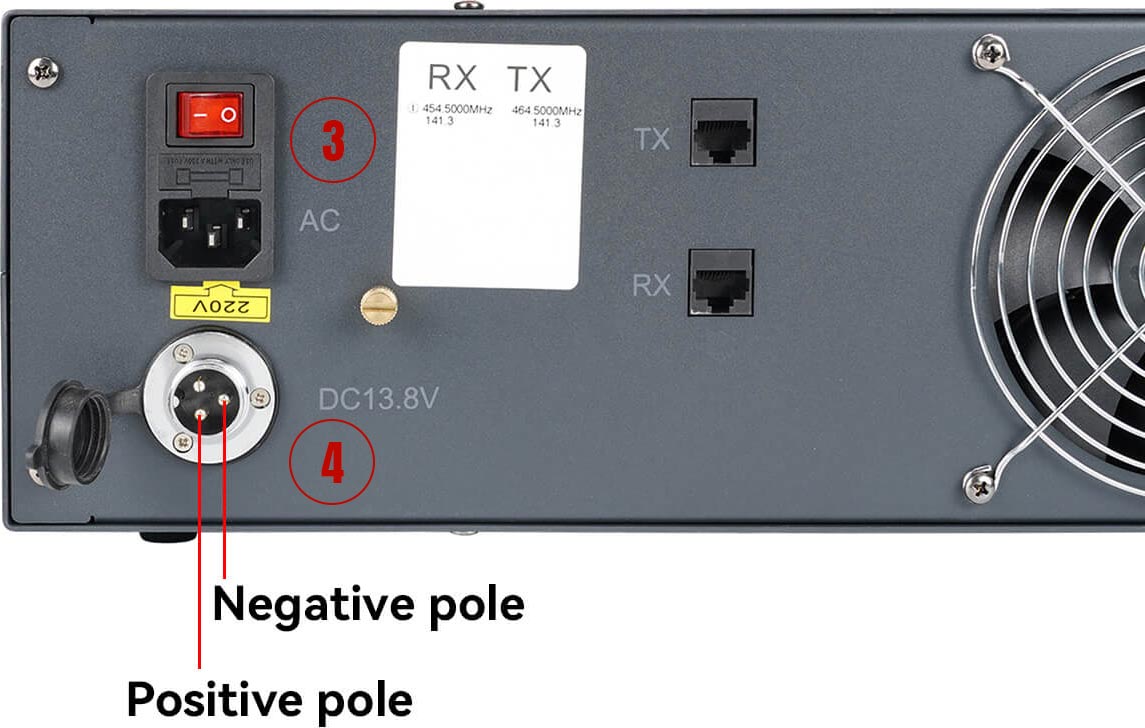

③ AC Power Connector

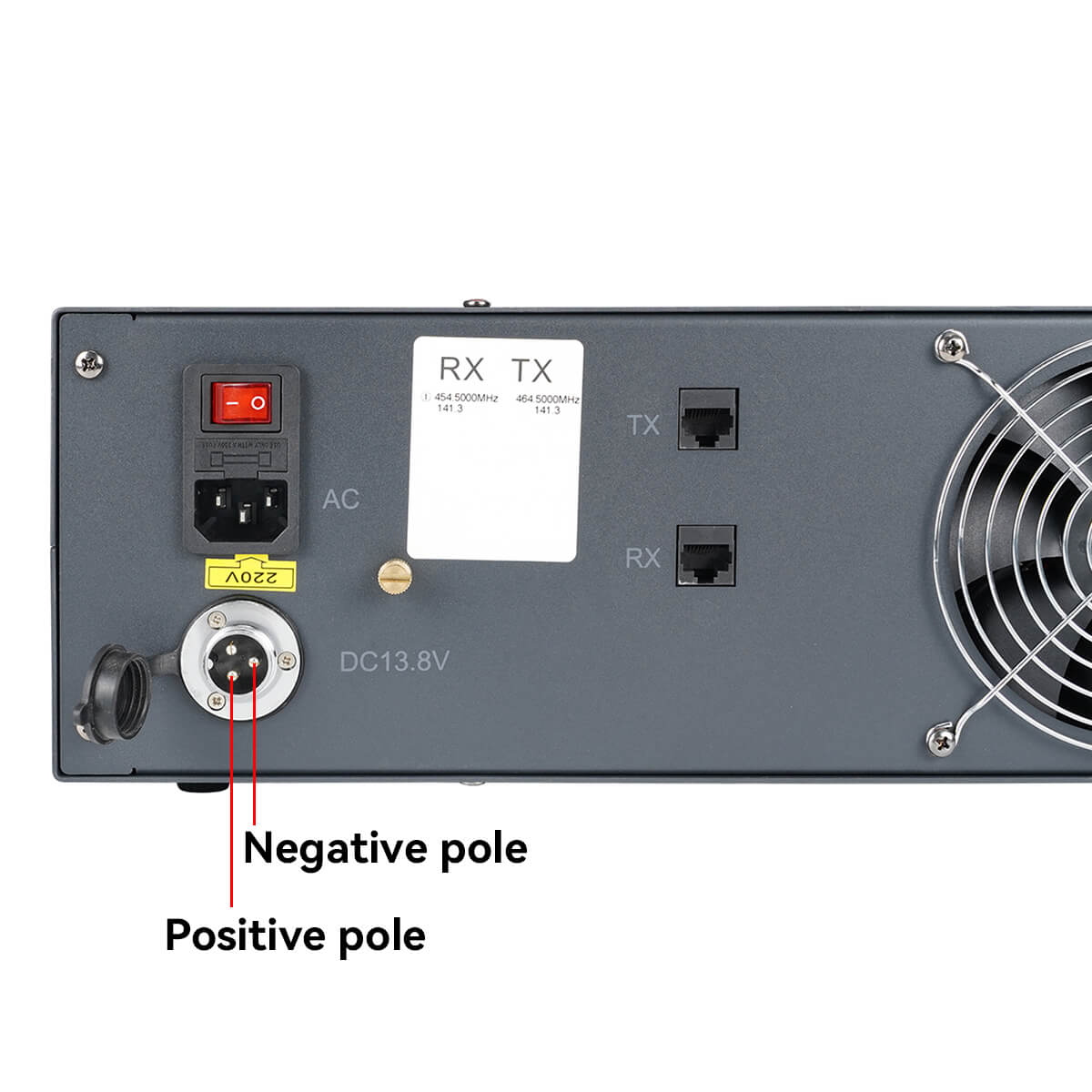

④ DC Power Connector, Rated input voltage 13.8V

R1 25 Watt UHF Analog Repeater
R1 25 Watt UHF Analog Repeater

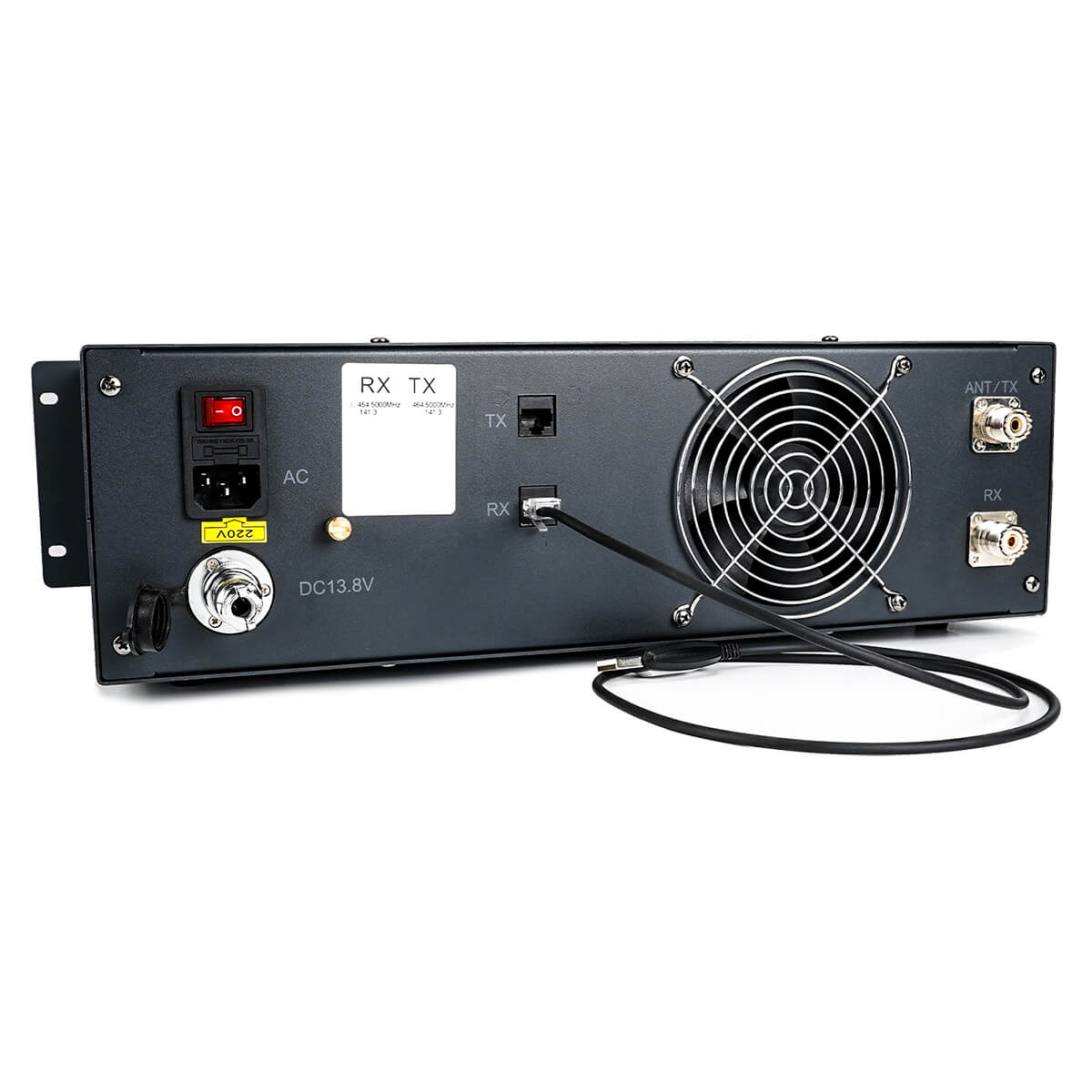

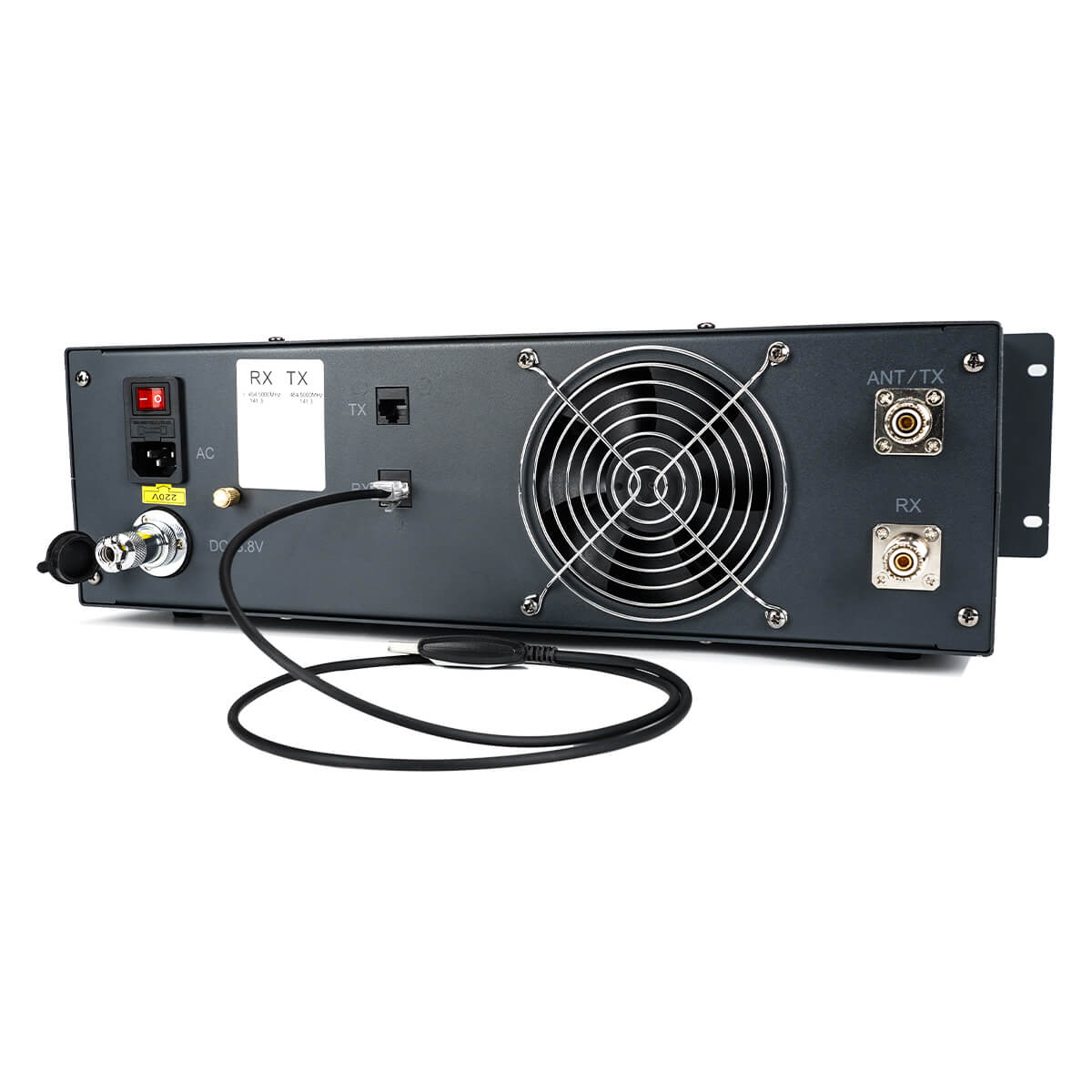

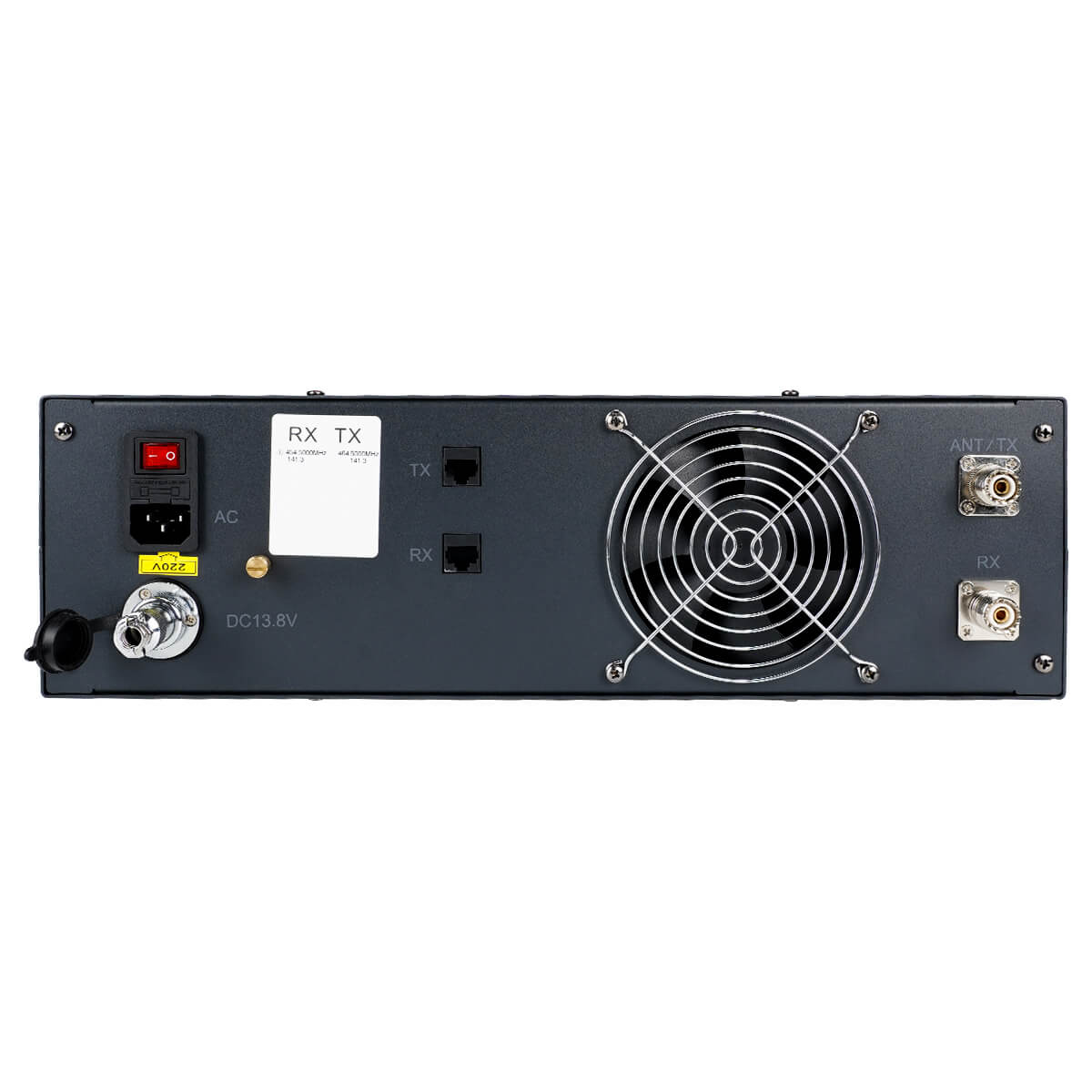

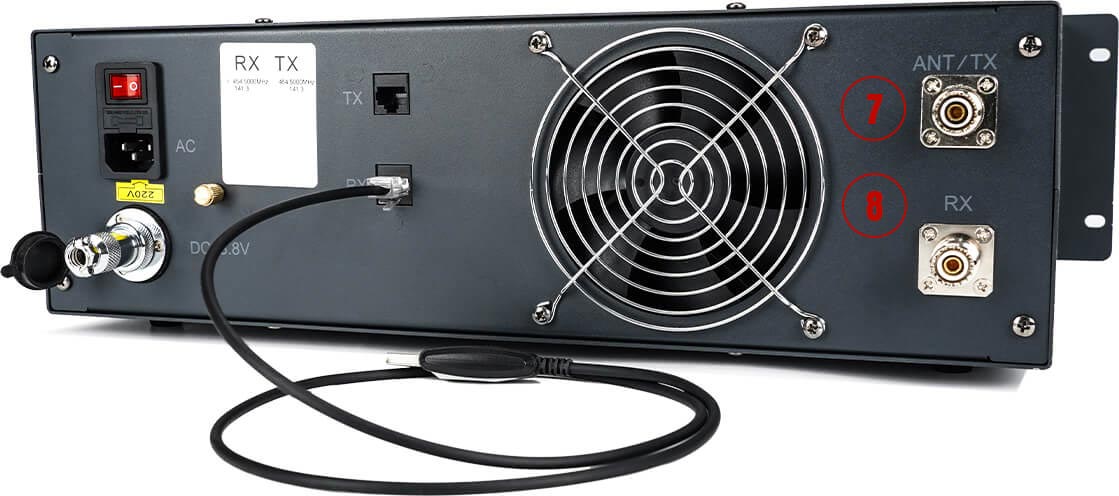

When there is only one antenna, connect the antenna to the ANT connector

If using 2 antennas, ⑦ link the TX antenna, ⑧ link the RX antenna

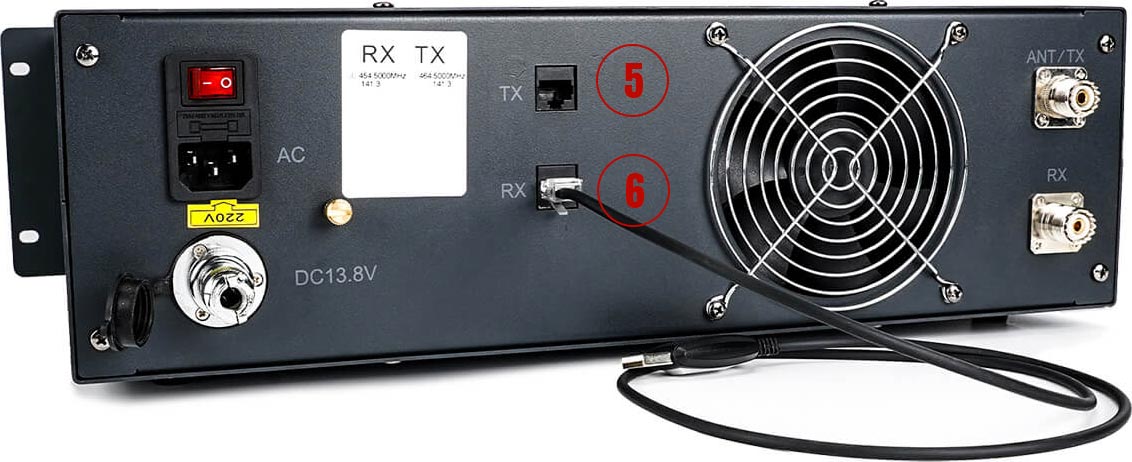

⑤ TX Programming Connector

⑥ RX Programming Connector

R1 25 Watt UHF Analog Repeater

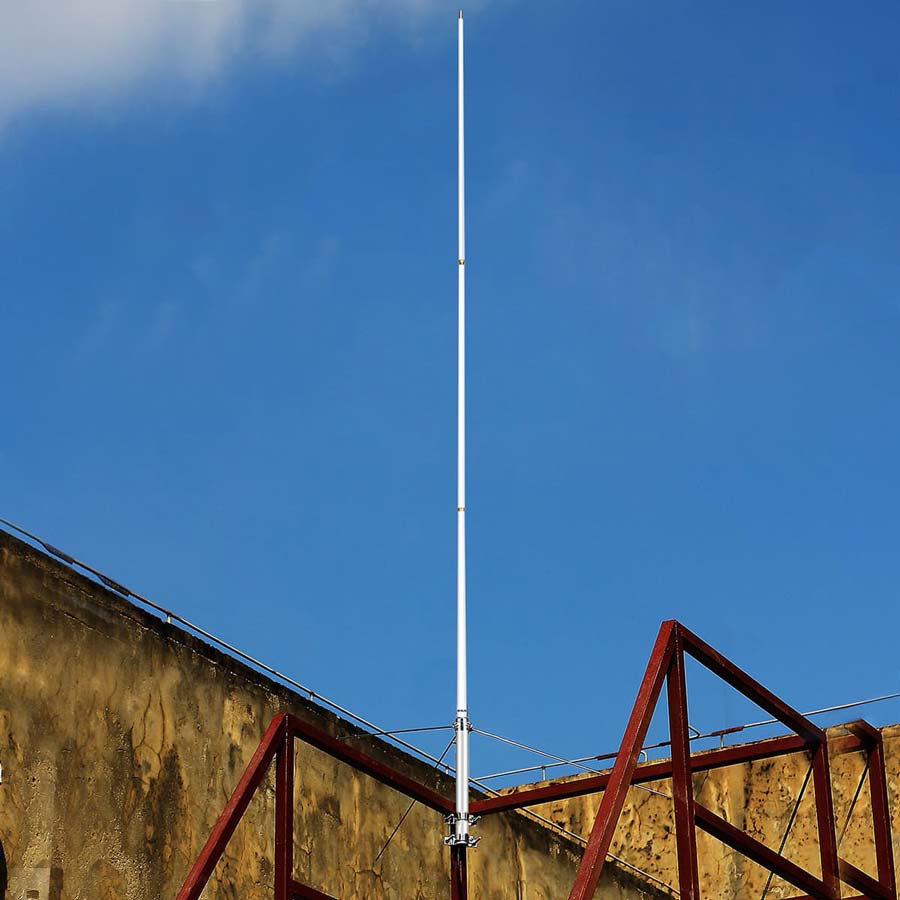

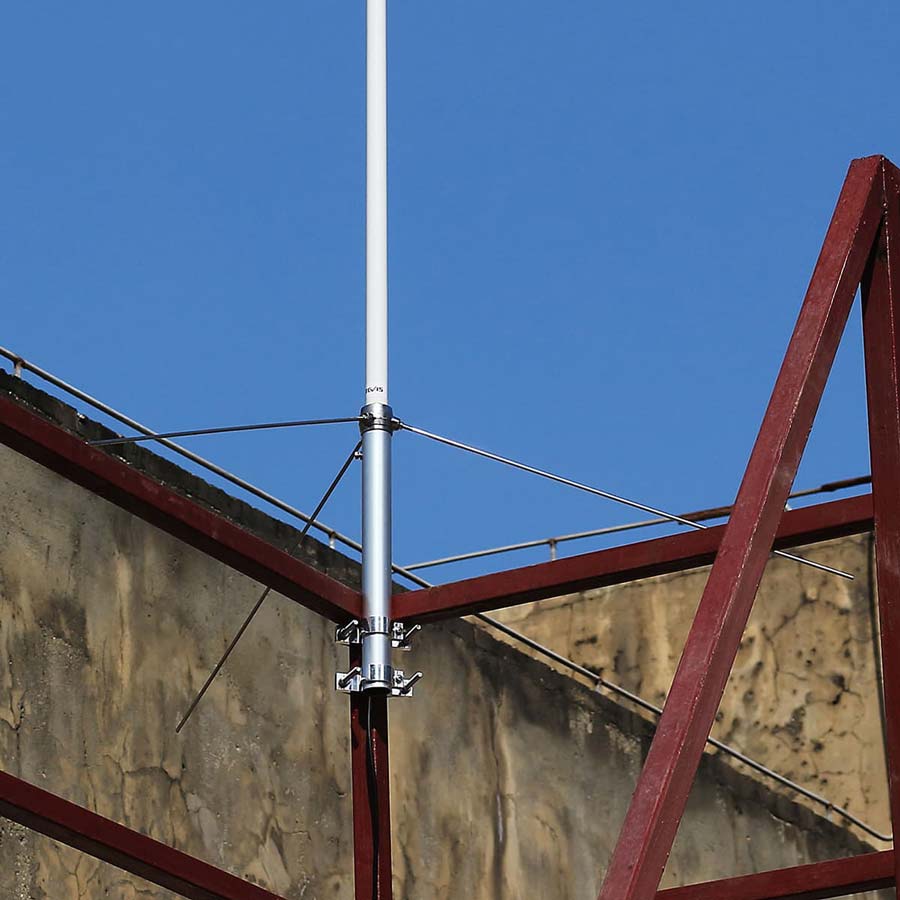

MA05 High Gain Glass Steel Omni-Directional Antenna
MA05 High Gain Glass Steel Omni-Directional Antenna

MA05 High Gain Glass Steel Omni-Directional Antenna

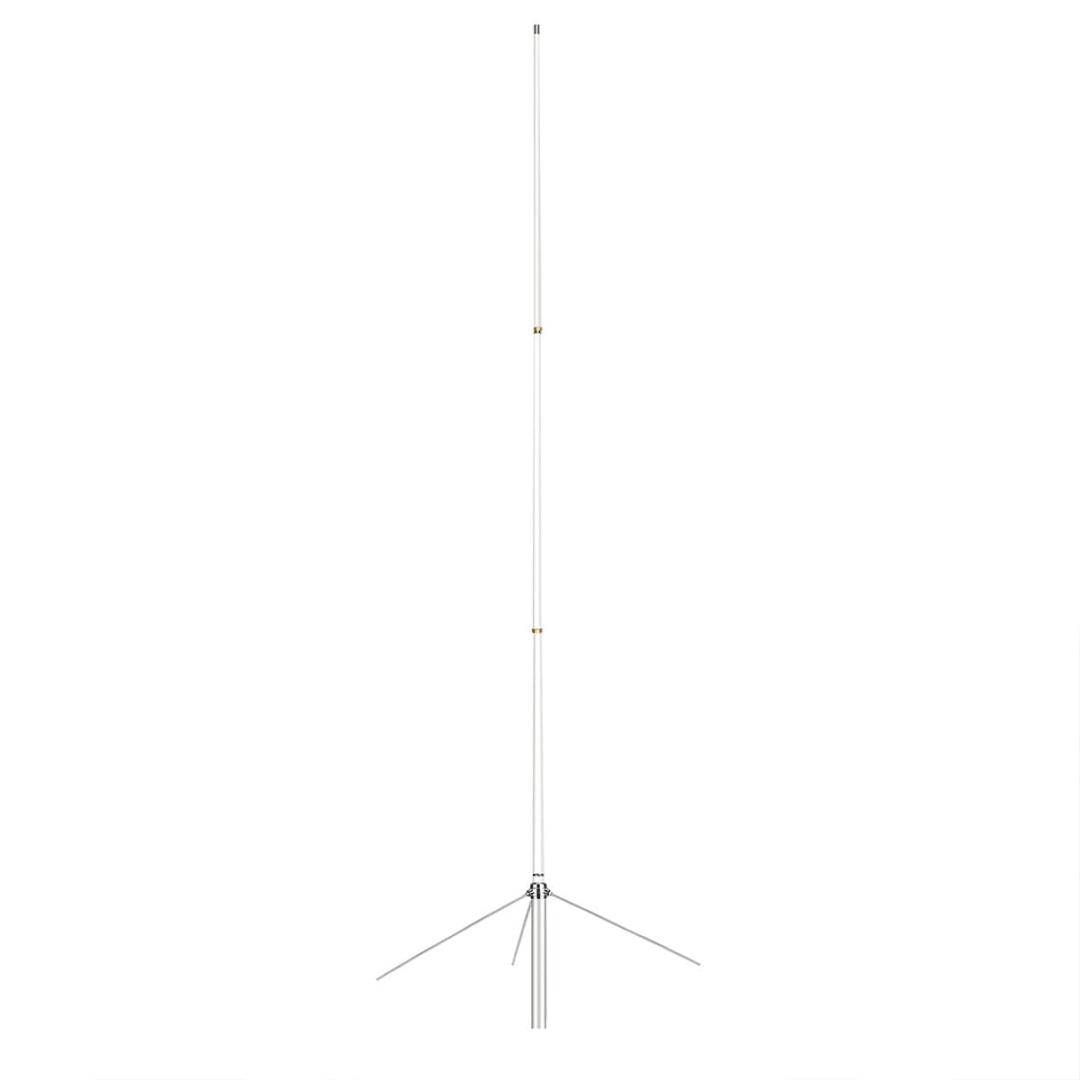

Dual-Band 2m/70cm Base/Repeater Antenna, High Gain 5.5/8.5dBi, Fiberglass Antenna, SL16K Connector

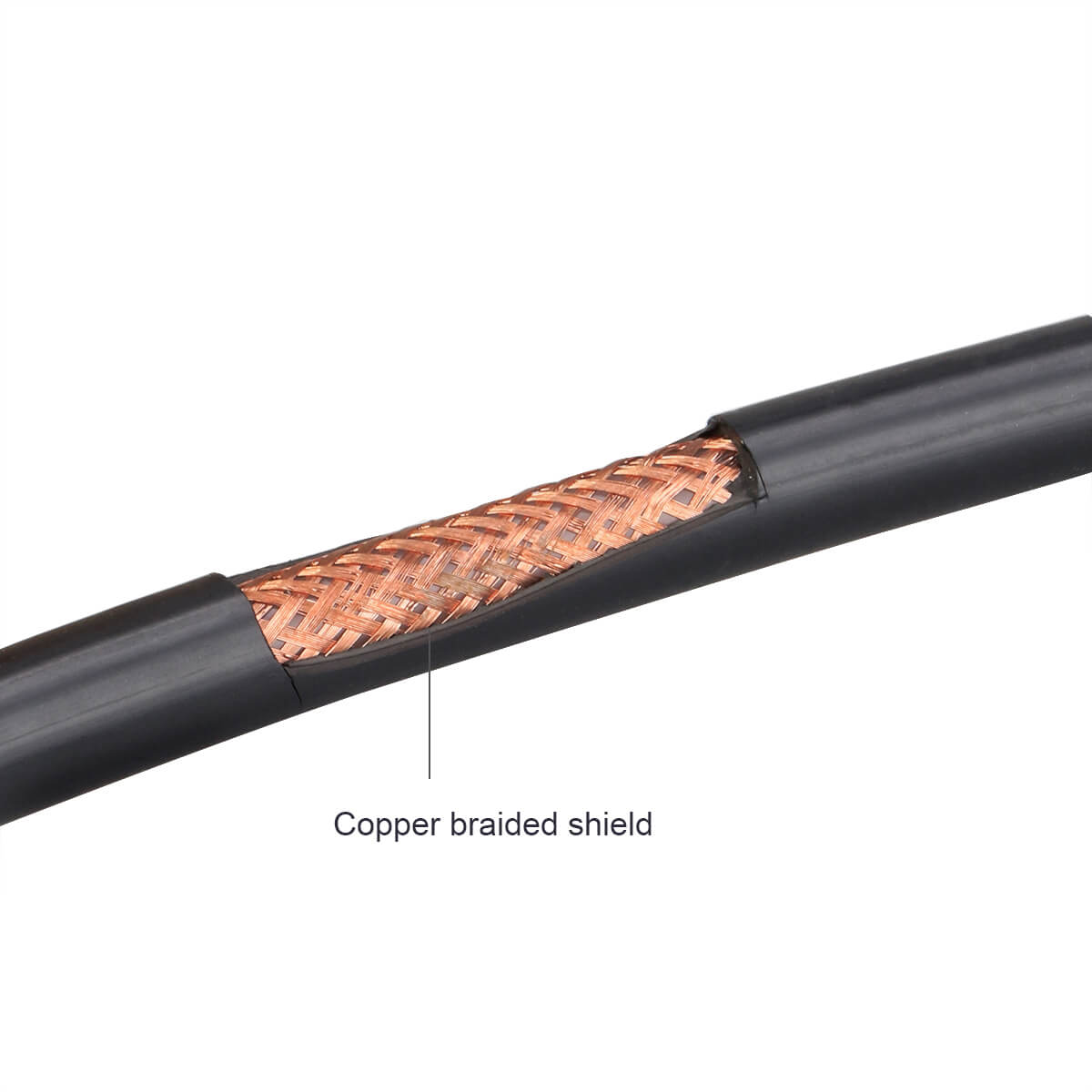

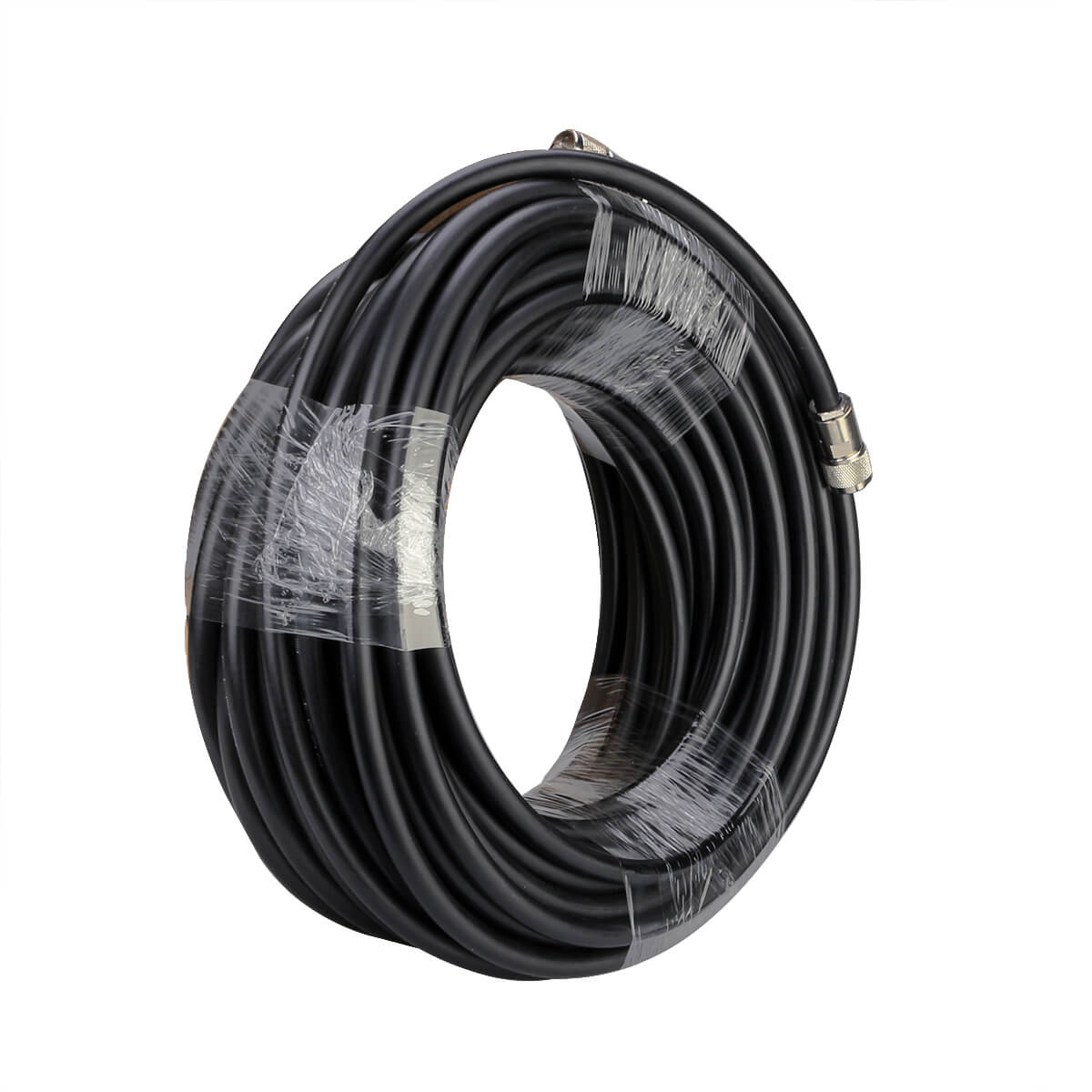

50-3 Pure Copper Low Loss Coaxial Extender Cable

Material: pure copper, Impedance: 50Ω, Cable diameter: 5mm / 0.2inch. Extendable and can boost the signal of repeater significantly. Super Gainer Low Loss Coaxial Cable.

MA05 High Gain Glass Steel Omni-Directional Antenna
MA05 High Gain Glass Steel Omni-Directional Antenna

FAQs

Yes, the VHF and UHF versions of the R1 repeater include a duplexer, which allows simultaneous transmission and reception using a single antenna.
However, if you customize the GMRS version, it does not include a duplexer.

Using One Antenna:
If you are using the VHF or UHF version (which has a duplexer), you only need one antenna for both transmission (TX) and reception (RX).
Using Two Antennas:
If you are using the GMRS version (which does not have a duplexer), you need two antennas—one for transmitting and one for receiving.

The real output power is 25W. But it's important to note that the actual output power can be affected by several factors. For example: antenna type and placement, environmental conditions, distance and interference, and etc.

The Retevis R1 is a 25W long-range analog repeater. It supports VHF/UHF, GMRS customizable frequency points and reduces dead spots. The repeater has strong penetration to ensure stable communication in buildings or over large areas. Its standard 3U design makes it easy to install and operate. This product is a genuine integrated system repeater.

The essential accessories for the R1 repeater are:
Antenna: For signal transmission and reception.
Coaxial Cable: To connect the antenna to the repeater for signal transmission.

Spec

Customizable Frequency

Support Frequency Customization: VHF (Offset: ≥5.7MHz) or UHF (Offset: ≥10MHz); [Doesn't support GMRS frequency customization]

Memory Channels

100

Power

25W

Voltage input

AC 110-220V;DC 13.8V

Dimension

483*330*133mm

Features

Functions:

Support VHF/UHF Customized Frequency Points

● 50 CTCSS and 1024 DCS Codes

● DTMF/2Tone/5Tone Coder

● 25k(Wide Band)/20k(Middle Band)/12.5k(Narrow Band)

● Channel Step 2.5/5/6.25/10/12.5/20/25/30/50kHz

Features:

1. Indoor and outdoor use

2. Ease of installation

3. Integrated heat sink and backplane fan

4. Bright and clear LED indicator lights

5. Automatic voltage and temperature protection

6. Improved audio quality

7. Built in support for third-party duplexers

Applicable Occasion:

Applicable to: Large hotels, office buildings, high-end residential buildings, sports venues, large conference centers, large hospitals, industrial parks, etc

Reviews

Customer Reviews

Average Rating

5
Based on 20 reviews

Did the item fit well?

Quality
75%
Ship
50%
Other
0%

Write A Review

All Reviews

As advertised. Good quality and great value of paired with proper antenna.

Works as described

nice, very nice.

I have no complaints and it’s awesome!

Extremely easy to install

Works as intended

Radio works quite well. Range is adequate.

I found this a good unit. Its very easy to program & set-up.

Documentation is good. Software is easy to use.

Live in Albuquerque,seems like this unit can get around 16 miles, hoping to play with antenna.

Compact yet efficient

Really great product and worth the buy.

Great repeater

Really helped our portable radios along with increased our coverage in our vehicles from around 3 miles to 9 miles.

It was what I ordered

when used with a Comet 712 efc gmrs antenna on a 40 ft tower in a hilly area using mag mount antenna on trucks we reached out 15 miles

Retevis makes repeater simple and work ever time. Great range when placing the antenna properly.

We are running one of these local and it works excellent all around the valley. I decided to purchase my own to set up mobile for camping and such.

Easy to install, not much programming necessary

Great
