HD1GPS+Programming Cable +Long Antenna+Battery

Order Status: In Stock


Regular price
In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

Retevis Ailunce HD1 dual band digital ham radio uses Digital Mobile Radio (DMR) Tier 2 Standard protocol. It is compatible with the popular MOTO TRBO series Tier I and II using standard encryption, as well as other makes and models of DMR supported radios. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies for easy migration to digital technology. And almost all the operations can be done via radio keypad.

Features:

1. FULL FPP, which can be turned into all functions using the intercom panel without PC.

2. Up to 3000 channels, 100,000 Contacts + 1000 Priority Contacts for extremely complex organizational communications.

3. DCDM is Dual Capacity Direct Mode. Provides additional spectral efficiency by supporting up to two simultaneous Direct Radio-to-Radio Mode subscriber calls within a 12,5kHz allocation of spectrum, without a repeater.

4. Remote kill/stun/activate, allowing you to remotely manage the intercom.

5. IP67 dustproof and waterproof. Fearless of dust and Rainstorm.

6. Supports the use of repeater.

7. GPS gives you a clear idea of your location, even in the wild. Use it to find your way or to help others find you.

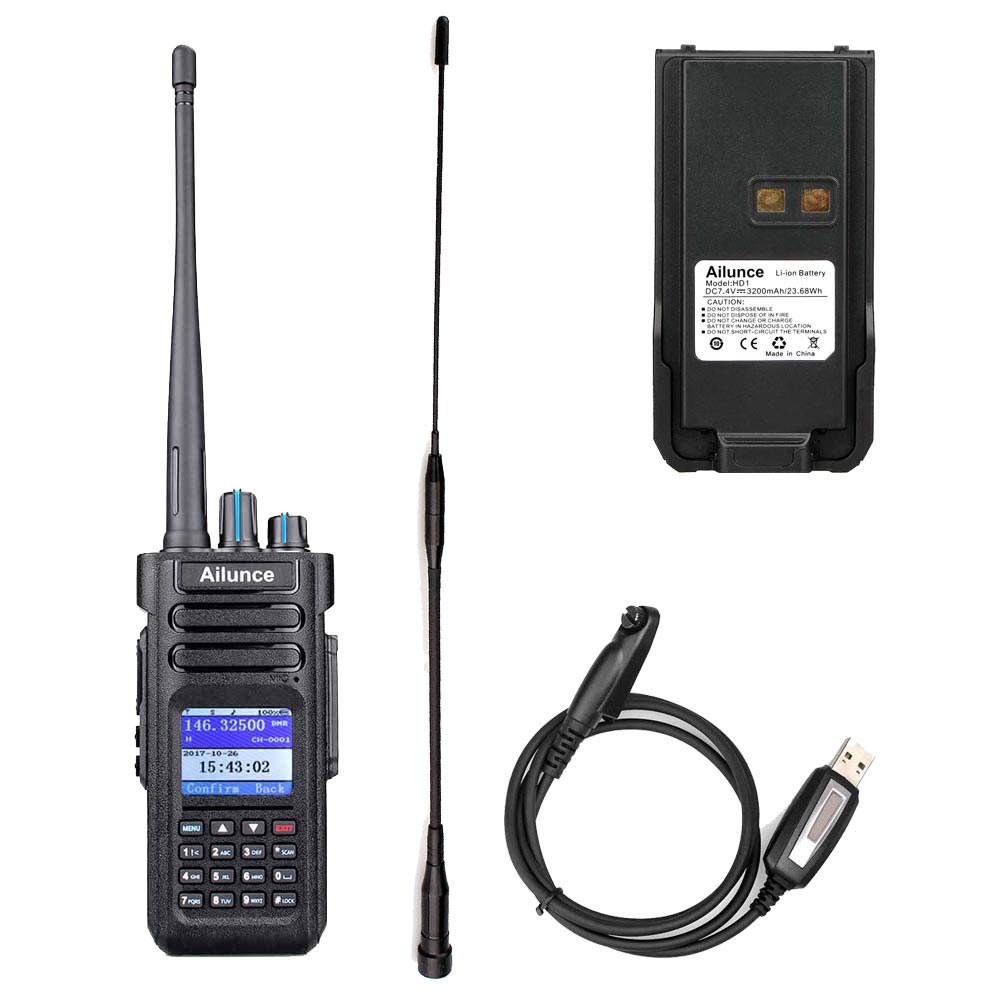

Package Includes:

  • 1 x HD1 GPS DMR Radio
  • 1 x Long Antenna
  • 2 x Type-C Charge Battery
  • 1 x Programming Cable
  • 1 x Type-C Desktop Charger
  • 1 x Type-C Charging Cable

Spec

General specifications
Frequency 136-174&400-480MHz&76-107.95MHz(Receive only )
Channels 3000
Operating Temperature -30℃~+60℃
Operating Voltage 7.4V DC
Dimension 150 x 64x 40mm
Weight 360g(with battery)
Battery Type Li-ion
Battery Capacity 3200mAh
Antenna Impedance 50&Omega;
Transmitter
Transmit current Analog&le;1.6A Digital&le;0.9A
Frequency Stability &plusmn;1.0ppm
FM modulation mode 12.5KHz@11K0F3E 25KHz@16K0F3E
4FSK digital mode 12.5KHz(data only):7K60FXD12.5KHz(data and voice):7K60FXW
Modulation distortion <5%
Vocoder AMBE+2TM
Adjacent channel power 60dBm@12.5KHz 65dBm@25KHz
Audio Response +1~-3dB
Digital Protocol ETSI-TS102 361-1,-2,-3
Receiver
Analog Sensitivity 0.35uV/-116dBm(20dB SINAD)0.22uV/-120dBm(Type)
Digital Sensitivity 0.30uV/-117dBm(BER 5%)0.70uV/-110dBm(BER 1%)
Adjacent Channel Selectivity TIA603C:65dB ETSI:60dB
Spurious Response TIA603C:75dB ETSI:70dB
Audio Response +1~-3dB
Rated Audio Distortion ≤3%(Type)
Audio Power ≥500mW

Features

Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
Use Time-Division Multiple-Access(TDMA) Digital Function
Frequency Band:136-174 & 400-480MHz& 76-107.95MHz(Receive only )
100,000 Contacts + 1000 Priority Contacts
Up to 3000 channels
Dual Time Slot for Repeater
Dual Time Slot for Point to Point
Firmware Upgradeable
IP67 Waterproof
Scan:Time/Search/Carrier
Encryption Function  (Is not compatible with RT3,RT8,RT82.RT90)
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceive interruption
Promiscuous Function
GPS
CTCSS/DCS
Analog Monitor
VOX
TOT
Talkaround
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
1000/1450/1750/2100Hz Single tone
ID Setting





Reviews

Customer Reviews

Average Rating

5
Based on 8 reviews

Did the item fit well?

Quality
75%
Ship
50%
Other
0%

Write A Review

All Reviews

Great radio well built clear audio for the price absolutely worth it great size solid has clear reception and reports from contacts say the audio is amazing on their end. Crystal clear. Hits repeater's 40 miles away. Easy to use. But if you’re new to dmr it’s a bit of a learning curve. Functionality is great.

Have had this radio for about a year now worked wonderful with work very clear

One of the best HAM/GMRS radios I have used. Feels like a Motorola even though it's Chinese. It puts out 8 watts of power, is simple to program using the Ailunce CPS computer programming software (disable your Avast antivirus if you have it before downloading software and USB drivers). Radio works very well for the price, the external shoulder microphone sounds beefy. Range is great, it hits the repeater well. Overall, a great radio for the money.

I love this thing so much! Already told my friends about it. Highly recommend!

No complicated setup—just turned it on, paired it, and it worked right away. Super easy!

Had a small issue, but customer service replied in minutes and fixed it. Amazing support!

I own a number of DMR portables, but this is my first dual-bander. The HD1/GPS has the look and feel of a solid Motorola radio and I'm sure that's no coincidence. For the money, you get the full VHF and UHF bands, narrow or wideband, there's the capability of entering post-narrowbanding 2.5KHz steps which is useful for business or public safety frequencies. Many features can be programmed right from the keyboard. There's 10 Watts to play with, it is kinda waterproof. Overall a really capable radio in a very affordable package. I've used it on many DMR and analogue repeater both wideband (amateur) and narrowband business and it performs flawlessly. OK, so what's wrong with it? No DTMF on the keyboard, an annoying missed message screen on DMR and a less than stable Windows client. Those are the only issues I've encountered and I feel confident they could fix most if not all of them with a firmware upgrade and a new revision of the client software.Overall, it is the best and most capable DMR radio I own.

I checked out the reviews for this DMR radio and the reviews are excellent. It is easy to program even without a software program on your computer. Battery life is great. You have to use a charger, you can't charge without it. The use distance is very long. I can reach about 5 kilometers in the city.
