RB17A Powerful GMRS Long-range Handheld two way Radio
General Specifications | |
Frequency Range | GMRS: TX: 462.5500-467.7250MHz, RX:462.5500-462.7250MHz |
Channel Capacity | 30 |
Channel Spacing | Narrowband:12.5KHz, Wideband: 20kHz |
Antenna Impedance | 50Ω |
MIC Impedance | 2.2kΩ |
Working Voltage | 7.4V DC |
Size | 124 (H)*58 (W)*39(D)mm |
Operating temperature | -30~+60 °C |
Frequency Stability | ±2.5×10-6 |
net weight | 260g |
Transmitter | |
Carrier Frequency Tolerance | ±2.5×10-6 |
Modulation Sensitivity | 10±2mV |
Modulation Distortion | <3% |
Modulation Limit | 2.1@12.5K |
Occupied Bandwidth | ≤15 kHz |
Modulation Characteristic | ±3dB |
Adjacent Channel Selectivity | ≤-65 dB |
Transmitting SNR | ≥40 dB |
Receiver | |
Reference Sensitivity | -123dBm |
Squelch Sensitivity | -122±2dBm |
Audio Distortion | ≤3% |
Modulation RX Bandwidth | ≥∣±7.5kHz∣ |
Audio Response | ≥+2dB, ≤-10dB |
Co-channel Injection | ≥-8 dB |
Block | ≥85 dB |
Channel Selectivity | ≥65 dB |
Receiving SNR | ≥45 dB |

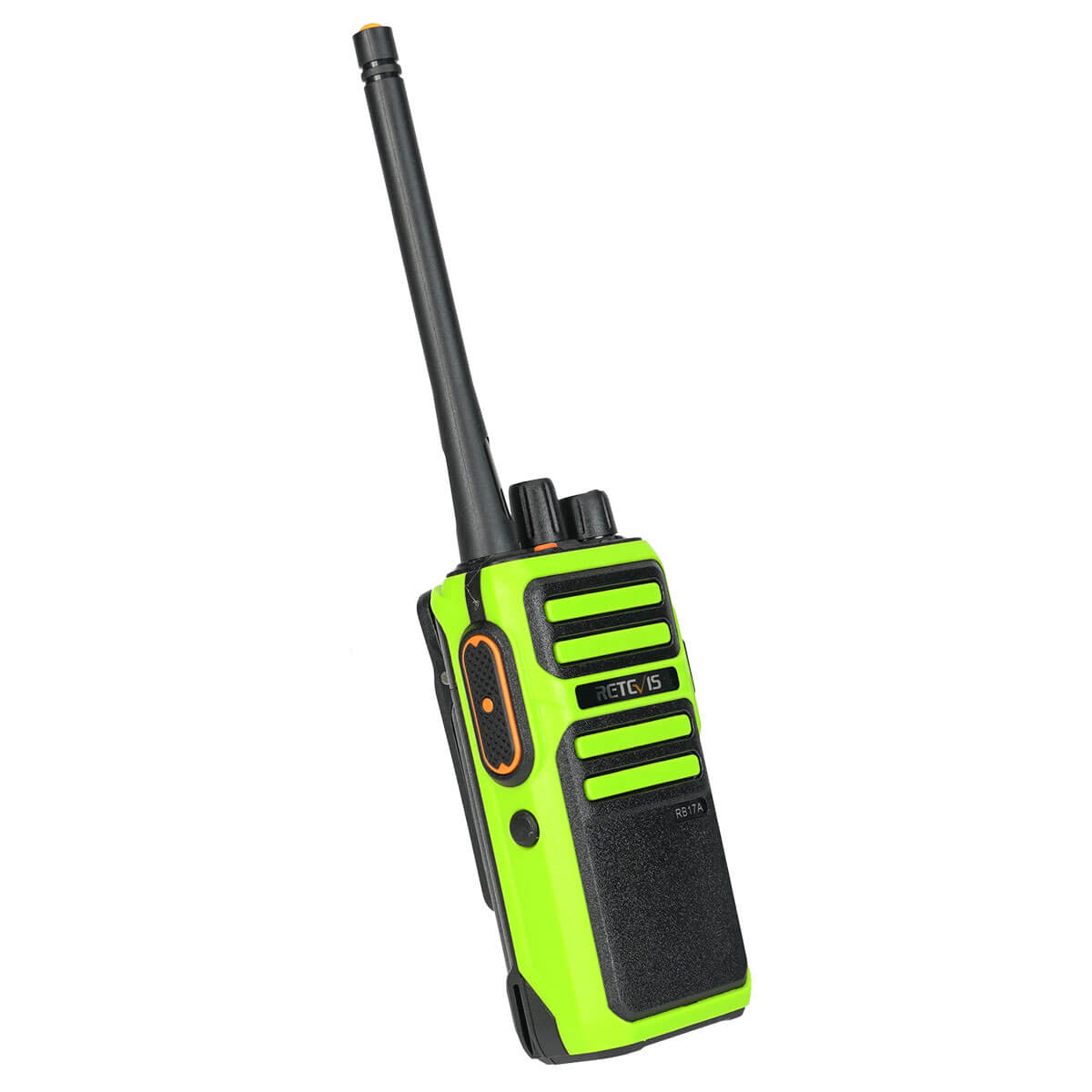

RB17A Powerful GMRS Long-range Handheld two way Radio
1, Powerful Handheld Two Way Radios
Retevis RB17A, with the high power, makes it the best as the GMRS band handheld radio.
2, GMRS Band and GMRS Repeater Capability
RB17A with the GMRS band, 30 channels, and the GMRS repeater function, You can connect the GMRS repeater (Retevis RT97S GMRS repeater) directly.

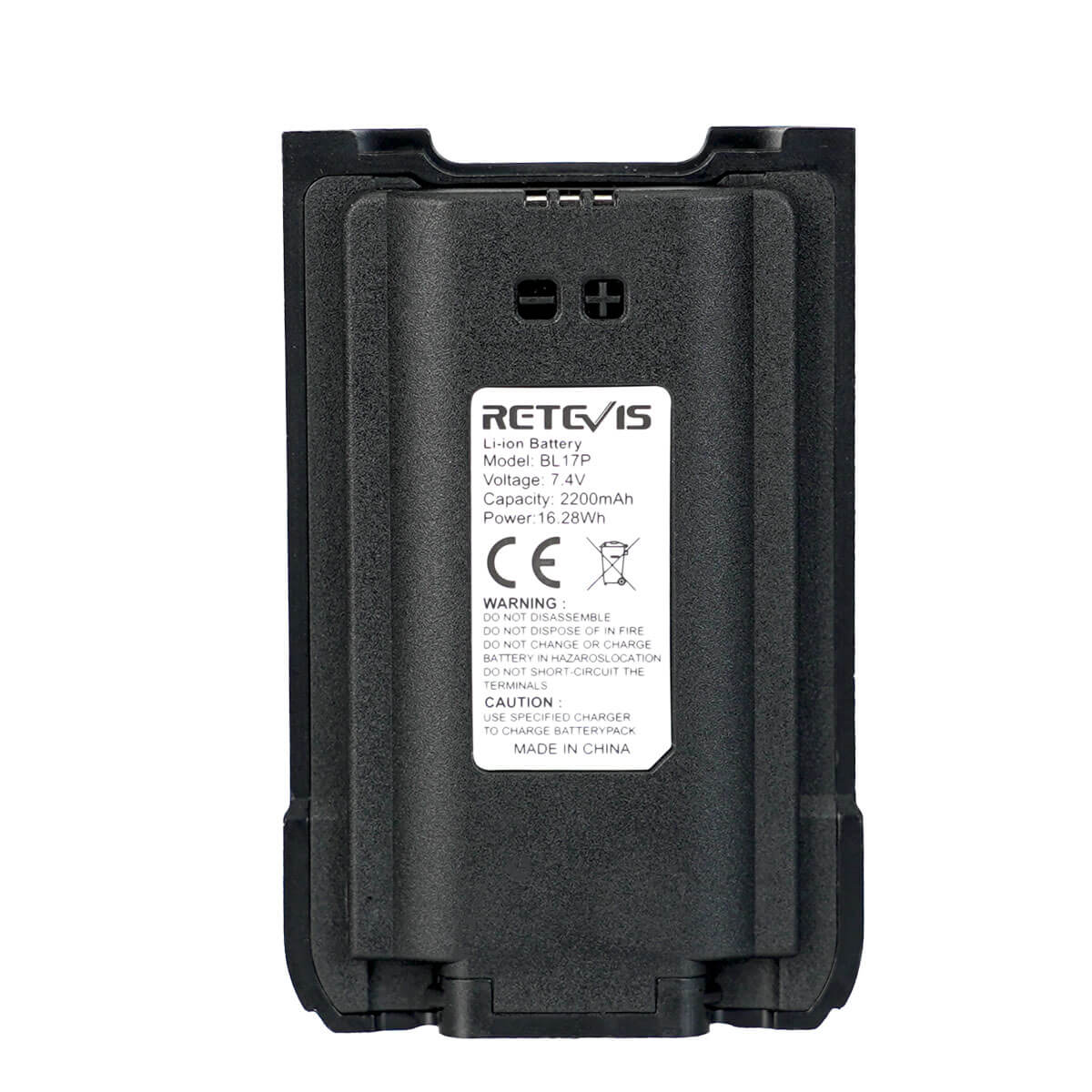

3, 2200mAh Large Capacity Battery
Long-lasting battery makes the standby and working time longer.
4, Long Range Communication
Unlike the FRS radio, the GMRS band has powerful power, which makes the range longer than that of other license-free radios.

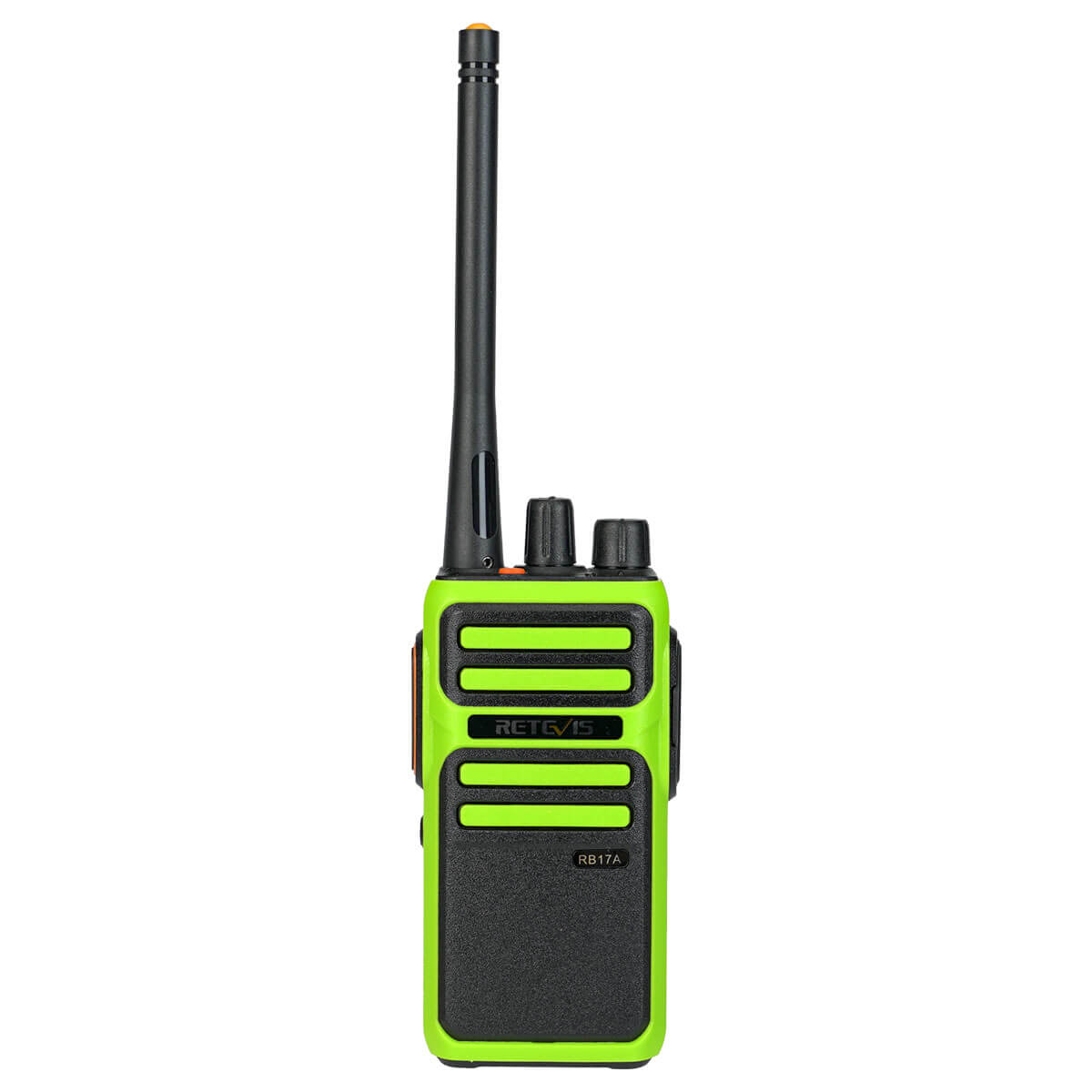

5, Colorful Design
Retevis RB17A comes in two colors, green and black, not like the all-black radio, which is very fit for family outdoor activities.
What’s new with the Retevis RB17A GMRS two way radio?
1. No CTCSS/DCS codes on Repeater Channels 23-30.
2. Channels 1-7 and Channel 15-30 are all default wideband (wide/narrowband adjustable). The Wideband is 20kHz and the narrowband is 12.5kHz.
