- Large LCD display:ham radio base station displays the complete frequencies on the LCD; displays the channel numbers on the LED; whenever and wherever; operators easily check the radio information
Knob adjustment: equipped with a VFO knob and optional step values; ssb ham radio adjusts the frequency quickly and conveniently
6 modes switch:10 meter ham radio supports PA/AM/FM/USB/LSB/CW modes; which meet flexible use needs; in addition; CW mode can connect the external Moss devices to achieve secure communication
Dual watch function: mobile transceiver can watch and receive on two frequencies alternatively and automatically; operators won't miss important calls
Clear sound quality:long range mobile radio not only supports squelch function; but also supports noise reduction function; mobile transceiver has a clear sound to receive; no matter how noisy the transmission environment is.
Description
Retevis Ailunce HS4 10 Meter SSB Ham Radio AM/FM/PA/ Mobile HF Transceiver with Antenna
Retevis Ailunce HS410-meter radio boasts a 40-watt transmission power and 28.000-29.695MHz frequency range that delivers crystal-clear communication over long distances, making it an ideal choice for radio amateur enthusiasts, truckers, and emergency responders.

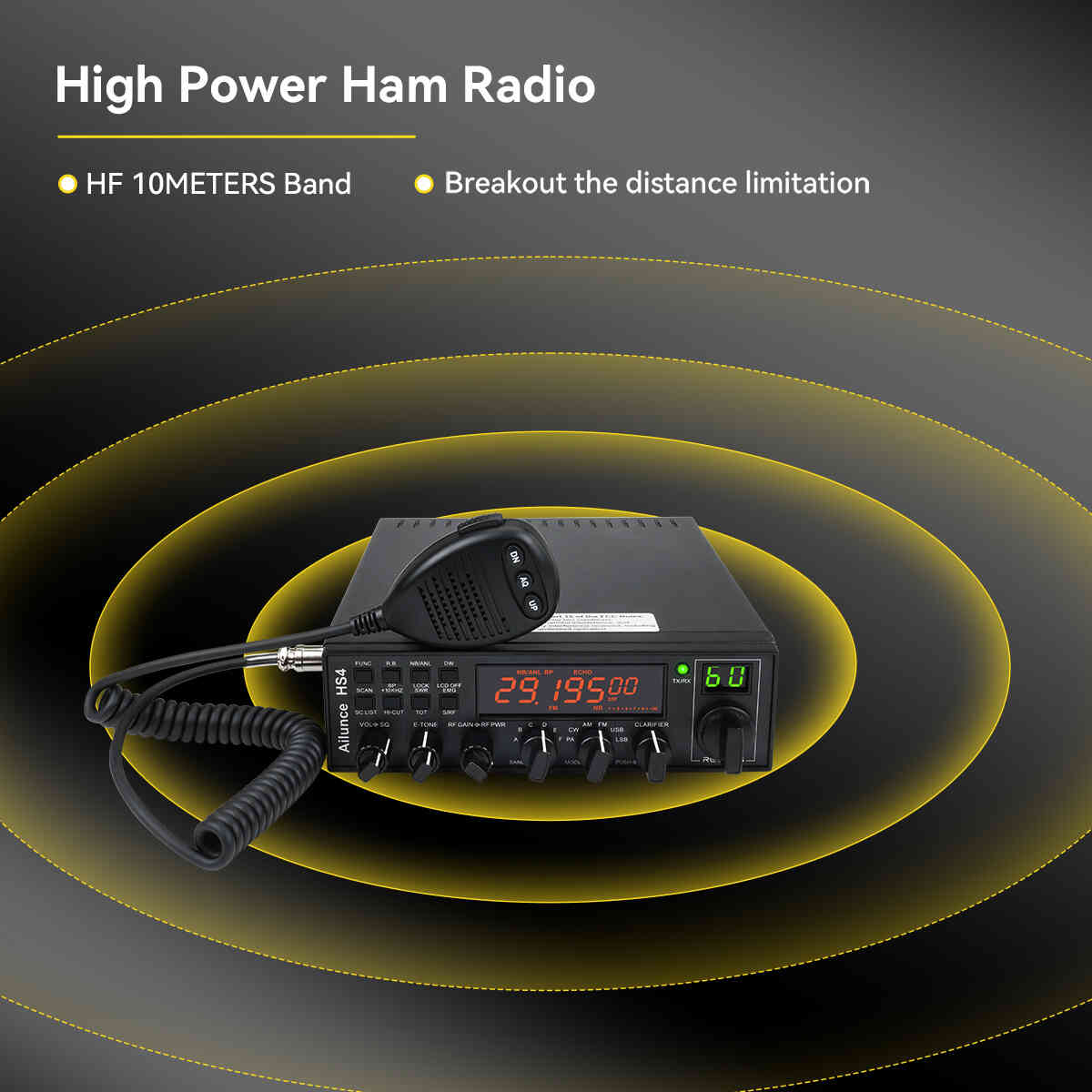

Ailunce HS4 is a Long-range mobile radio
The high-power mobile transceiver has strong penetration and offers long-range communication. shortwave design breaks the communication limitation; a 10-meter radio communicates stably and smoothly.
Under normal conditions, the 10-meter band can typically support communications over distances of several hundred miles (or kilometers) using SSB voice.
Ailunce HS2 supports SSB mode, so it is a long-range ham radio.
6 Optional modes
HS4 10-meter radio increases the flexibility of use through the PA/AM/FM/USB/LSB/CW modes; meanwhile; CW mode makes it secure to communicate by connecting the external Moss devices to communicate
6 Frequency Bands for Ailunce HS4 amateur radio.
This HS4 SSB ham radio supports A/B/C/D/E/F frequency bands. The mobile transceiver provides operators with flexible communication options. No matter where you are, choose the proper one to achieve communication flexibly.

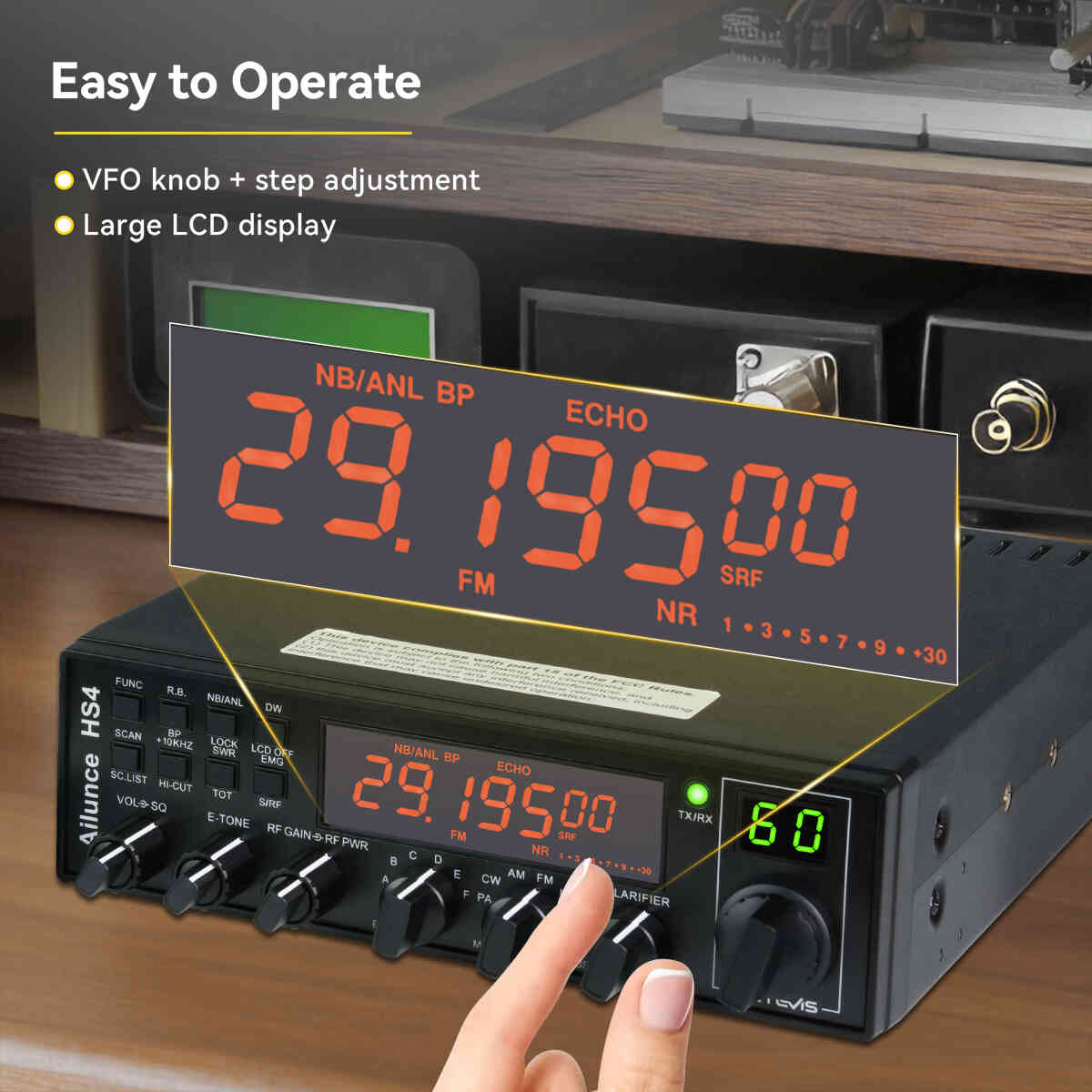

Large LCD Easy-to-operate 10-meter Band radio
HS4 ham radio base station displays the complete frequencies and function operations on the LCD. Displays the channel numbers on the LED, whenever and wherever; operators easily check the radio information

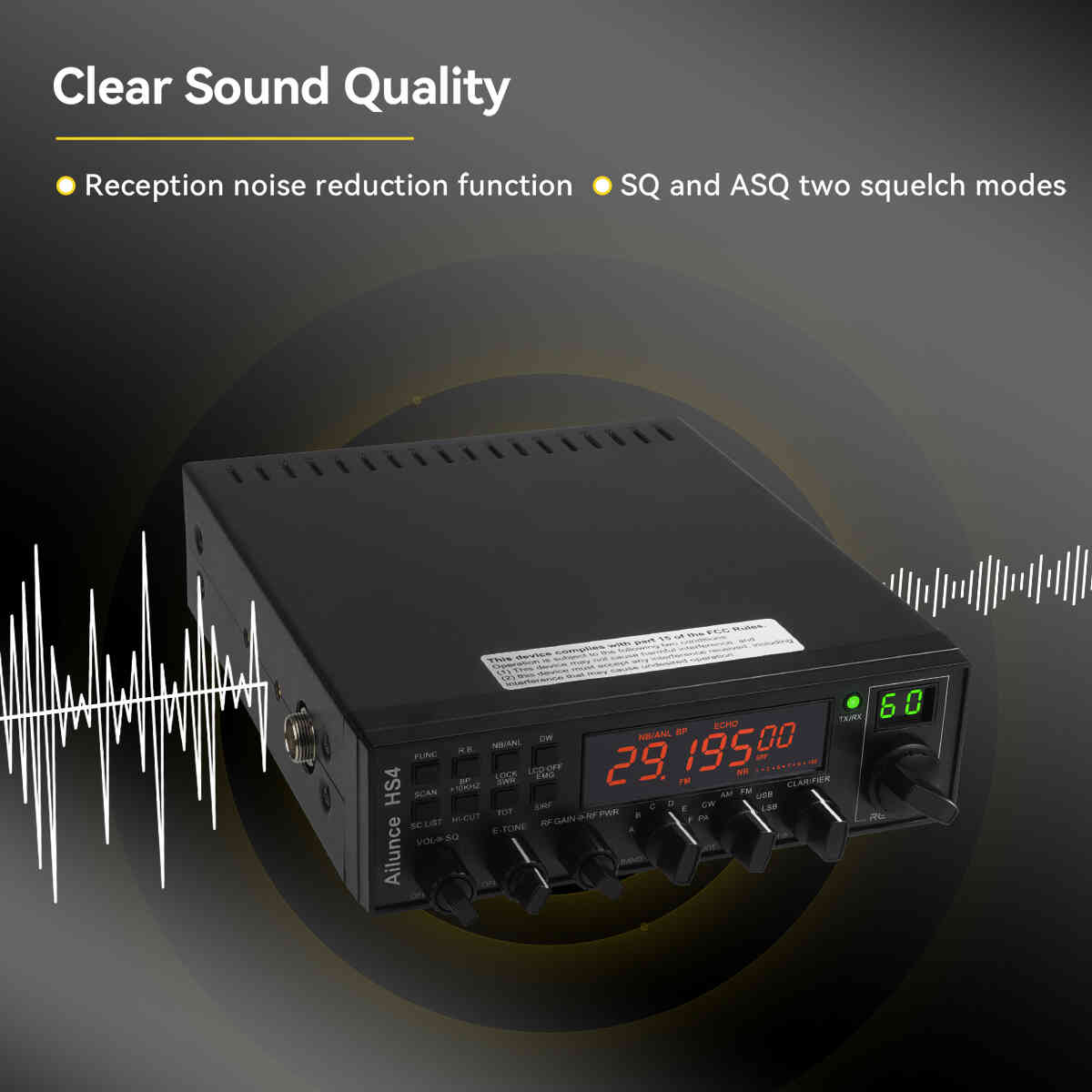

Loud and Clear sound quality with Noise reduction and ECHO Sound
The noise reduction function allows HS4 to get a clear sound, even when the transmitter is in a noisy environment. Echo sound will help to get loud sound. Rotate the knob to adjust the echo sound effect and interval, making the voice louder and be heard by more operators in an open area
104 CTCSS/DCS
SSB ham radio increases the security of communication by blocking out other conversations on the same frequency; improving communication efficiency.
The CTCSS/DCS codes allow users to communicate with each other on the same code. You may configure the specific code, it will provide you with a secure and confidential platform.

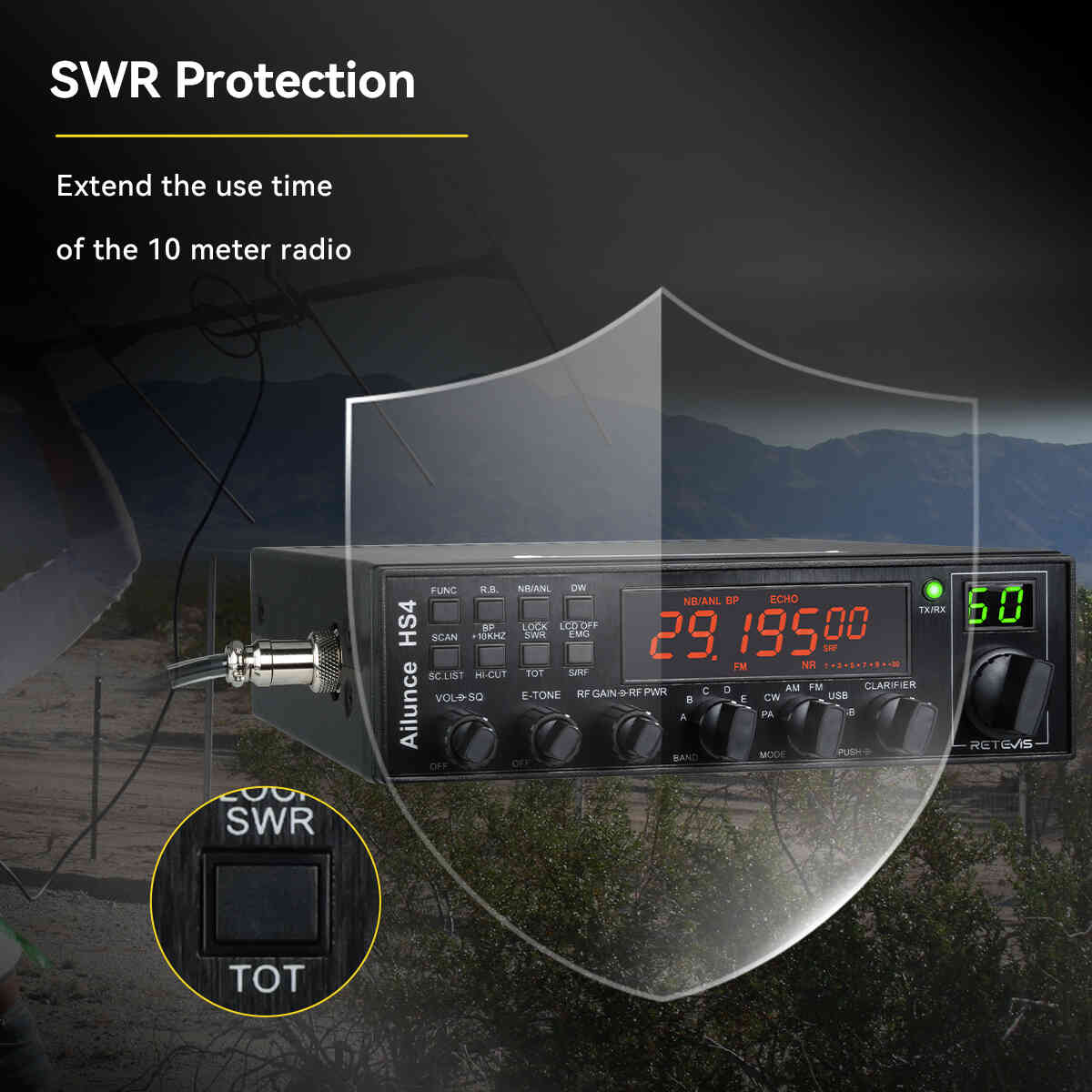

SWR protection
The SWR protection function effectively protects your HS4 10-meter ham radio from damage when the SWR is too high; extending the use time of ham radio base station

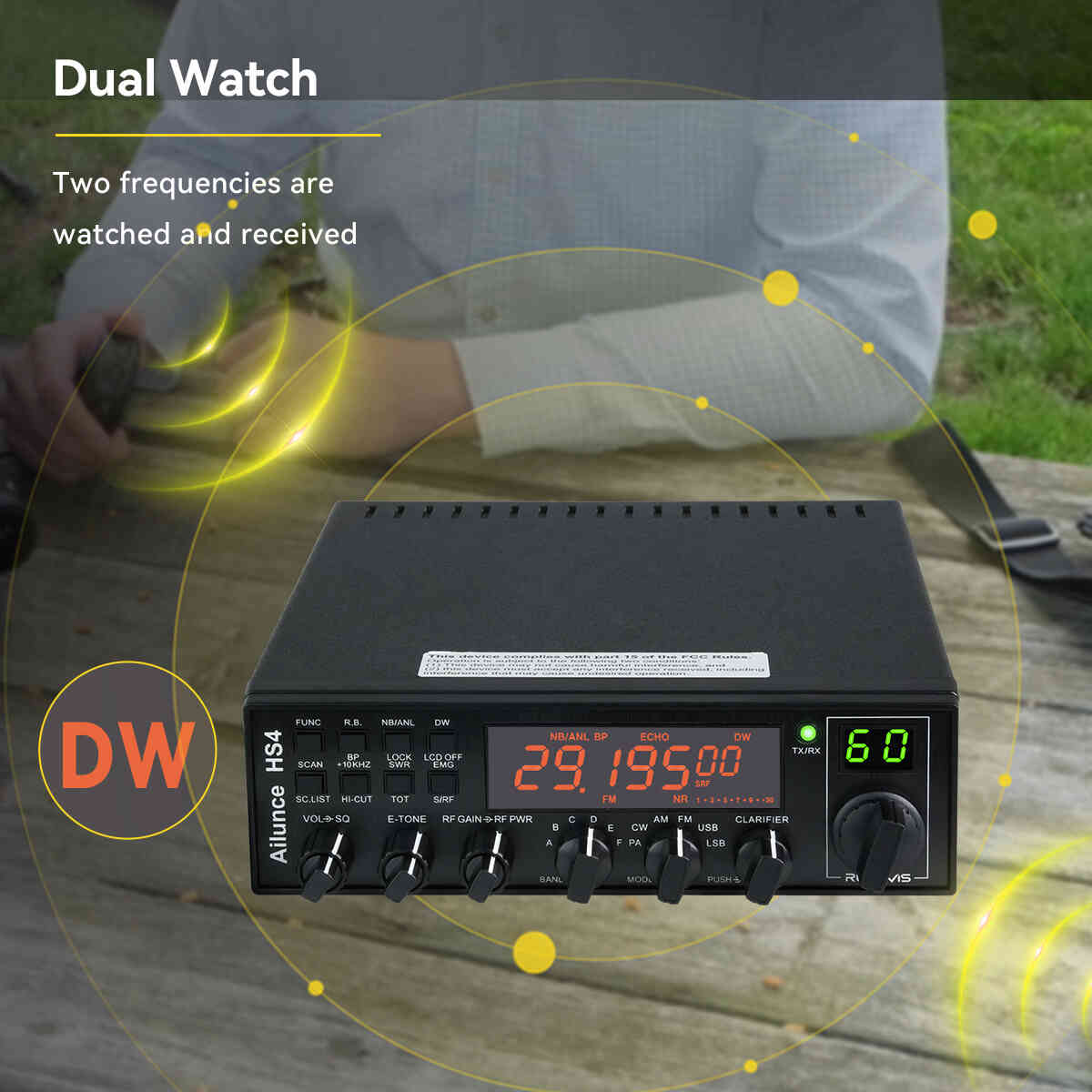

Dual watch function
Keep connected with the dual watch feature. When the HS4 activates the dual watch feature, the screen displays the "DW" icon, indicating the simultaneous monitoring of two channels. This ensures you never miss crucial conversations or incoming transmissions, maximizing communication efficiency.
Keypad lock
HS4 comes with a lock key, mobile ham radio prevents changing frequencies or settings from operations; especially during busy periods
VFO knob
This amateur mobile transceiver HS4 supports adjusting the frequencies by rotating the VFO knob based on the optional step values; making operations more convenient.
Strong Compatibility
Strong Compatibility with accessories( The standard package not include this microphone)
HS4 can work with Dynamic and Condenser microphones, increasing flexibility.
Backlight design with 3-Levels to adjust
Ailunce HS4 HAM Radio can adjust the backlight. There are 3 Levels. Radio amateur Operators adjust the backlight level from 1 to 3 according to the actual environment. It is easy to check whether indoors or outdoors conveniently.
Mobile transceiver antenna
Ailunce HS4 comes with an SO239 connector, connected to the antenna, enhancing the signal for better reception. This listing standard package is equipped with an SO239 antenna connector, enabling the radio to connect the corresponding antenna for a better reception signal, especially in outdoor areas.
Package details
Spec
SPECIFICATIONS
| General | |
| Frequency Range | 28.000MHz-29.700MHz |
| Frequency Band | A/B/C/D/E/F |
| Channel | 60 channels(programmable) |
| Frequency Control | Phase-Locked-Loop Synthesizer |
| Frequency Step | 10Hz 100Hz 1KHz 10KHz |
| Frequency Tolerance | 0.005% |
| Frequency Stability | 0.001% |
| Temperature Range | -30℃to +50℃ |
| Microphone | Plug-in dynamic:with push-to-talk/UP/DN/ASQ switch and coiled cord |
| Input Voltage | DC 13.8V normal,15.9Vmax;11.7V min Transmit:AM full mod 6A Receiver: Squelched 0.8A SSB 30W PEP output 9A |
| Size | 28*25*6CM |
| Weight | 1.5KG |
| Antenna Connector | UHF,SO239 |
| TRANSMITTER | |
| PowerOutput | AM/CW:1-12W(adjustable) FM:1-40W(adjustable) USB/LSB:1-35W(adjustable) |
| Modulation | AM FM |
| Inter-modulation Distortion | SSB:3rd order,more than -25dB;5th order,more than -35dB |
| SSB Carrier Suppression | 55dB |
| Unwanted Sideband | 50dB |
| Frequency Response | AM and FM:450 to 2500Hz |
| Output impedance | 50ohms,unbalanced |
| Sensitivity | SSB:0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output. AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM:1.0μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output. |
| Selectivity | AM/FM:6dB@3KHz,50dB @9KHz SSB:6dB@2.1KHz,60dB @3.3KHz |
| mage Rejection | More than 65dB |
| IF Frequency | AM/FM:10.695 MHz 1st IF,455 kHz 2nd IF SSB:10.695 MHz |
| Adjacent-Channel | 60dB AM/FM &70 dB SSB |
| RECEIVER | |
| RF Gain Control | 45 dB adjustable foroptimum signal reception |
| Automatic Gain Control (AGC) | Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt |
| Squelch | Adjustable;threshold less than 0.5μV. Automatic Squelch Control(onlyAM/FM)0.5μV |
| ANL | Switchable |
| Noise Blanker | RF type,effective on AM/FM and SSB |
| Audio Output Power | 3 watts into 8 ohms |
| Frequency Response | 300 to 2800 Hz |
| Built-in Speaker | 8 ohms,round. |
| External Speaker (Not Supplied) | 8 ohms;disables internalspeaker when connected. |
Features
FUNCTIONS & FEATURES
1. Large LCD panel which displays frequency and all kinds of information
2. DUAL-DIGITAL TUBE FOR CHANNEL DISPLAY
3. USE EL technology for backlight
4. PA、CW、AM、FM、USB、LSB mode
5. A、B、C、D、E、F, 6 modes in total, where 60 channels at least can be individually programmed.
6. Frequency Tuning Step can be 10HZ, 100HZ, 1KHZ or 10KHZ.
7. Multiple CL ARIFIER Operating Modes
8. Flexible menu functions and PC programming software to meet varied customer demands
9. ECHO Function
10. SQ, ASQ Function (FM and AM mode only)
11. RF GAIN ADJUSTMENT
12. RF Power ADJUSTMENT
13. SCAN FUNCTION
14. RB FUNCTION
15. NB/ANL FUNCTION
16. DW DUAL -WATCH FUNCTION
17. BEEP VOICE PROMPT
18. +10KHZ Function
19. SWR/S/RF/DC Voltage display function
20. TOT function
21. HI-CUT FUNCTION
22. EMG CALL
23. SWR PROTECTION

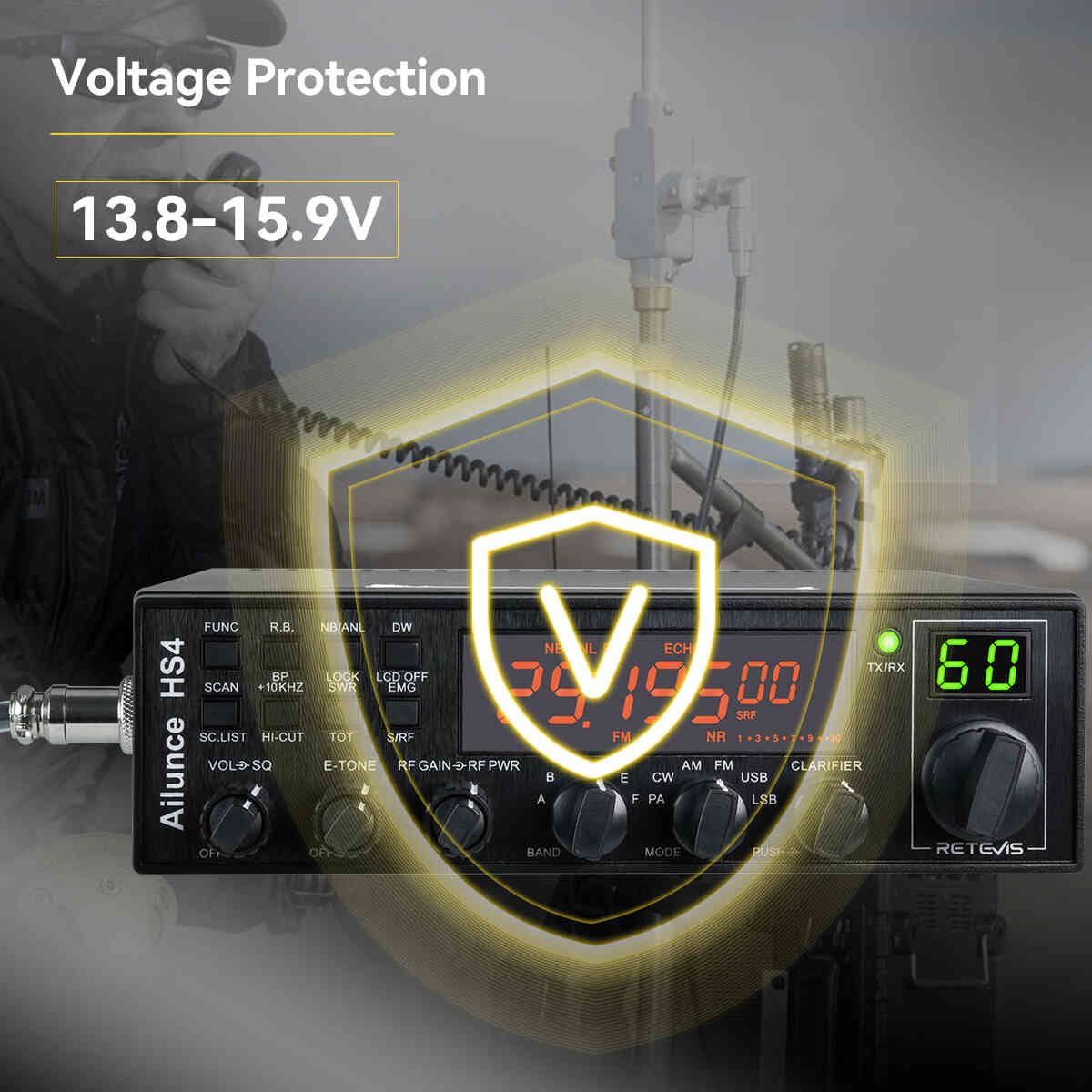

24. POWER SUPPLIED VOLTAGE PROTECTION
25. Key-Lock Function
26. VOX function
27. CTCSS/DCS code
28. RX compander: noise blanker
29. Noise gate setting: mic noise adjustable
30. RX Noise Reduction
31. Compatible with“electronic" and“dynamic" MIC type
