High Power & Long Range
-
Built for Tough Environments
-
Accurate GPS Tracking
-
Continuous Firmware Upgrades
-
Durable, Rugged Design
Description
Retevis HD2 10W Waterproof GPS DMR Radio 6 Pack+6-way Charger+Waterproof Microphone 6 Pack
Retevis HD2 6 Pack + 6-way charger + waterproof microphone 6 Pack. HD2 is a digital walkie-talkie with long-distance, high-quality communication, supporting TYPE-C charging and one-stop charging. Suitable for outdoor activities, field travel, emergency rescue communications, outdoor stand and handheld communication.
Feature：
GPS function
Provides accurate positioning data, can track other people's locations in real time, and achieve rapid communication between teams anytime and anywhere.
Dual-band DMR radio
Dual-slot communication, two groups of calls can be made on one frequency at the same time, doubling the communication efficiency, supporting data and voice communication, and realizing functions such as text messaging and GPS positioning.
Digital and analog modes
DMR amateur radio provides excellent call quality and fast switching functions, and can communicate with digital or analog two-way radios; including 3000 channels; and 500K contacts.
Easy to operate
VFO mode does not need to connect to a computer to use software to edit DMR radio, which is easy to operate; SUB-PTT function allows you to transmit dual bands, without pressing */scan keys to switch A band or B band

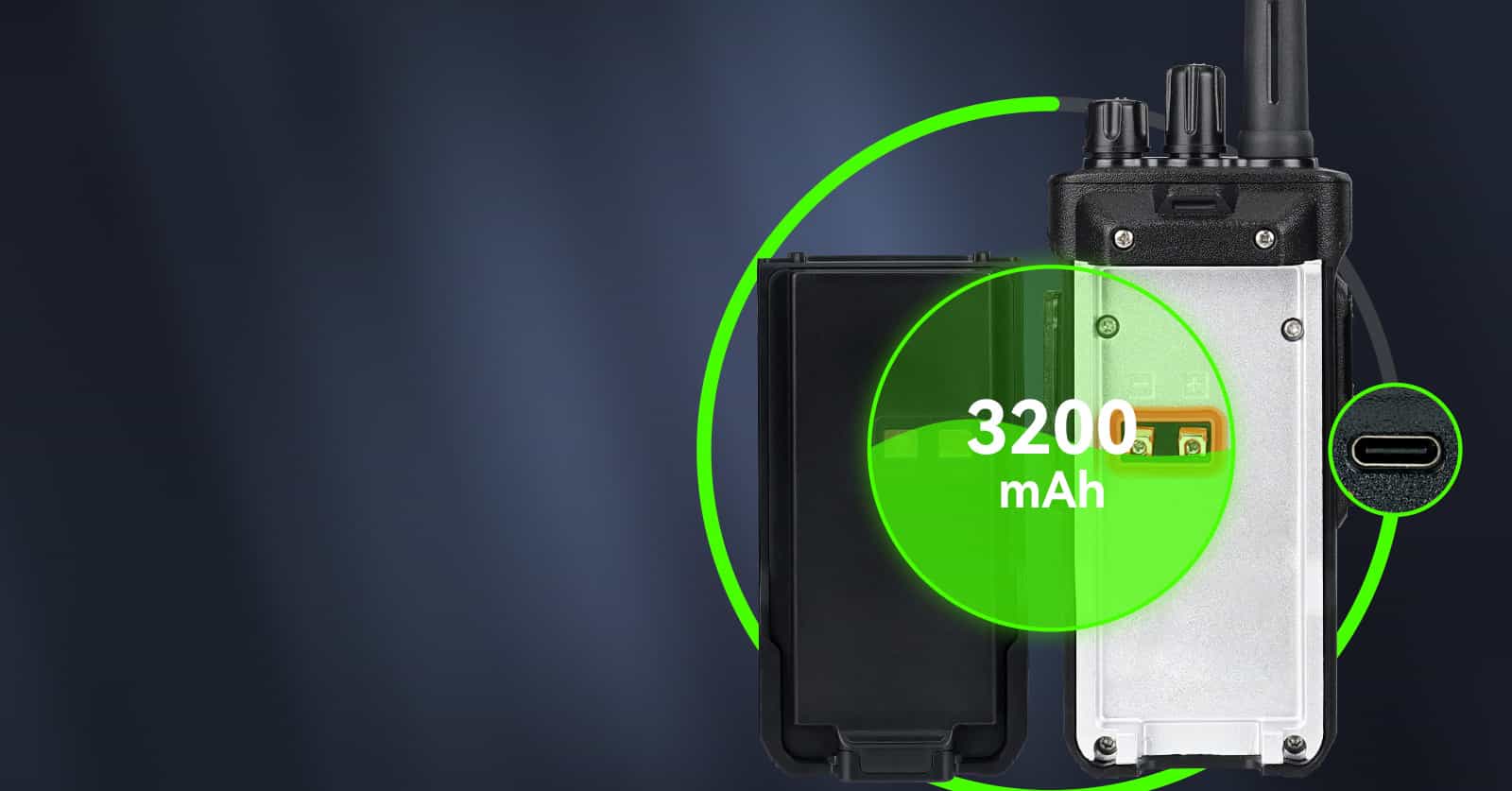

3200mAh battery
35 hours of standby time and maximum 21 hours of working time make DMR radio have a long service life; equipped with a standard type-c charging port and a safe charging base, it supports outdoor use all day.
NOAA emergency alarm
The handheld walkie-talkie supports opening 11 NOAA channels through the side button, and selecting the channel is convenient for obtaining the latest weather information; press the alarm key to open the local or remote alarm; making your travel safer.
Comply with FCC rules No. 95 Part
Our walkie-talkie FCC ID is 2A3OOHD2

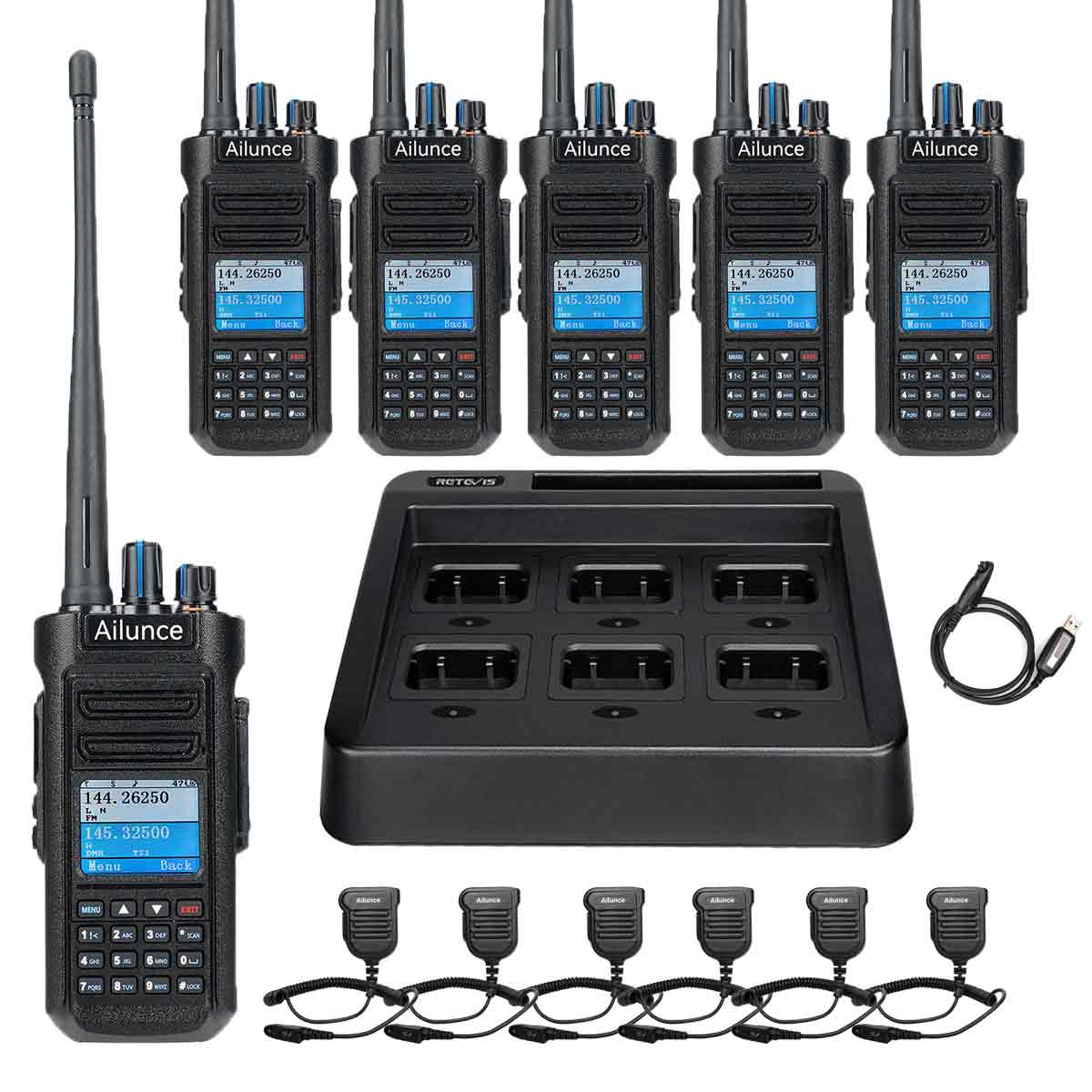

Package includes:
6 X HD2 10W Waterproof GPS DMR Radio

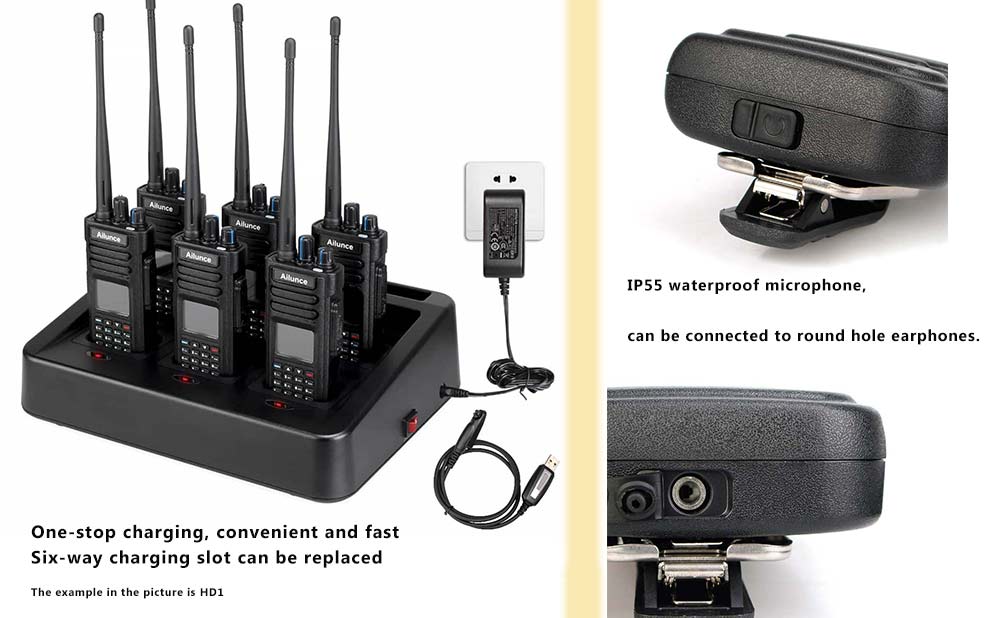

6 X IP55 Waterproof Microphone with Headphone Jack
6 X Bluetooth Headset
1 X HD2 Program Cable
Spec
|
General |
Frequency Range |
Receive frequency: VHF 136-174Mhz，UHF 400-520MHz； |
|
|
Channel Numbers |
3000 |
|
|
Channel Space |
25 kHz /12.5kHz |
|
|
Input Voltage |
Max 8.4V---Max 540mA |
|
|
Battery Capacity |
3200mAh |
|
|
Battery Charging Input |
5V 1A |
|
|
Frequency Stability |
±1.0ppm |
|
|
Operation Temperature |
-10℃ to +40℃； |
|
|
Antenna Impedance |
50Ω |
|
Transmit |
Transmit Frequency |
144-146Mhz, 430-440Mhz; |
|
|
RF TX Power |
High/Middle/Low/Ultra low power |
|
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
|
Modulation Mode |
12.5KHz 11K0F3E (Analog) 12.5KHz(data only): 7K60FXD |
|
|
Modulation distortion |
＜5% |
|
|
Vocoder |
AMBE+2TM |
|
|
Adjacent channel power |
60dBm 12.5KHz |
|
|
Audio Response |
+1~-3dB |
|
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
|
Modulation distortion |
＜5% |
|
Receive |
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
|
Audio Response |
+1~-3dB |
|
|
Rated Audio Distortion |
≤3% (Type) |
|
|
Audio Power |
≥500mW |
Features
Main Function
- Dual Band DMR Radio
- Analog and Digital Combined
- Compatible with Motorola Tier Ⅰ&Ⅱ
- 500000 Contacts + 5000 Priority Contacts
- IP67 Waterproof
- Scan:Time/Search/Carrier
- Encryption Function
- Lone Worker
- Single/Group/All call
- Remote kill/stun/activate
- 1.77 inch Color LCD Display
- 10 level brightness adjustable
- Contacts and color code Promiscuous Function
- Standard CTCSS/DCS
- Analog Monitor
- 3 kinds of Keyboard Lock: Keyboard, Keyboard+CH Knob, PTT+CH+Keyboard
- LED Indicator
- Password Lock
- Battery Save
- Voice Annunciation
- 1000/1450/1750/2100Hz Single tone
- 32 ID Setting
- Night Mode select-able
- Emergency Alarm function
- Dual PTT
FQA about Ailunce HD2 Ham Radio
F: Are the accessories for HD1 and HD2 universal?
A: Yes, the accessories for HD1 and HD2 are universal.
F: Is there AES-256 encryption?
A: The HD2 DMR Radio GPS version has AES-256 encryption
F: What functions can be defined by the side keys?
A: Long press or short press of the two side buttons can realize: scan, FM radio, wake up, relay, button call 1-6, VOX, Kill (remote killing), Zone Plus, Zone Minus, DMR slot, mixed. Manual dialing, CH mode, reverse, Bluetooth, 0.5W power, FM call, voltage, NOAA, analog monitor, TX digital deviation
F: What’s new about the hybrid function?
A: Before the update, there was group call contact mixing and color code mixing (the color code can only be operated on the machine). After the update, individual call mixing and software can operate the color code mixing.
Reviews
Customer Reviews
All Reviews
It Can cover 400-527mhz. By punching in a 6 digital code and Also expanding the VHF Band up to at least 225mhz from 132mhz.
If you are looking for a solid HT, with very good sound, and excellent customer support, the HD-2 may be what you are looking for.
Beautiful packaging, solid unit,easy programming
I have a Retevis HA1UV analog radio and loved it so much I bought the HD2 so I had 02 DMR radios (the 1st DMR radio is another brand). The HD2 checks all the boxes at 1/2 the price of its competition. Dual band, Dual time a lot, waterproof, USB-C charging, and mine came with a Bluetooth earbud!!! Once you get over doing DMR codeplugs you will enjoy DMR radios and this HD2 radio with be you daily driver.
I like it a lot. Solid build quality, great audio.
As a security company, we have very high requirements for our equipment. Not only does the Retevis HD2 meet all our needs, but the GPS and DMR features also make our security team more efficient. The package of 6 devices + charger is a great deal
These Retevis HD2 radios have helped our emergency rescue team! The GPS feature allows us to locate teammates during wilderness rescues, the 10W of power ensures wide coverage, and the 6-way charger is perfect for large teams!
