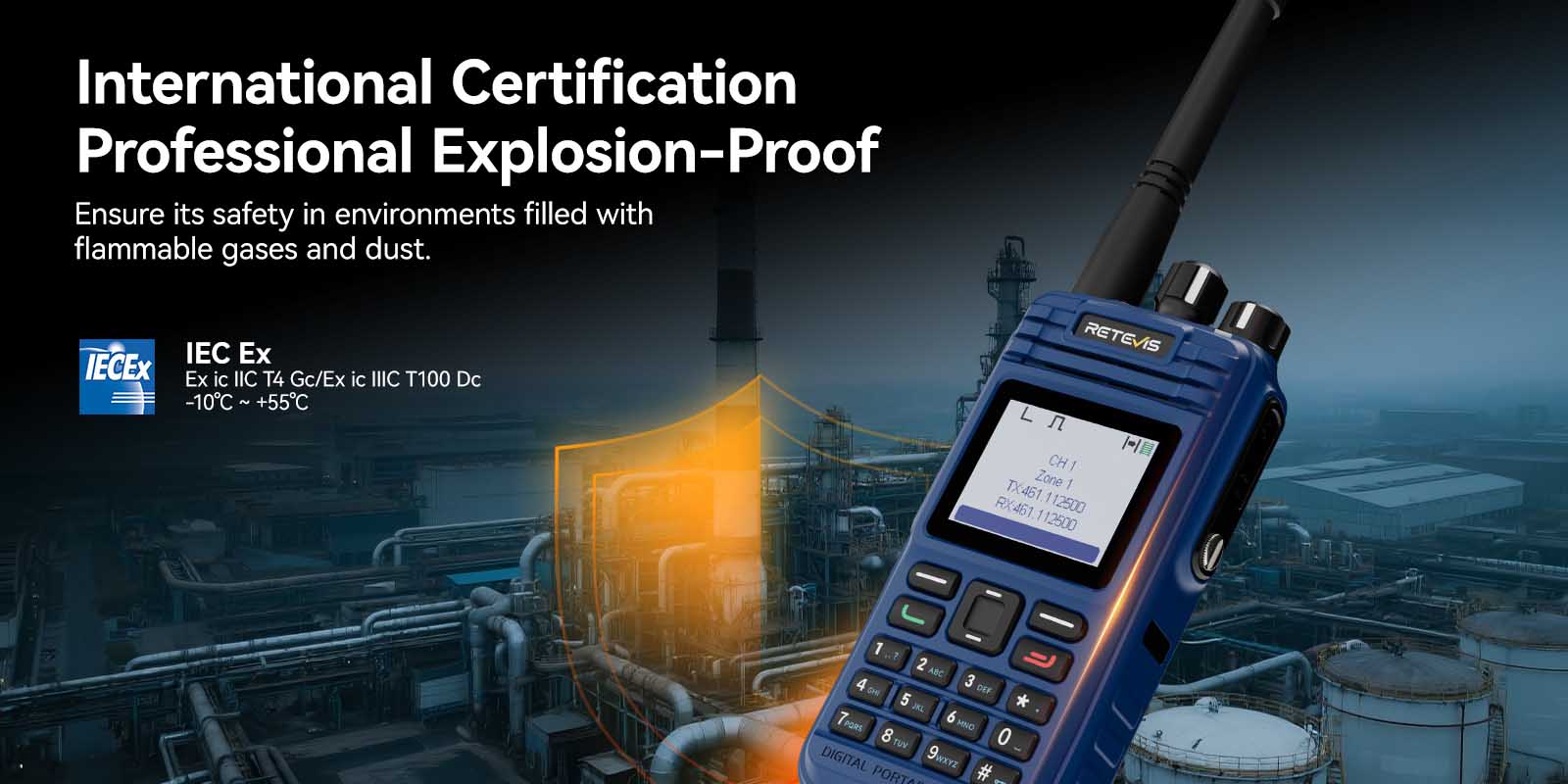

- ATEX/IECEx Certified explosion-proof radio: Built for hazardous areas.
International IECEX Certificate No.: IECEx CSAE 25.0058X;
European ATEX Certificate No.: CSANe 25ATEX1186X
Download [ATEX Certificate] | [IECEx Certificate]

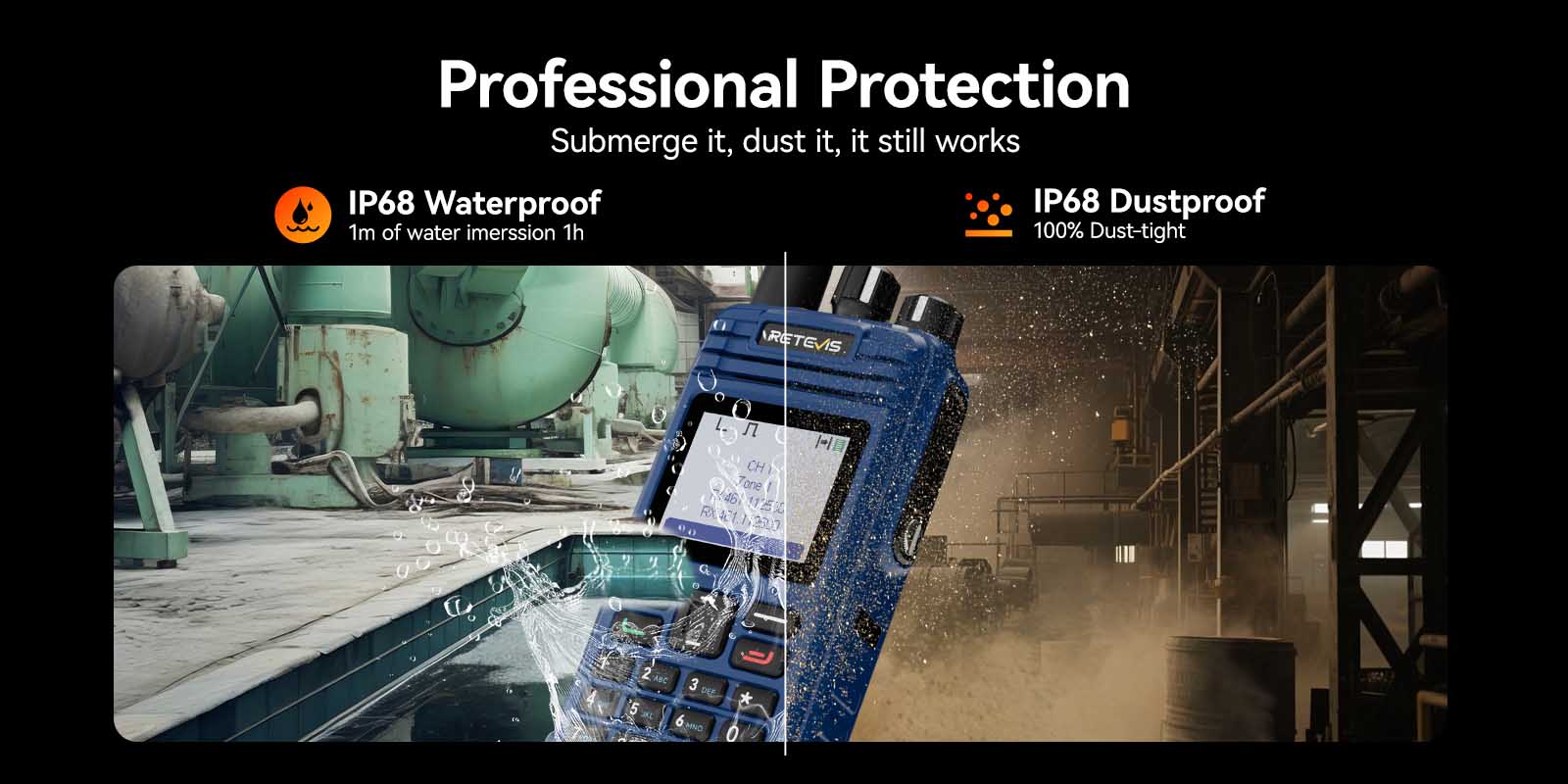

- IP68 waterproof: Rugged design, fully protected against harsh environments.
- AES256 encryption: Military-grade security ensuring private and crystal-clear communication.

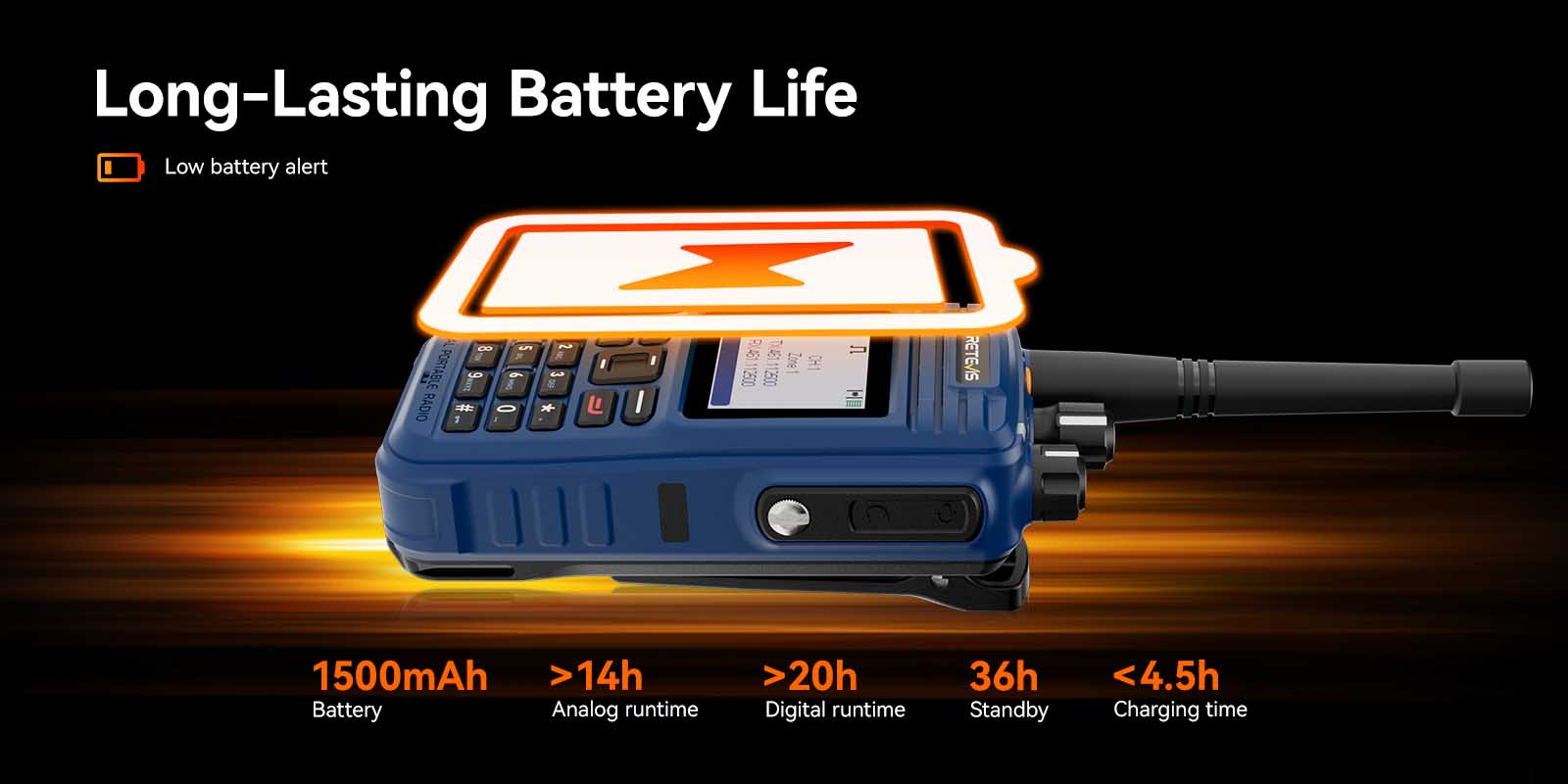

- All-day battery life: High-capacity power engineered for continuous, non-stop shifts
- Lone worker & emergency alarms: Real-time alerts to keep every worker safe.
Description
Spec
| General | |
|---|---|
| Frequency Range | UHF: 400-470MHz |
| Channel Capacity | 1024 |
| Zones | 64 |
| Channel Spacing | 12.5KHz / 25KHz |
| Operating Voltage | DC 7.4V (±20%) |
| Battery Capacity | 1500mAh |
| Frequency Stability | ±1.5ppm |
| Antenna Impedance | 50Ω |
| Dimensions (L×W×H) | 57(L) × 33(W) × 119(H)mm |
| Transmitter | |
|---|---|
| RF Output Power | High Power: < 2W; Low Power: 1W |
| 4FSK Modulation |
12.5kHz Only Data: 7K60FXD; 12.5kHz Data & Audio: 7K60FXE |
| FM Modulation | 12.5kHz: 8K50F3E; 25kHz: 16KΦF3E |
| Modulation Limiting | ±2.5kHz @ 12.5kHz; ±5kHz @ 25kHz |
| FM Noise | -40dB |
| Conducted Emission | -36 dBm ≤ 1GHz / -30 dBm ≥ 1GHz |
| Adjacent Channel Power | ≤ -60dB |
| Audio Response | +1 / -3 dB |
| Audio Distortion | 3% |

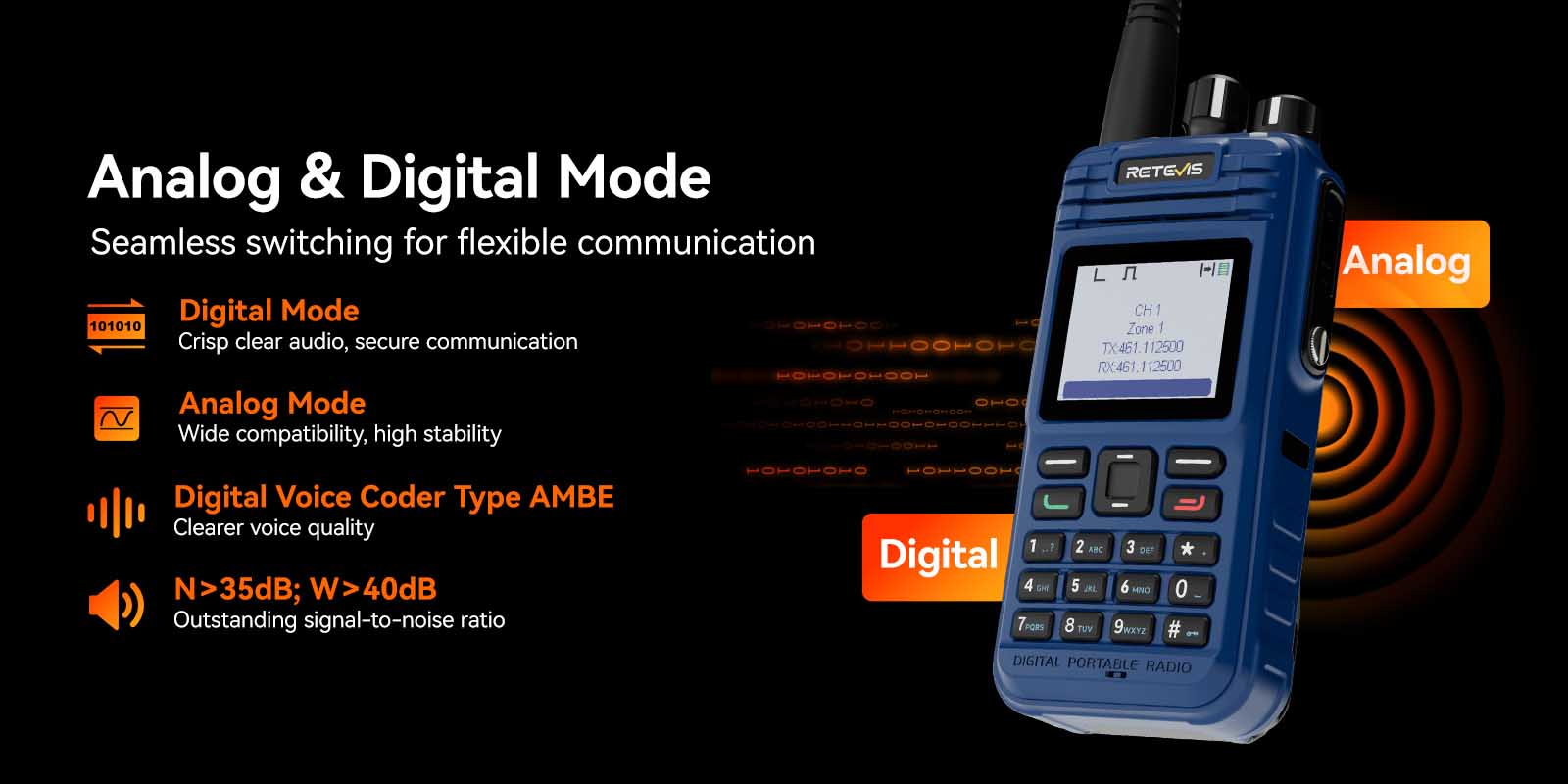

| Digital Voice Coder Type | AMBE |
| Receiver | |
|---|---|
| Digital Sensitivity | 5% BER: 0.25 µV |
| Analog Sensitivity | 0.25 µV (12 dB SINAD) |
| Intermodulation | 60dB |
| Adjacent Channel Selectivity | 60dB |
| Spurious Response Rejection | 60dB |
| FM Noise | -40dB |
| Audio Response | +1 / -3 dB |
Features
-
High / Low Power Adjustable
-
64 Zones
-
Private Call / Group Call / All Call
-
Channel Lock / Radio Lock
-
Monitor
-
Scan
-

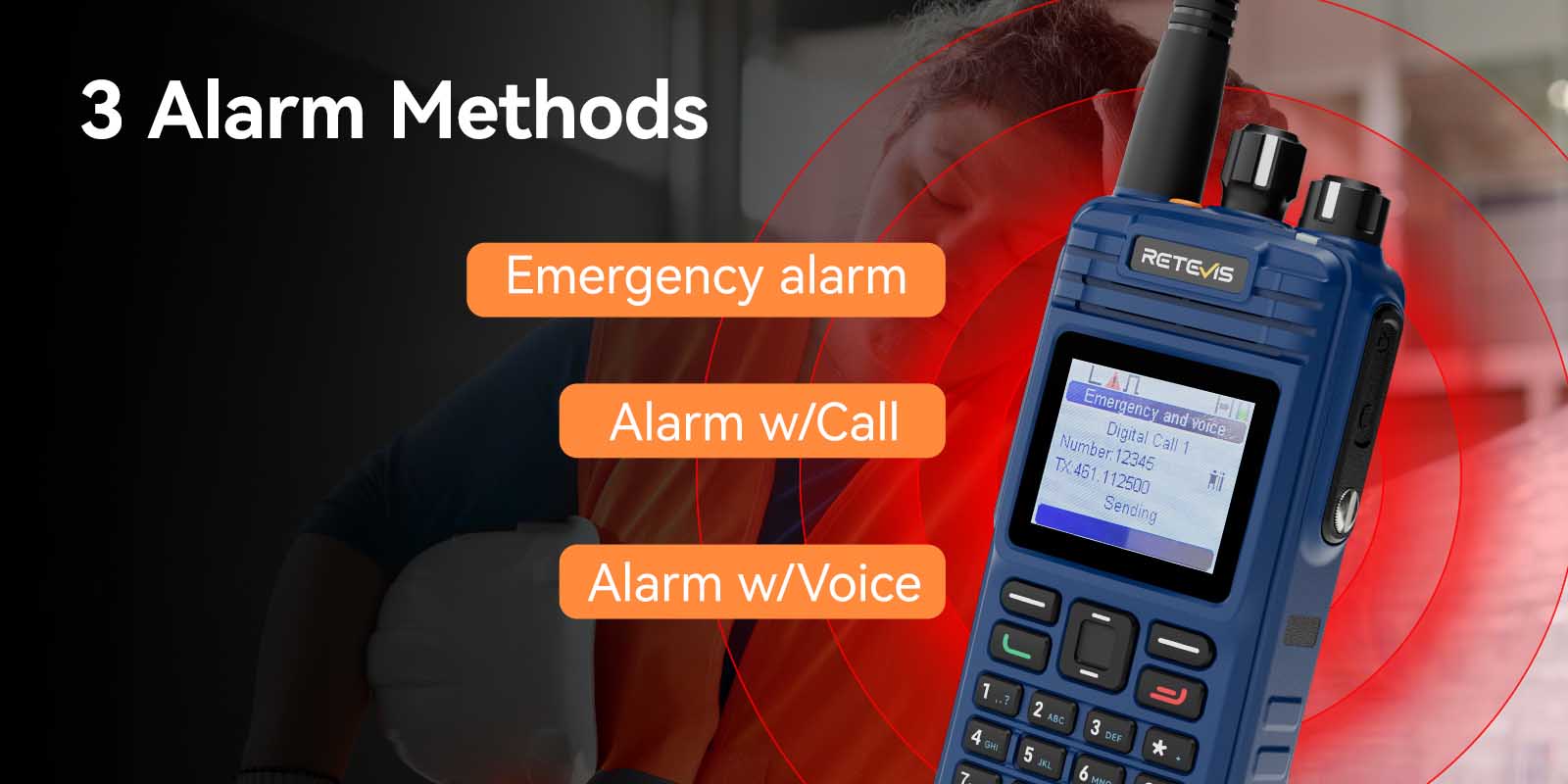

Emergency Alarm
-
AES256 Encryption
-
Lone Worker
-
Low Battery Alert
-
Power Save
-
Alert Tones
-
TOT (Time Out Timer)
-
One Key Call
-
Message
-
Remote Monitor
-
Radio Enable
-
Radio Disable
-
Radio Check
-
Flashlight
-
2-Tone
-
5-Tone
-
DTMF
