Retevis RT97P DMR Repeater with RT29D DMR Radio Bundle

This is a long-distance DMR radio bundle for large business communication use. The RT97P DMR digital repeater can greatly extend the RT29D handheld radio's communication distance, which can supply up to 10 miles of talking range (the specific call distance depends on the usage environment). This is a perfect long range radio communication solution for farms, construction sites, racing, concerts, ball sports, rescue, mines, ports, companies, mountaineering, etc.

Main Features of RT97P DMR Digital Repeater:

1. Complete Compact Repeater Bundle

RT97P portable repeater bundle comes with a 7.2Bi high gain fiberglass antenna and a 15-meter pure copper low-loss feeder cable. The feeder cable can be used to connect the Retevis RT97P repeater and Retevis MA02 fiberglass antenna directly; there is no need for other accessories; it is a complete compact repeater kit.

2. Customizable Frequency

TX frequency and RX frequency can be customized between UHF or VHF. If you need to customize the repeater, please note the following information when placing the order: RX frequency, TX frequency, Offset (Offset ≥5MHz and ≤12MHz).

3. Easy-to-Read LCD Display

Retevis RT97P repeater comes with an LCD display. The display can help you know the TX and RX frequencies, CTCSS/DCS code, and bandwidth settings easily. There are also up and down keys, which can help you change channels and CTCSS/DCS tones. You can also use the key to lock/unlock the keypad.

4. Multiple Charging Options

RT97P can be powered by DC12V~24V power, car power, and a solar battery. You can use it from a fixed location, or you can also use it to extend the range of the two way radios when on a self-driving tour. When you join a road trip with your friends, RT97P can be used as a mobile base station, playing a leading role in coordinating all vehicles forward.

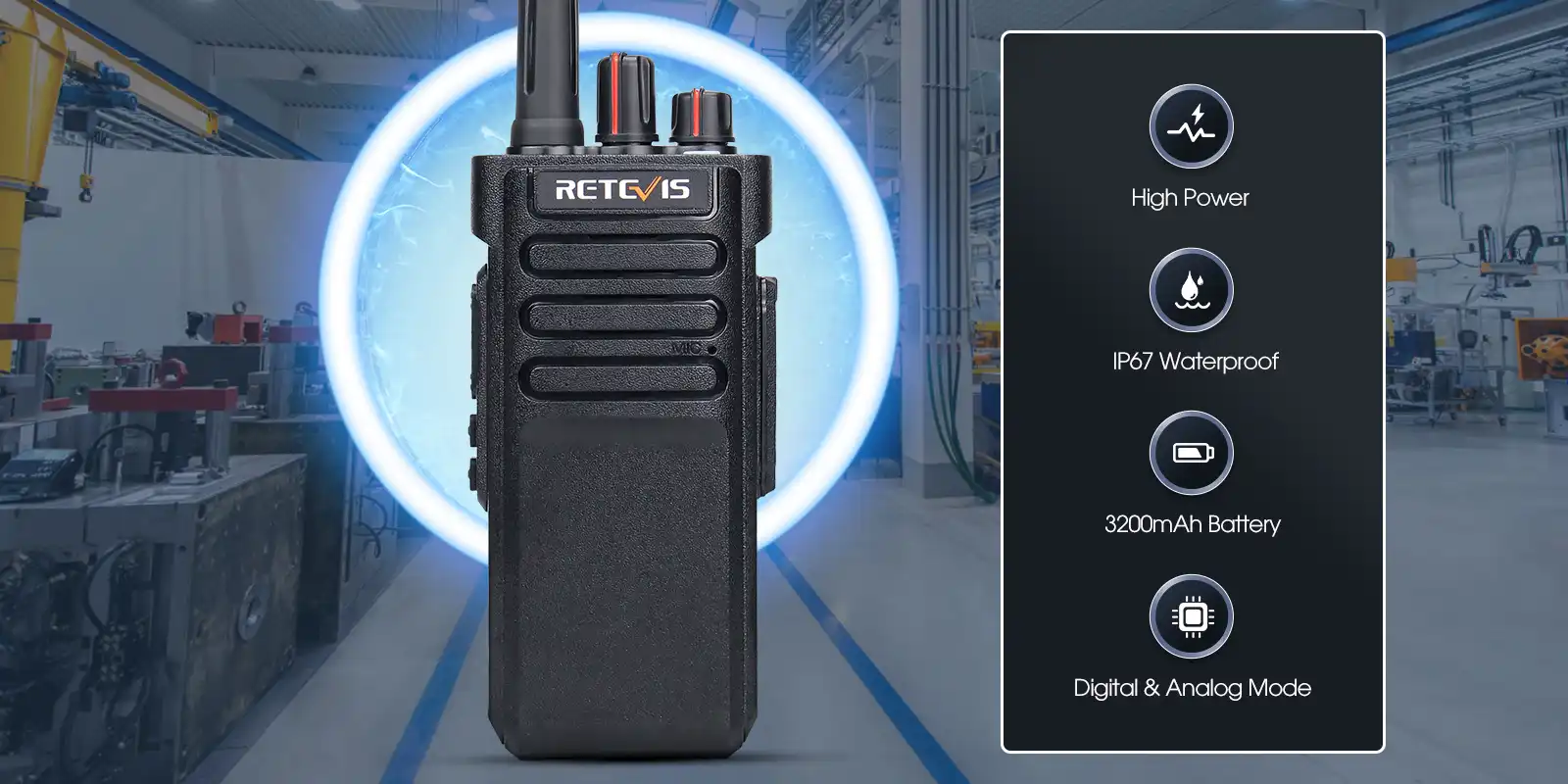

Main Features of RT29D Digital Handheld Radio:

1. Digital & Analog Mode

RT29D is the digital and analog mode walkie-talkie, allowing you to communicate with digital or analog radios, making communication more convenient. Digital mode will help you to make Single/Group/All Calls.

2. IP67 Waterproof

IP67 waterproof rating allows you to use it in wet environments. It can still be used normally after being put into one-meter-deep water for 30 minutes.

3. Long Battery Life

Equipped with a 3200mAh large-capacity battery, it supports 14 hours of work in the workplace without frequent charging. Long standby time, meet your daily work.

4. Digital Encryption

In the digital mode, encryption can effectively ensure private communication. Encryption can be preset by programming software.

5. Dual-Time Slot

Dual time slot technology can realize two group calls at the same time without interfering with each other, improving the use efficiency of frequency, which is particularly important for busy communication areas. At the same time, it can connect the repeater to double the communication distance.

6. Convenient Charging

Each RT29 two way radio comes with a desktop charger, and this kit includes a six-way charger. So it's easy to charge a single radio or a single battery, and you can also charge six radios or six batteries together.

Spec

Mode	RT29D:DMR/Analog
Frequence Band	RT29D:UHF
Transmit Frequency（TX）	RT29D:UHF:400–480MHz
Receive Frequency(RX)	RT29D:UHF:400–480MHz
Power	RT29D:10W/5W/1W
Channel Number	RT29D:128
Battery Capacity	RT29D:3200mAh
Operation Temperature	RT29D:-10°C to 55°C
Encryption Type	RT29D:10-bit key、32-bit encryption
Weight	RT29D:342g
Size	RT29D:12858.539mm
Additional Features	RT29D:1.Voice broadcast； 2.VOX； 3.Channel Lock； 4.Monitor； 5.Scan； 6.Roger； 7.Low Battery Alert； 8.Power Save； 9.Squelch； 10.TOT； 11.50CTCSS+232DCS；

Specification of RT97P Repeater

Item	Specification
Customizable Frequency Range	136–174 MHz or 400–470 MHz
Frequency Offset	≥ 5 MHz and ≤ 12 MHz
Standard Form	DMR / FM / DMR + FM
Channel Capacity	8 Channels
Channel Spacing	±12.5 kHz (Narrow) / ±25 kHz (Wide)
Operating Temperature	-30 ℃ ~ +60 ℃
Operating Voltage	DC 12V–24V
Antenna Impedance	50 Ω
Frequency Stability	±0.5 ppm
Dimension	280 × 210 × 75 mm
Weight	2624 g

Transmitter	Specification
Output Power	10 W
Transmission Current	≤ 2.5 A
FM Modulation	11kφF3E / 16kφF3E
Digital Modulation	4FSK
Modulation Distortion	≤ 5%
FM Noise	≥ 40 dB (25 kHz) / ≥ 35 dB (12.5 kHz)
Adjacent Channel Power	≥ 70 dB (25 kHz) / ≥ 60 dB (12.5 kHz)
Audio Response	+1 ～ -3 dB
DMR Protocol	ETSI TS 102 361-1 / -2 / -3

Receiver	Specification
Analog Receive Sensitivity	0.25 μV (12 dB SINAD)
Digital Receive Sensitivity	-120 dBm (BER ≤ 5%)
Adjacent Channel Selectivity	≥ 70 dB (25 kHz) / ≥ 60 dB (12.5 kHz)
Inter-modulation	≥ 60 dB / ≥ 65 dB
Signal Imitation	≥ 70 dB
Audio Response	+1 ～ -3 dB
Audio Distortion	< 5%
FM Noise	≥ 45 dB (25 kHz) / ≥ 40 dB (12.5 kHz)

Specification of RT29D Handheld Radio

Item	Specification
Channels	128
Power Level	High / Middle / Low
Operating Voltage	7.4 V
Band	Narrow (12.5 kHz) / Wide (25 kHz)

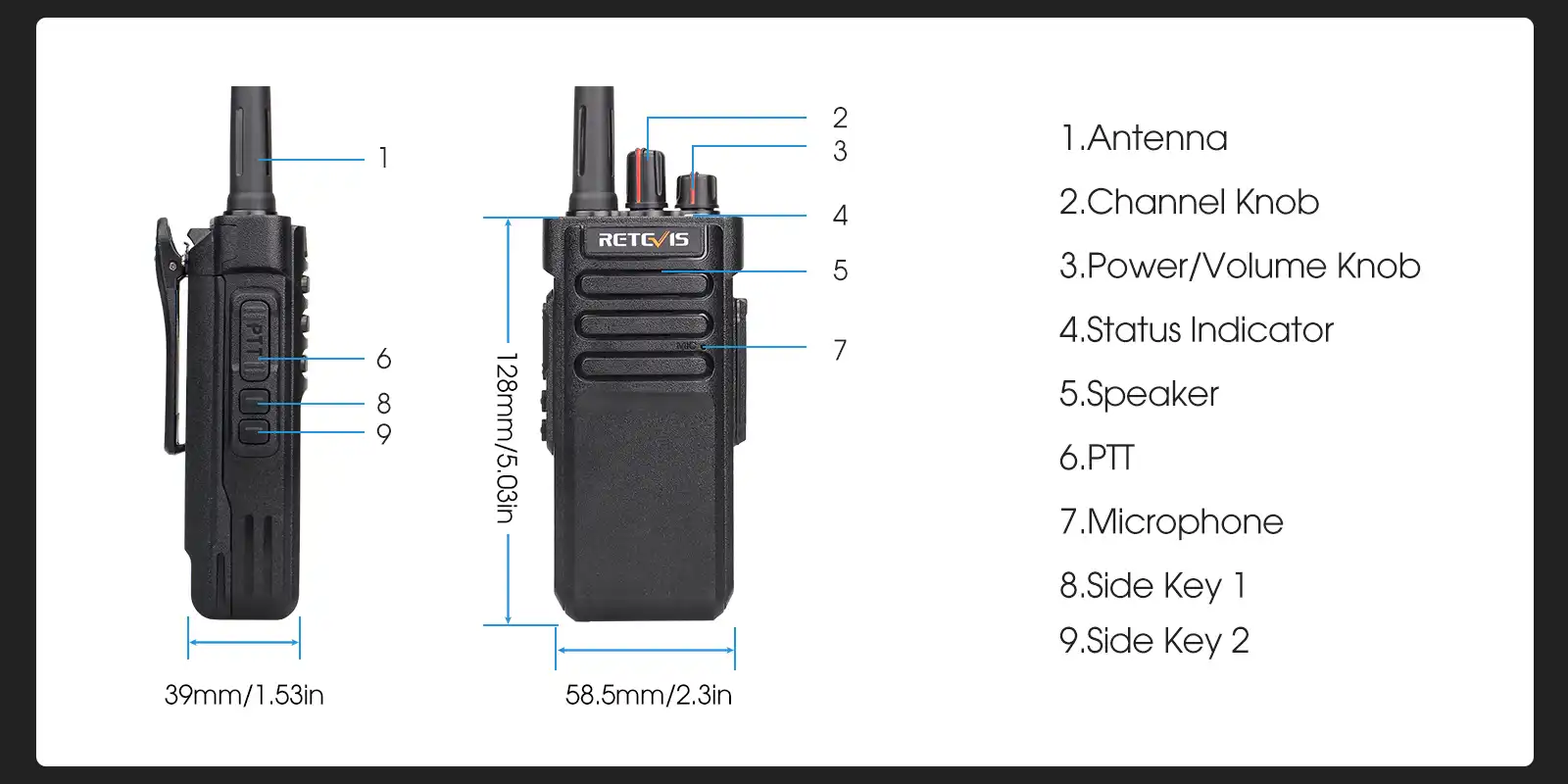

Dimension (H × W × D)	128 × 58.5 × 39 mm

Features

Functions of RT29D DMR Radio:

128 Channels (8 Zones/16 Channels Per Zone)
Dual Capacity Direct Mode (DCDM)
Private Call/Group Call/All Call
Wide/Narrow Bandwidth Switch
English/Chinese Voice Prompts
Talk Around/Repeater Function
Digital Encryption Function
VOX Hands-free/VOX Delay
High/Low Power Switch
Channel Scan Function
Power Saving Function
End-Tone Elimination
TOT (Time out Timer)
1-10 Squelch Level
Busy Channel Lock
Low Power Alarm
Monitor Function
Electricity Inquiry
