- The mini waterproof body can be installed outdoors.

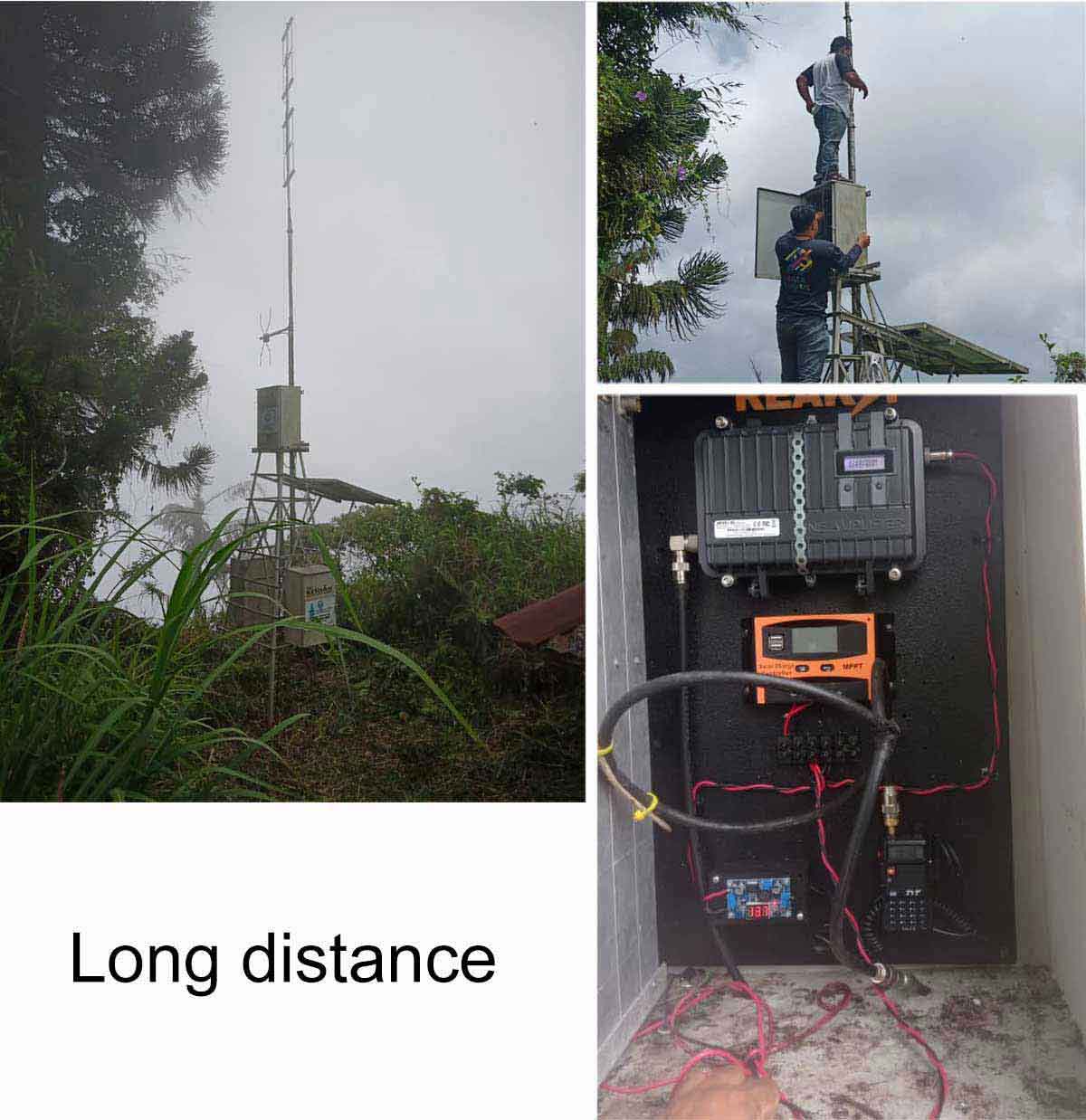

- Low power consumption, support solar panel power supply (purchased separately)

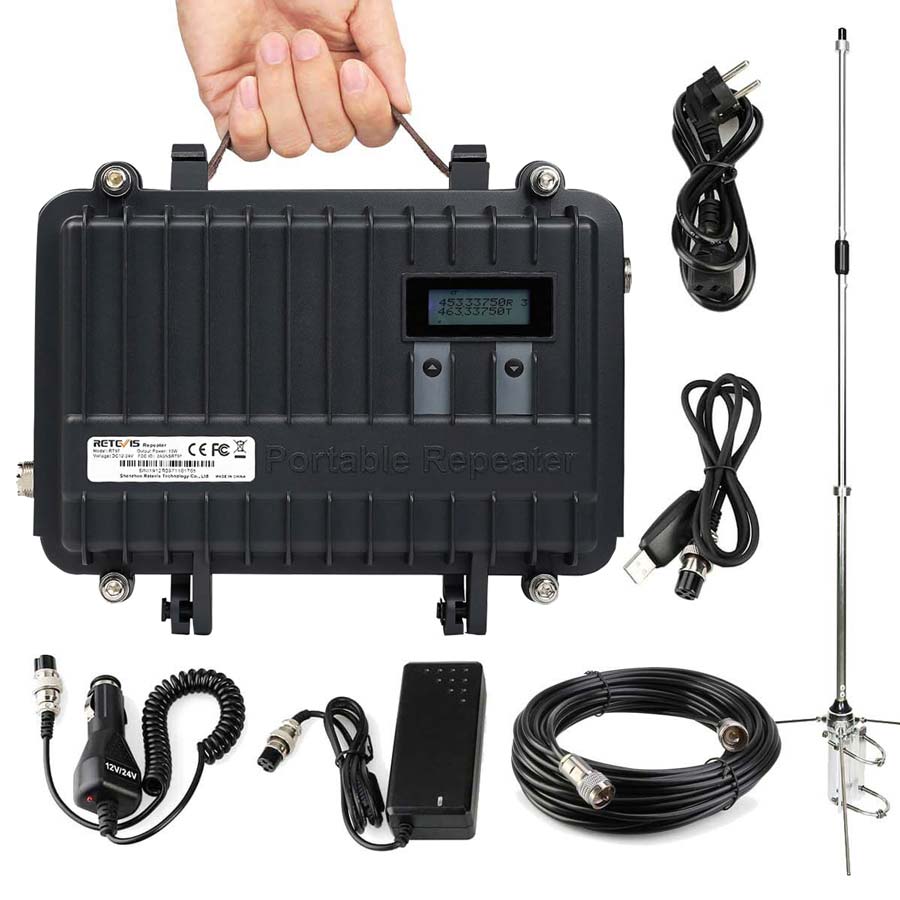

- The set contains an aluminum, adjustable frequency antenna.
- Package includes wall plug and car power supply. Can be used as a mobile repeater.
- GMRS Frequency: TX: 462MHz RX:467MHz
- 16CH, the repeater can connect the gmrs two way radio
Description

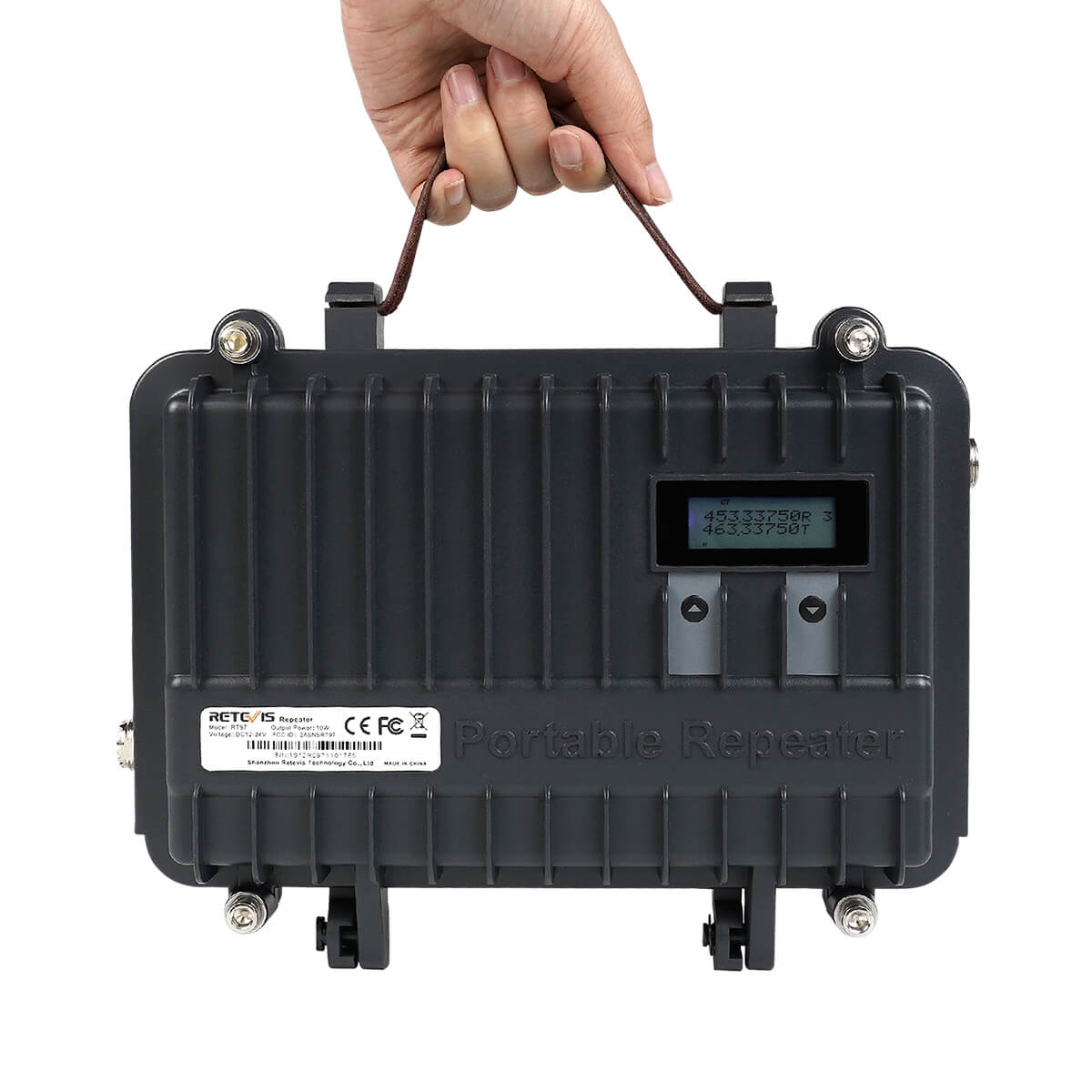

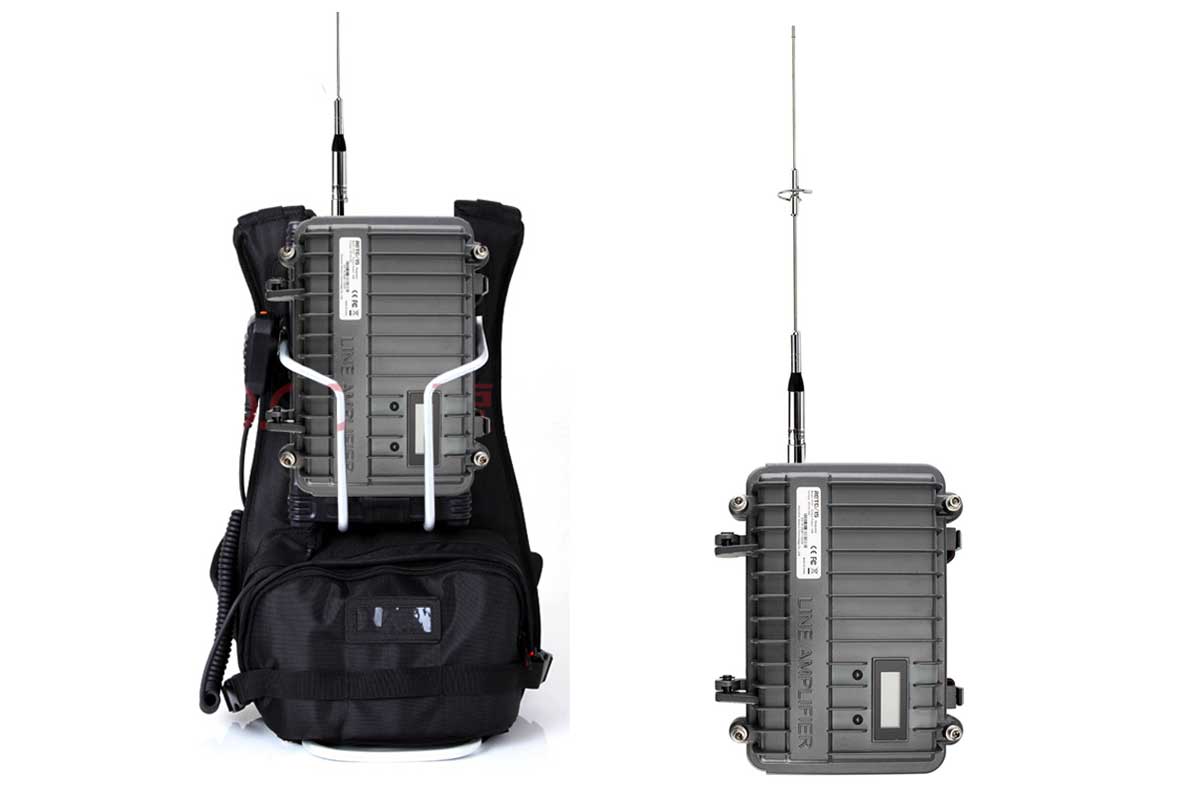

Retevis RT97 with the mini size, and multi-charger, help you to extend your handheld radio, and easy to install and easy to use, can be widely used for different applications, such an fleets, construction site, industrial park, hotel/office buildling, farm and etc.
Small and compact, solid and dust-proof.

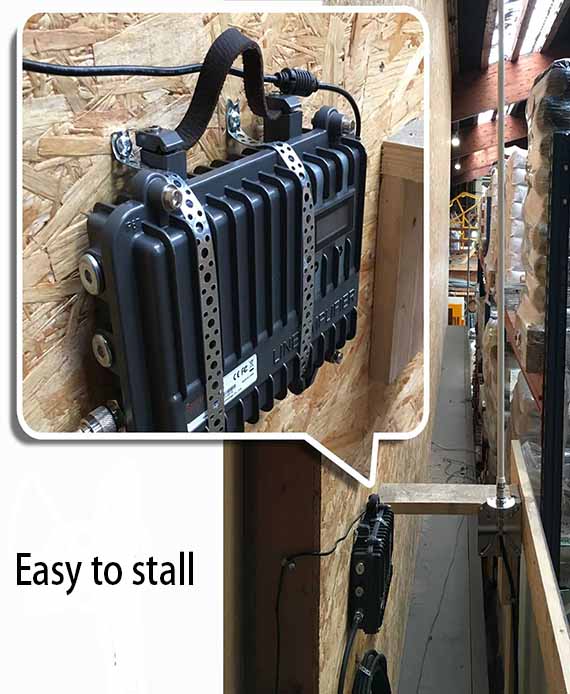

Simple and convenient installation, flexible operation, can be operated as fixed or mobile.
Can be widely used for different Applications
Spec
| Specifications | |
| Frequency Range | GMRS |
| Channel Capacity | 16CH |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V ~24V |
| Operating Temperature | -30°C~ +60°C |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50Ω |
| Dimension | 260*210*70mm |

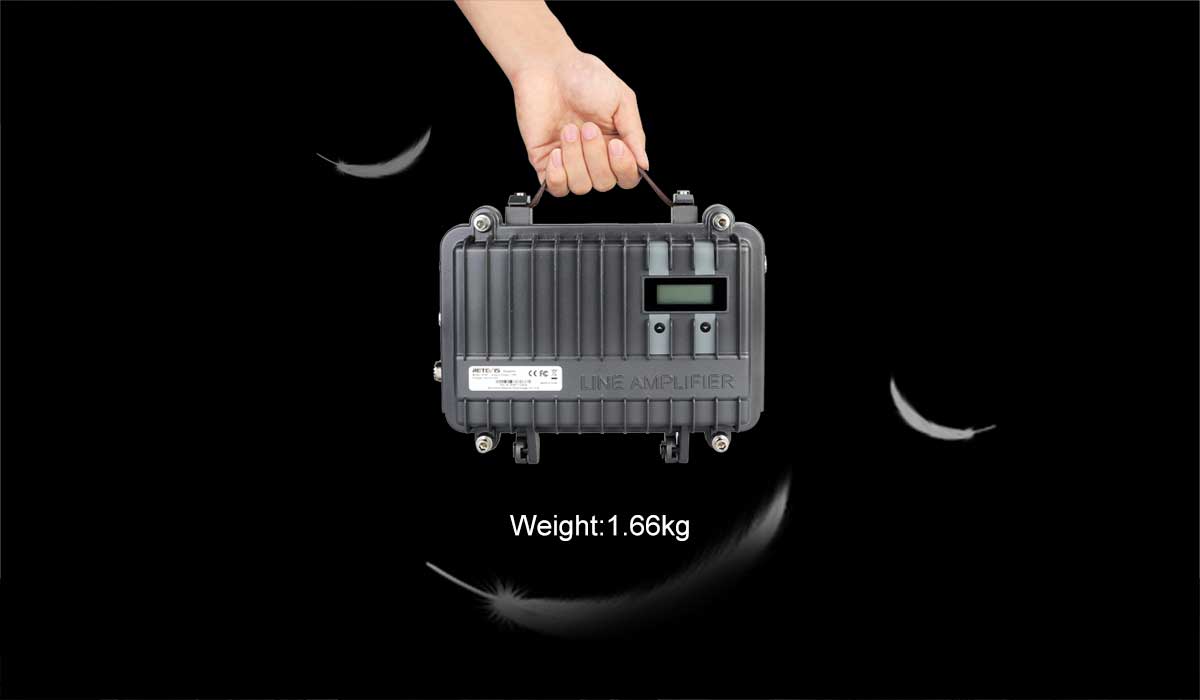

| Weight | 1.66kg |
| Transmitter | |
| Intermediate Frequency | GMRS |
| Power Output | ≤10W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Intermediate Frequency | GMRS |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
Features
Features:
1. Range: GMRS
2. Output power: 10W.
3. Small size: With the package size: 310x283x170mm. Very small and easy to carry, you can use it outdoor.

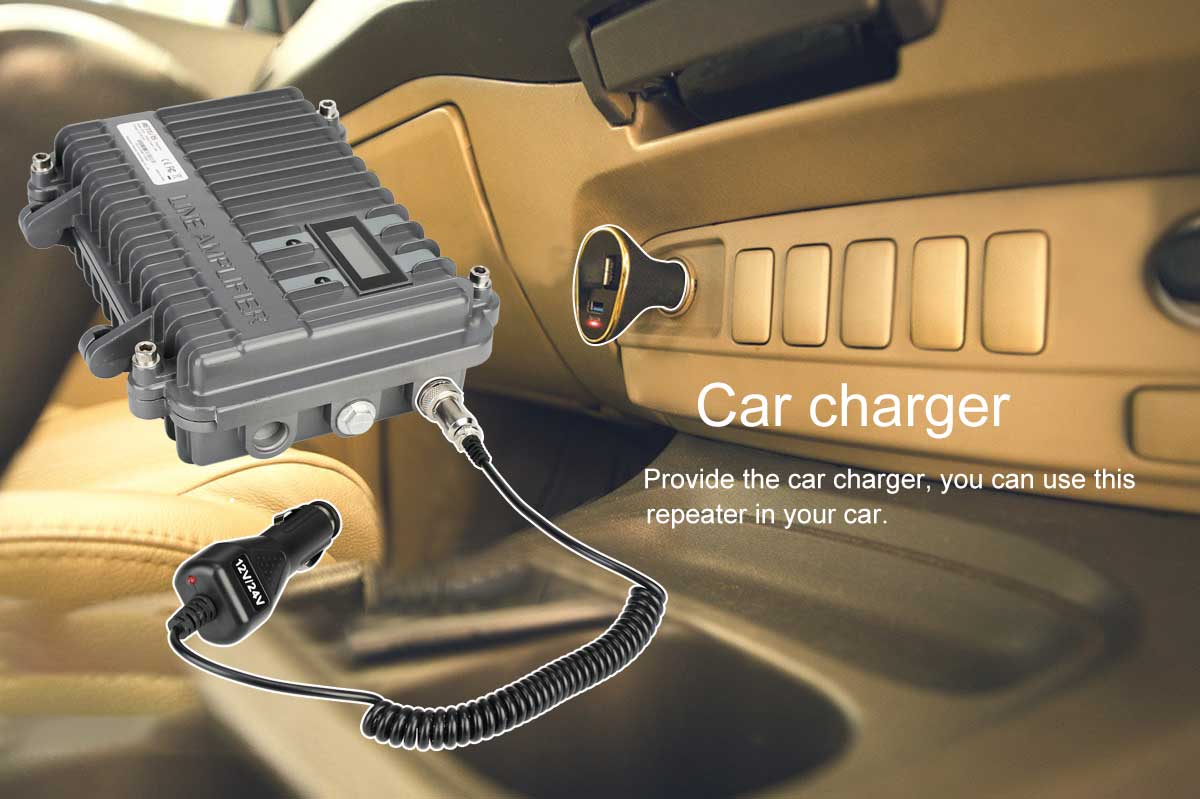

4. Car charger: Provide the car charger, you can use this repeater in your car.

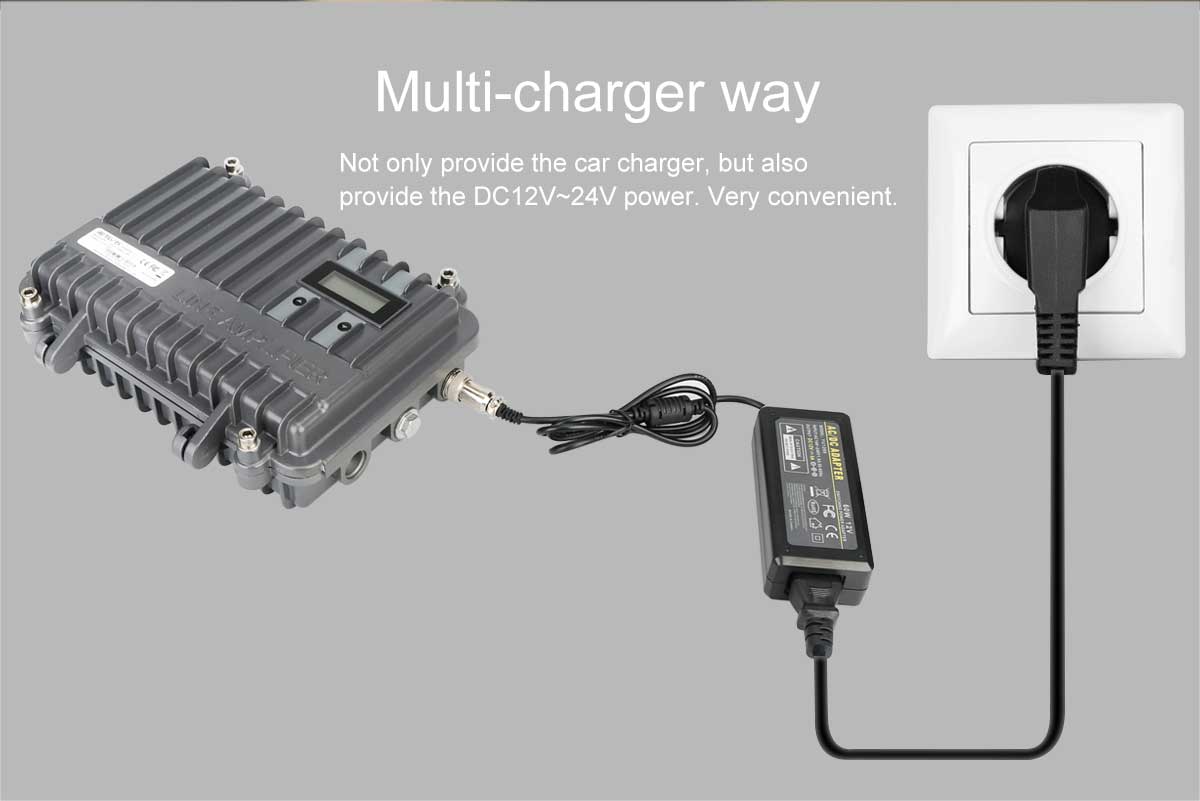

5. Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.
6. LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.
