Ham radio bands chart

Ham radio bands chart

Ham radio bands chart

What is Ham Radio?

An amateur radio operator is an individual who typically uses equipment at an amateur radio station to engage in two-way personal communications with other similar individuals, on radio frequencies assigned to the amateur radio service by the Federal Communications Commission (FCC) in the United States and the International Telecommunication Union worldwide.

Amateur radio operators build and operate several types of amateur radio stations, including fixed ground stations, mobile stations, space stations and temporary field stations. A slang term often used for an amateur station's location is the "shack," named after the small enclosures added to the upper works of naval ships to hold early radio equipment and batteries.

American amateur radio operators are granted an amateur radio license by the FCC upon passing an examination on radio theory and operation. As a component of their license, amateur radio operators are assigned a call sign (such as KC9ANG) that they use to identify themselves during communications. There are about 3 million amateur radio operators worldwide, including more than 700,000 licensed operators in the United States alone.

Amateur radio operators are also known as radio amateurs or hams. The term "ham" as a pejorative nickname for amateur radio operators was first heard in 1909 by operators in commercial and professional radio communities. The word was subsequently embraced by the operators, and stuck. However, the term did not gain widespread usage in the United States until around 1920, after which it slowly spread to other English-speaking countries.

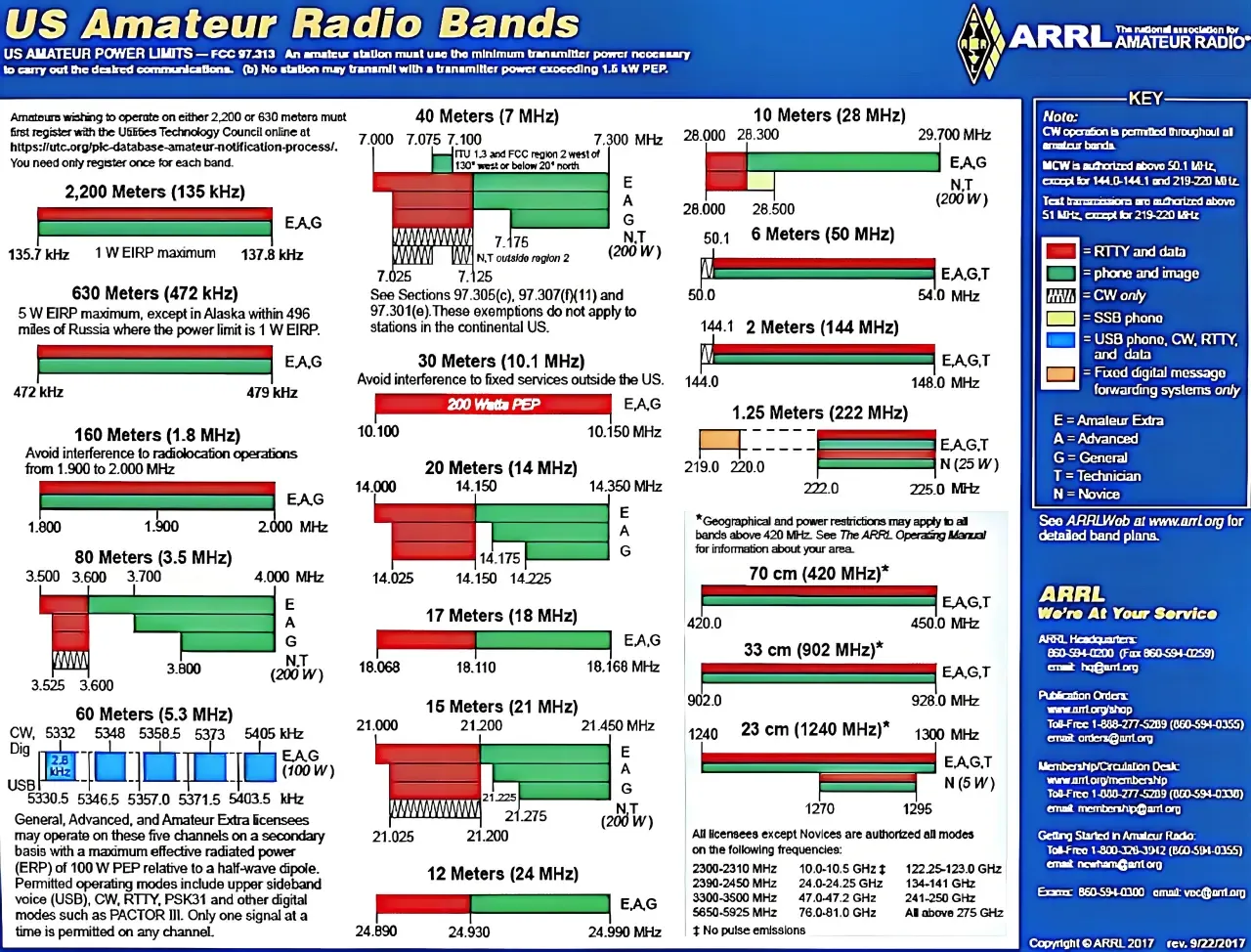

Ham radio Frequency Chart

Graphical Frequency Allocations
2200 and 600 – meter bands

General, Advanced and Amateur Extra class licensees are authorized to use these Amateur Bands

Amateurs wishing to operate on either 2,200 or 630 meters must first register with the Utilities Technology Council online at https://utc.org/plc-database-amateur-notification-process/. You need only register once for each band.

135.7 – 137.8 1 W EIRP maximum

472 – 479 KHz:  5 W EIRP maximum, except in Alaska within 496 miles of Russia where the power limit is 1 W EIRP.

160 Meters (1.8-2.0 MHz)

1.800 – 2.000

CW

1.800 – 1.810

Digital Modes

1.810

CW QRP

1.843-2.000

SSB, SSTV and other wideband modes

1.910

SSB QRP

1.995 – 2.000

Experimental

1.999 – 2.000

Beacons

80 Meters (3.5-4.0 MHz)

3.590

RTTY/Data DX

3.570-3.600

RTTY/Data

3.790-3.800

DX window

3.845

SSTV

3.885

AM calling frequency

60 Meters (5 MHz channels)

*Only one signal at a time is permitted on any channel

*Maximum effective radiated output is 100 W PEP

5330.5

USB phone1 and CW/RTTY/data2

5346.5

USB phone1 and CW/RTTY/data2

5357.0

USB phone1 and CW/RTTY/data2

5371.5

USB phone1 and CW/RTTY/data2

5403.5

USB phone1 and CW/RTTY/data2

40 Meters (7.0-7.3 MHz)

7.040

RTTY/Data DX

7.080-7.125

RTTY/Data

7.171

SSTV

7.290

AM calling frequency

30 Meters (10.1-10.15 MHz)

10.130-10.140

RTTY

10.140-10.150

Packet

20 Meters (14.0-14.35 MHz)

14.070-14.095

RTTY

14.095-14.0995

Packet

14.100

NCDXF Beacons

14.1005-14.112

Packet

14.230

SSTV

14.286

AM calling frequency

17 Meters (18.068-18.168 MHz)

18.100-18.105

RTTY

18.105-18.110

Packet

15 Meters (21.0-21.45 MHz)

21.070-21.110

RTTY/Data

21.340

SSTV

12 Meters (24.89-24.99 MHz)

24.920-24.925

RTTY

24.925-24.930

Packet

10 Meters (28-29.7 MHz)

28.000-28.070

CW

28.070-28.150

RTTY

28.150-28.190

CW

28.200-28.300

Beacons

28.300-29.300

Phone

28.680

SSTV

29.000-29.200

AM

29.300-29.510

Satellite Downlinks

29.520-29.590

Repeater Inputs

29.600

FM Simplex

29.610-29.700

Repeater Outputs

6 Meters (50-54 MHz)

50.0-50.1

CW, beacons

50.060-50.080

beacon subband

50.1-50.3

SSB, CW

50.10-50.125

DX window

50.125

SSB calling

50.3-50.6

All modes

50.6-50.8

Nonvoice communications

50.62

Digital (packet) calling

50.8-51.0

Radio remote control (20-kHz channels)

51.0-51.1

Pacific DX window

51.12-51.48

Repeater inputs (19 channels)

51.12-51.18

Digital repeater inputs

51.5-51.6

Simplex (six channels)

51.62-51.98

Repeater outputs (19 channels)

51.62-51.68

Digital repeater outputs

52.0-52.48

Repeater inputs (except as noted; 23 channels)

52.02, 52.04

FM simplex

52.2

TEST PAIR (input)

52.5-52.98

Repeater output (except as noted; 23 channels)

52.525

Primary FM simplex

52.54

Secondary FM simplex

52.7

TEST PAIR (output)

53.0-53.48

Repeater inputs (except as noted; 19 channels)

53.0

Remote base FM simplex

53.02

Simplex

53.1, 53.2, 53.3, 53.4

Radio remote control

53.5-53.98

Repeater outputs (except as noted; 19 channels)

53.5, 53.6, 53.7, 53.8

Radio remote control

53.52, 53.9

Simplex

2 Meters (144-148 MHz)

144.00-144.05

EME (CW)

144.05-144.10

General CW and weak signals

144.10-144.20

EME and weak-signal SSB

144.200

National calling frequency

144.200-144.275

General SSB operation

144.275-144.300

Propagation beacons

144.30-144.50

New OSCAR subband

144.50-144.60

Linear translator inputs

144.60-144.90

FM repeater inputs

144.90-145.10

Weak signal and FM simplex (145.01,03,05,07,09 are widely used for packet)

145.10-145.20

Linear translator outputs

145.20-145.50

FM repeater outputs

145.50-145.80

Miscellaneous and experimental modes

145.80-146.00

OSCAR subband

146.01-146.37

Repeater inputs

146.40-146.58

Simplex

146.52

National Simplex Calling Frequency

146.61-146.97

Repeater outputs

147.00-147.39

Repeater outputs

147.42-147.57

Simplex

147.60-147.99

Repeater inputs

Notes: The frequency 146.40 MHz is used in some areas as a repeater input. This band plan has been proposed by the ARRL VHF-UHF Advisory Committee.

1.25 Meters (222-225 MHz)

222.0-222.150

Weak-signal modes

222.0-222.025

EME

222.05-222.06

Propagation beacons

222.1

SSB & CW calling frequency

222.10-222.15

Weak-signal CW & SSB

222.15-222.25

Local coordinator’s option; weak signal, ACSB, repeater inputs, control

222.25-223.38

FM repeater inputs only

223.40-223.52

FM simplex

223.52-223.64

Digital, packet

223.64-223.70

Links, control

223.71-223.85

Local coordinator’s option; FM simplex, packet, repeater outputs

223.85-224.98

Repeater outputs only

Note: The 222 MHz band plan was adopted by the ARRL Board of Directors in July 1991.

70 Centimeters (420-450 MHz)

420.00-426.00

ATV repeater or simplex with 421.25 MHz video carrier control links and experimental

426.00-432.00

ATV simplex with 427.250-MHz video carrier frequency

432.00-432.07

EME (Earth-Moon-Earth)

432.07-432.10

Weak-signal CW

432.10

70-cm calling frequency

432.10-432.30

Mixed-mode and weak-signal work

432.30-432.40

Propagation beacons

432.40-433.00

Mixed-mode and weak-signal work

433.00-435.00

Auxiliary/repeater links

435.00-438.00

Satellite only (internationally)

438.00-444.00

ATV repeater input with 439.250-MHz video carrier frequency and repeater links

442.00-445.00

Repeater inputs and outputs (local option)

445.00-447.00

Shared by auxiliary and control links, repeaters and simplex (local option)

446.00

National simplex frequency

447.00-450.00

Repeater inputs and outputs (local option)

33 Centimeters (902-928 MHz)

Frequency Range

Mode

Functional Use

Comments

902.000-902.075

FM / otherincluding DV Or CW/SSB

Repeater inputs 25 MHz split paired with those in 927.000-927.075 or Weak signal

12.5 kHzchannel spacing Note 2)

902.075-902.100

CW/SSB

Weak signal

902.100

CW/SSB

Weak signal calling

Regional option

902.100-902.125

CW/SSB

Weak signal

902.125-903.000

FM/otherincluding DV

Repeater inputs 25 MHz split paired with those in 927.1250-928.0000

12.5 kHzchannel spacing

903.000-903.100

CW/SSB

Beacons and weak signal

903.100

CW/SSB

Weak signal calling

Regional option

903.100-903.400

CW/SSB

Weak signal

903.400-909.000

Mixed modes

Mixed operations including control links

909.000-915.000

Analog/digital

Broadband multimediaincluding ATV, DATV and SS

Notes 3) 4)

915.000-921.000

Analog/digital

Broadband multimedia including ATV, DATV and SS

Notes 3) 4)

921.000-927.000

Analog/digital

Broadband multimediaincluding ATV, DATV and SS

Notes 3) 4)

927.000-927.075

FM / otherincluding DV

Repeater outputs 25 MHz split paired with those in 902.0000-902.0750

12.5 kHzchannel spacing

927.075-927.125

FM / otherincluding DV

Simplex

927.125-928.000

FM / otherincluding DV

Repeater outputs 25 MHz splitpaired with those in 902.125-903.000

12.5 kHzchannelspacingNotes 5) 6)
