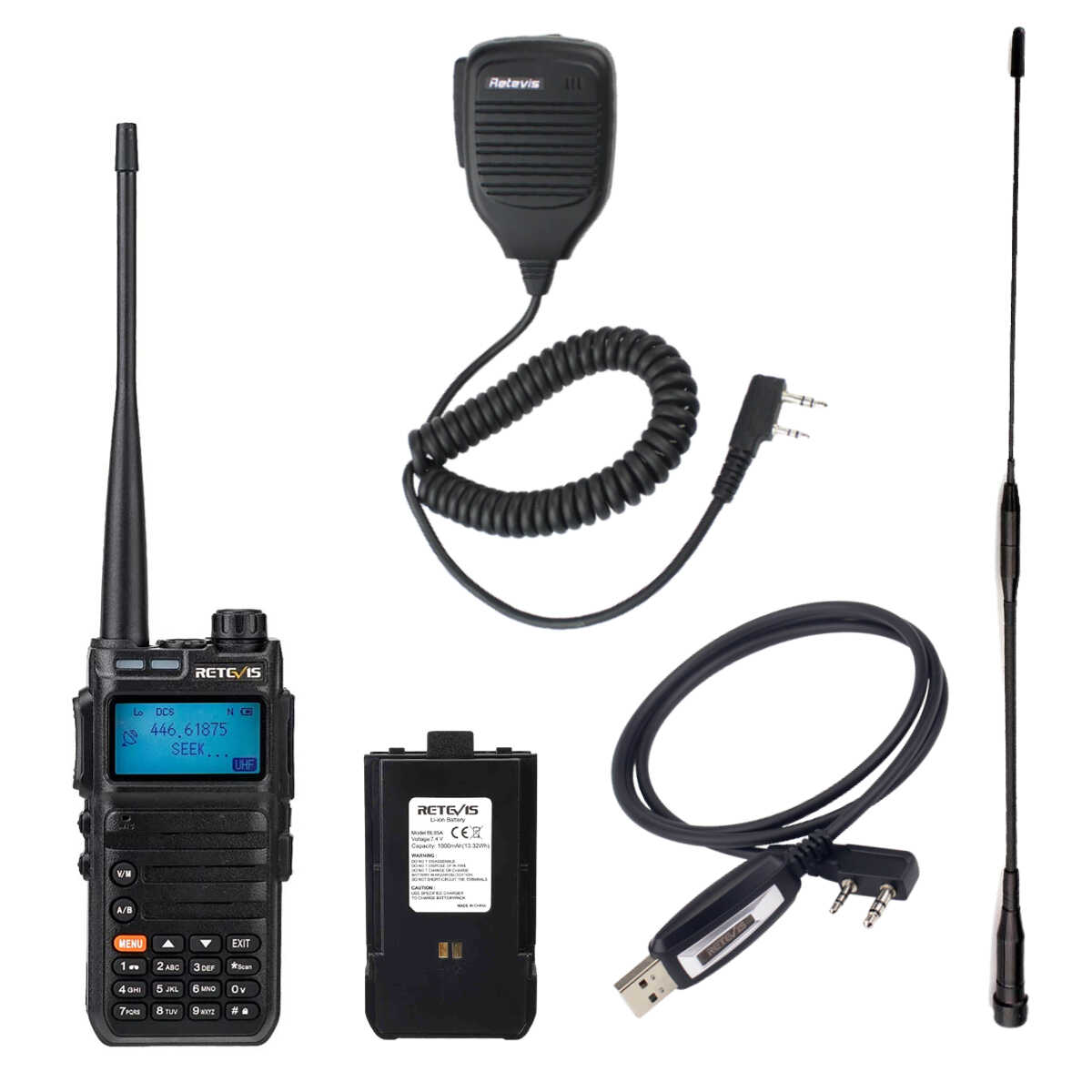

- Long Range Handheld Ham Radio
- Dual Band and Dual Standby
- Support CHIRP Programming
- Up to 128 Memory Channels
- Built-in Flashlight and FM Radio
Related Products
Add To Cart
Availability: In Stock
Description
Spec
| Total Speicfication | Frequency range | 144-146MHZ (RX/TX) & 430-440MHZ (RX/TX) | |
| Channel number | 128 | ||
| Channel spacing | 25/12.5kHz | ||
| Input voltage | 7.4 VDC | ||
| Battery (standard configuration) | 1800mAH(Li-Ion) | ||
| Battery Life(5-5-90, high power transmission) | About 14 Hours | ||
| Current | Standby | ≤65mA | |
| Receive | ≤450 mA | ||
| Transmit | ≤1.8 A at power; 850 mA at low power | ||
| Frequency stability | ±2.5ppm | ||
| Operating temperature | -20℃ to +60℃ | ||
| Antenna impedance | 50Ω | ||
| Walkie-talkie size (With battery, but without antenna) | 121x61x33mm | ||
| Walkie-talkie weight (Including antenna and battery) | 223g | ||
| Tramsmitting | Transmit output power | 5W/3W/1W | |
| Modulation | 16K0F3E@25KHz, 11K0F3E@12.5KHz | ||
| Spurious emission | -36dBm＜1GHz, -30dBm＞1GHz | ||
| FM signal-to-noise ratio | 45dB@25KHz, 40dB @12.5KHz | ||
| Audio distortion | ≤5% | ||
| Modulation limit | ±5.0 KHz@25 KHz, ±2.5 KHz@12.5 KHz | ||
| Adjacent channel power | 70dB @ 25KHz, 60dB @ 12.5KHz | ||
| (300-3000Hz) Audio response | +1~3dB | ||
| Receiving | Receiving sensitivity | 0.25μV (12dB SINAD) | |
| Adjacent channel selectivity | ≥60dB@25KHz ,≥55dB@12.5KHz | ||
| Intermodulation immunity | ≥60dB@25KHz , ≥55dB@12.5KHz | ||
| Conducted spurious emissions | ≤-57dB@25KHz, ≤-57dB @12.5KHz | ||
| FM signal-to-noise ratio | ≥45dB@25KHz, ≥40dB @12.5KHz | ||
| Audio output power | 1W @16ohms | ||
| Audio distortion | ≤5% | ||
| Audio response(300-3000Hz) | +1～-3dB | ||
Features
1. Frequency Range: 144-146 MHZ (RX/TX), 430-440 MHZ (RX/TX);
2. Dual Band, Dual Display, Dual Standby;
3. High, middle, and low power switching to meet the power requirements of users;
4. Up to 128 memory channels for programming frequency and other various data;
5. Multiple display modes such as channel number, frequency, channel name, etc.
6. CTCSS/DCS, DTMF signalling, rejecting redundant calls from other stations;
7. The tail tone is eliminated to avoid the impact noise from the speaker after the call is over;
8. VOX voice-activated transmission; no need to press the PTT button to talk normally;
9. Emergency alarm, ANI identification and other functions through DTMF;
10. DTMF, CTCSS (60.0 -259.9HZ), DCS signalling code function;
11. 8-step frequency selection (2.5K, 5.0K, 6.25K, 10.0K, 12.5K, 20.0K, 25.0K, 50.0K);
12. Automatic power-saving function to extend battery life;
13. SOS emergency alert function;
14. Wide/narrowband (25KHz/12.5KHz) selection function;
15. Digital FM radio (receiving 65-108 MHz)
16. Bulit-in Flashlight
17. With the direct selection of keyboard numbers for menu items, transmit and receive frequency can be manually input;
18. Special CTCSS/DCS (frequency hopping function).
