Wide-Narrow Converged, Smart interworking between Private Network Digital and PoC terminals
Data Transmission
Cloud Control
GPS
Remote Control
WiFi
Fence Call
Central Call
Track Playback
Private Call / Group Call / All Call / Broadcasting
IP67 Waterproof
Basic Parameters:

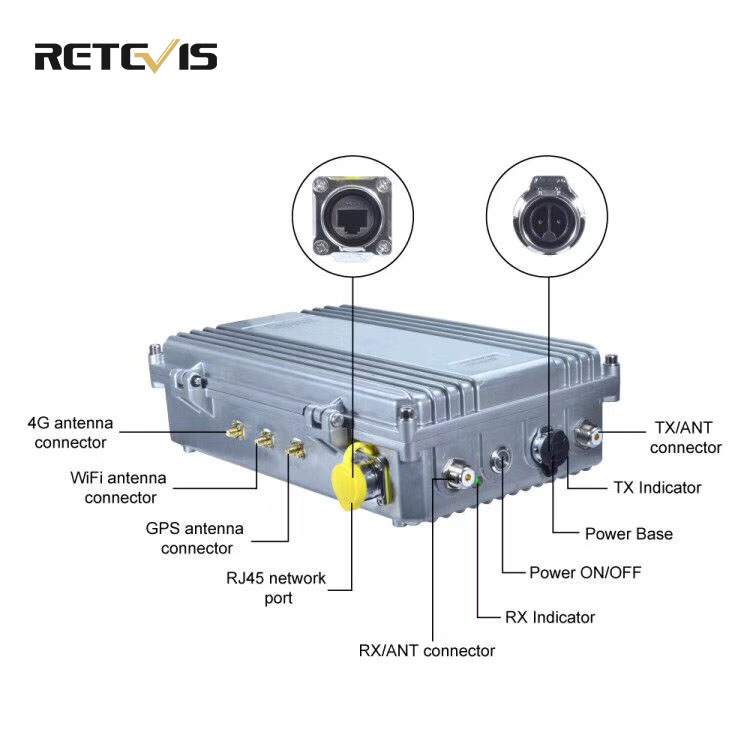

Working Current / Voltage: | 9A / 13.8V | Network interface: | RJ45 network port |
Power: | 40W | Dimension(LxWxH): | 320 x 200 x 92 mm |
Environmental Parameters:
Working Temperature: | -20℃ ~ +60℃ |
Storage Temperature: | -40℃ ~ +85℃ |
Dustproof & Waterproof Rate: | IP67 |
Static Protection: | IEC61000-4-2 Level 4 |
±8kV(Contact) | |
±15kV(Air) |
Wide / Narrow Band Parameters:
Digital Type: | DMR |
Frequency Range: | 136~174MHz 400~480MHz |
Output Power: | 5W(L) / 40W(H) |
Channel Spacing: | 12.5kHz / 25kHz |
Digital Vocoder Type: | AMBE 2+ |
Network Type: | FDD / TDD LTE |
