How Far Can the RT97L Dual Daisy Chaining Function Reach?

The RT97L dual daisy chaining function can significantly extend communication range, but the exact distance depends on terrain, antenna height, and coaxial cable quality. Under ideal conditions - good line-of-sight, high-quality antennas, and minimal interference - the system can extend communication range up to 60 km. Real-world performance varies with the specific setup and environment, so plan antenna height and cable runs before deployment.

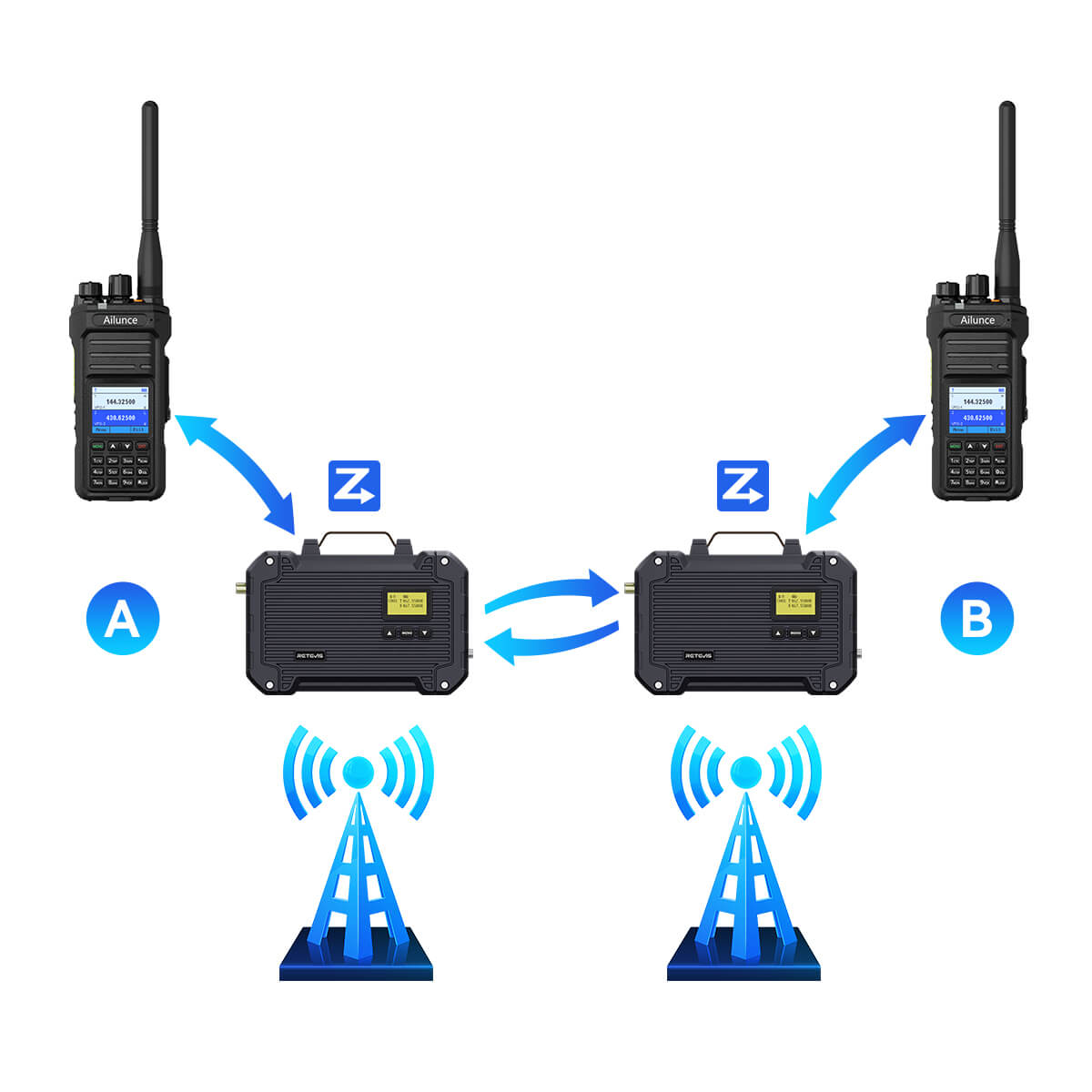

Why Choose the RT97L Dual Daisy Chaining Repeater?

1. 1. Extended Coverage: two repeaters to be linked together, two factory-paired repeaters link together and carry calls across large areas such as farms, construction sites, and emergency zones - one channel plan, two sites.
   2. Seamless Communication: It ensures uninterrupted communication, signals relay from one repeater site to the next, so crews keep talking in remote or obstructed locations where direct radio-to-radio calls fail.
   3. Powerful Performance: With 25W output, the transmitter carries signals across long distances, and the 5W low-power setting covers short-range or local work.
   4. Easy Setup: Its plug-and-play design simplifies installation, match the frequencies, enable dual-channel scanning, and connect the antenna - steps both experienced operators and first-time buyers can complete.
   5. IP66 weather resistance: the housing stands up to harsh outdoor conditions, which suits unattended sites in agriculture, construction, and emergency services.

The RT97L dual daisy chaining repeater serves large farms and ranches, hunting grounds, wildfire response, and hurricane-season communication in residential communities. In each scenario, two linked repeater sites carry calls past the terrain that blocks direct handheld-to-handheld contact.

How to Set Up the Dual Daisy Chaining System?

The entire process can be completed in just three simple steps:

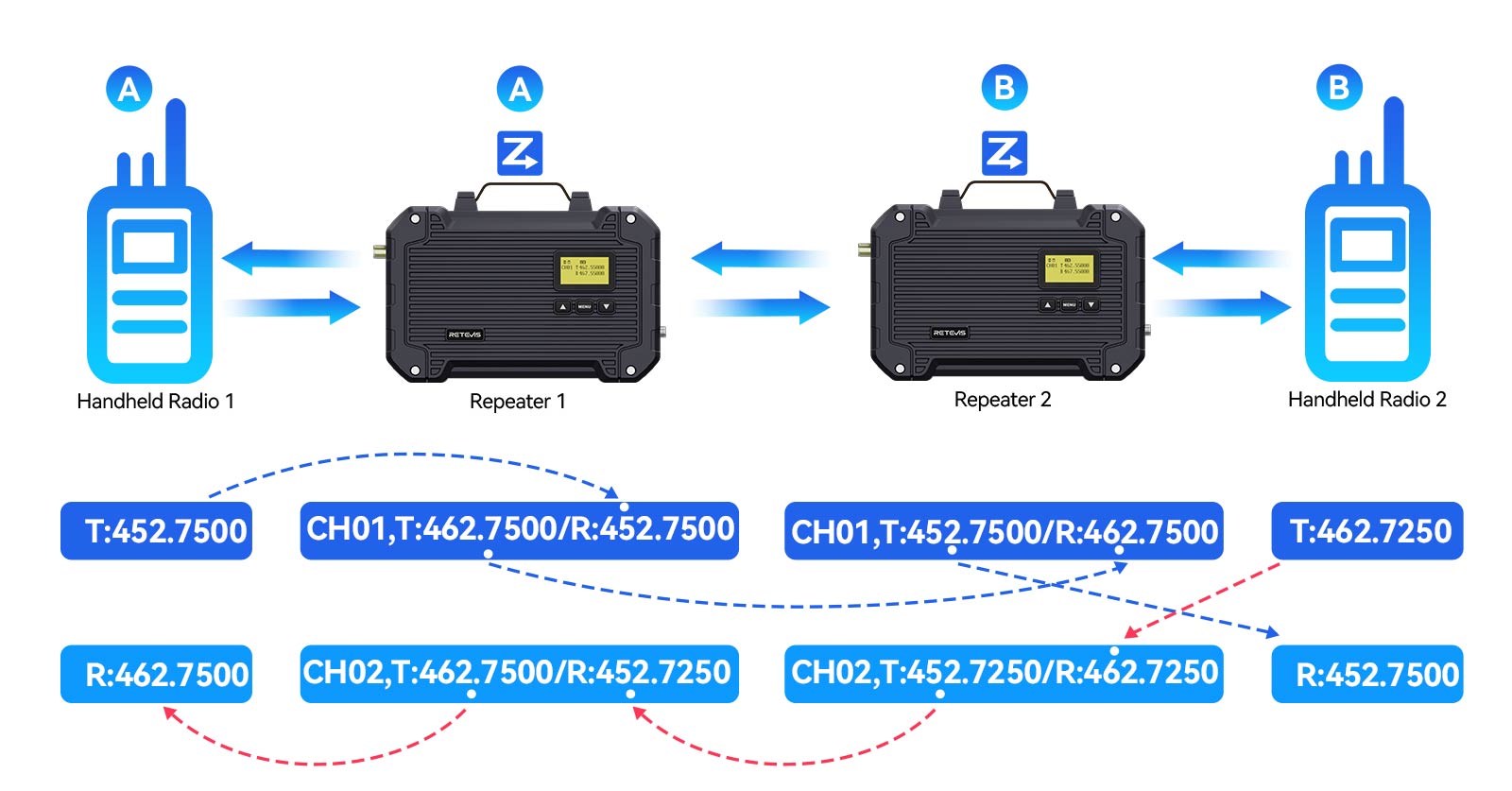

1. Set the Frequencies: Ensure that the transmit/receive frequencies of the two radios and two repeaters are correctly matched.

2. Enable the Scanning Function: Both repeaters should enable dual-channel scanning to monitor and relay signals in real time.

3. Connect the Antenna: The antenna must be connected before transmitting from the repeater to prevent damage to the equipment from an unloaded transmission.
