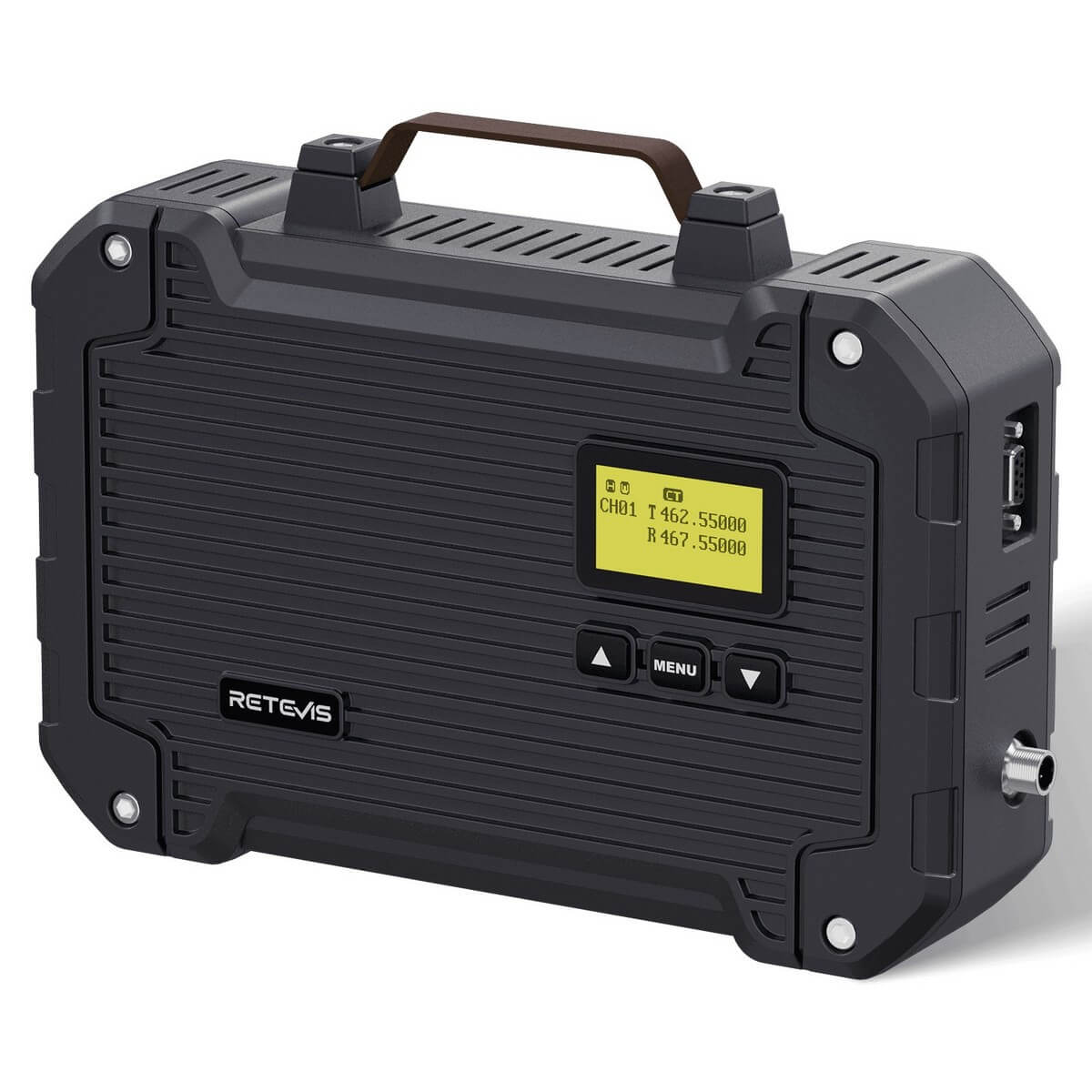

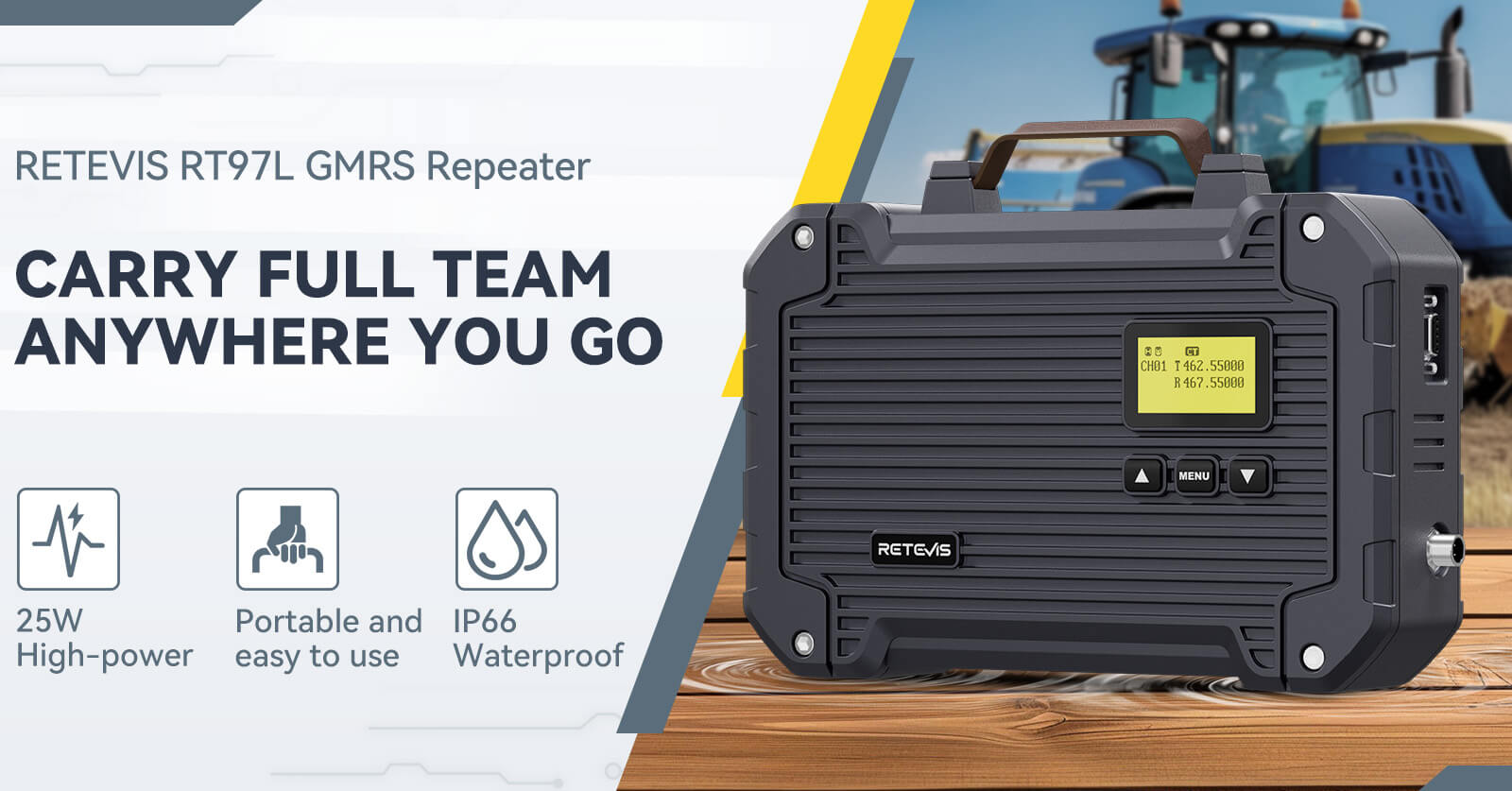

RT97L Customizable 25W Waterproof Long Range Full Duplex Repeater

The Retevis RT97L Repeater offers 25W high power, IP66 waterproof, and high-temperature protection, ensuring reliable communication in any environment. Its portable design, screen display, and easy Raspberry Pi connection make it a versatile solution for your team. Ideal for construction sites, logistics, property management, and large farms.

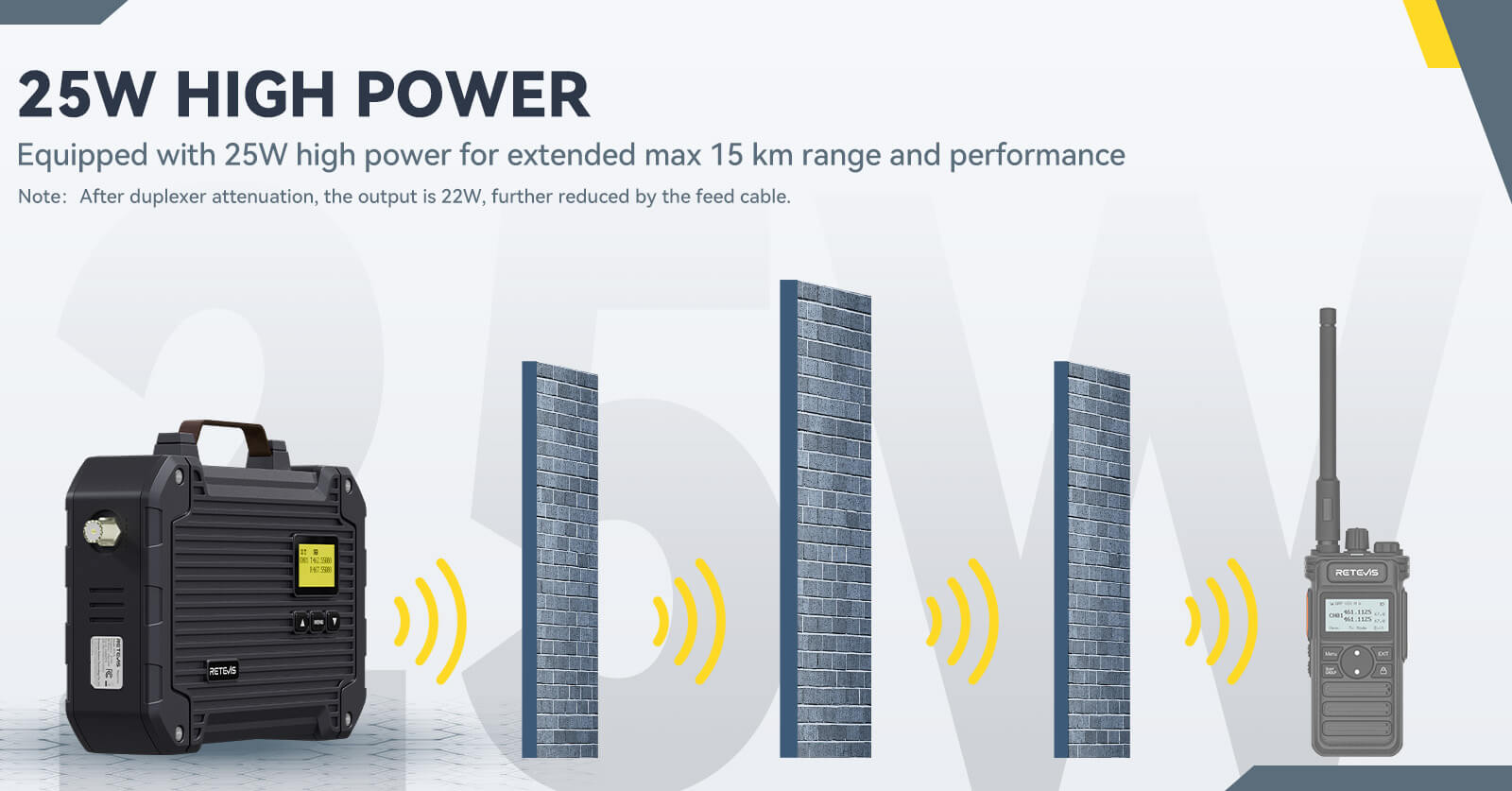

25W High Power

The RT97L repeater features 25W high power output, delivering stronger signal coverage to ensure clear and stable communication even in challenging terrains or long-distance environments. Whether on large farms, hunting camps, construction sites, or large outdoor events, the RT97L radio repeater significantly extends communication range, making team coordination more efficient.

Enhanced Signal Strength

Boost your Raspberry Pi's signal reach with the 25W repeater. Whether you're in a remote farm or a bustling city, experience seamless internet connectivity and stable communication for enhanced performance in any environment.

High-Low Power Adjustment

Enjoy flexible power switching with the mobile repeater. Seamlessly switch between high and low power modes based on your needs, ensuring you always have the right signal strength without wasting resources. Whether for long-distance communication or conserving energy, it adapts to your environment.

Portable and Lightweight

It's convenient to carry and move, whether for emergency rescue or hiking adventures.

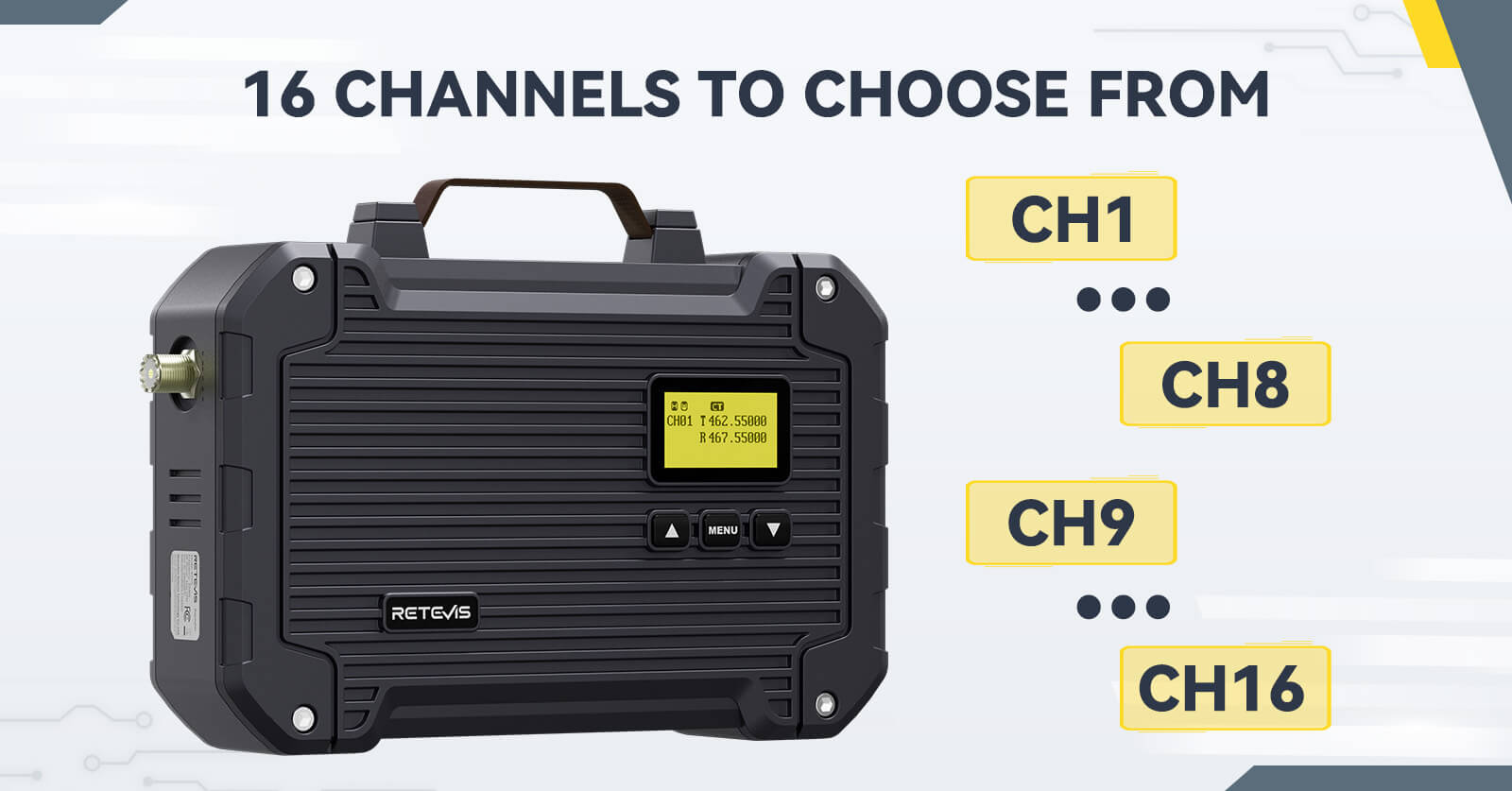

16 Versatile Channels

Stay connected with the repeater's 16 versatile channels; switch between high and low power options to match your environment; ensuring clear communication no matter where you are

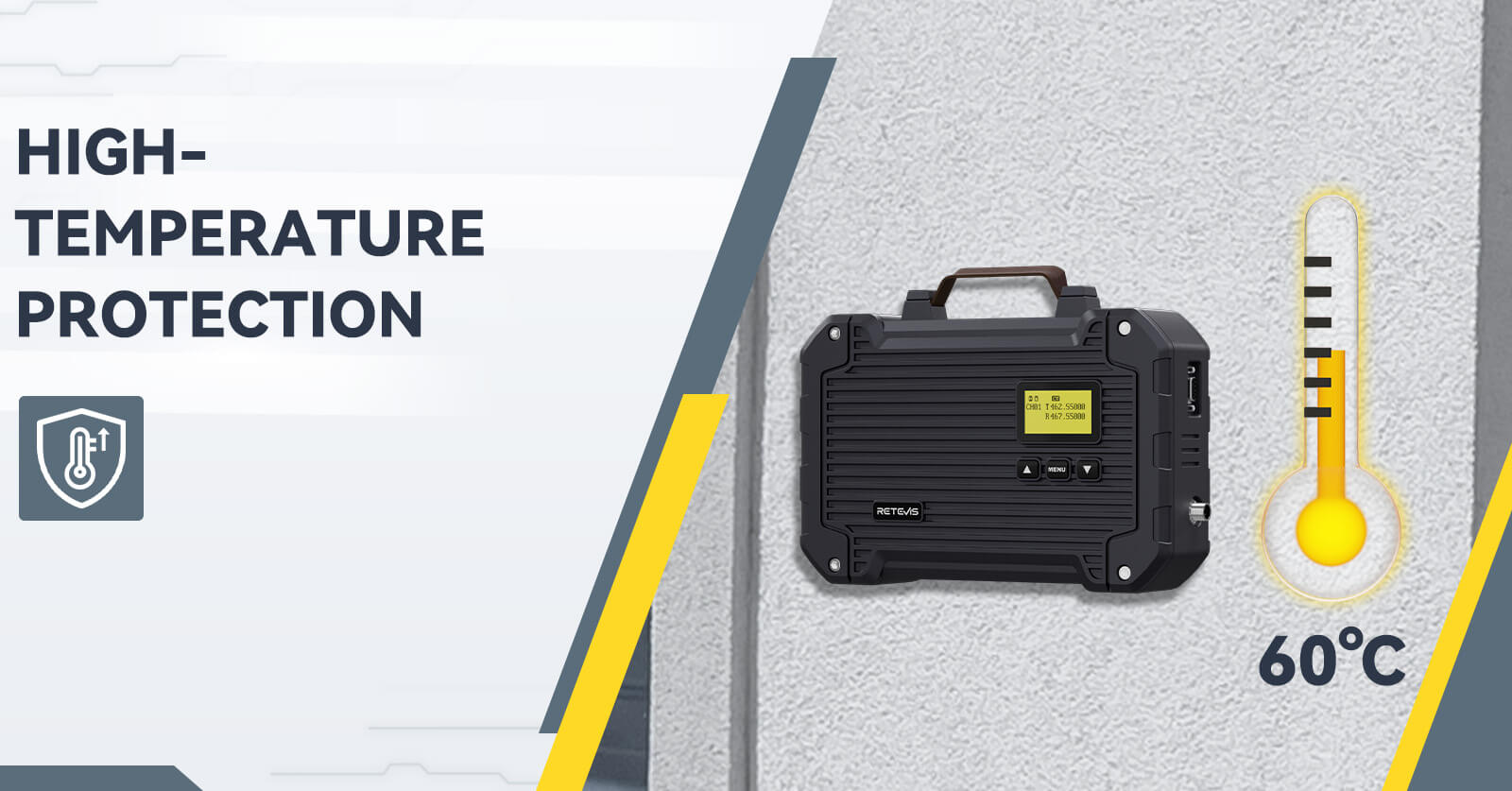

High-Temperature Protection

The portable repeater features automatic power adjustment, switching to low power mode when temperatures exceed 60°C. This prevents overheating and ensures stable operation, even in hot climates.

Low-Temperature Mode

Keep your 25W repeater running smoothly in cold weather with the low-temperature mode. When the ambient temperature drops to -15°C, the internal heating system automatically activates, preventing freezing and ensuring reliable performance even in harsh winter conditions.

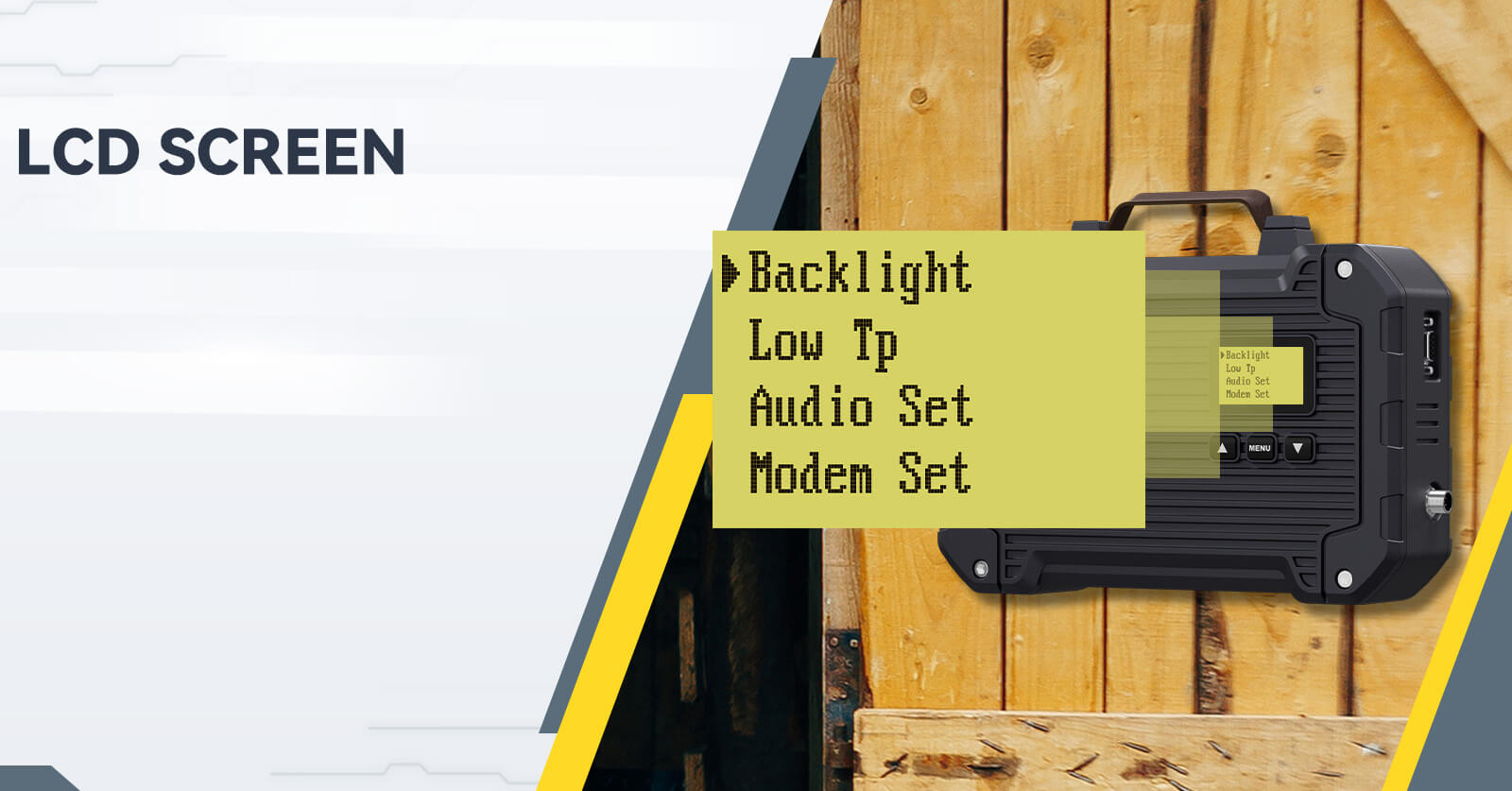

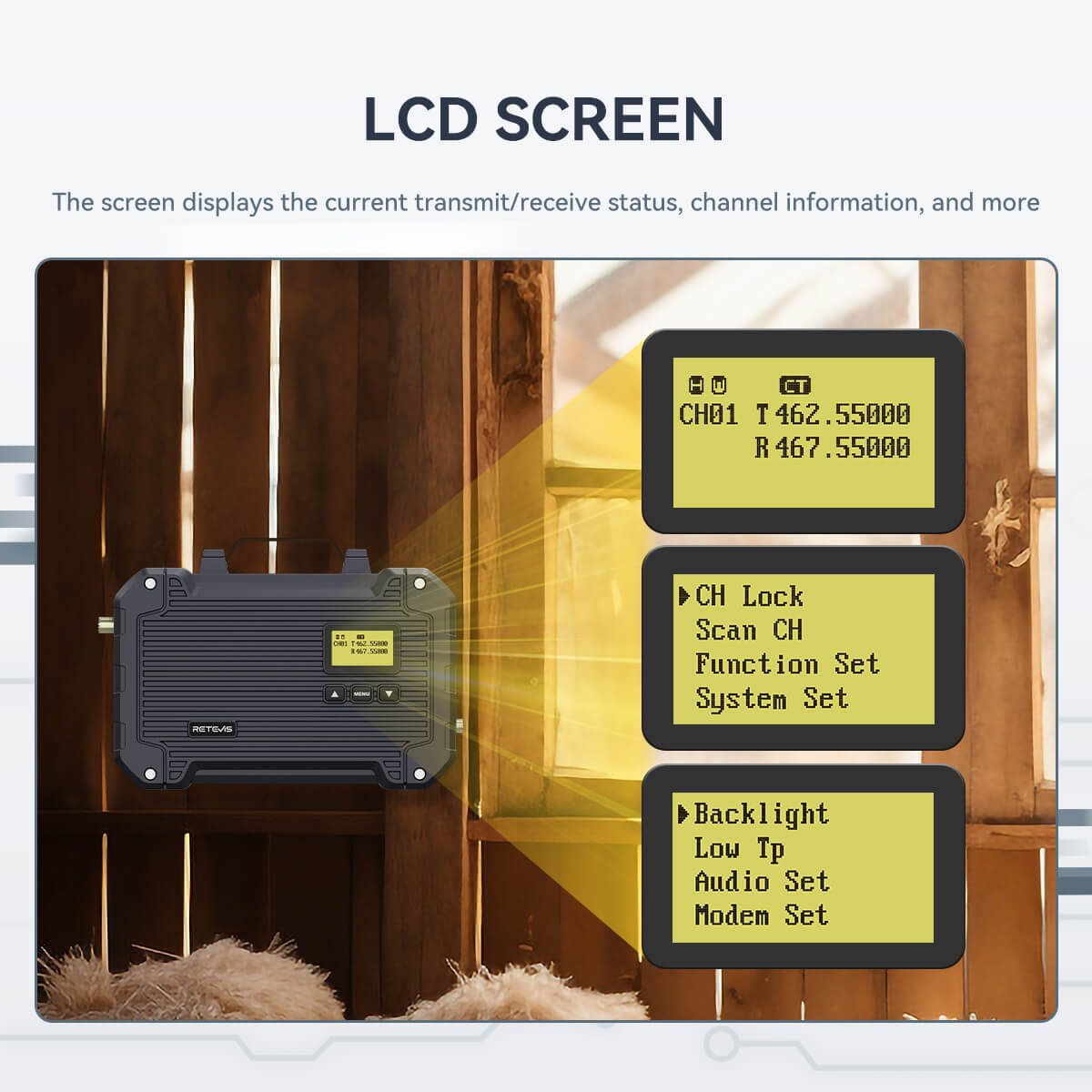

LCD Screen Display

Provide a straightforward display of information such as channel and battery level, allowing you to check it at a glance.

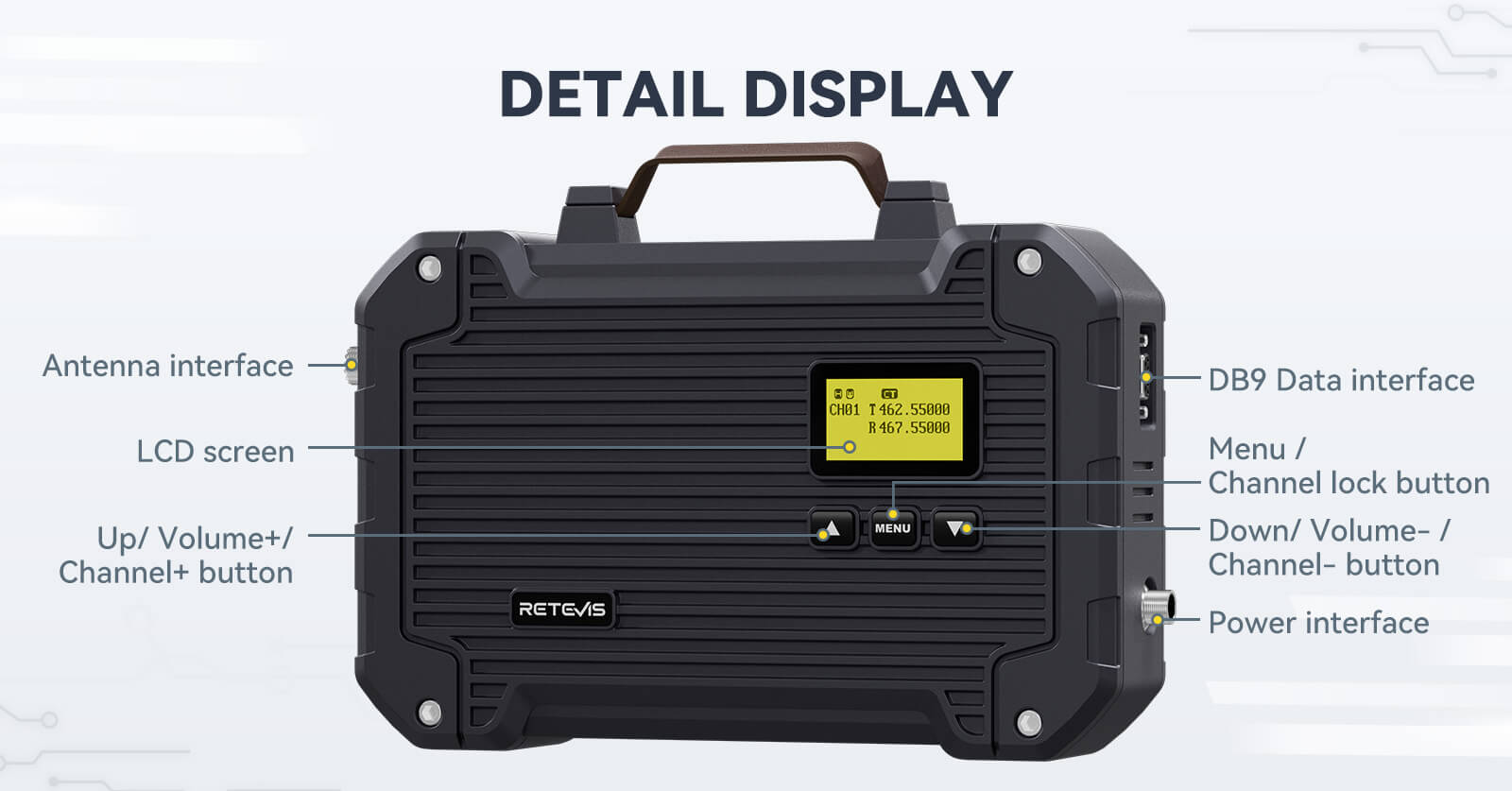

Detail Display

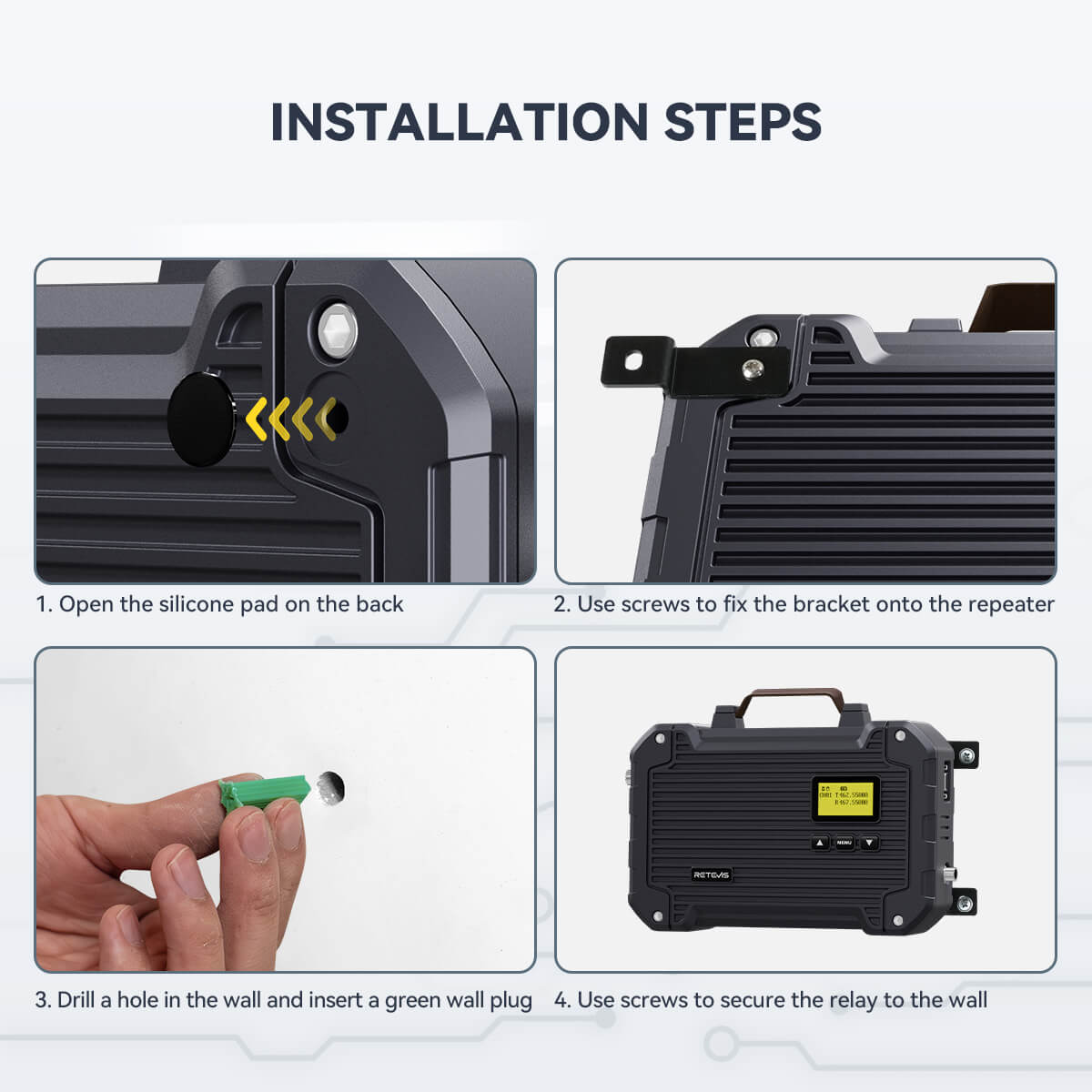

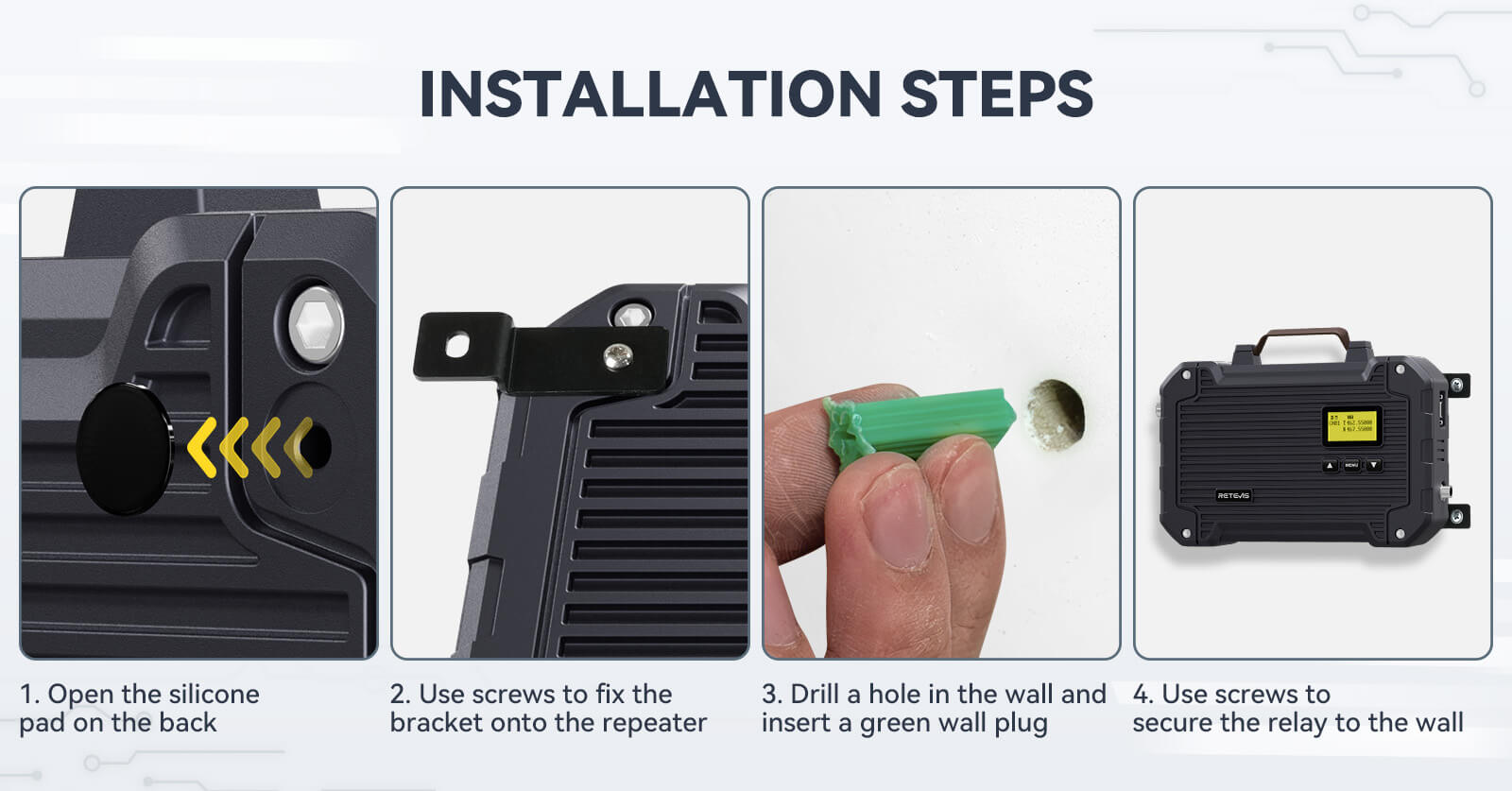

Installation Steps

FAQ

1. What’s the Difference Between 5W and 25W Power?

The difference in power between 5W and 25W is significant, especially when it comes to communication range. With 5W, communication over long distances may result in weak signals or no reception at all. In contrast, 25W power can significantly improve the signal range, allowing for clearer and more reliable communication over much longer distances. While power plays a crucial role, factors such as antenna height also impact range. In areas where elevation isn’t favorable, increasing the power to 25W helps extend the communication range and overcome obstacles.

2. Is the Actual Output Power Really 25W?

The factory output of the RT97L repeater is between 22W and 25W. However, when the repeater operates with an internal duplexer, some power loss may occur. As a result, the actual output power may range from 15W to 22W depending on the quality, thickness, and length of the feeder cable. While the power might fluctuate a bit, it still ensures solid, reliable performance in most conditions.

3. What’s the Customizable Repeater Frequency Range?

The RT97L allows for customizable frequency settings. You can choose between:

• UHF: 400-470MHz

• VHF: 136-174MHz

The offset should be ≥5MHz and ≤12MHz, and frequencies should be programmed within ±200 kHz.

4. How Does Using a Raspberry Pi Enhance RT97L’s Functionality?

The RT97L portable repeater is designed with flexibility in mind. By connecting the repeater to a Raspberry Pi via its DB-9 interface, users can expand the repeater's functions. This allows for easy programming and the ability to customize the repeater to fit specific needs, whether you’re operating in a particular area, enhancing security, or fine-tuning performance.

5. What Is Amp Absorption in TX and RX?

• Receive Mode Absorption: 180mA
• Transmit Mode Absorption: 5.5A

6. How is the RT97L Waterproof Even if the Doors Are Uncovered?

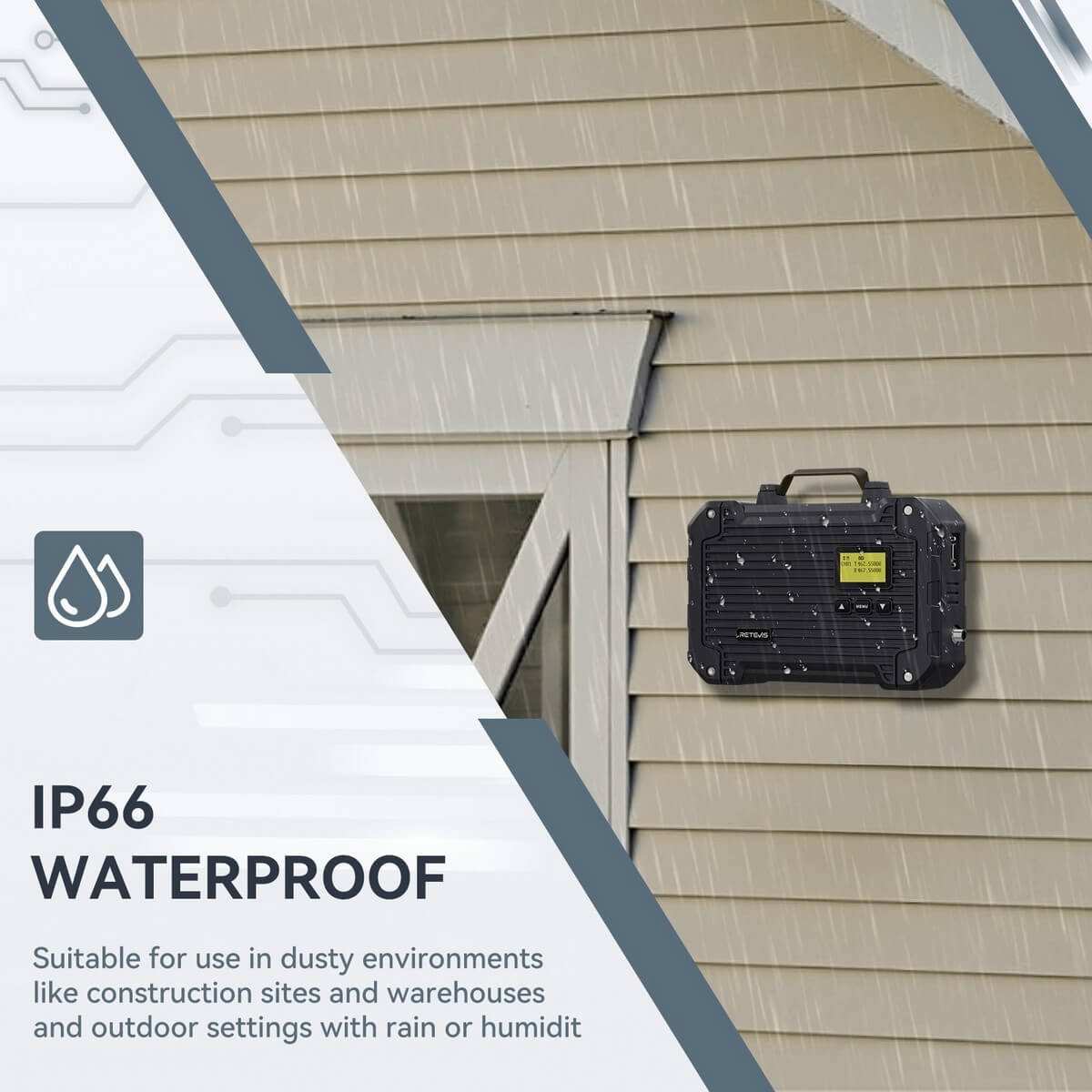

The RT97L mobile repeater is rated IP66 waterproof, meaning it can withstand powerful jets of water from all directions. This rating ensures that it performs well even in harsh weather or environments with heavy water flow. However, to ensure optimal performance and longevity, it's always a good idea to install the repeater in a protected location, especially in areas with extreme weather conditions.

7. Does the RT97L Have an Internal Duplexer?

Yes, the RT97L portable repeater comes equipped with an internal duplexer, which is essential for enabling the repeater to work efficiently with an antenna. The duplexer allows the device to handle both transmit and receive signals simultaneously without interference.

8. How Many Channels Does the RT97L Have? And What Does It Mean?

The RT97L is capable of storing 16 different channels, which means it can quickly switch between up to 16 communication frequencies.

9. What is the RT97L's Duty Cycle?

The duty cycle for RT97L repeater is 100%.

10. What’s the difference between RT97S and RT97L?

That main difference between RT97S and RT97L is that RT97L is a 25W high power repeater while RT97S is 10W. And RT97L has the IP66 waterproof certification.
