RT97S Portable GMRS Repeater Kit With 3M Coaxial Cable and Antenna

Order Status: In Stock


Regular price

  1. 3M coaxial cable, minimizing feeder loss
  2. Extend the signal coverage
  3. Simplified installation with built-in duplexer
  4. Compact and portable design, easy to setup
  5. DB-9 female connector, compatible with Raspberry Pi

Fast Shipping from the USA


In Stock Pre-order Now Out of stock Order now, Only 10 left!
<<
Previous
Next >>

Description

Retevis RT97S GMRS Repeater

Spec

Specifications
Frequency Range 462.550 - 462.725 MHz (TX), 467.550 - 467.725 MHz (RX)
Channel Capacity 8 GMRS Repeater Channels
Channel Spacing ±12.5KHz Narrow/±25kHz Wide
Operating Voltage DC12V - 24V
Operating Temperature -22° F - 140° F (-30° C - 60° C)
Frequency Stability ±2.5ppm
Antenna Impedance 50 Ω
Dimensions 10.25" x 8.3" x 2.8" (260 x 210 x 70mm)
Weight 3.7 lbs (1.66 kg)
Transmitter
Modulation F3E
Spurious Emission -60dB or less
Maximum Frequency Deviation Wide: ±5kHz Narrow: ±2.5kHz
Audio Distortion 5% or less
FM Noise Wide:≤45dB Narrow :≤40dB
Receiver
Sensitivity(12dB SINAD) 0.2μV (Wide) 0.25μV (Narrow)
Squelch Sensitivity 0.15μV (Wide) 0.2μV (Narrow)
Adjacent Channel Selectivity ≥ 70dB (Wide) / ≥65dB (Narrow)
Intermodulation ≥ 55dB
Spurious Rejection ≥ 55dB
Image Rejection ≥ 55dB
FM Ham and Noise ≤-45dB (Wide) / ≤ -40dB (Narrow)
Modulation Type F3E
Operating Bandwidth ≤±7KHz / ≤±5KHz
Audio Distortion ≤ 5%

Features

LCD-Display, Built Into a Cable TV Amplifier Box

● Wide/Narrow Band Selection through PC Software

● 50 CTCSS and 210 DCS Privacy Codes

● Independent Receive and Transmit Privacy Tone Selection through PC Software

● Repeater Delay (Hang) Time Adjustment through PC Software

● Noise Squelch Level Adjustment through PC Software

● High/Low Transmit Power Selection through PC Software

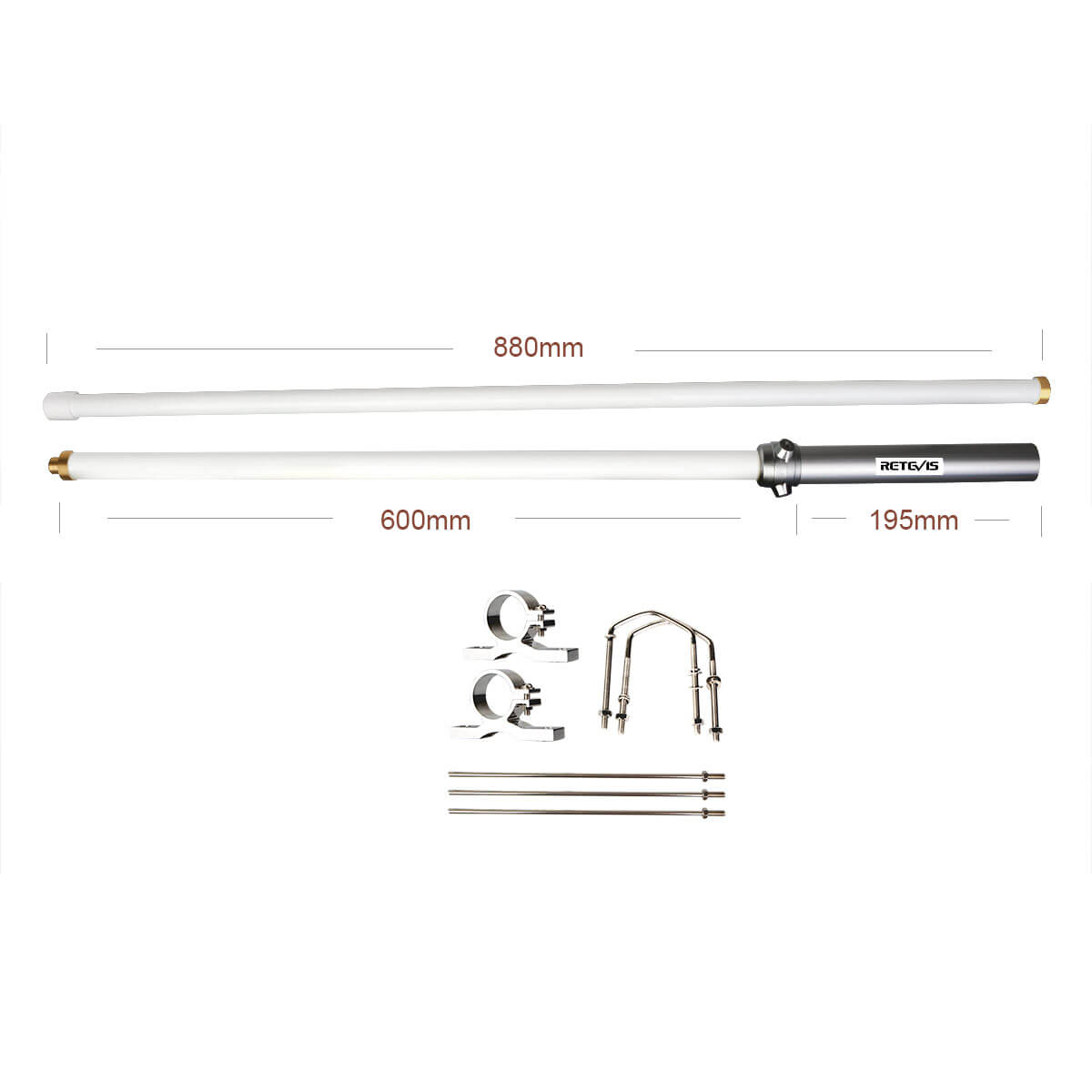

● Include Antenna and Feeder Cable to Build Your GMRS Repeater System

● DB-9 Female Connector for Adding An External Controller for Linking Purposes

●GMRS License Required
