Key Features

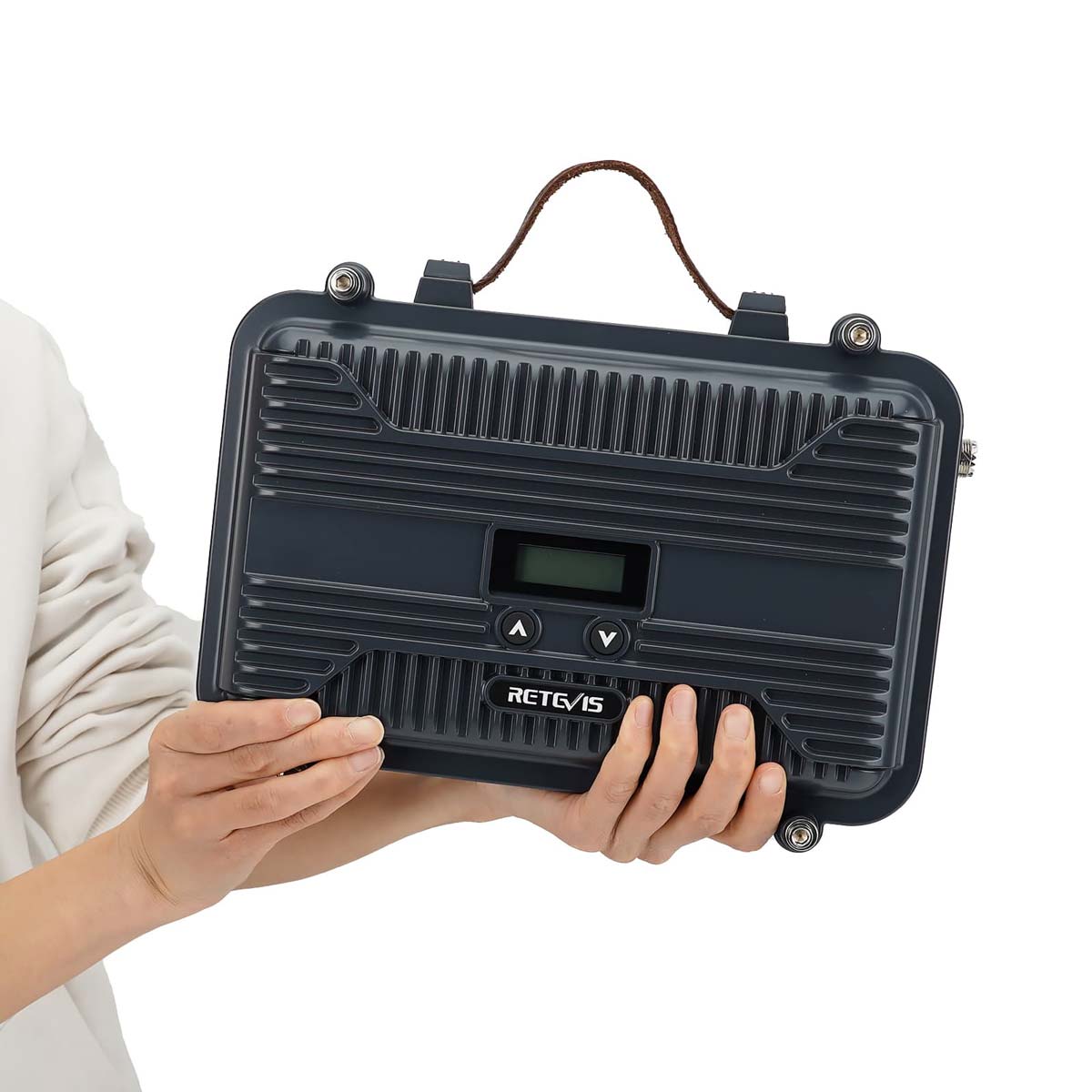

DMR digital technology-equipped mini repeater, featuring a compact and lightweight design for easy portability in diverse scenarios.
10W high-power output effectively extends the communication range of handheld walkie-talkies, breaking through distance limitations. RT97P helps to connect emergency calls outside the range of the walkie-talkies.
Offering clear audio and consistent performance to enhance team coordination efficiency.
It can be compatible with NR30D, RT29D, RT81, RT50, and many other DMR radio models.
Powered via 12V-24V DC, vehicle outlets, or solar panels, the RT97P ensures reliable operation.
- 10W DMR repeater: break distance limits for digital and analog fleets
- Dual mode: relay DMR digital and FM analog radios on one repeater
- 8 DMR channels with LCD: set up your digital repeater in minutes
- Solar, car, or DC 12-24V power: built for off-grid repeater sites
- Compact under 3 kg cabinet: a mini DMR repeater you can redeploy fast
🔥 {ViewpageViews} PEOPLE ARE LOOKING FOR
THIS PRODUCT
Fast, Free Shipping
30-Day Money-Back Guarantee
Lifetime Free Resource Download & Upgrade Support
Lifetime Technical & Customer Support
Payment Methods
Description
Spec
| Mode | Digital/Analog |
| Frequence Band | Dual Band |
| Transmit Frequency（TX） | UHF:400-470MHz； VHF:136-174MHz； |
| Receive Frequency(RX) | UHF:400-470MHz； VHF:136-174MHz； |
| Power | 10W/5W |
| Channel Number | 8 |
| Channel display | Channel Number |
| Waterproof Rating | / |
| Bluetooth | / |
| Location | / |
| Battery Capacity | / |
| Operation Temperature | -30℃ to +60℃ |
| Encryption Type | CTCSS/DCS |
| Display | LCD |
| Wireless Copy | / |
| NOAA | / |
| Lone work | / |
| Man Down | / |
| Weight | 3000g |
| Size | 280*210*75mm |
| Type-C Charging | / |
| Additional Features | 1.Easy carry； 2.Car Charger； 3.Dual Mode； |
Main Technological Specification
| Frequency | TX 463.3125MHz / RX 453.3125MHz |
| Standard form | DMR/FM/DMR+FM |
| Channel Capacity | 8CH |
| Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | DC12V-24V |
| Antenna Impedance | 50Ω |
| Frequency Stability | ±0.5ppm |
| Dimension | 280×210×75mm |
| Weight | 2624g |
Transmitter
| Output power | 10W |
| Transmission Current | ≤2.5A |
| FM Modulation | 11kφF3E/16kφF3E |
| Digital modulation | 4FSK |
| Modulation Distortion | ≤5% |
| FM Noise | ≥40dB（25KHz）/≥35dB（12.5KHz） |
| Adjacent Channel Power | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Audio Response | +1～-3dB |
| DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
| Analog receive Sensitivity | 0.25μν（12dB）SINAD |
| Digital receive sensitivity | -120dBm (BER≤5%) |
| Adjacent channel selectivity | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Inter-modulation | ≥60dB/≥65dB |
| Signal imitation | ≥70dB |
| Audio Response | +1～-3dB |
| Audio distortion | <5% |
| FM Noise | ≥45dB（25KHz）/≥40dB（12.5KHz） |
FAQ
The RT97P is the DMR digital model: 10W, dual mode (DMR digital plus FM analog), available in UHF or VHF. The RT97 is a 5W analog GMRS repeater. Choose the RT97P for digital and mixed fleets; choose the RT97 for GMRS handhelds.
It works with Retevis DMR radios such as the NR30D, RT29D, RT81, and RT50, and with other DMR radios that follow the ETSI-TS102 361 Tier II protocol (4FSK).
Yes. The RT97P runs in DMR digital, FM analog, or combined DMR+FM mode, so legacy analog radios keep working through the repeater alongside your digital fleet.
They are separate units: the UHF variant covers 400-470 MHz and the VHF variant covers 136-174 MHz. Match the variant to the band your radios use; a Customizable option covers specific frequency plans.
Three options: the AC wall adapter at base, the 12V/24V vehicle cigarette-lighter plug on the road, or a solar panel setup off-grid. Both the AC adapter and the car plug come with the repeater.
Yes. Low power draw, a small footprint, and 12-24V DC input make the RT97P well suited to solar-powered repeater sites - the exact use case it was designed for.
Not waterproof. The RT97P uses a rugged, water-resistant housing adapted from cable TV amplifier enclosures, and the spec table lists no waterproof rating. Mount it indoors or in a sheltered spot and keep the antenna outside.
Range depends mainly on antenna height, gain, and terrain. Mount the antenna as high and clear as possible - on a mast, rooftop, or hilltop - and a 10W repeater covers from a few miles in rough terrain to tens of miles in open country.
The base RT97P package includes the repeater and two power adapters, but no antenna or feeder cable. Choose the RT97P + Antenna + Cable bundle for a ready-to-go kit.
It is a made-to-order RT97P: the factory configures the unit to your band and frequency plan. Choose it when the standard UHF or VHF presets do not match your license, and confirm the configuration with Retevis before ordering.
