- 10W DMR Portable Repeater
- Analog and Digital Mode
- Extend the distance of the handheld Radios
- Exceptional Clear Voice Quality
- Can be powered by DC12V~24V power, car power and solar battery
NOTE:
- VHF-10mHz-Stock: Offset 10mhz, Tx:162.6125mhz and RX:152.6125MHZ.
- Programming software: please click "ServiceSupport" to download.
Description

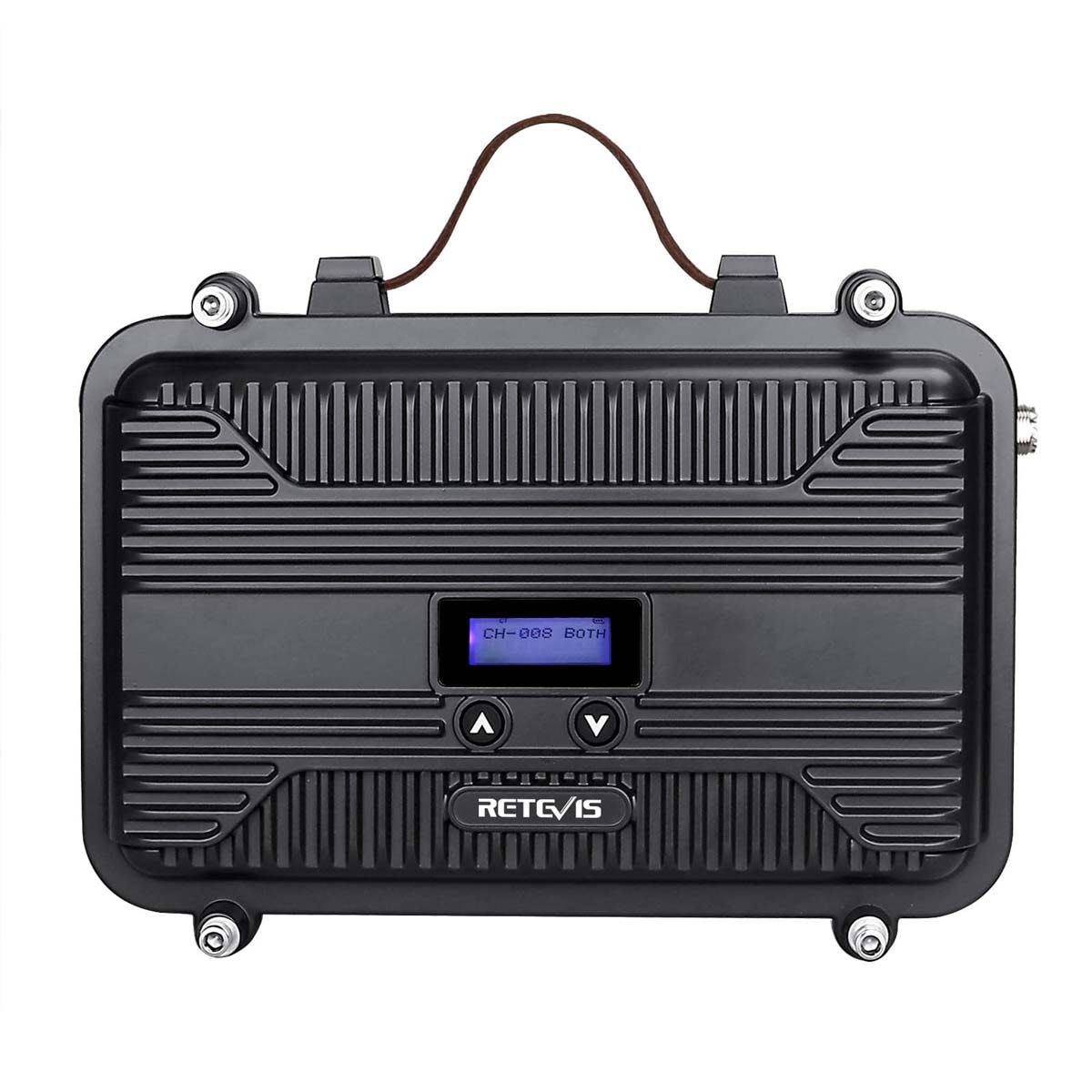

RT97P VHF Mini Portable DMR Repeater
The RT97P repeater is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for farming, camping trips or emergency preparedness.
Mini and Portable Size
With the package size:310×283×170mm. Weight less than 3kgs. Very small and easy to carry, you can use it outdoor.
Car Charger
Built into a cable TV amplifier box, the RT97P is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter.
Multi Charging Methods
RT97P Can be powered by DC12V~24V power, car power and solar battery.
Dual Mode
Both digital and analog model workable. You can use it to expand the communication range of not only digital radio, but also analog radio.
Spec
Main Technological Specification
| Frequency | TX 162.6125MHz / RX 152.6125MHz |
| Standard form | DMR/FM/DMR+FM |
| Channel Capacity | 8CH |
| Channel Spacing | ±12.5KHz Narrow/±25KHz Wide |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | DC12V-24V |
| Antenna Impedance | 50Ω |
| Frequency Stability | ±0.5ppm |
| Dimension | 280×210×75mm |
| Weight | 2624g |
Transmitter
| Output power | 10W |
| Transmission Current | ≤2.5A |
| FM Modulation | 11kφF3E/16kφF3E |
| Digital modulation | 4FSK |
| Modulation Distortion | ≤5% |
| FM Noise | ≥40dB（25KHz）/≥35dB（12.5KHz） |
| Adjacent Channel Power | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Audio Response | +1～-3dB |
| DMR Protocol | ETSI-TS102 361-1,-2,-3 |
Receiver
| Analog receive Sensitivity | 0.25μν（12dB）SINAD |
| Digital receive sensitivity | -120dBm (BER≤5%) |
| Adjacent channel selectivity | ≥70dB（25KHz）/≥60dB（12.5KHz） |
| Inter-modulation | ≥60dB/≥65dB |
| Signal imitation | ≥70dB |
| Audio Response | +1～-3dB |
| Audio distortion | <5% |
| FM Noise | ≥45dB（25KHz）/≥40dB（12.5KHz） |
Features
Retevis RT97P VHF DMR Portable Repeater
1. VHF-10mHz-Stock: Offset 10mhz, Tx:162.6125mhz and RX:152.6125MHZ.
2. Output power: 10W.
3. Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.
4. Car charger: Provide the car charger, you can use this repeater in your car.
5. Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.
6. LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.
