- Built-in sound card can be connected to Raspberry Pi
- Extend the distance of the handheld Radios
- TX frequency and RX frequency can be customized
- Can be powered by DC12V~24V power, car power and solar battery
NOTE:
- Please note the customized information when placing an order.
- After confirming your custom frequency, it will take 2 weeks to customize.
- After customization, the frequency is fixed and cannot be returned.
- This product does not include a cable to connect to the Raspberry Pi.
Payment Methods
Delivery Method
Double-Certified for Global Reliability
Bulk order Inquiry
Personalize your device
OverView

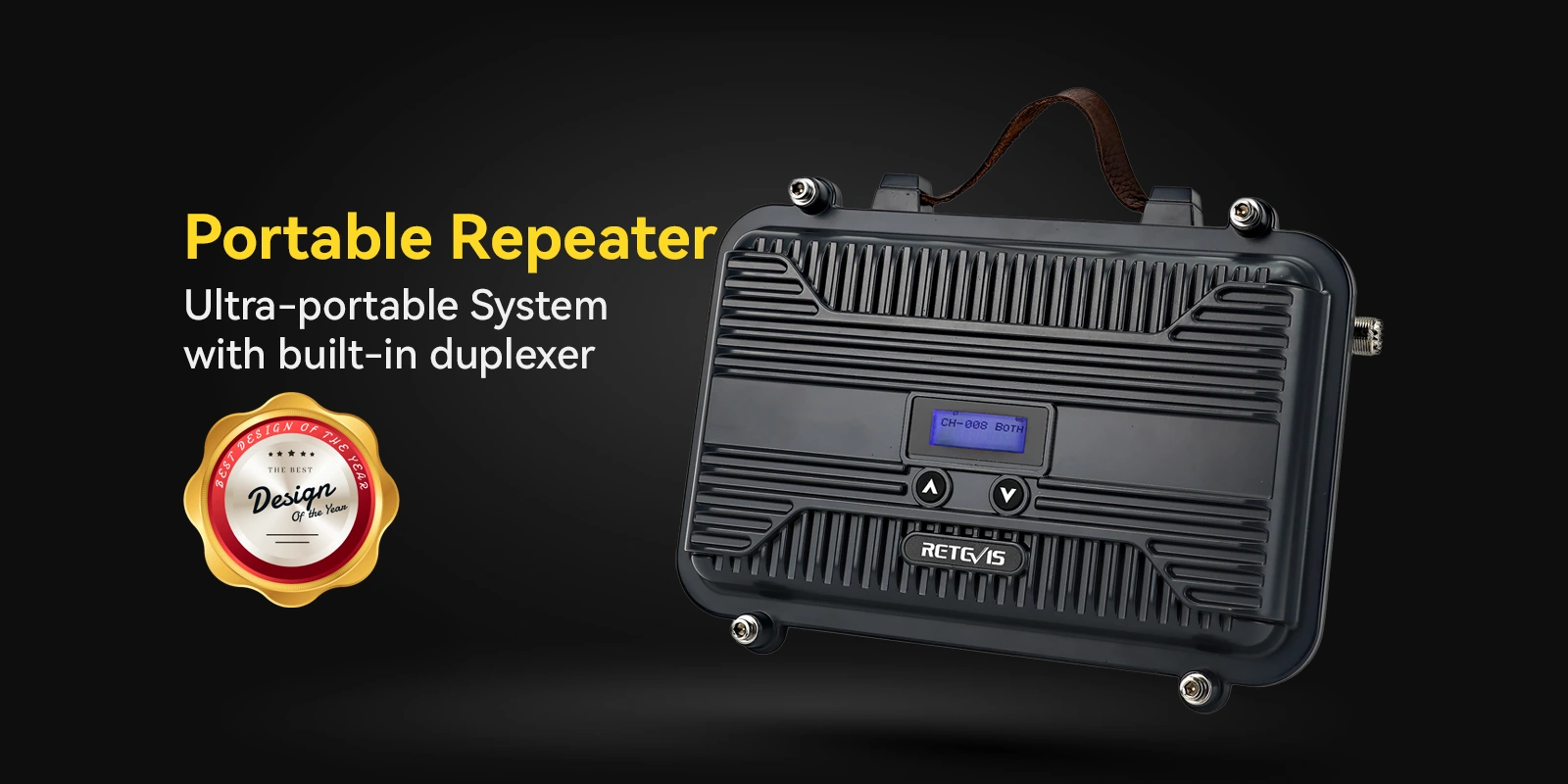

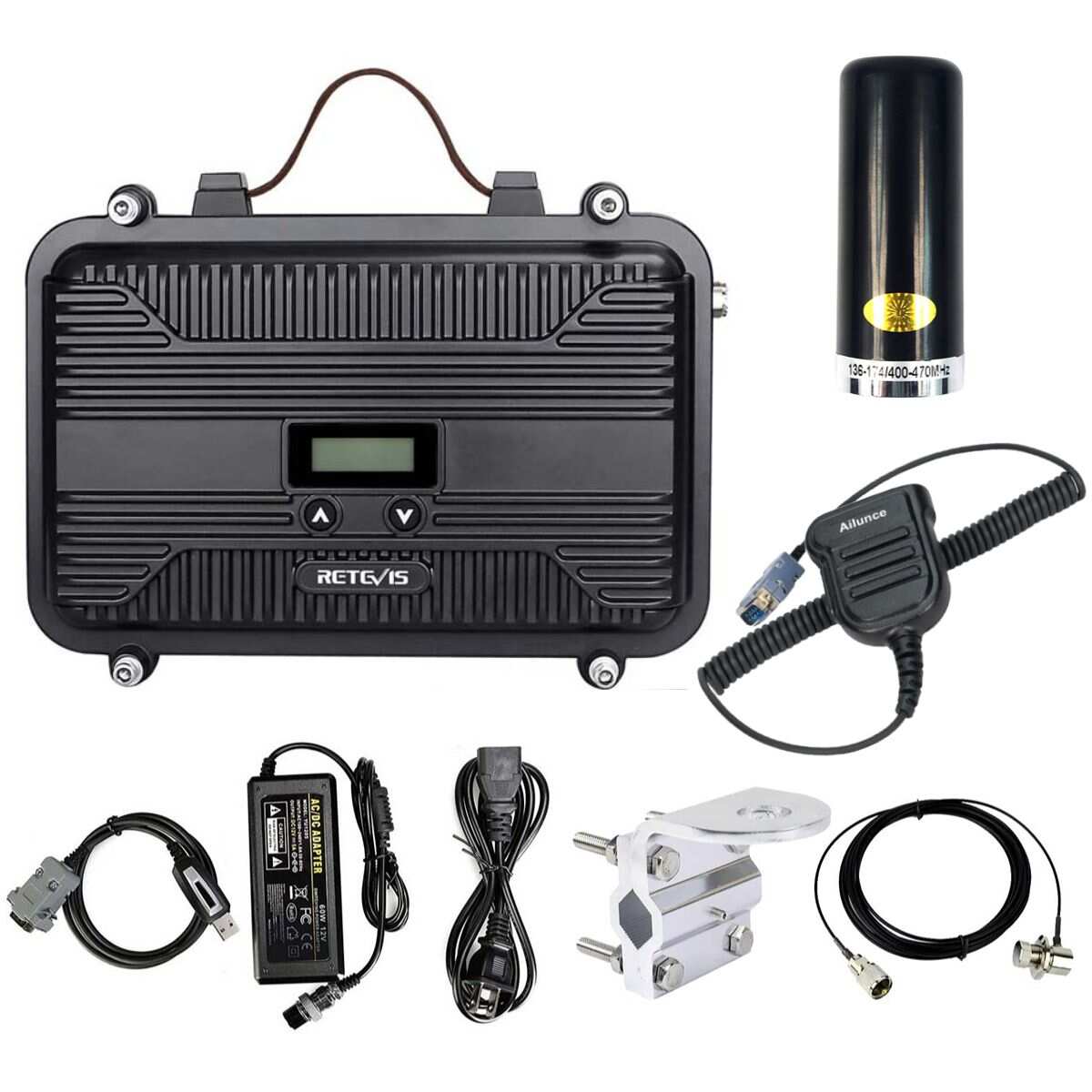

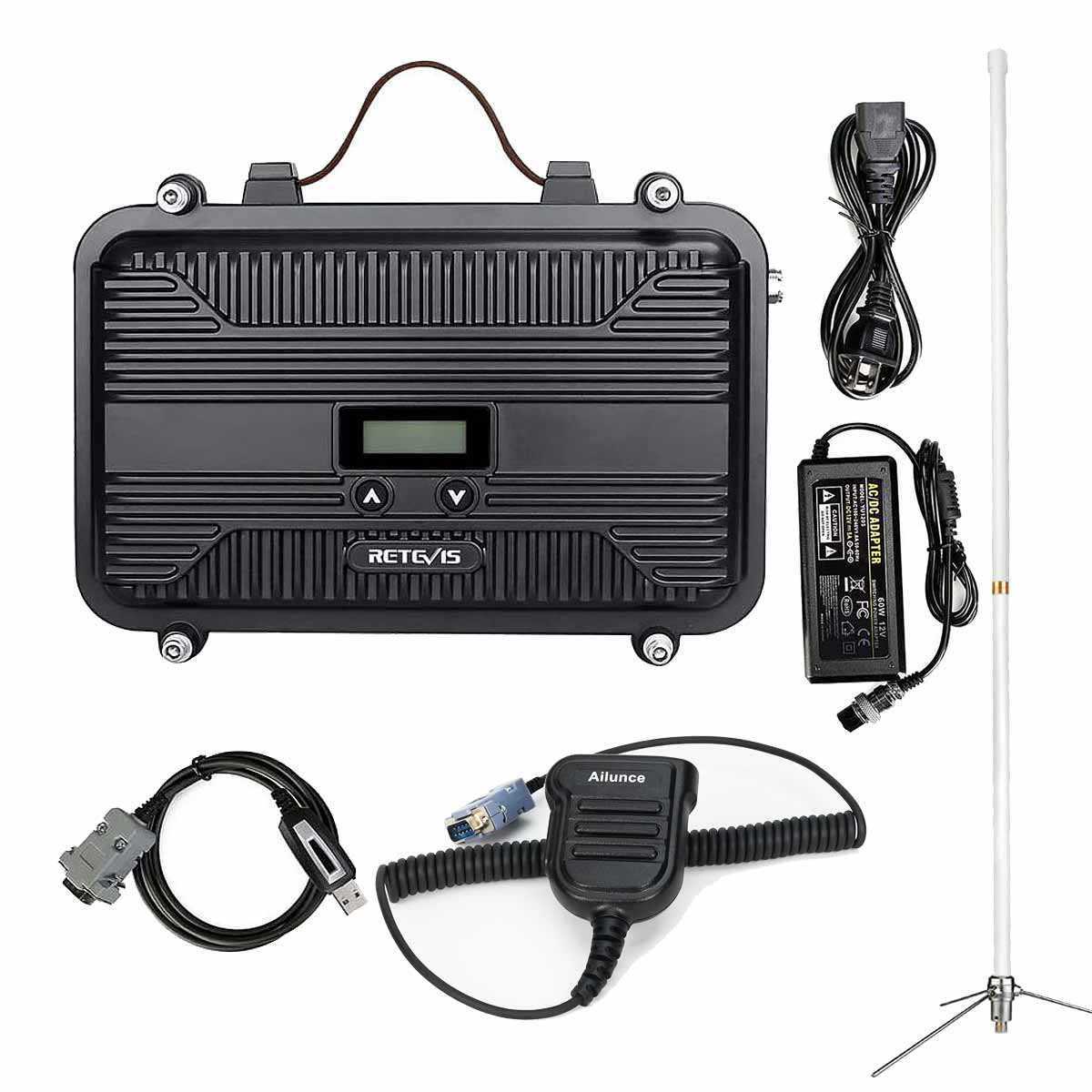

RT97S Customizable Full Duplex Portable Repeater

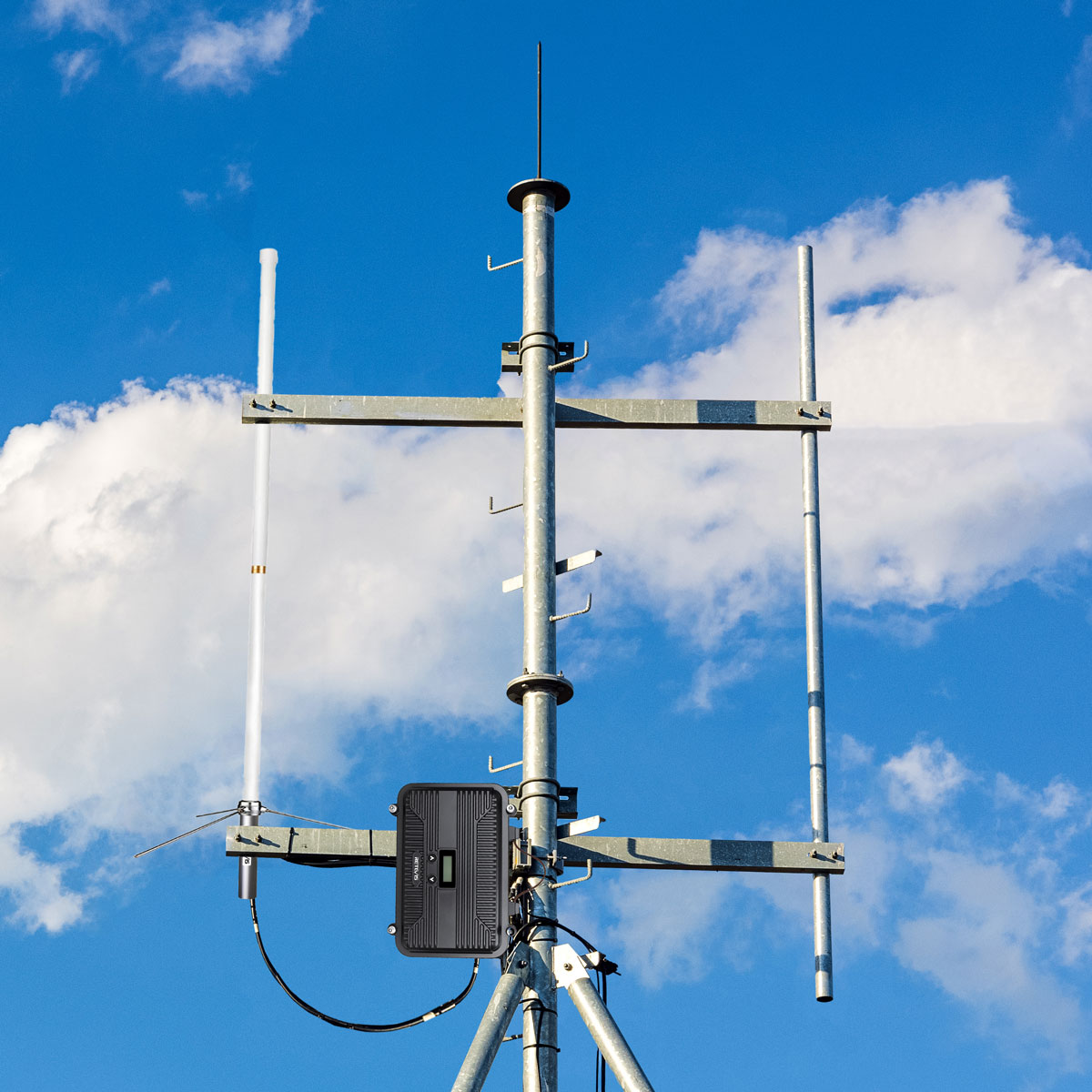

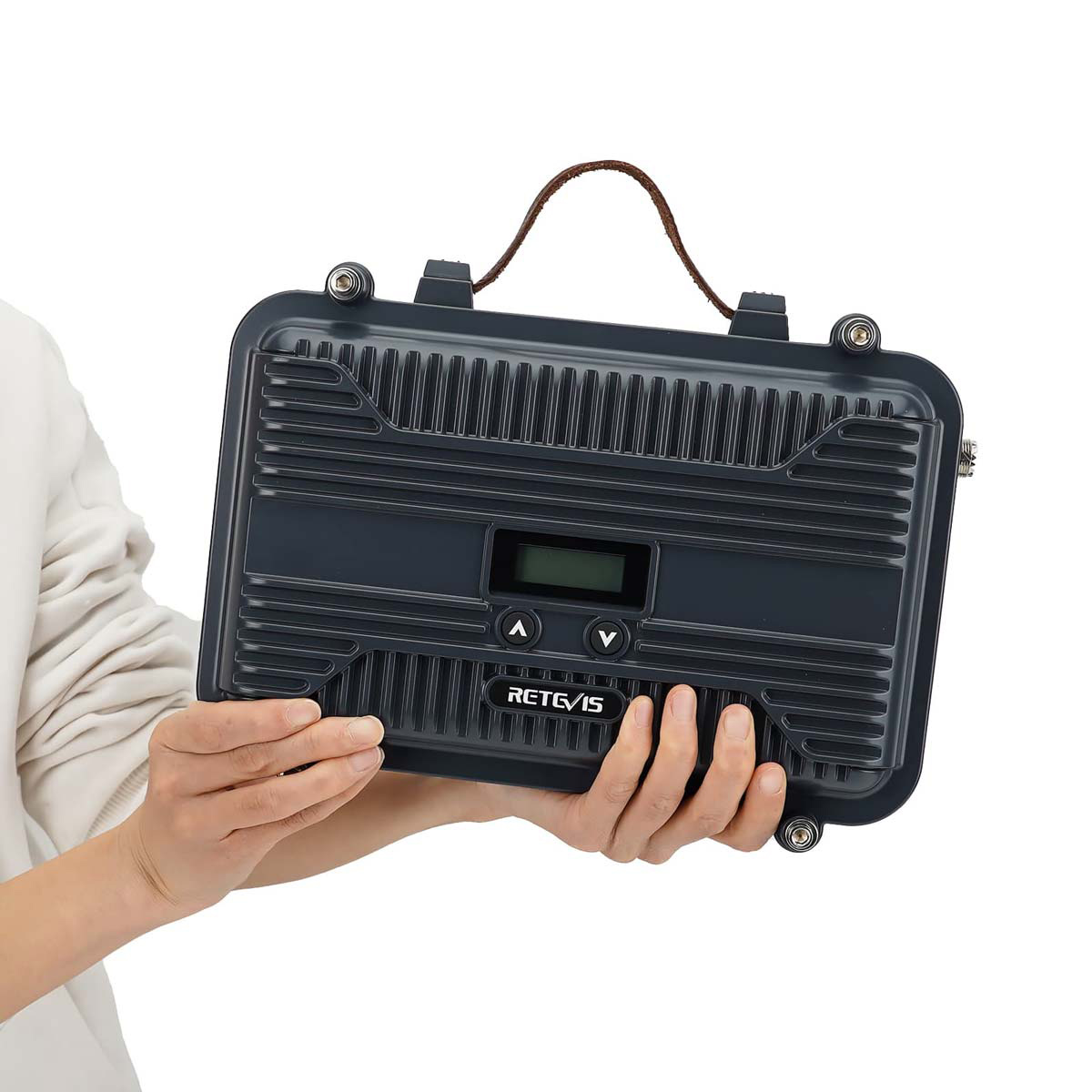

The RT97S repeater is ideal for solar-powered repeater sites where low power and a small footprint are required. At such a small portable size, this repeater is perfect for farming, camping trips or emergency preparedness.
Customizable Frequency
TX frequency and RX frequency can be customized between UHF (400-470MHZ) or VHF(136-174MHZ). If you need to customize the repeater, please note the following information when placing the order: RX frequency, TX frequency, Offset (Offset ≥5MHz and ≤12MHz) and Charger type.
Car Charger

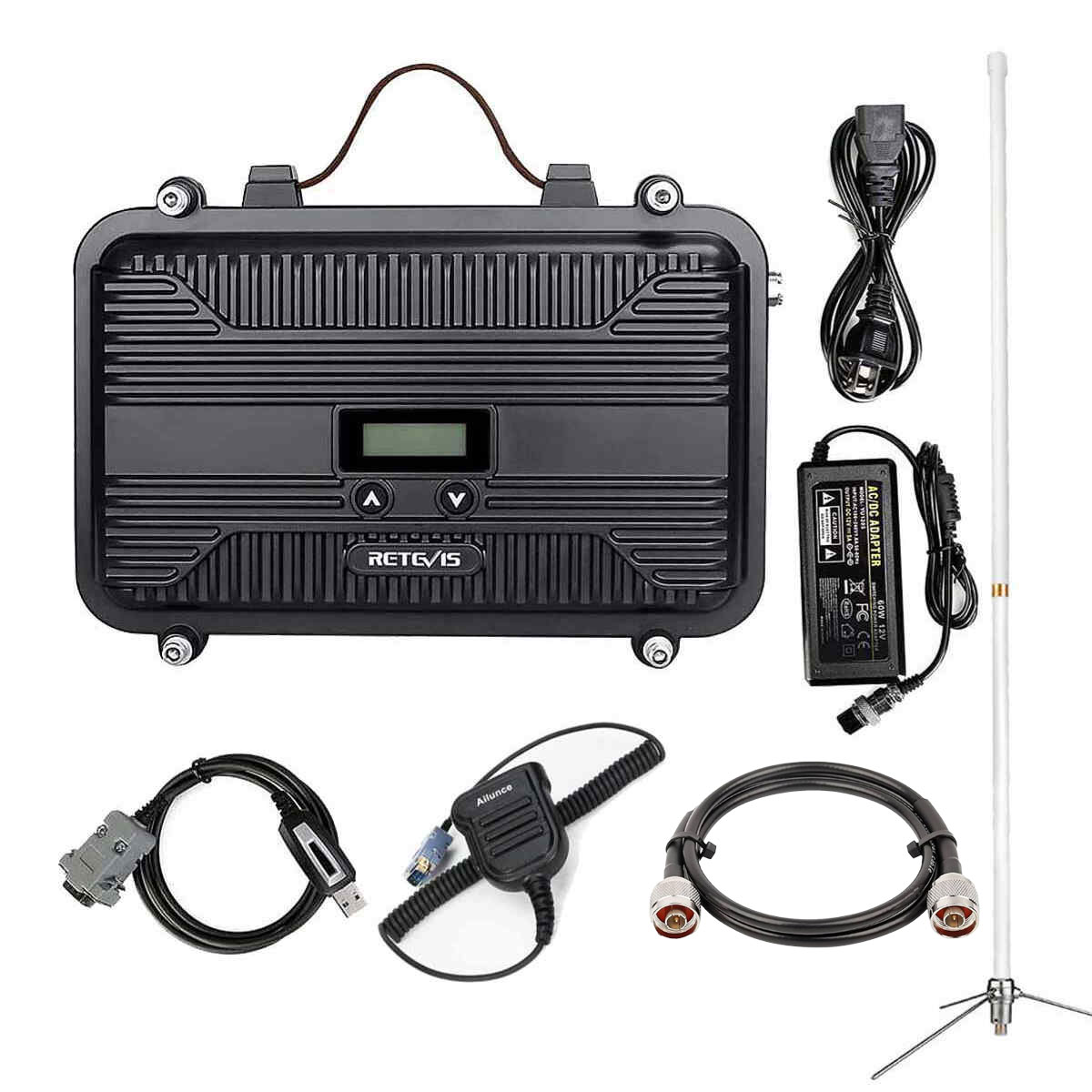

Built into a cable TV amplifier box, the RT97S is rugged and water-resistant. Two power adapters come with the repeater, a 12V/24V cigarette lighter plug, and an AC adapter.
Multi Charging Methods
RT97S Can be powered by DC12V~24V power, car power and solar battery.
Spec
| Specifications | |
| Frequency Range | UHF: 400-470MHz or VHF: 136-174MHz |
| Channel Capacity | 8 CH Repeater Channels |
| Channel Spacing | ±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage | DC12V - 24V |
| Operating Temperature | -22° F - 140° F (-30° C - 60° C) |
| Frequency Stability | ±2.5ppm |
| Antenna Impedance | 50 Ω |

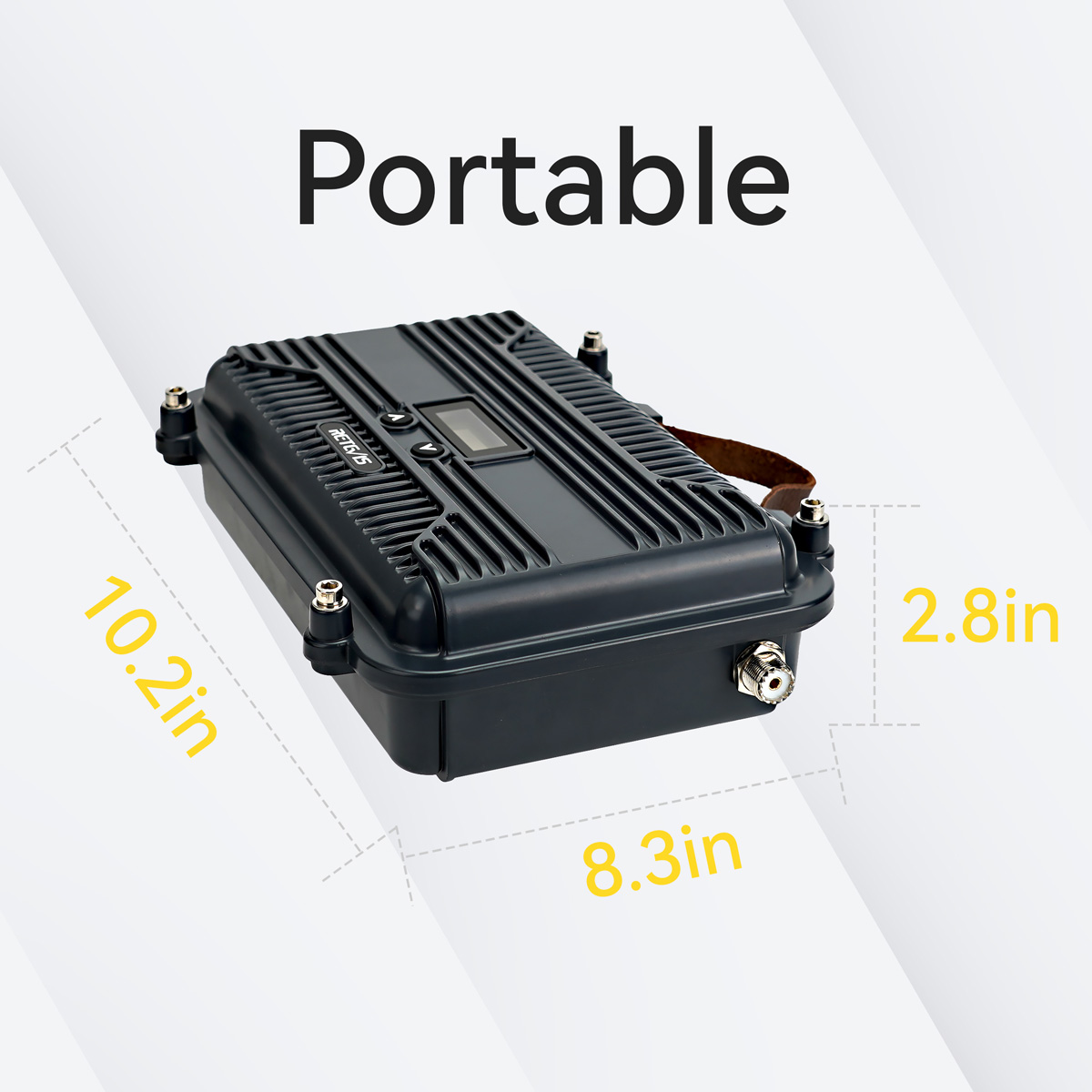

| Dimensions | 10.25" x 8.3" x 2.8" (260 x 210 x 70mm) |
| Weight | 3.7 lbs (1.66 kg) |
| Transmitter | |
| Power Output | 10W |
| Modulation | F3E |
| Spurious Emission | -60dB or less |
| Maximum Frequency Deviation | Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion | 5% or less |
| FM Noise | Wide:≤45dB Narrow :≤40dB |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity | 0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity | ≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation | ≥ 55dB |
| Spurious Rejection | ≥ 55dB |
| Image Rejection | ≥ 55dB |
| FM Ham and Noise | ≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type | F3E |
| Operating Bandwidth | ≤±7KHz / ≤±5KHz |
| Audio Distortion | ≤ 5% |
