What Is Cross Band Repeat? A Complete Guide to Handheld UHF-VHF Bridging

Cross-band repeat functionality is frequently associated with high-power, vehicle-mounted mobile stations. While this characterization is accurate, it overlooks select high-performance handheld devices that also integrate this feature. These portable units facilitate signal relays between UHF and VHF bands without requiring stationary equipment. By receiving a transmission on one frequency and simultaneously rebroadcasting it on another, cross-band repeat effectively bridges disparate bands to extend communication range.
This article provides a technical overview of cross-band repetition, compares handheld versus mobile implementations, and highlights the Retevis RA89R as a specialized solution for portable signal relay operations.

What Is Cross Band Repeat?

Cross-band repeat enables a dual-band radio to automatically receive a signal on one frequency band (UHF) and retransmit it on another (VHF). By functioning as a technical bridge between disparate bands, this feature facilitates seamless interoperability between teams using different frequency configurations without requiring hardware modifications.

The Core Value of Cross Band Repeat

Cross band repeat solves a very practical problem: devices on different bands cannot talk to each other without assistance.

In practical terms, this means:

• One radio bridges UHF and VHF — different radio systems connect seamlessly
• Existing equipment can be fully utilized without replacement
• Full coverage and unified command become achievable
• Automatic signal reception, amplification, and forwarding between UHF and VHF
• No coverage dead zones, smooth cross-region communication, rapid emergency response, and efficient on-site coordination

It automatically forwards signals between UHF and VHF, seamlessly connecting two communication networks that otherwise could not talk to each other.

Handheld Cross Band Repeat vs. Mobile Base Station

To help readers better understand the positioning of handheld cross band repeat, here is a systematic comparison.

Core Differences Comparison Table

Advantages and Limitations of Cross Band Repeat Function in Handheld Radio Vs. Mobile Base Station

Handheld Cross Band Repeat Advantages:

• High flexibility — can be used while moving, outside vehicles, inside buildings
• Rapid deployment — no installation, ready to use out of the box
• Lower cost — one device can perform cross band repeat
• Suitable for temporary scenarios: field operations, emergency communication, event support

Handheld Cross Band Repeat Limitations:

• Limited transmit power — shorter range than mobile repeaters
• Limited heat dissipation — not suitable for long-duration high-load operation
• Battery life constraints — requires spare batteries or charging

Mobile Base Station Cross Band Repeat Advantages:

• Higher power — longer range
• Better heat dissipation — can operate continuously for extended periods
• Higher antenna placement — better signal quality
• Mobile Cross Band Repeat Limitations:
• User cannot leave the vehicle
• Complex installation — requires professional wiring
• Higher cost

Selection Recommendations

Key conclusion: Handheld cross band repeat is better suited for personnel mobility, rapid deployment, and temporary networking. Mobile base stations are better for fixed locations, long-duration operation, and wide coverage. The two are complementary, not substitutes.

How Cross Band Repeat Works?

Whether on handheld devices or mobile base station, the working principle of cross band repeat is the same:

• Receive: The device receives a signal on Band A (e.g., UHF 430 MHz)
• Convert: The device internally converts the signal to another band
• Retransmit: The device transmits the signal on Band B (e.g., VHF 146 MHz)

This process is automatic — the user does not need to manually switch bands.

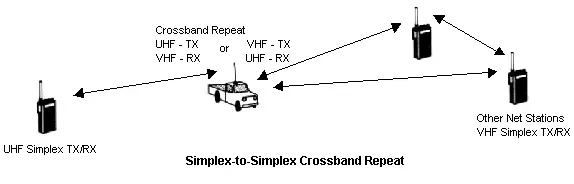

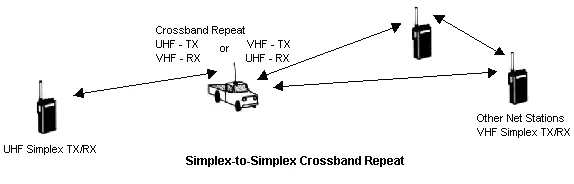

Typical Application Scenario Diagram

Through this method, UHF devices and VHF devices that cannot communicate directly become connected via a handheld cross band repeat device.

Two Operating Modes of Handheld Cross Band Repeat

Based on practical experience, handheld cross band repeat can operate in different modes. Understanding these modes helps users choose the right setup for their needs.

Mode 1: Two-Way Full Repeat

In this mode, the handheld device forwards signals from both ends:

Forwards UHF-received signals to VHF

Forwards VHF-received signals to UHF

Use case: Scenarios with few devices on both ends and low communication frequency.

Note: If there is heavy traffic on both ends, the device's duty cycle increases significantly, which may increase heat generation and battery consumption.

Mode 2: One-Way Forwarding

In this mode, the handheld device forwards signals in only one direction — from one band to the other — not both ways.

Use case: Scenarios where one band needs to "listen" to the other band, but two-way conversation is not required.

Advantages: Lower device load, longer battery life, less heat generation.

Mode Comparison

Best Practices for Cross Band Repeat (Based on Industry Guidelines)

According to technical documentation from organizations such as the Western Washington Amateur Relay Association (WWARA), the following best practices are recommended when using cross band repeat.

Technical Preparation

Operational Standards

Common Misconceptions

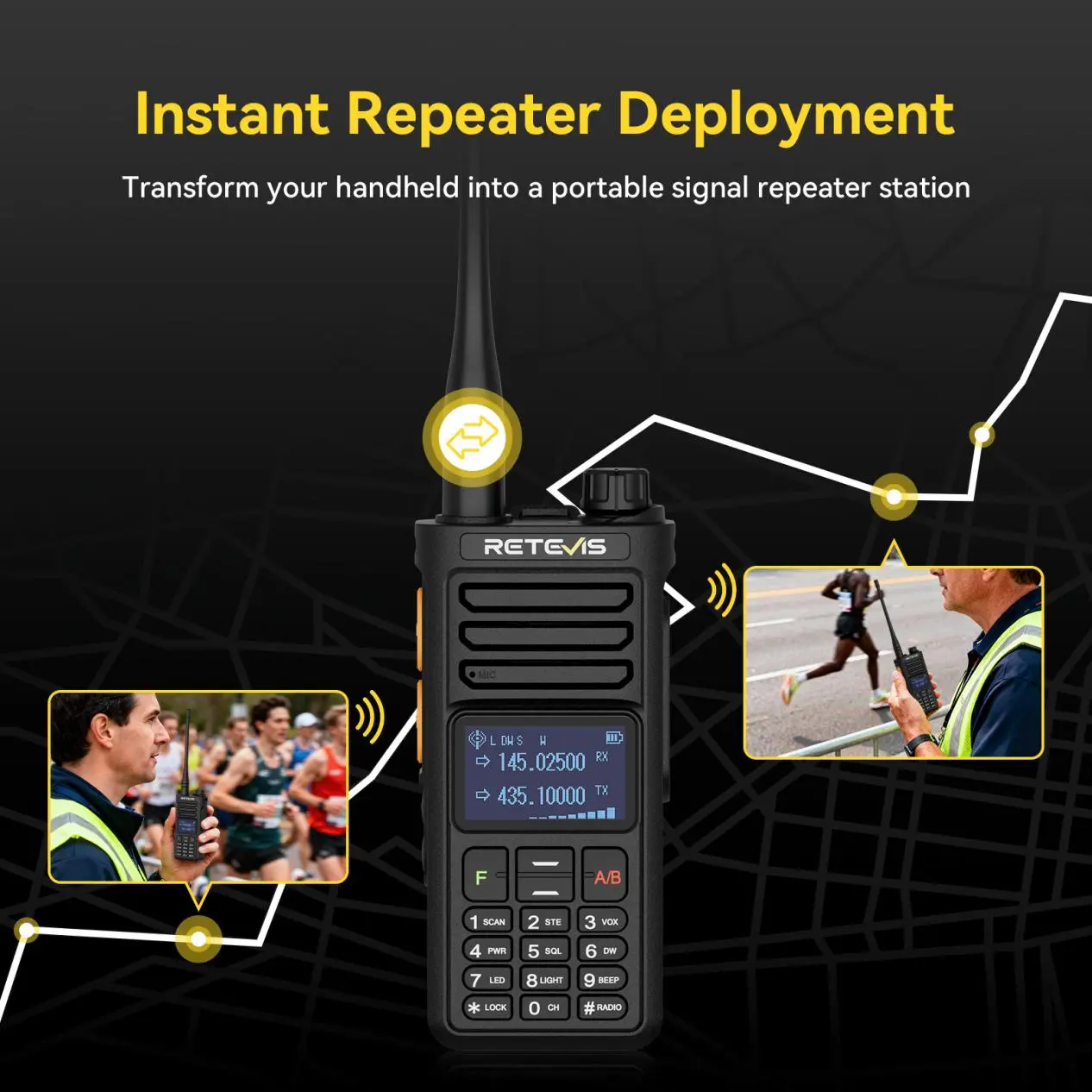

RETEVIS RA89R: A Solution Designed for Handheld Cross Band Repeat

After understanding the technical principles and usage requirements of cross band repeat, a natural question arises: what handheld device can reliably perform this task?

The RETEVIS RA89R is a dual band handheld radio that supports cross band repeat functionality. The RA89R can also serve as a communication bridge between UHF and VHF. It does not require the high power or complex installation of a mobile station— it is a portable, rapidly deployable cross band repeat solution.

Cross Band Repeat Function
The RA89R supports standard UHF and VHF cross band forwarding, completing the full process of signal reception, conversion, and transmission between the two bands. It fully integrates existing equipment and enables full coverage with unified command.

Portable Deployment
Unlike mobile base station that require antenna mounting and power wiring, the RA89R is ready to use out of the box. In scenarios requiring rapid response — emergency communication, field operations — this "instant-on" capability is especially valuable.

Broad Compatibility
The RA89R works with existing UHF or VHF equipment without requiring any replacement or upgrade of current devices. This means users can achieve cross band communication capabilities at a relatively low cost.

For users who need to connect different teams and handle complex communication scenarios, the RETEVIS RA89R offers a solution that combines portability, flexibility, and cost-effectiveness.

User Scenario Examples of RA89R Cross Band Repeat Walky Talky

Scenario 1: Emergency Communication Site

During a natural disaster response, fire, medical, and police teams arrive on site, each using different frequency bands. Under normal conditions, they cannot communicate directly.

Solution: Deploy one RA89R on site as a cross band repeater, set to forward signals between UHF and VHF. All three teams can achieve unified communication without replacing any equipment.

Scenario 2: Outdoor Team Activity

On a hiking trip, some team members use UHF radios while others use VHF radios. The team leader carries an RA89R and places it at a high point (hilltop, tree branch) as a temporary repeater, allowing the entire team to stay in contact regardless of which band they use.

Scenario 3: Cross-Department Coordination

At a large construction site or industrial campus, the security department uses UHF equipment while the engineering department uses VHF equipment. The central dispatch room uses an RA89R as a cross band repeater, enabling unified dispatch and rapid response across both departments.
