RT97P DMR Repeater + NR30D Radios 10+ Miles Range

Q: How do I pair the NR30D with the RT97P repeater?

Power on both devices, then set the NR30D to the same frequency and CTCSS/DCS code as the RT97P — check the repeater's LCD or manual for its default settings. Press the PTT button to test: the repeater should relay your signal to the other radios.

Q: Why is my NR30D not transmitting through the repeater?

Check three things in order: the NR30D and RT97P are on the same frequency with the correct offset, the CTCSS/DCS tones match on both ends, and the repeater's antenna is properly connected. Most pairing failures come down to a tone or offset mismatch.

Q: Can I use multiple NR30D radios with one RT97P repeater?

Yes. One RT97P can serve any number of NR30D radios configured to its frequency and tones — the bundle tiers scale to 6, 12, 20, or 50 handhelds for exactly this reason. Practical limits come from channel airtime, not a radio count, so very large fleets may want a second repeater channel.

Q: How can I reduce interference when using the repeater?

Set unique CTCSS/DCS tones to filter out unwanted signals, avoid overlapping frequencies with nearby repeaters, and place the RT97P antenna as high and clear of obstructions as the site allows.

Q: Can the RT97P work without internet or cellular networks?

Yes. The RT97P is a standalone UHF repeater and needs no internet or external network — power and an antenna are enough, which is why it works for remote sites and emergency deployments.

Q: Does the NR30D have a Talk Around function?

Yes. Talk Around lets NR30D radios talk direct when the repeater is unavailable or unnecessary — short-range work, emergency backup, or private team chats. Assign it to a side key in the programming software, then toggle between repeater mode and direct mode, keeping the same frequency and CTCSS settings.

Q: How far will the RT97P and NR30D kit actually reach?

No fixed mileage applies — the 10+ miles figure in older marketing is an ideal-condition number. Real range depends on antenna height and gain, coaxial cable loss, terrain, building structure, and handheld power. With the repeater antenna high and in the open, coverage can span a large site; inside steel and concrete, expect the repeater to clear dead zones rather than deliver miles.

Q: Can the kit work with my existing analog radios?

Yes. The RT97P runs in both digital and analog modes, so legacy analog radios can stay on the air while NR30D handhelds join the same repeater. Analog units use matching frequency and CTCSS/DCS tones; DMR units add color code and time slot settings.

Q: What frequency configuration does the RT97P ship with?

The stock UHF-10MHz configuration uses TX 463.3125 MHz and RX 453.3125 MHz, a 10MHz offset. The repeater can also be customized within UHF 400-470 MHz or VHF 136-174 MHz with a 5-12 MHz offset — note RX, TX, offset, and charger type when ordering, and custom units ship about four weeks after confirmation.

Q: What does AI two-way noise reduction actually do?

The NR30D's noise reduction chip filters background noise at both the receiving and transmitting ends of a call. In practice, voices from forklift cabs, loading docks, and plant floors arrive clearer, and incoming calls stay intelligible over machinery noise.

Description
Spec
Features
FAQ
RelevantDocuments
Reviews

Description

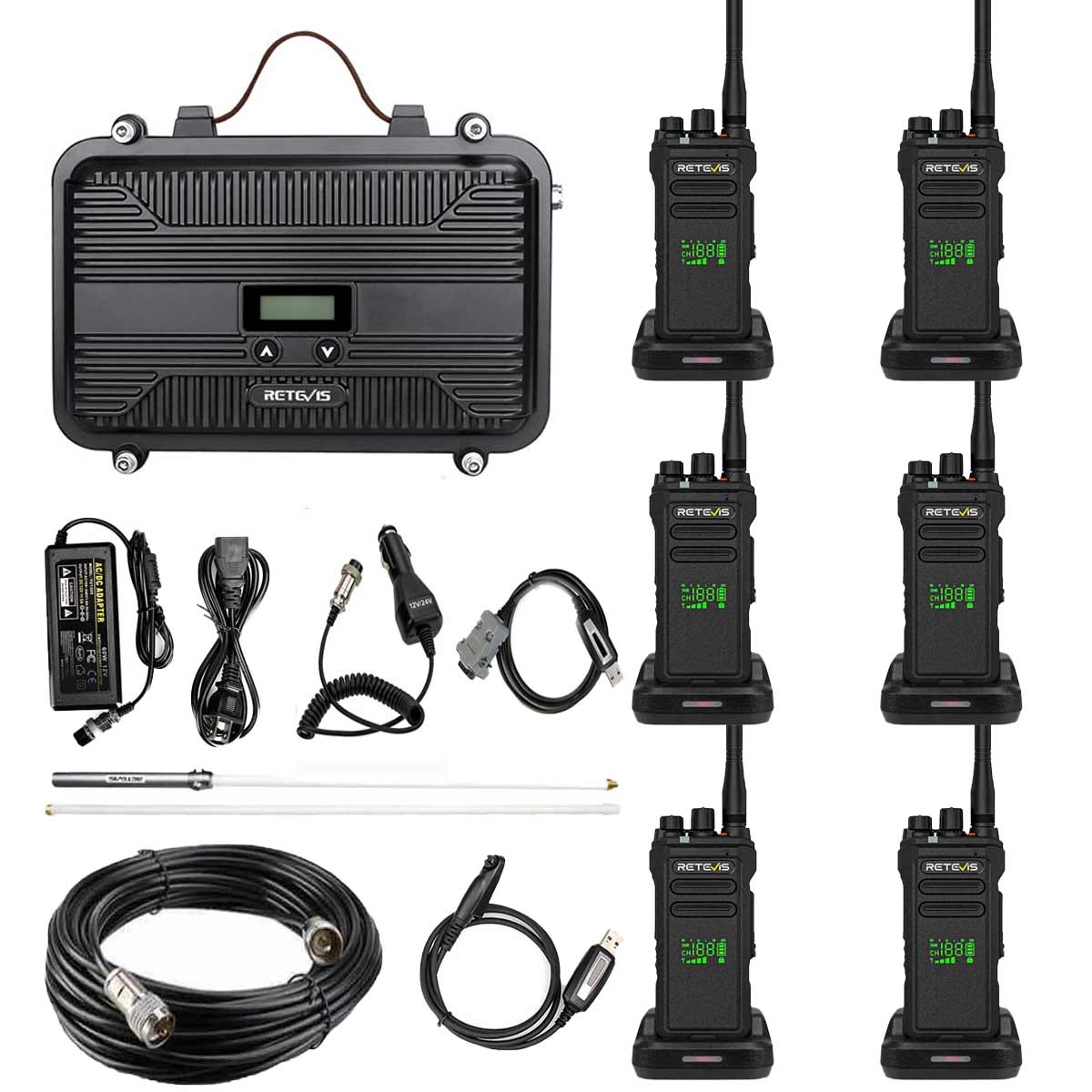

Retevis RT97P + NR30D: DMR Repeater and Handheld Radio Kit

The DMR radio solution pairs the RT97P mini repeater with NR30D handhelds for teams that need coverage beyond what handheld radios alone can reach. It suits warehouses, construction sites, farms, hotels, schools, and outdoor events where steel, concrete, and distance leave dead zones — a scenario list drawn from real buyer inquiries rather than a generic feature claim.

How the RT97P Mini UHF DMR Repeater Extends Team Coverage

The RT97P is a 10W UHF DMR repeater in a compact 280×210×75 mm carry box built for portable and remote installations. It fits solar-powered repeater sites, vehicles, and temporary field deployments, and one person can carry and mount it without extra equipment.

Key advantages of the RT97P DMR repeater:

Three advantages drive deployments: low current draw lets the RT97P run from a modest solar panel and battery bank, the small frame is light enough for one person to carry and mount, and transmit performance stays stable outdoors. Signals that cannot cross a hill, a warehouse floor, or a treeline on their own get relayed around the obstruction.

NR30D DMR Handheld Radios Built for Noisy, Multi-Floor Sites

The Retevis NR30D is a DMR digital handheld built for professional teams in loud environments. It carries 64 channels across 2 zones, switches between 10W, 5W, and 1W output, and runs on a 2800mAh battery charged over Type-C. A color display shows channel, zone, and battery state at a glance, so crews can check status without entering menus.

The NR30D DMR radio is Especially Suitable for:

Warehouses and logistics operations
Security teams and event staff
Stadiums, arenas, and concert venues
Construction and industrial sites
Schools, campuses, and churches
Hotels, convention centers, and multi-floor buildings

Why DMR Digital Audio Outperforms Analog in Steel and Concrete

Against analog FM, DMR keeps audio intelligible further into the fringe, uses error correction to reject the interference that turns analog audio into noise, and stays either clear or gone so teams know when to move. Encrypted digital channels cannot be picked up by a scanner the way analog can. That matters most where metal and concrete do the damage: pallet racking, steel beams, cold-store panels, and reinforced floors all reflect and absorb radio energy — exactly the environment this kit is built for.

RT97P Deployment: AC, 12V/24V DC, Vehicle, or Solar Power

The RT97P ships as a finished repeater in one enclosure: duplexer, power supply, and control board are already integrated, so there is no separate controller. Mount it, connect the antenna, apply power, and the repeater is on the air.

RT97P Power Options for Flexible Deployment

The RT97P ships as a finished repeater in one enclosure: duplexer, power supply, and control board are integrated, so there is no separate controller to wire up. Mount it, connect the antenna, apply power, and it is on the air. Power comes from 12-24V DC (vehicle or battery bank), the car cigarette lighter cable, the included AC adapter, or solar with a battery bank for hilltop and off-grid sites — no complex infrastructure required.

Dual-Mode Operation: Digital and Analog Compatibility

The RT97P DMR repeater supports both digital and analog modes, providing excellent flexibility. It can be used to: extend the range of DMR digital radios, support existing analog radio systems during transition.

The RT97P works in dual modes, so teams can upgrade from analog to DMR in stages: keep legacy analog radios on the air while NR30D handhelds join the same repeater.

Advanced DMR Walkie Talkie Features for Team Safety and Efficiency

The NR30D DMR handheld radio includes advanced features designed for professional team coordination:

AI Two-Way Noise Reduction

The NR30D carries a noise reduction chip that filters background noise at both the receiving and transmitting ends, so calls stay clear inside running forklifts, on loading docks, and across loud plant floors.

AES256 Encryption

AES256 encryption keeps business calls private and stops unauthorized radios from joining or monitoring the channel. For security teams, event staff, and industrial sites, encrypted DMR channels keep coordination off the airwaves of anyone with a scanner.

Lone Worker Function

Protects staff working alone in hazardous or confined environments. Teams don't always work together, such as in hazardous environments or tight quarters (e.g., pipelines). Confined environments require the use of Lone Woker to ensure the safety of the people involved, and the DMR is better able to withstand the interference of confined environments and reinforced concrete.

Rugged and Reliable for Outdoor and Emergency Use

Both sides of the kit are built for demanding outdoor and emergency use: the NR30D carries IP67 waterproof protection while the RT97P rides in a ruggedized enclosure. Essential functions — VOX hands-free, emergency alarm, channel lock, and Type-C charging — stay available in the field, and the NR30D adds remote stun and remote kill for lost or compromised radios.

Ideal Applications for This DMR Repeater & Handheld Solution

This DMR digital radio long-range solution fits security details, farms and ranches, warehouses and logistics centers, construction sites, large outdoor events, and emergency preparedness stores. Distance claims stay conditional: actual reach depends on antenna height, gain, cable loss, terrain, and building structure, so survey the site before fixing coverage targets.

Why Choose the RT97P & NR30D DMR Radio Solution

By combining a portable DMR repeater with professional-grade DMR handheld radios, this solution delivers:

Long-range and stable communication
Clear digital audio in noisy environments
Secure and efficient team coordination
Flexible power and deployment options

It is a reliable and scalable DMR radio communication solution for teams that need dependable coverage beyond the limits of standard handheld radios.

Spec

Mode	NR30D:DMR/Analog RT97P:Digital/Analog
Frequence Band	NR30D:UHF RT97P:Dual Band
Transmit Frequency（TX）	NR30D:UHF:400–480MHz RT97P:UHF:400-470MHz VHF:136-174MHz
Receive Frequency(RX)	NR30D:UHF:400–480MHz RT97P:UHF:400-470MHz VHF:136-174MHz
Power	NR30D:10W/5W/1W RT97P:10W/5W
Channel Number	NR30D:64 RT97P:8
Battery Capacity	NR30D:2800mAh RT97P:/
Operation Temperature	NR30D:-20°C to +50°C RT97P:-30℃ to +60℃
Encryption Type	NR30D:AES256 RT97P:CTCSS/DCS
Weight	NR30D:333.7g RT97P:3000g
Size	NR30D:1265836mm RT97P:28021075mm
Additional Features	NR30D:1.Two Zones； 2.VOX； 3.Channel Lock； 4.Monitor； 5.Scan； 6.Roger； 7.Low Battery Alert； 8.Power Save； 9.Squelch； 10.TOT； 11.One Key Call； 12.Remote Stun； 13.Remote Kill； 14.DCDM； 15.50CTCSS+210DCS； RT97P:1.Easy carry； 2.Car Charger； 3.Dual Mode；

RT97P Main Technological Specification

Frequency	TX 463.3125MHz / RX 453.3125MHz
Standard form	DMR/FM/DMR+FM
Channel Capacity	8CH
Channel Spacing	±12.5KHz Narrow/±25KHz Wide
Operating Temperature	-30℃~+60℃
Operating Voltage	DC12V-24V
Antenna Impedance	50Ω
Frequency Stability	±0.5ppm
Dimension	280×210×75mm
Weight	2624g

Transmitter

Output power	10W
Transmission Current	≤2.5A
FM Modulation	11kφF3E/16kφF3E
Digital modulation	4FSK
Modulation Distortion	≤5%
FM Noise	≥40dB（25KHz）/≥35dB（12.5KHz）
Adjacent Channel Power	≥70dB（25KHz）/≥60dB（12.5KHz）
Audio Response	+1～-3dB
DMR Protocol	ETSI-TS102 361-1,-2,-3

Receiver

Analog receive Sensitivity	0.25μν（12dB）SINAD
Digital receive sensitivity	-120dBm (BER≤5%)
Adjacent channel selectivity	≥70dB（25KHz）/≥60dB（12.5KHz）
Inter-modulation	≥60dB/≥65dB
Signal imitation	≥70dB
Audio Response	+1～-3dB
Audio distortion	<5%
FM Noise	≥45dB（25KHz）/≥40dB（12.5KHz）

NR30D Specifications

Model	NR30D
Frequency	UHF：400-480MHz
Number of Channels	64 channels: 2 zones (32 channels per zone)
Power	10W/5W/1W
Battery Capacity	2800mAh Lithium Battery (with Type-C interface)
Voltage	7.4V
Antenna Impedance	50Ω
Antenna	Detachable Antenna
Earphone Jack	Moto Pin
Dimensions	1265836mm (HWD, excluding antenna and knobs)
Weight	550g

Features

Retevis RT97P UHF DMR Portable Repeater

1. UHF-10mhz-Stock：Offset 10mhz, TX: 463.3125mhz and RX: 453.3125MHZ

2. Output power: 10W.

3. Small size: With the package size: 310×283×170mm. Very small and easy to carry, you can use it outdoor.

4. Car charger: Provide the car charger, you can use this repeater in your car.

5. Multi-charger way: Not only provide the car charger, but also provide the DC12V~24V power. Very convenient.

6. LCD display will help you know the TX and RX frequencies, CTCSS/DCS code.

NR30D Function:

High / Middle/Low Power Adjustable
Two Zones
VOX Hands-free
Private Call/Group Call/All Call
Channel Lock
Monitor
Scan
Roger
Emergency Alarm
AES256 Encryption
Lone Worker
Low Battery Alert
Power Save
Squelch
TOT（Time Out Timer）
One Key Call
Remote Stun
Remote Kill
DCDM
